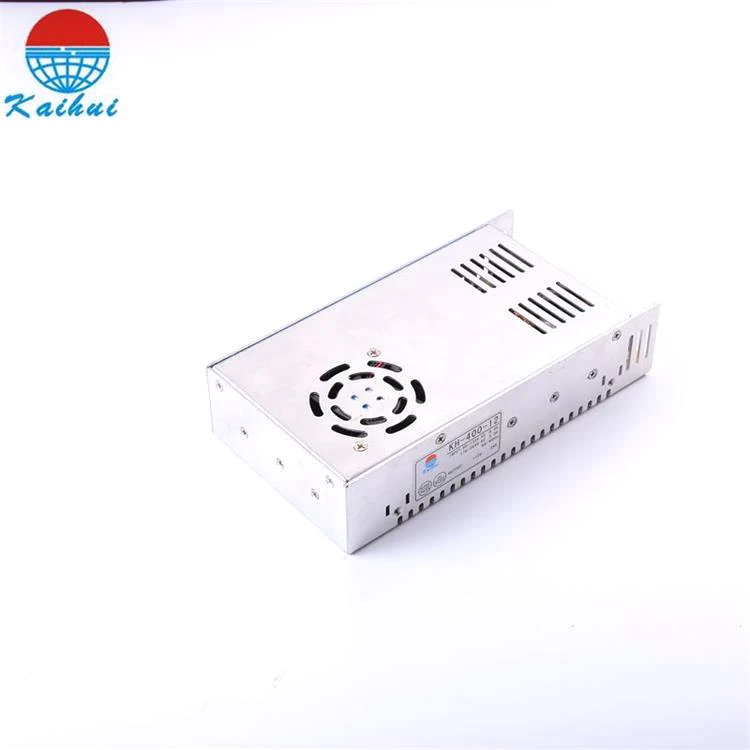

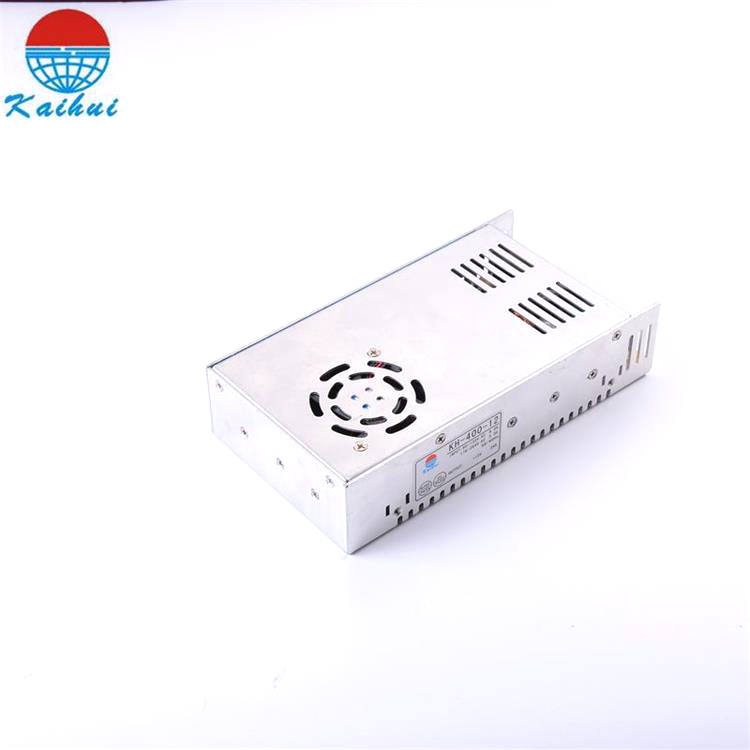

110V 220V by switch single output ac dc power supply 400W
Description:
KH-400 series 400W switching power supply has high efficiency, 110V 220V by switch and 12v 24v 36v 48v 60v output voltage adjustable with 2 years warranty, it can used in industrial automation products.
Features:
1, 400W power supply high efficiency;
2,12V 34A contains filter, low output noise;
3, DC12V 400w power supply 110vac,220VAC input voltage;
4, 400W 12V SMPS with short circuit,overload and overcurrent protection.
|
Parameter
|
|
Item NO
|
KH-400-12
|
KH-400-15
|
KH-400-24
|
KH-400-36
|
KH-400-48
|
|
Output
|
DC Output Voltage
|
+12V
|
+15V
|
+24V
|
+36V
|
+48V
|
|
Output Rated Current
|
34A
|
27A
|
17A
|
11A
|
8.5A
|
|
Current Range
|
0-34A
|
0-27A
|
0-17A
|
0-11A
|
0-8.5A
|
|
Rated Power
|
408W
|
405W
|
408W
|
396W
|
480W
|
|
Ripple & Niose
|
100mVp-p
|
100mVp-p
|
120mVp-p
|
240mVp-p
|
240mVp-p
|
|
DC Adjustable range
|
±10%
|
±10%
|
±10%
|
±10%
|
±10%
|
|
Voltage Tolerance
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
50ms,50ms,20ms
|
|
Input
|
input Voltage Range
|
90V~132V AC/180-264vac by switch
|
|
AC Current
|
6.5A@115Vac, 3.2A@230Vac
|
|
Input Frequency
|
50-60Hz
|
|
Efficiency
|
83% @230Vac
|
84% @230Vac
|
84% @230Vac
|
85% @230Vac
|
86% @230Vac
|
|
Power Factor
|
＞0.5@115Vac, ＞0.5@230Vac
|
|
Inrush Current
|
Cold Start
15A@115Vac ,30A@230Vac
|
|
Leakage Current
|
<0.5mA@240V
|
|
Protection
|
Over Load Protection
|
110~200% Automatic protection
|
|
Over Voltage Protection
|
15-17V
|
18-20V
|
30-33V
|
42-45V
|
54-57V
|
|
Over Temp. Protection
|
>90 degree,shut down.
|
|
Environment
|
Working Temp., Humidity
|
-20~40℃,10~90% RH,No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety & EMC
|
Safety Standards
|
GB4943
|
|
Withstand Voltage
|
I/P-O/P:3KV; I/P-FG：1.8KV；O/P-FG:0.06KV AC 1min.
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
EN55022 CLASSB
|
|
Others
|
Dimension
|
215*115*50mm
|
|
Weight
|
1.2KG
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|
