Features:
1) Great Value tool for your building process.
2) Two years guarantee term provided freely.
3) Products can be custom-made according to your design.
4) Export more than 1000 units to Africa, Southeastern Asia, and South America.
Specification:
|
Type
|

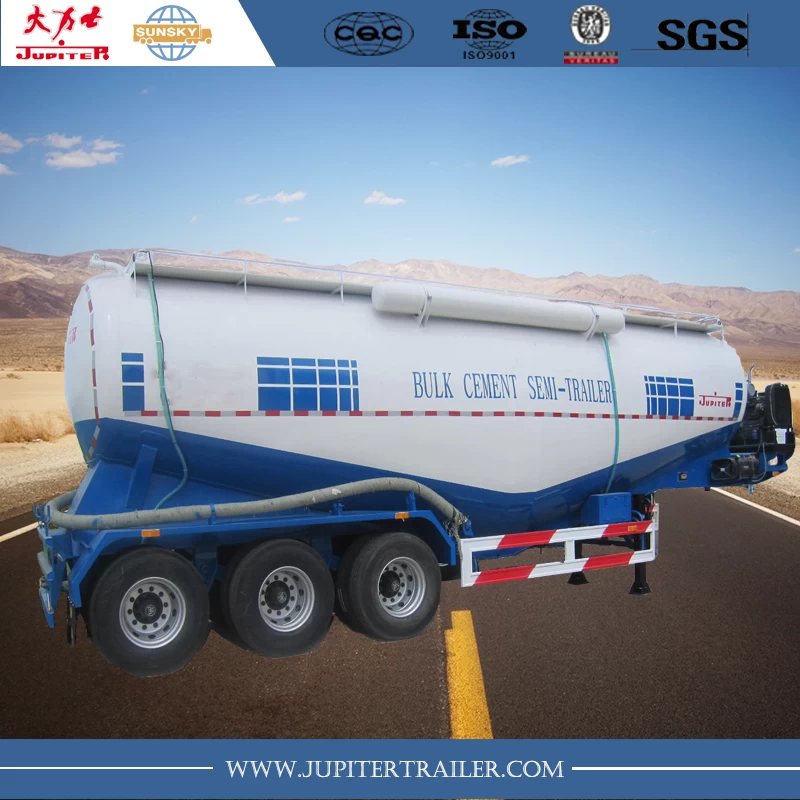

30CBM Bulk Carrier Semi-trailer
|
|
Model
|
SS9430GSX
|
|
Parameter
|
Dimension(mm)
|
9800*2500*3700
|
|
King Pin Setting(mm)
|
2620
|
|
FifthWheel Height(mm)
|
The height will be adjusted according to the tractor specification
|
|
Axle Space(mm)
|
6900+1310+1310
|
|
Tare Weight（kg）
|
Approximate 1,0000
|
|
Payload （kg）
|
30000
|
|
GVWR（kg）
|
40000
|
|
Paint
|
primer + top coat
|
|
OEM
|
Landing Gear
|
JOST C200
|
|
Kingpin
|
3.5”JOST
,exchangeable(Kingpin plate is close type)
|
|
Brake System
|
30/30 type on rear
two axle,30 type on front axle, WABCO brake valve
|
|
ABS
|
ABS. WABCO
|
|
Suspension
|
Mechanical
suspension with 8 leaf spring
|
|
Axle
|
FUWA 13T, 3 pcs
|
|
Tire
|
Triangle Brand,
type: 11.00R20-18PR , equip 13 per chassis
|
|
Rim
|
8.0-20, ISO10, equip
13 per chassis
|
|
Tool Box
|
1 set, steel box,1m, Unbrand
|
|
Spare Tire Carrier
|
2 units per chassis
|
|
Color
|
|
Following customer’s request.
|
specification listed for reference only.

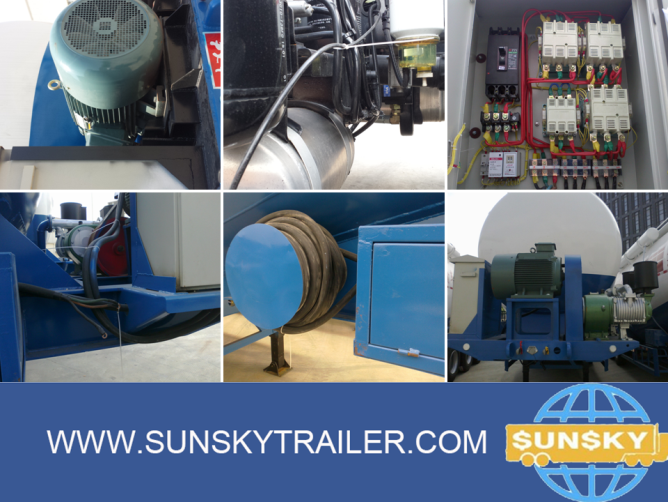

Product Detail:

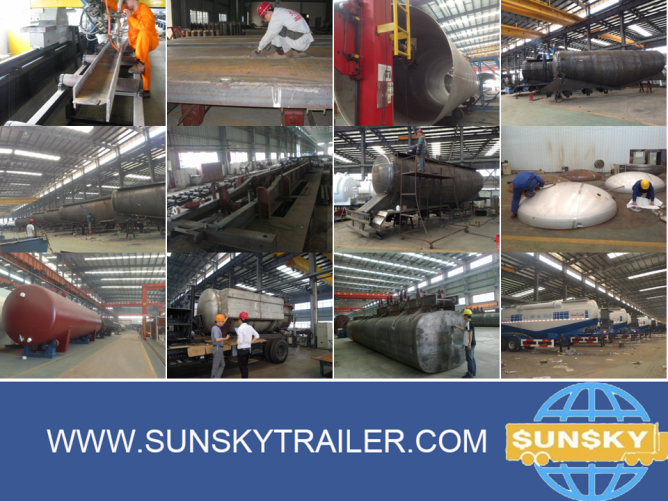

Producing Process:

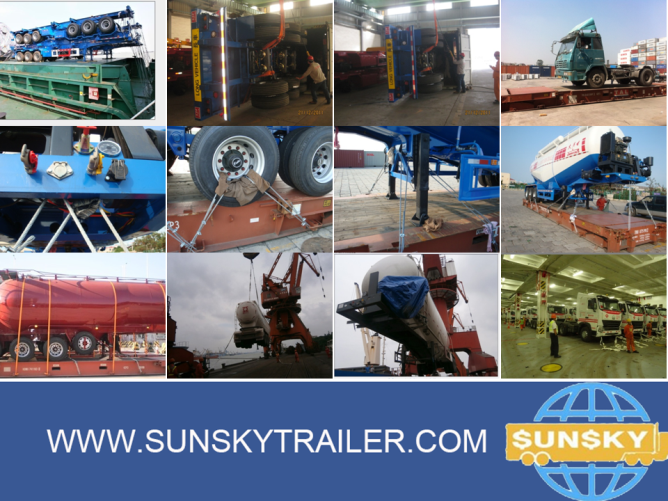

Loading and Packing
Certificate and Technology：
Other Products：
