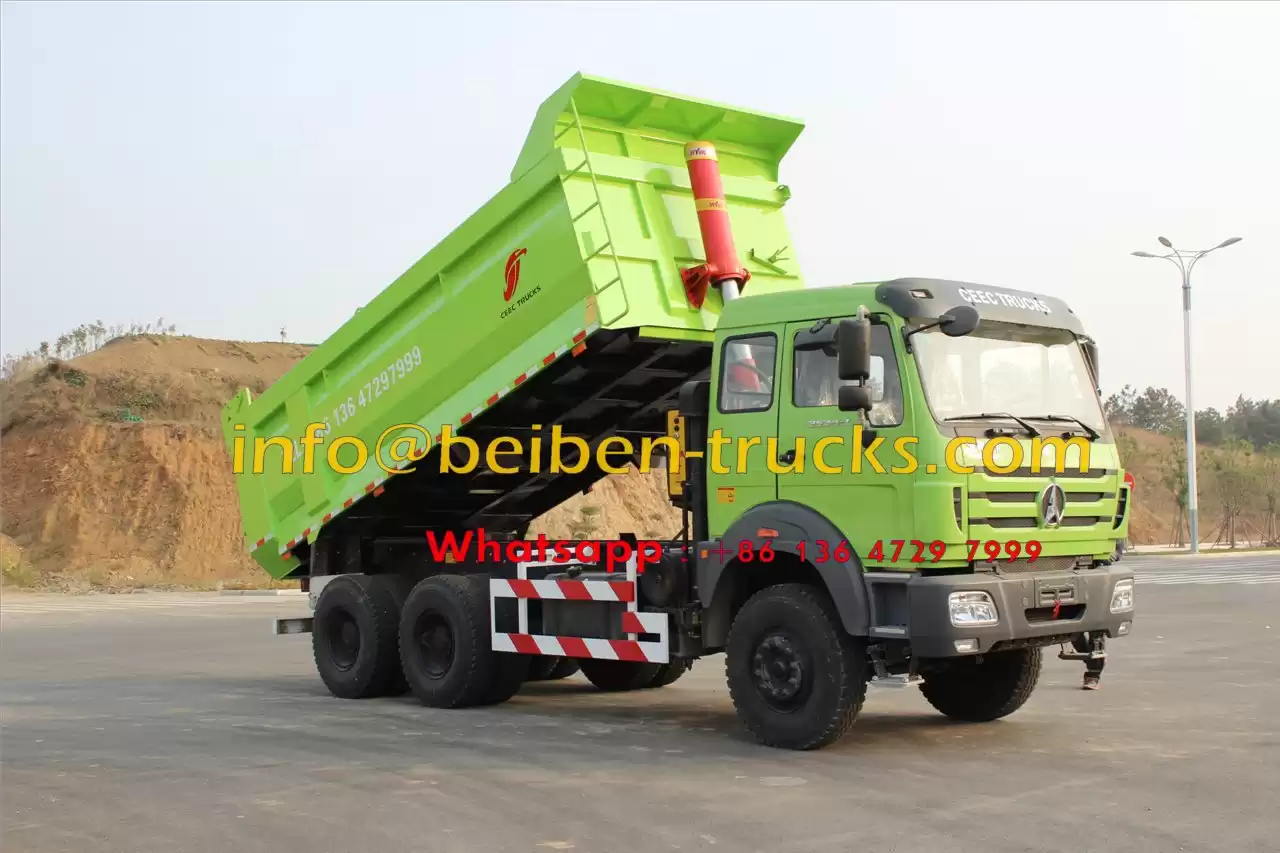

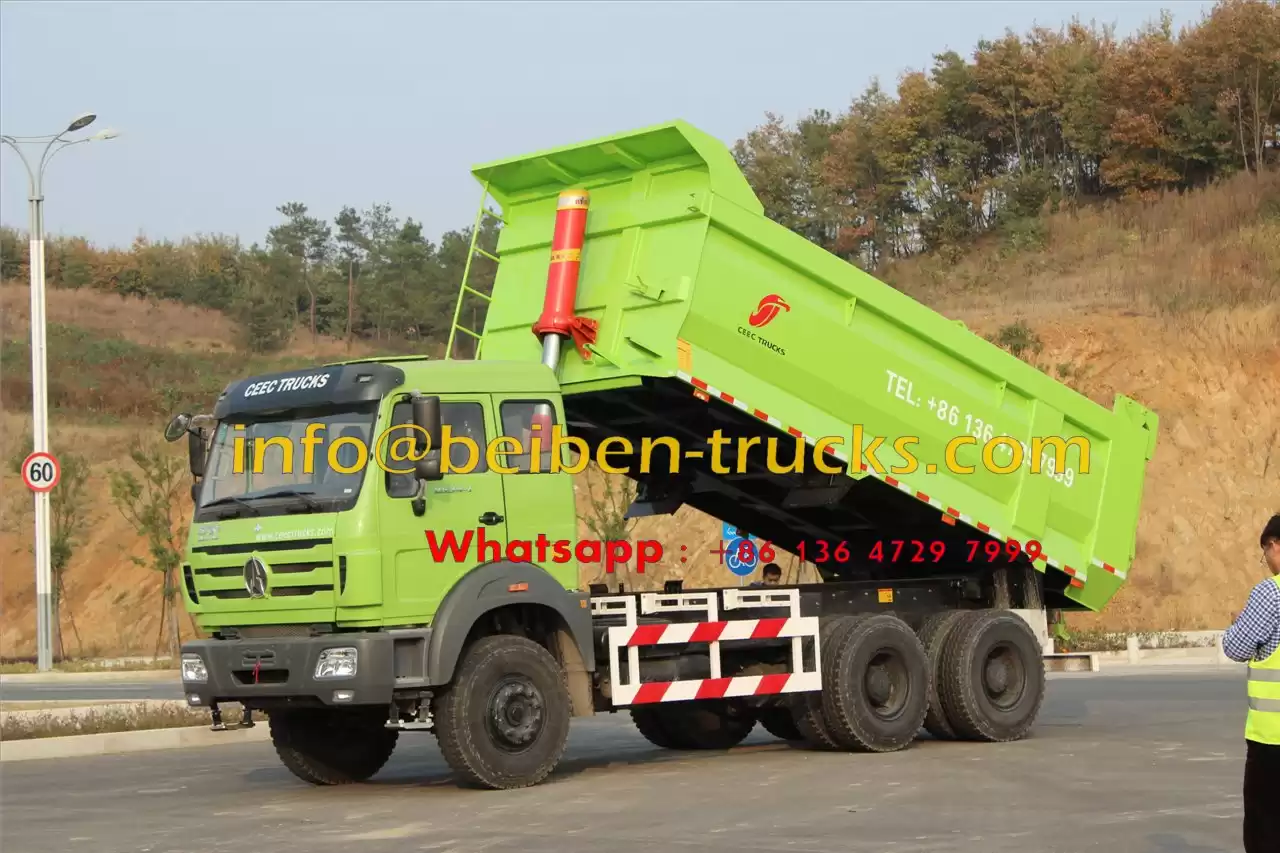

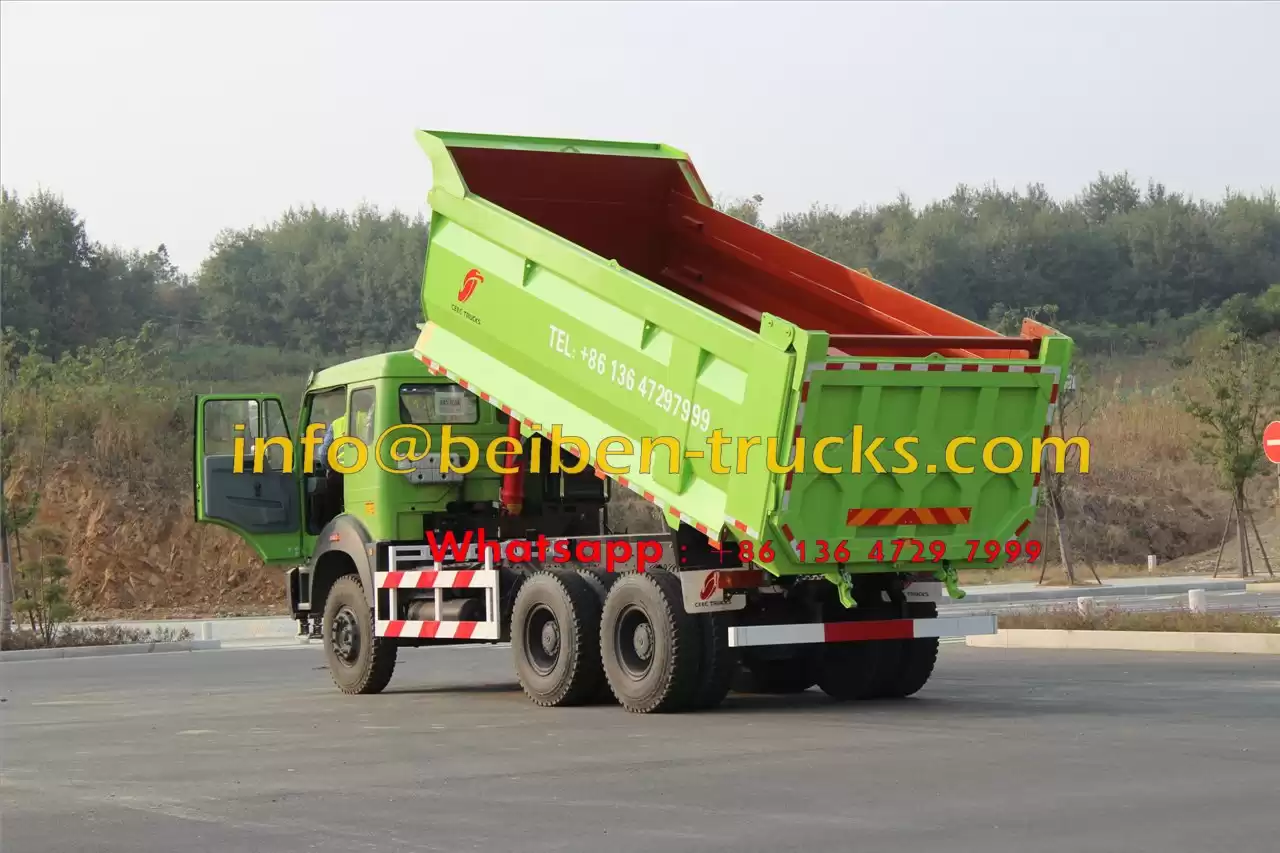

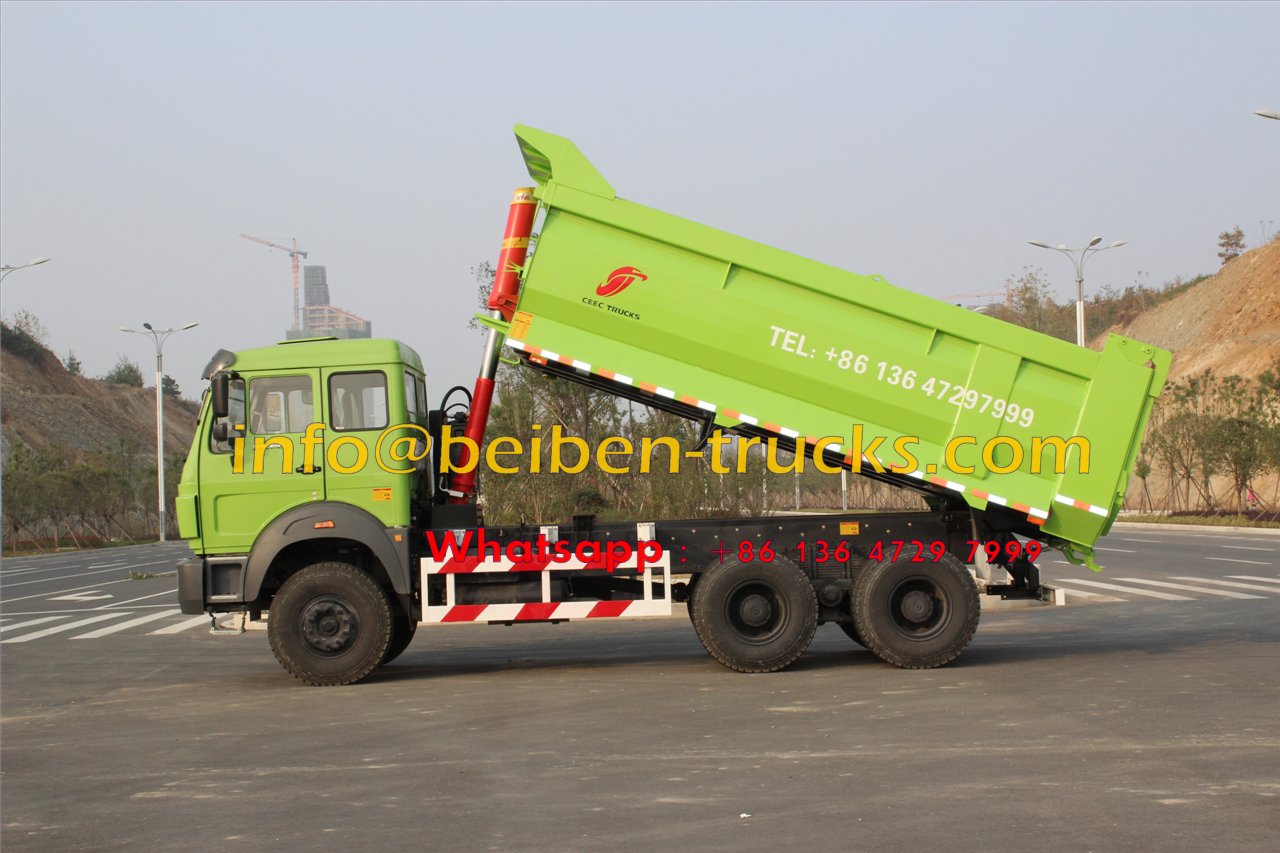

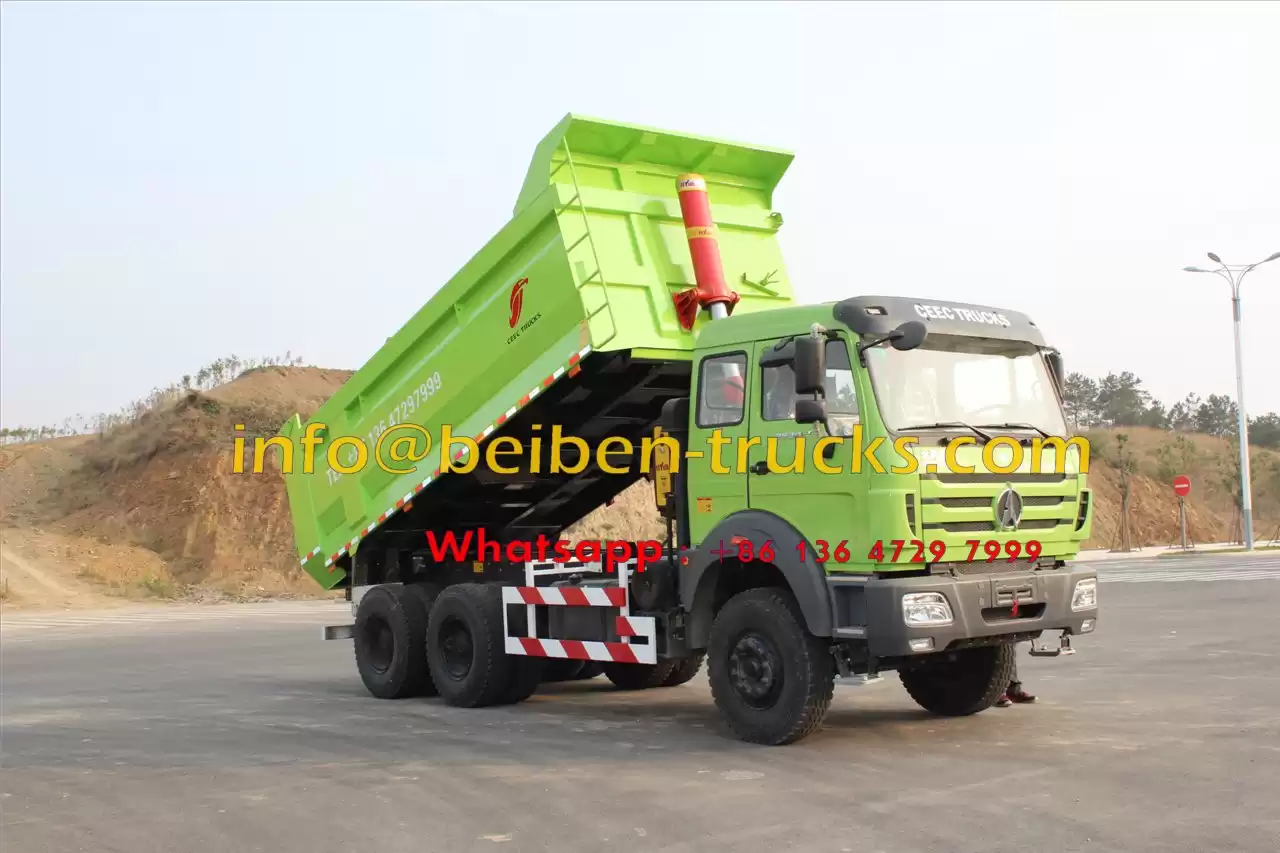

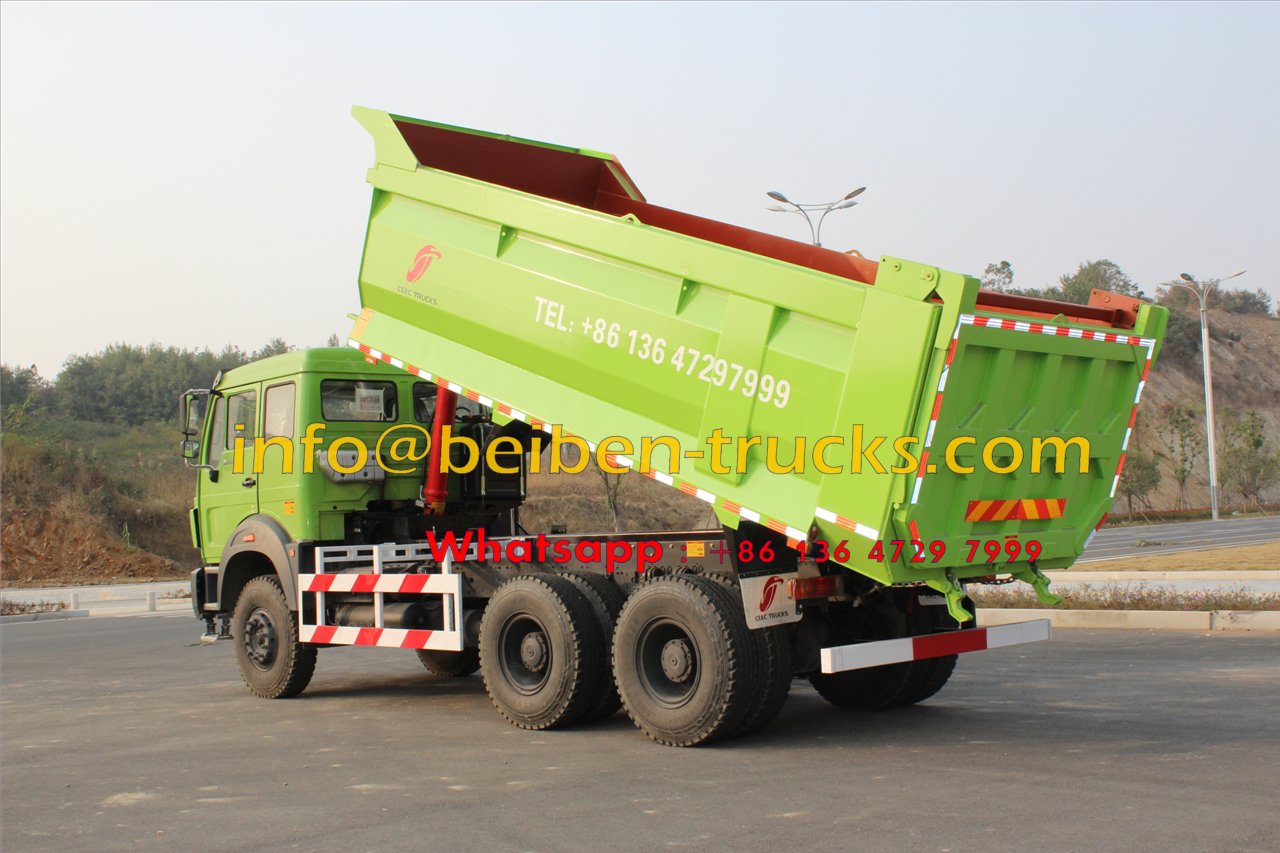

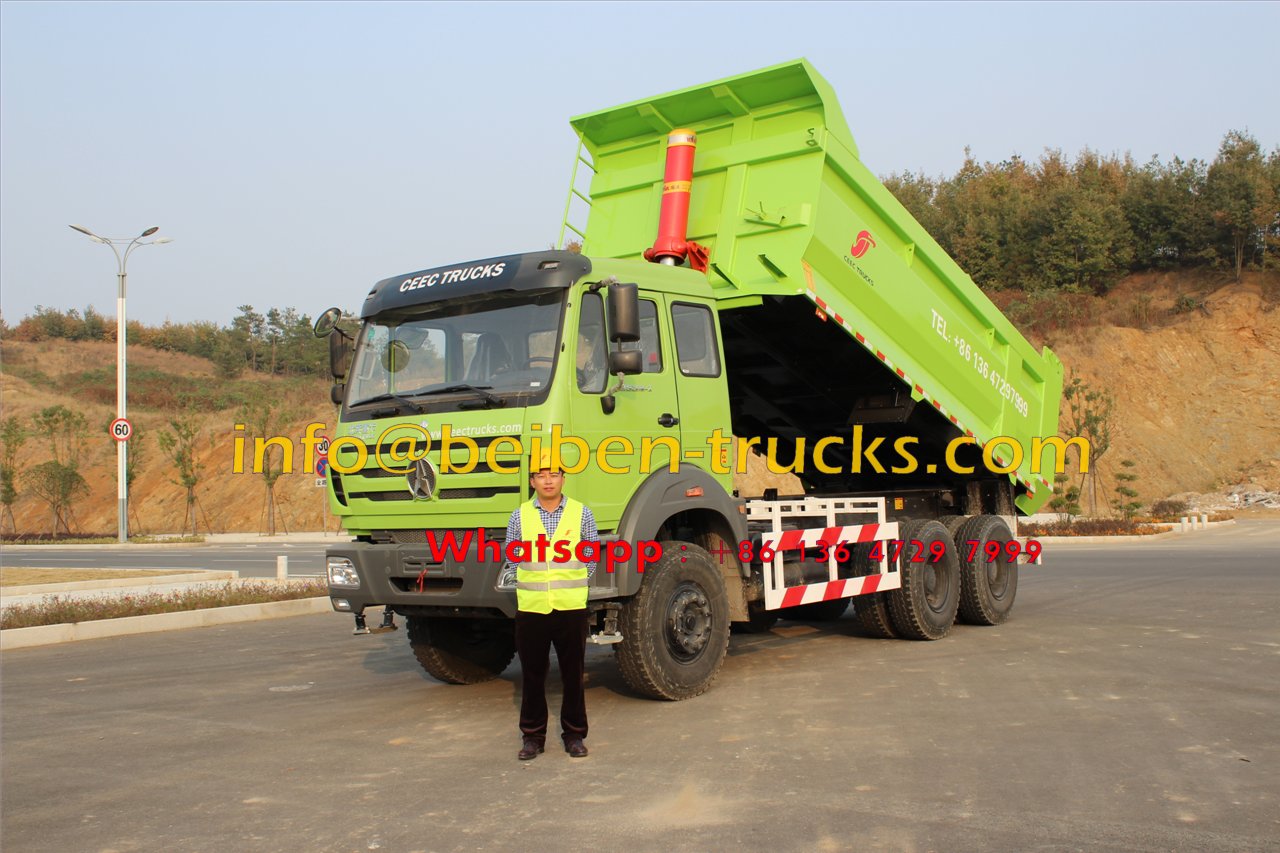

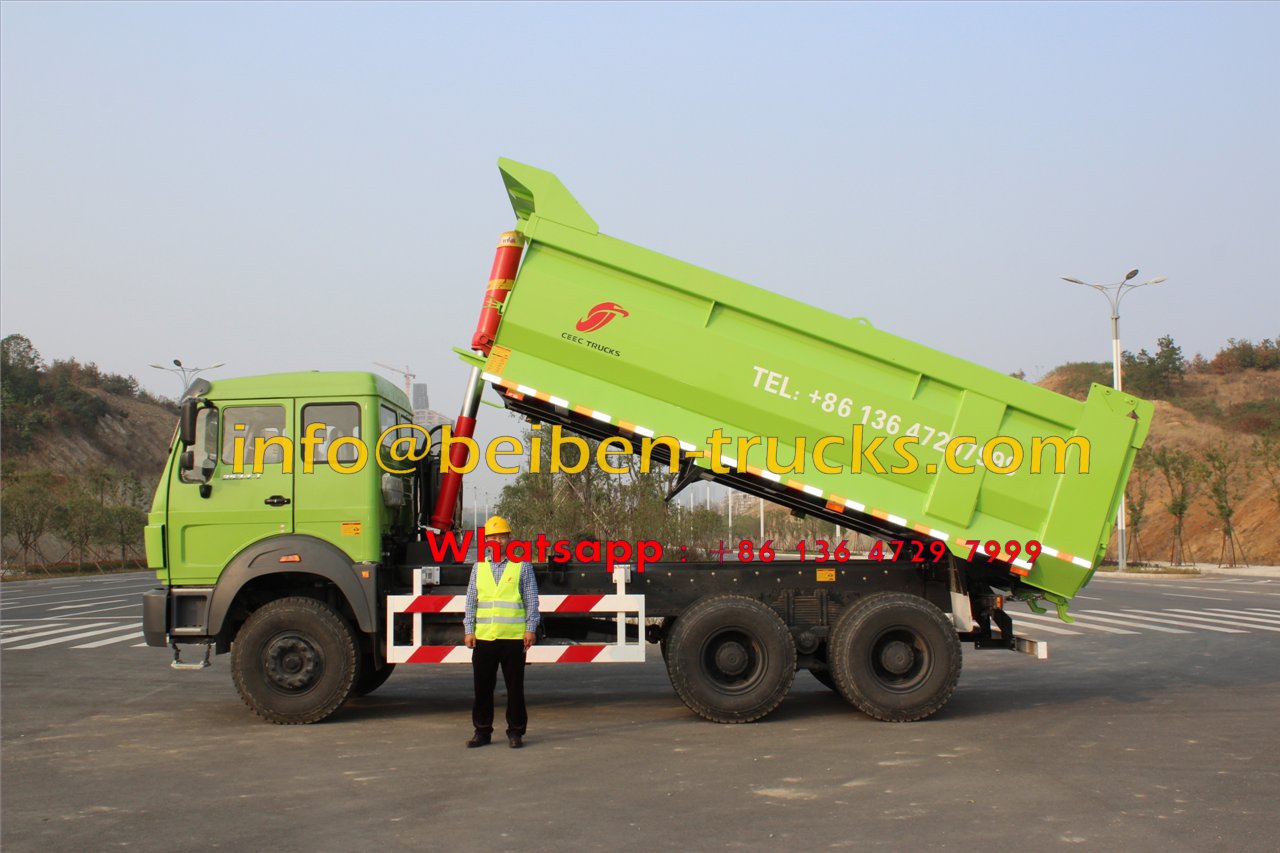

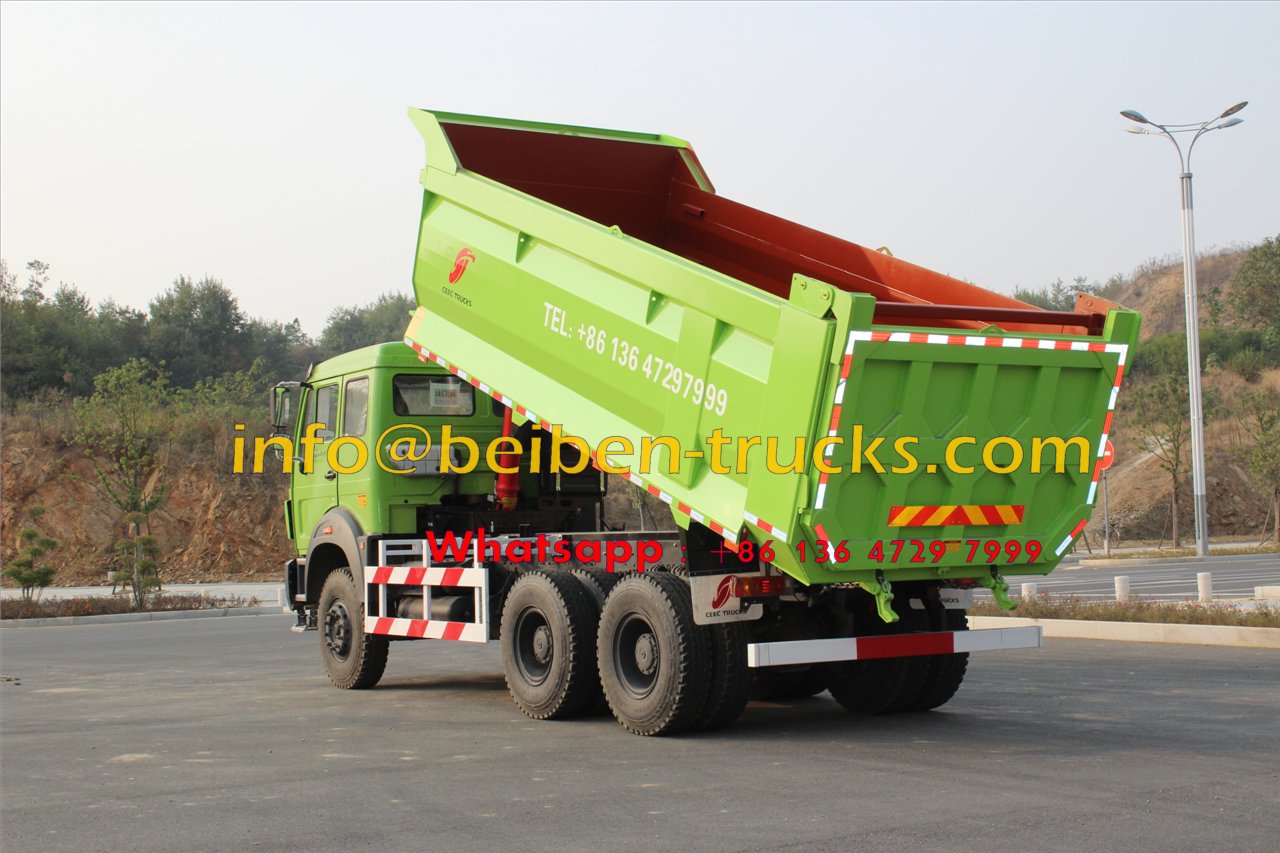

Good quality Beiben 310hp 6X4 10 wheel dump truck for hot sale

2015 New Heavy Duty Truck Beiben Dump Truck for Sale In Congo

Advantages

1.The competitive price compared with similar products.

2.Good product quality since it is the famous brand in China.

3.we can arrange our engineers to provide repaire service on abroad.



Packaging & Shipping

 Nude or container


Product Description



Model 2531KY
Drive type 6X4
Weight   Complete kerb mass(kg) 12200
GVW(kg) 25000
Dimensions Max.lengh(mm) 8290/8530
Max.width(mm) 2500
Max.height(mm) 3464
Front/Rear overhang(Chassis) 1410/1630,1410/1870
Wheel base (mm) 3800+1450
Track width(mm) 1995/1800/1800
Performance  Max.speed(km/h) 80
Approach/Departure angle(°) 26/32
Engine Brand  WEI CHAI
Model WP10.290E32
Power(KW/HP) 228/310
Max.Torque(N.M)/rpm 1250N.M/1200-1600RPM
Displacement(L) 9.726
Emission Standards Euro III
Transmission  Brand  FAST
Model 9JS150A
Control type Manual
Gear shift  9-forward and 1 reverse speeds
Clutch Type Single plate,diaphragm spring
Diameter(mm) φ430
Action Mechanical type,hydraulic and pneumatic operation
Braking Service brake  Bra
Park brake  Potential springs pressing on middle and rear wheels
Auxiliary WEVB
Option ABS
Steering  Type ZJ120D
Chassis Type Fish belly, various width, various sections, side beam structure,Strengthened frame
Dimensions(mm) 300X90X8+6+8

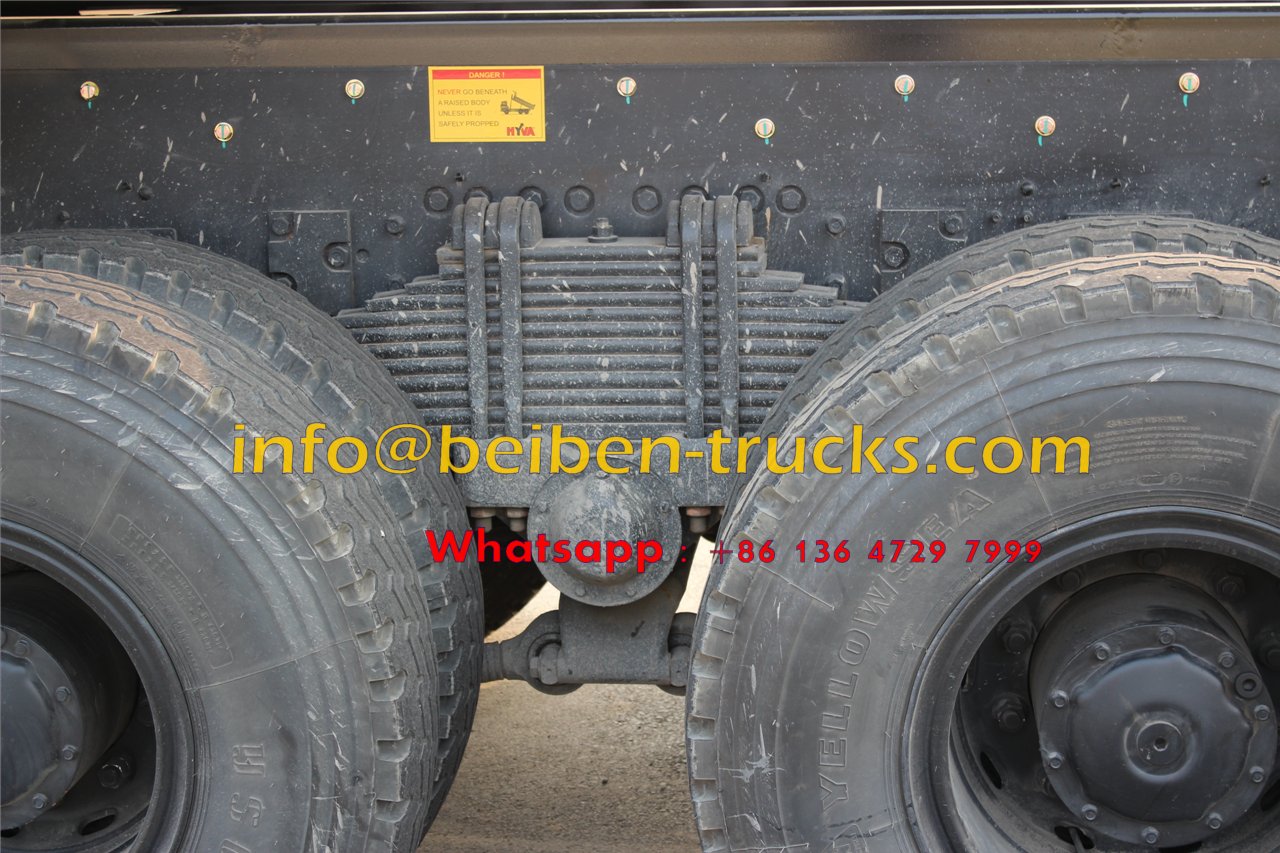

Suspension the number of leaf spring 10+13
Axles Front axle 7500kg
Rear axle 13000kg double reduction driving axles
Ratio 5.921
Tyres Type(Standard) 12.00R20
Option 12.00R20/12.00-20/11.00R20/12R22.5
Fueltank Tank capacity(L) 300
Material Iron
Option 400L(iron)
Cab
  NG80B shortcabin,2 persons.
other  Platform dimensions(mm) 5800X2300X1100
