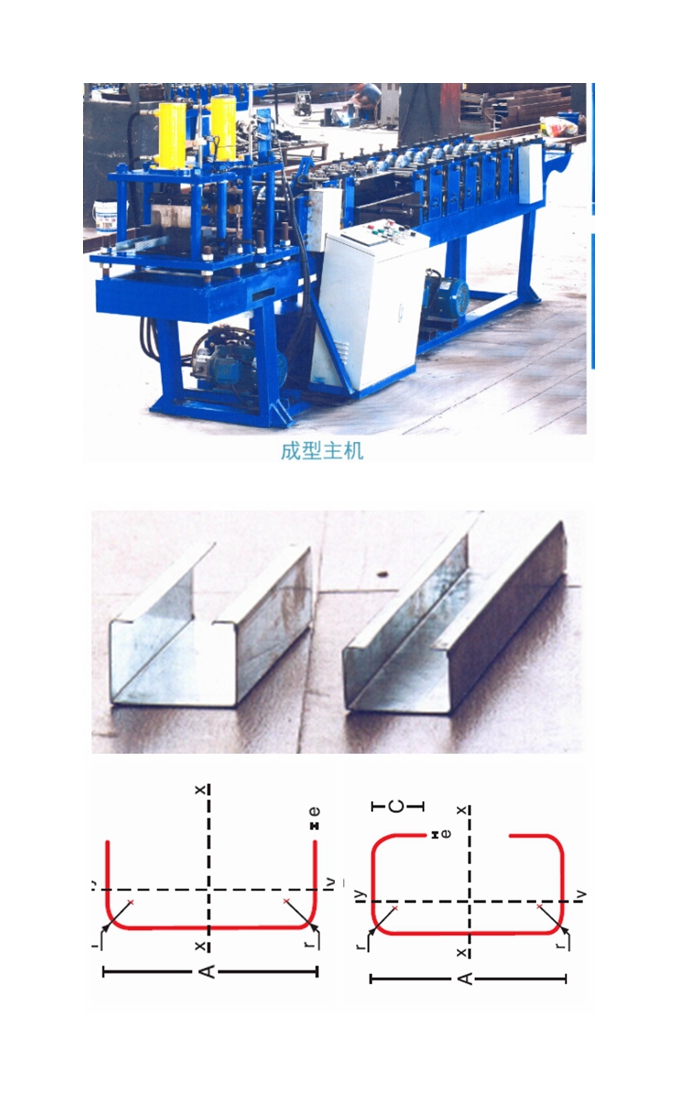

Good Quality with China Price Light Gauge Steel Framing Machine




Material

Material Thickness:0.9-2.5mm

Applicable material:Galvanized Steel,Tension Grade: 245Mpa or 550Mpa,

Machine Components

1)  Manual Decoiler: one set

Un-powered,Manually control steel coil inner bore shrinkage and stop,

Max. feeding width: 300mm,material coil range 470±30mm

Capacity: Max. 3Ton

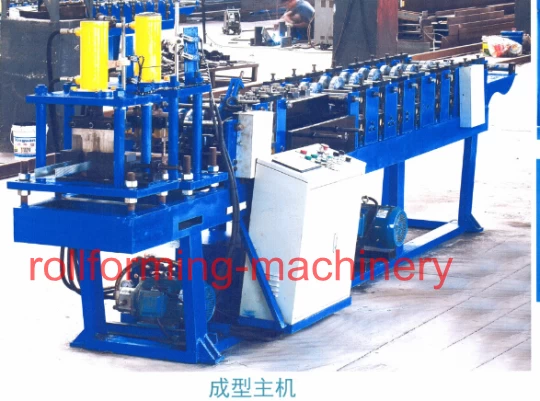

2)   Cold Rolling Mills:

With feeding material guide, body frame made from H type channel steel by welding;

wall plate:18mm

Rollers manufactured from GCr12, precision machined, hard Chrome Coated;

Shafts Diameter=ф75mm,precision machined

Gear/Sprocket driving, about 14-step to form

Main Motor=11KW  , Frequency speed control

Forming speed approx.10m-12m/min

3)  Hydraulic Cutting device:

5.5kw hydraulic presure:0-12Mpa Cutter material:Cr12, heat treatment.

4) PLC Control System

Control the quantity and cutting length automatically

Combined with:  PLC, Inverter, Touch Screen, Encoder, etc

Cut-to-length tolerance≤±2 mm

Control Voltage 24V

5)  Exit Rack

Un-powered, two units



After-sale Service
1. The warranty of HOWICK Style Truss Forming Machine is one year after the client receives the machine. Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories.
