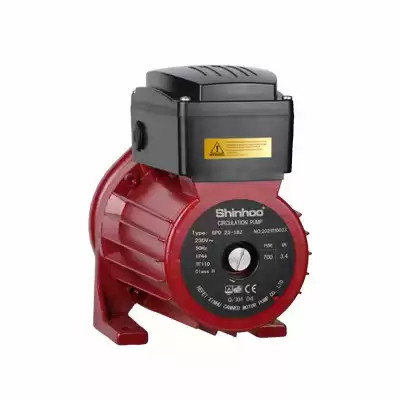

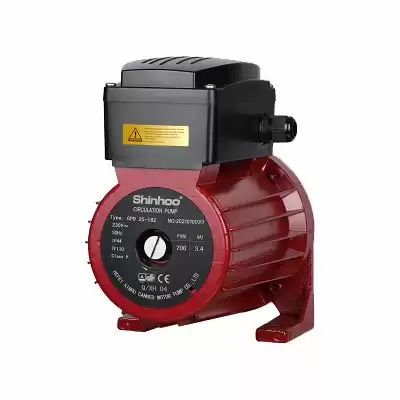

GPD25-16Z Circulation Pump
GPD25-16Z is a kind of single-phase canned motor pump designed and produced by Shinhoo . Our water circulating pump can be used in single pipe or double pipe heating system, also can be applied to city apartments, suburb villa, cooling, air-conditioning, boilers and solar systems etc.We are factory that specialized in making pumps.The pump body is cast iron.This type of pump has high lift that can satisfy your need.
Product Item：Water Circulation Pump GPD25-16Z
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. Speed no: The pump has single speed selector.
Product features
1.Low noise
2.No leakage
3.Ecological safety in operation
4.Artistic appearance
5.Easy installation
6.Reliable operation
Product selection
1.pump of cast iron body is widely used for delivering water of room temperature.
2.pump of copper body is largely used in the underground heating system.
3.for delivering domestic hot water we recommend using pump of stainless steel body(GDP-N) or copper body(GPD-B)
Model: GPD25-16Z
Power: 700W
Max.flow: 11m³/h
Max head: 16m
Current: 3.4A
Voltage/ Frequency: 230V 50HZ
Pump housing: Cast iron
Pumped liquid: Water
Insulation class: H
Degree of Protection: IP44
Liquid temperature range: 2-110℃
Max System Pressure: 1.0Mpa
