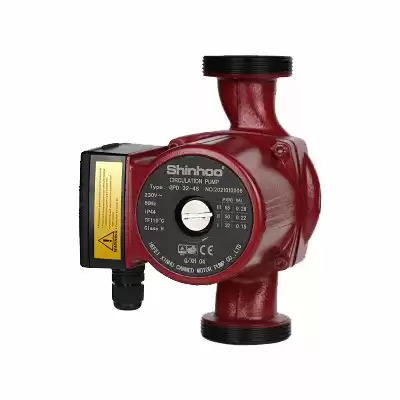

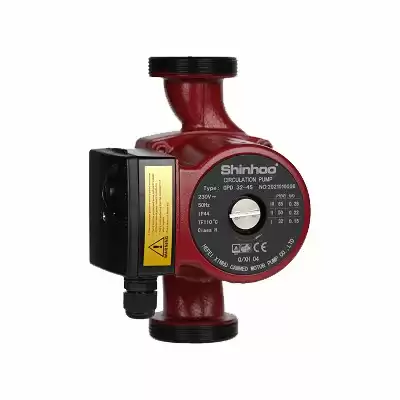

GPD32-4S Circulation Pump
Shinhoo
GPD series circulator is suitable for:Commercial heating;Domestic hot water recirculation;Domestic heating
The
Shinhoo GPD and GPS circulator pumps are designed for heating, domestic
hot-water, cooling and air-conditioning systems. The pumps are available in
various materials, making them suitable for a range of applications. The pumps
are reliable and maintenance-free.
1.Pump
contains two parts: body and motor (with wet rotor).Body contains impeller,
while motor includes stator, rotor, shield cover and deflating screw.
2.Tightness:the
pump does not use mechanical seal. Stator and rotor are sealed with
shield cover made of stainless and two heat-resistant rubber rings, which makes
no leakage.
3.Lubrication
of bearings and cooling of motor by inner circulation of pumped liquid.
4.Insulation
class H, motor fixed with thermal protector, one speed or three speeds.
Product
features
1.Low
noise
2.No
leakage
3.Ecological
safety in operation
4.Artistic
appearance
5.Easy
installation
6.Reliable
operation
