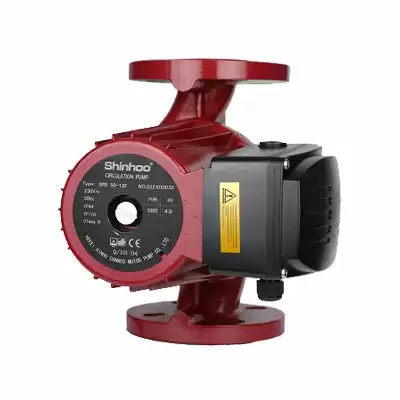

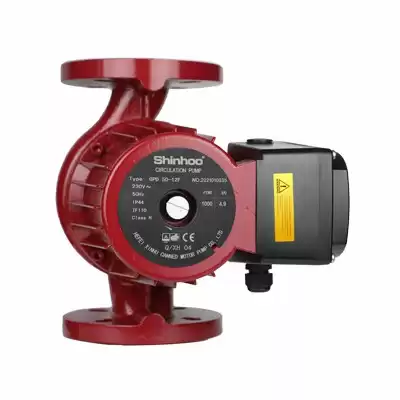

GPD50-12F Circulation Pump
GPD50-12F is a kind of single-phase hot water circulation pump designed and produced by Shinhoo . Our water circulating pump can be used in single pipe or double pipe heating system, also can be applied to city apartments, suburb villa, cooling, air-conditioning, boilers and solar systems etc.
Product Item：Water Circulation Pump GPD50-12F
The recirculating water pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. Speed no: The pump has single speed selector.
The pump is characterized by:
|
Product features
1.Low noise
2.No leakage
3.Ecological safety in operation
4.Artistic appearance
5.Easy installation
6.Reliable operation
Product selection
1.pump of cast iron body is widely used for delivering water of room temperature.
2.pump of copper body is largely used in the underground heating system.
3.for delivering domestic hot water we recommend using pump of stainless steel body(GDP-N) or copper body(GPD-B)
Model: GPD50-12F
Power: 1000W
Max.flow: 28m³/h
Max head: 12m
Current: 4.9A
Voltage/ Frequency: 230V 50HZ
Pump housing: Cast iron
Pumped liquid: Water
Insulation class: H
Degree of Protection: IP44
Liquid temperature range: 2-110℃
Max System Pressure: 1.0Mpa
