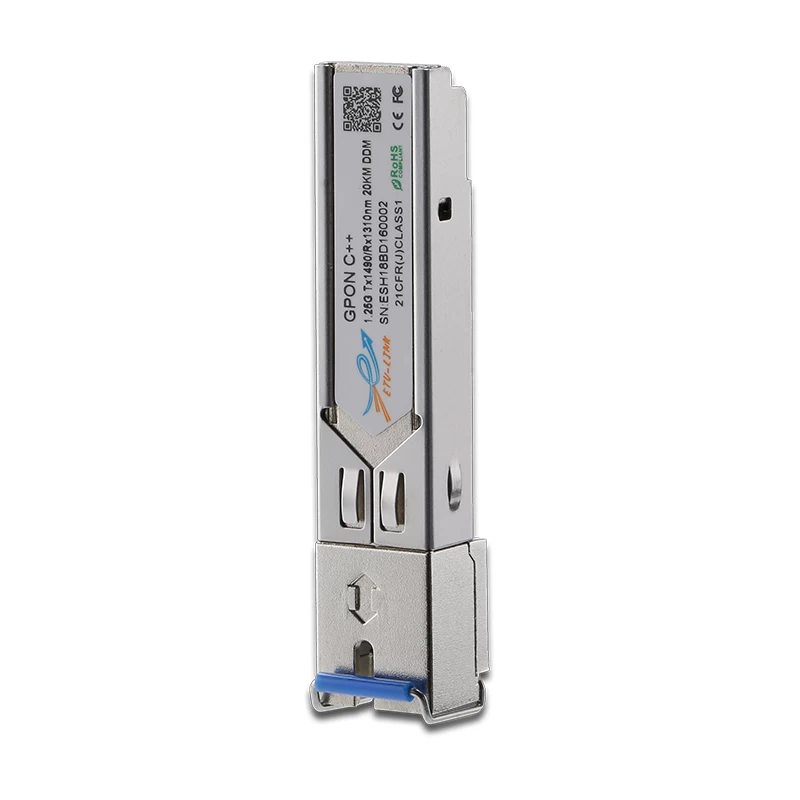

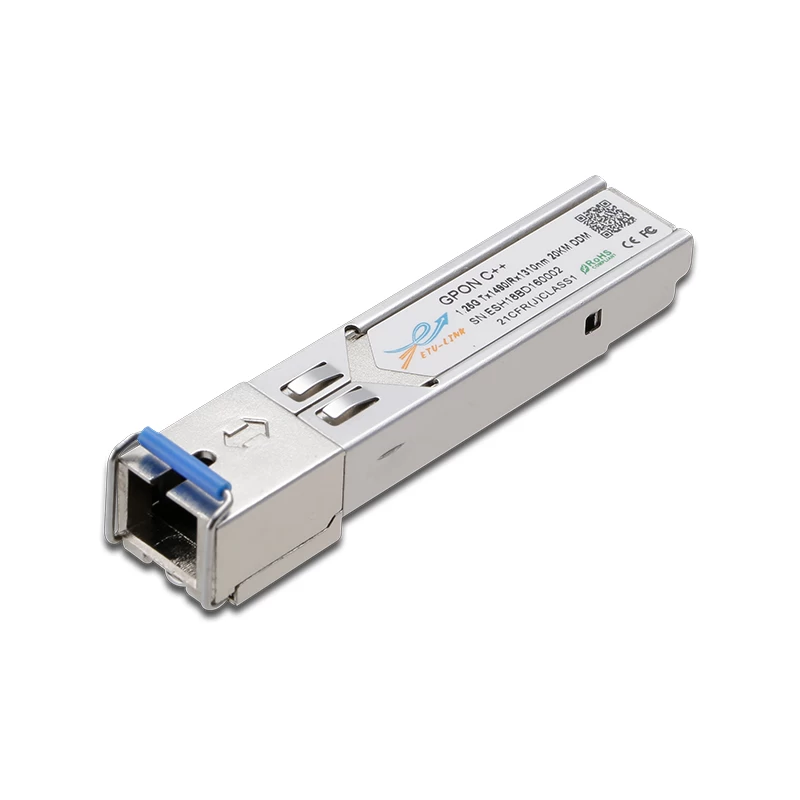

EGP4321-3SCDC2x
GPON OLT Class C++ SFP Transceiver
Feature
Ø Single fiber bi-directional data links asymmetric TX 2488Mbps / RX1244Mbps application
Ø 1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver
Ø Small Form Factor Pluggable package with SC/UPC Connector
Ø Reset burst-mode receiver design support more than 15dB dynamic range
Ø 0 to 70°C operating temperature
Ø Single 3.3V power supply
Ø Digital diagnostic monitoring interface
Ø Digital burst RSSI function to monitor the input optical power level
Ø LVPECL compatible data input/output interface
Ø LVTTL transmitter disable control
Ø LVTTL transmitter laser fault alarm
Ø LVTTL receiver Signal Detect
Ø Low EMI and excellent ESD protection
Ø Class I laser safety standard IEC-60825 compliant
Ø RoHS-6 compliance
Applications
Ø Gigabit-capable Passive Optical Networks (GPON) Class C++ 20Km
Standards
Ø Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
Ø Complies with SFF-8472 Rev 9.5
Ø Complies with ITU-T G.984.2 Amendment 2
Ø Complies with FCC 47 CFR Part 15, Class B
Ø Complies with FDA 21 CFR 1040.10 and 1040.11
