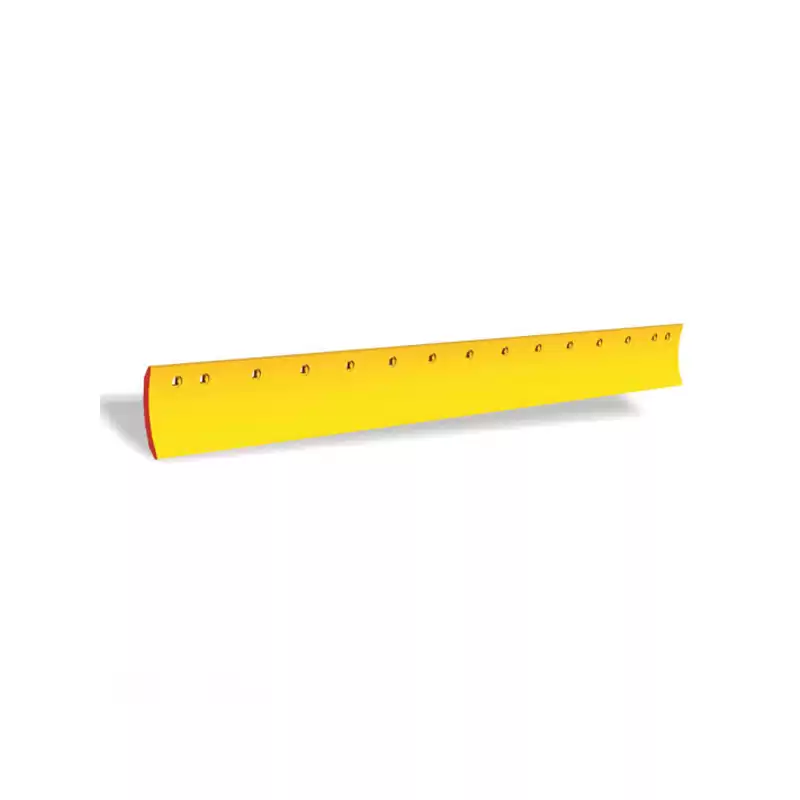

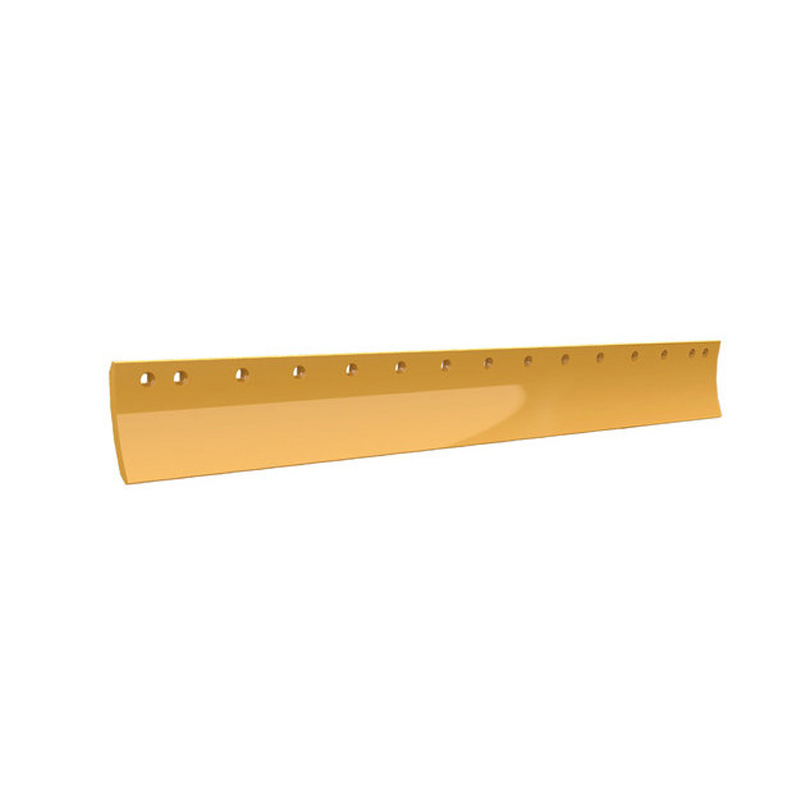

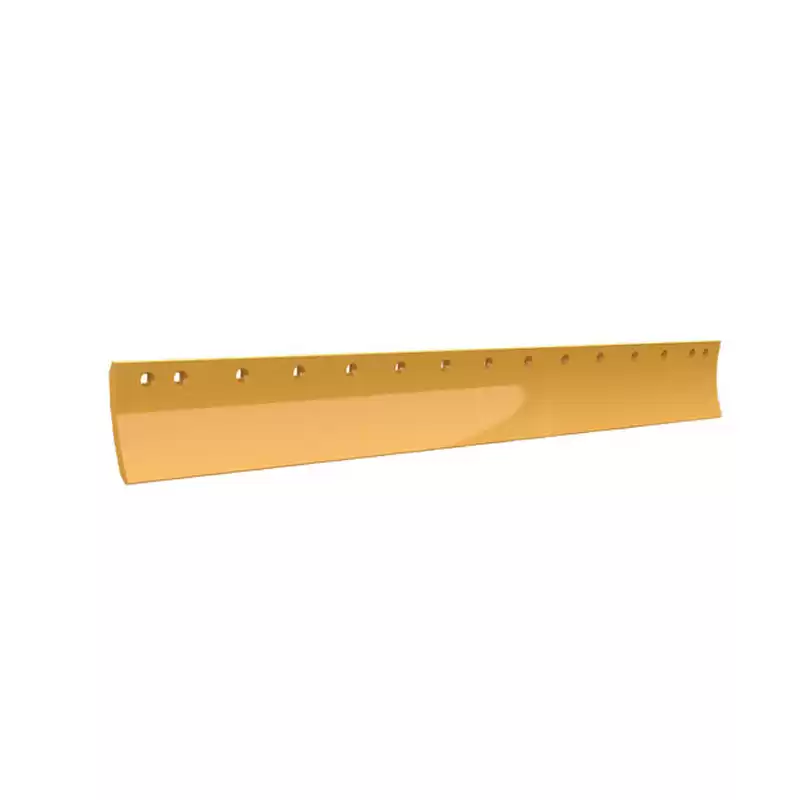

Grader Blades 5D9558 Cat Style
Product Specification
|
Product:
|
Motor Grader Blades,Cutting Edge, End Bits
|
|
Material:
|
Carbon steel/Boron
steel
|
|
Production
Process:
|
Heat
Treatment/Machining
|
|
Color:
|
Yellow or as
customers' request
|
|
Finish:
|
Smooth
|
|
Application:
|
Bulldozers,/Graders,/Loaders/Shovel
|
|
Certification:
|
ISO9001
|
|
Offer
customized Service :
|
Yes
|
|
Working
conditions:
|
Mining
&Construction &Road &Agricuture &Earth moving
|
Our advantages
-

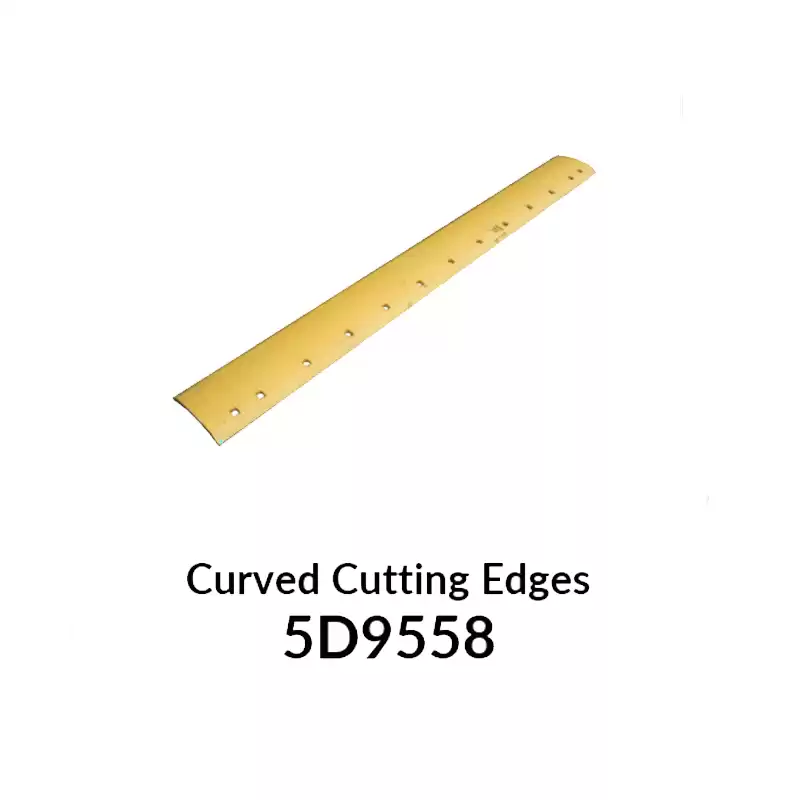

Spare part 5D9558 GRADER BLADE belongs to the Ground Engaging Tools
-
Curved edges penetrate the roadway better than flat edges while carrying existing material forward to leave a smooth even surface
-
Good appearance, longer wear life, better reliability, thicker cutting edges provide added strength and wear material for abrasive or high impact applications
Cutting Edges and Blades, End Bits Compatible Model
|
Grader
blades
|
|
Part No.
|
Dimension(mm)
|
Holes
|
Bolt size
|
|
Part No.
|
Dimension(mm)
|
Holes
|
Bolt size
|
|
5D9553
|
1828X152X16
|
13
|
5/8"
|
4T2231
|
1828X203X25
|
13
|
3/4"
|
|
5D9554
|
2133X152X16
|
15
|
5/8"
|
4T2233
|
2133x203x25
|
15
|
3/4"
|
|
5D9558
|
1828X203X19
|
13
|
5/8"
|
4T2237
|
2438x203x25
|
17
|
5/8"
|
|
5D9559
|
2133X203X19
|
15
|
5/8"
|
5B5564
|
1828x152x16
|
8
|
5/8"
|
|
5D9561
|
2133X203X16
|
15
|
5/8"
|
5B5562
|
2133x152x16
|
9
|
5/8"
|
|
5D9562
|
1828X203X16
|
13
|
5/8"
|
9W2301
|
2438x152x13
|
10
|
5/8"
|
|
7D1577
|
2133X203X19
|
15
|
3/4"
|
9W2299
|
2133x152x13
|
9
|
5/8"
|
|
7D1949
|
2438X203X19
|
17
|
3/4"
|
9W2302
|
2438x152x13
|
10
|
3/4"
|
|
7D1588
|
2133X203X16
|
15
|
3/4"
|
9W2309
|
1219x203x13
|
6
|
5/8"
|
|
4T2244
|
1828X203X25
|
13
|
5/8"
|
8J9821
|
2438x203x16
|
17
|
3/4"
|
|
4T2242
|
2133X203X25
|
15
|
5/8"
|
9W2297
|
1828x152x13
|
8
|
5/8"
|
|
4T2236
|
2438X203X25
|
17
|
3/4"
|
234-70-12670
|
2133x203x19
|
15
|
5/8"
|
|
9J3658
|
2133X152X16
|
15
|
3/4"
|
234-70-12710
|
2133x203x16
|
15
|
3/4"
|
|
7D4508
|
1524X152X16
|
11
|
5/8"
|
234-70-12193
|
2133x152x16
|
15
|
5/8"
|
|
5D9556
|
1828X152X19
|
13
|
5/8"
|
4T3036
|
2133x203x19
|
15
|
5/8"
|
|
5D9557
|
2133X152X19
|
15
|
5/8"
|
4T3007
|
1828x203x19
|
13
|
5/8"
|
|
3G7966
|
1524X152X19
|
11
|
5/8"
|
4T3034
|
1524x203x19
|
11
|
5/8"
|
|
9J3657
|
1828X152X16
|
13
|
3/4"
|
4T3037
|
2438x203x19
|
17
|
3/4"
|
|
PS: The models above are just for reference, we can't list all
models here. We can supply more products as your requirements. Please feel to
contact with us.
|
|
Grader curved cutting edge & Bulldozer cutting
edge
|
|
Part No.
|
Main dimension (mm)
|
Holes
|
Dias.
|
|
4T3007
|
1828*203*19
|
13
|
5/8"
|
|
4T3032
|
2133*203*19
|
15
|
3/4"
|
|
4T3036
|
2133*203*19
|
15
|
5/8"
|
|
4T3037
|
2438*203*19
|
17
|
3/4"
|
|
4T3034
|
1524*203*19
|
11
|
5/8"
|
|
7T3497
|
1524*203*25
|
11
|
5/8"
|
|
7T3498
|
2133*203*25
|
15
|
5/8"
|
|
7T3499
|
1828*203*25
|
13
|
5/8"
|
|
4T6502
|
1828*254*25
|
13
|
3/4"
|
|
4T2948
|
1063*254*19
|
7
|
3/4"
|
|
4T2989
|
1063*254*25
|
6
|
3/4"
|
|
9W6658
|
851*406*45
|
6
|
1-1/4"
|
|
9W3931
|
757*406*45
|
6
|
1-1/4"
|
|
9W8215
|
1130*203*19
|
4
|
5/8"
|
|
6Y5359
|
900*254*25
|
6
|
7/8"
|
|
4T2985
|
802*254*25
|
6
|
3/4"
|
|
4T2991
|
708*254*25
|
6
|
3/4"
|
|
4T8081
|
2260*203*16
|
6
|
5/8"
|
|
4T2979
|
2029*203*16
|
6
|
5/8"
|
|
4T3009
|
1521*203*19
|
6
|
3/4"
|
|
4T3004
|
1440*203*19
|
6
|
3/4"
|
|
4T6659
|
1052*203*19
|
6
|
3/4"
|
|
4T3013
|
1010*203*19
|
6
|
3/4"
|
|
4T3029
|
992*203*19
|
6
|
5/8"
|
|
4T3005
|
859*203*19
|
6
|
5/8"
|
|
4T3006
|
808*203*19
|
6
|
5/8"
|
|
1U4458
|
1064*406*35
|
6
|
1-1/4"
|
|
PS: The models
above are just for reference, we can't list all models here. We can supply
more products as your requirements. Please feel to contact with us.
|
|
Bulldozer
End Bits
|
|
Part number
(right)
|
Part number (left)
|
Length(mm)
|
Width(mm)
|
Thickness(mm)
|
Hole size
|
Hole quantity
|
|
8E4193
|
8E4194
|
570
|
392
|
40
|
1"
|
7
|
|
3G8315
|
3G8316
|
531
|
293
|
30
|
7/8"
|
7
|
|
8E4197
|
8E4196
|
585
|
408
|
50
|
1"
|
7
|
|
3G8295
|
3G8296
|
402
|
221
|
25
|
5/8"
|
6
|
|
3G8297
|
3G8298
|
402
|
221
|
25
|
3/4"
|
6
|
|
3G8321
|
3G8322
|
415
|
245
|
25
|
5/8"
|
6
|
|
4T5407
|
4T5408
|
520
|
252
|
25
|
3/4"
|
4
|
|
4T3043
|
4T3044
|
289.5
|
203
|
19
|
5/8"
|
3
|
|
3G8319
|
3G8320
|
415
|
245
|
25
|
3/4"
|
6
|
|
8E4193
|
8E4194
|
600
|
400
|
35
|
1"
|
7
|
|
144-70-11260
|
144-70-11250
|
328
|
258
|
25
|
3/4"
|
5
|
|
17M-71-21940
|
17M-71-21930
|
698
|
387
|
40
|
1"
|
7
|
|
195-71-11183
|
195-71-11173
|
683
|
429
|
40
|
1"
|
7
|
|
175-71-22282
|
175-71-22272
|
540
|
315
|
40
|
7/8"
|
7
|
|
175-70-21136
|
175-70-21126
|
482
|
320
|
40
|
7/8"
|
7
|
|
150-70-21346
|
150-70-21356
|
435
|
254
|
30
|
3/4"
|
6
|
|
13F-Z27-1572
|
13F-Z27-1582
|
325
|
204
|
25
|
3/4"
|
5
|
|
PS: The models
above are just for reference, we can't list all models here. We can supply
more products as your requirements. Please feel to contact with us.
|
|
Motor
Grader End Bits
|
|
Part number
|
Length(mm)
|
Width(mm)
|
Thickness(mm)
|
Hole size
|
Hole quantity
|
|
6D1904
|
468
|
235
|
13
|
5/8''
|
8
|
|
6D1948
|
550
|
229
|
13
|
5/8''
|
8
|
|
6Y2805
|
552.9
|
235
|
13
|
3/4''
|
8
|
|
7D9999
|
597
|
235
|
13
|
3/4''
|
8
|
|
8E5529
|
477.2
|
152
|
16
|
3/4''
|
5
|
|
8E5531
|
467
|
152
|
16
|
5/8''
|
5
|
|
9J4406
|
474.5
|
152
|
16
|
3/4''
|
4
|
|
232-70-52180
|
481.8
|
152
|
16
|
5/8''
|
5
|
|
232-70-52190
|
482.6
|
229
|
13
|
5/8''
|
6
|
|
234-70-32240
|
621.1
|
279.4
|
13
|
3/4''
|
6
|
|
PS: The models
above are just for reference, we can't list all models here. We can supply
more products as your requirements. Please feel to contact with us.
|
Compatible Brands
Our Factory
Xiamen Gold Forging Industry Co,.Ltd as professional and your reliable G.E.T supplier, providing full range of replacement spare parts suitbale for all kinds of earthmoving equipments, most of them are applied in mining, construction, agricultural etc.
We supply replacement parts including bucket teeth, bucket adapter, bucket pin, lip shroud, protector, ripper shank, cutting edges, grader blades, end bits and so on. Especially bucket teeth and adapter, the forging process is used to make the product have better mechanical properties and wear resistance.
Like bucket teeth pin, bucket pin, bolt and nuts also can offer.
Our parts cover machine brands included Caterpillar, Komatsu, Volvo, Daewoo, Doosan, Hyundai, Kobelco, JCB, Case etc.
Since 2007, Gold Forging insist on offer best service and best products to our client, continuously provide service quality, improve production, and make customers more satisfied with us.
Trust Gold Forging, you can get more!
