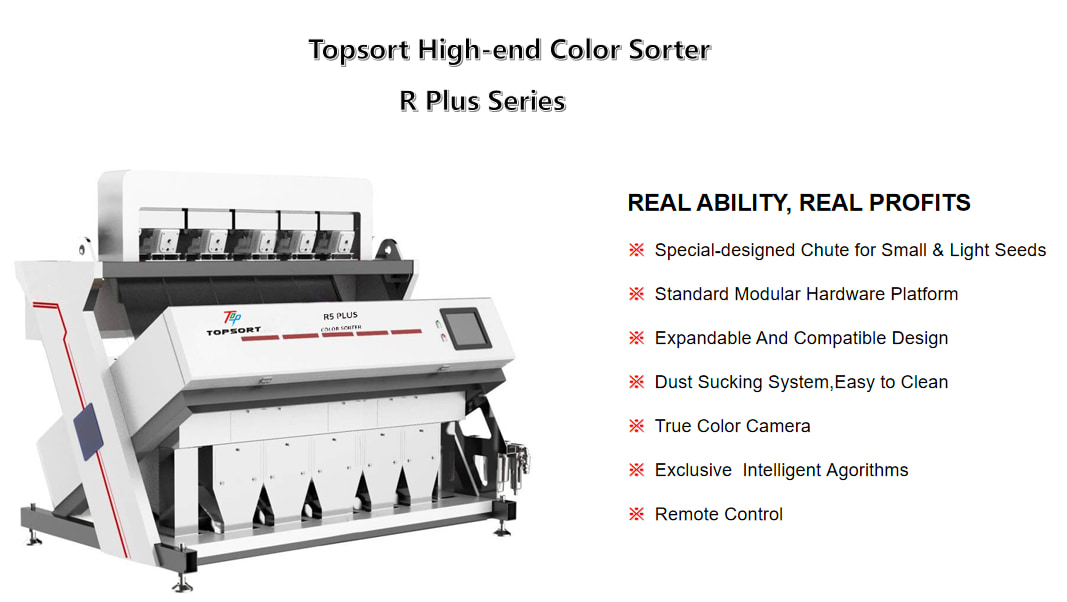

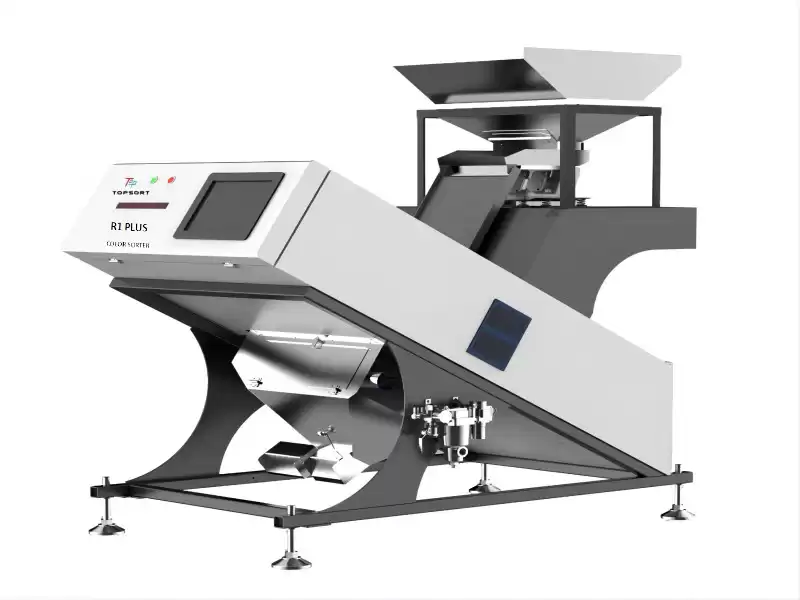

TOPSORT R PLUS series grain colour sorter have upgraded their arithmetic power again, adopting micro-core computing architecture and upgraded intelligent algorithms to accurately analyse the results of images at high speed and achieve the ultimate selection, so as to realise that what you see is what you get. R PLUS series comprehensively upgraded hardware performance, can be equipped with intelligent infrared selection system, so that the bad and small defects in the ultra-clear macro CCD camera and ultra-sensitive main camera infrared selection system has nothing to hide. The whole frame is re-designed mechanically, balancing the overall equipment carrying capacity, and the overall operation of the equipment is more stable.
TOPSORT Grain Colour Sorter Innovated Technology
1.30000+ RICE AND GRANULES DETECTING EVERY SECOND (TAKE RICE AS AN EXAMPLE)
Computing updating, new generation FPGA processing technology with ALTERA, TI high proformance chips, accurately discover the quality of the sorting products.Take rice for example, every second 30000+ rice granules detecting,accurately remove variety defects. The sorting accuracy are much higher, processing capability are much stronger. lt ensure the variety of defects, tiny spot, light trace are easily discovered.The wisdom helps us “what you see is what you get."
2.NEWLY SPECIAL SUPER WIDTH CHUTE DESIGN
Special technology chutes, applicable for universal materials,make the transfer more steady, more capacity.
3.INTELLIGENT OPERATION SYSTEM
Overall Large Screen HD Operation control panel, 1080P S uper high resolution,Linux Operation system, system more stable, more friendly Human-Machine-Interface panel, which gives high sensitivity instant fast repones in the industrial environment.
4.MECHNICAL RECONSTRUCTION
Reconstrution of the mechnical frame, the main part with special material,balancing whole frame bearing, ensure the machine integrity. Working with the updated mechanism, it strength the base of the ultra-sorting.
5.SELF-DEVELOPED SPRAY VALVE
Self-developed spray valve, Self-developed high-performance spray valve, super high rapid response to the Algorithm results. It can continuously working 12billion+ times, extremely long life, with low air consumption,master the core technology.
6.ILLIMITABLE SORTING POSSIBILITIES, START BY “ONE BUTTON” PRESSURING
Hundred of sorting profiles can be saved in machine machine, for the variety products for sorting, subdivide the quality of agric and sideline products illimitable sorting possibilities,“one button”start, “one button”profiles exchange.
7.SHADOWLESS COLD LIGHT SOURCE,AUTOMATICA ADJUSTABLE
Extremely long life, low energy consumption intell ligent shadowless cold light source, orthogonal spectrum technology, make the image more visiable, more accuracy detection; the output luminance of light source are automatically adjustable, it make the lights more stable with high quality. It is fully appliable for the camera to see and detect.
8.WIRELESS REMOTE CONTROL FOR GLOBAL
Various terminals can be easily connected, remote control, instant response, and enjoy unattended operation.
Grain Color Sorter Sorting Solutions
Technology Parameters
| Model |
Power(KW) |
Capacity (T/H) |
Sorting accuracy |
Power vottage (V/HZ) |
Air pressure (Mpa) |
Air consumption (M3/MIN) |
Dimensions (MM) |
Weight(KGS) |
| R1 PLUS |
0.8 |
1-2.5 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<1.0 |
880*1504*1760 |
360
|
| R2 PLUS |
1.3 |
2-4 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<2.0 |
1314*1504*1760 |
520 |

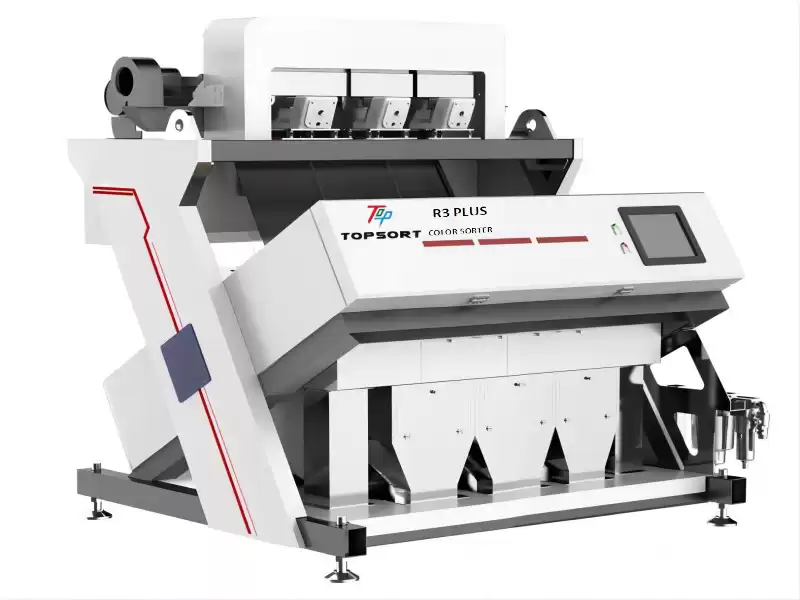

| R3 PLUS |
2.2 |
2.0-3.5 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<3.0 |
1856*1829*1893 |
680 |
| R4 PLUS |
2.9 |
2.5-4 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<4.0 |
2171*1829*1893 |
840 |
| R5 PLUS |
3.7 |
3-5 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<5.0 |
2489*1829*1893 |
1000 |
| R6 PLUS |
4.4 |
3.5-6 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<5.5 |
2801*1829*1893 |
1160 |
| R7 PLUS |
5.2 |
4-7 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<6.0 |
3116*1879*1893 |
1320 |

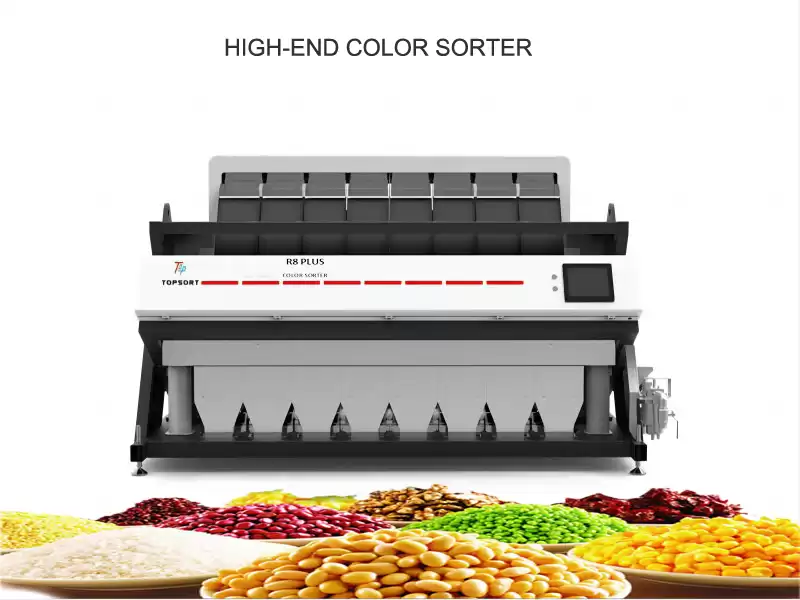

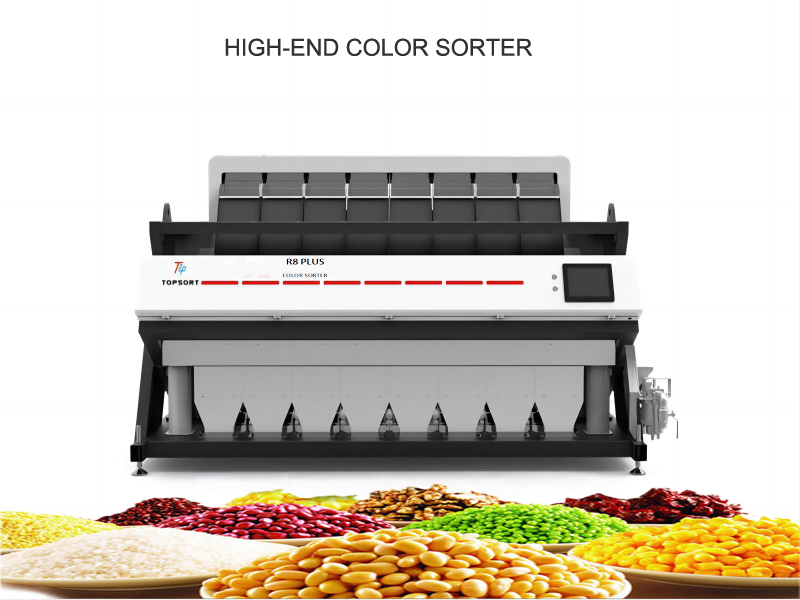

| R8 PLUS |
5.9 |
4.5-8 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<6.5 |
3431*1879*1893 |
1480 |
| R10 PLUS |
7.3 |
5-10 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<8.0 |
4071*1879*1893 |
1780 |
More models welcome to visit our website:www.topsortcolorsorter.com
Our Advantages
Hardware platform architecture
Standardization and modularization
High stability and low failure rate
Output is increased by 15%
Accuracy is increased by 10%
Carryover ratio is reduced by 20%
Pure and extraordinary sorting performance

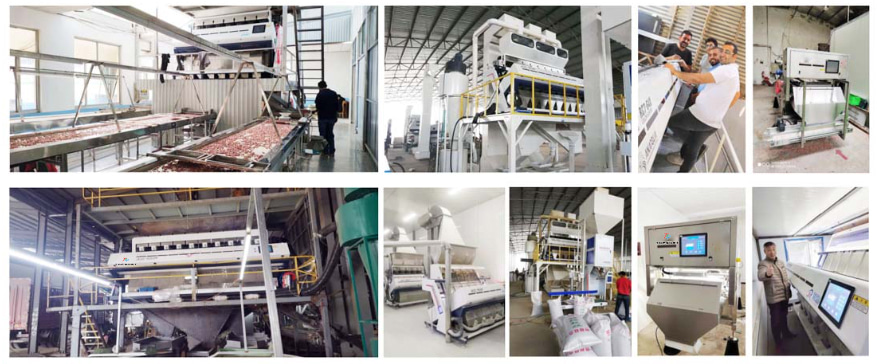

Color Sorter Project Study
Customer Concerns
Question 1: What are your advantages compared with your competitors?
Answer:With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price. 2). Good customer service: Fast response to any inquiry or question. 3). On-time delivery.
Question 2: Are you a manufacturer?
Answer: Yes, we are glober manufacturer with more than 18 years' color sorter producing and export experience.
Question 3: How to install and use the machine?
We will supply the installation instructions or videos and our engineers will train the operators.
Question 4. How long about the guarantee period?
Two years. The warranty period starts on the day of delivery.We supply lifelong software upgrade services for our customers.
Question 5: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other data sheets related shall be provided by us.
