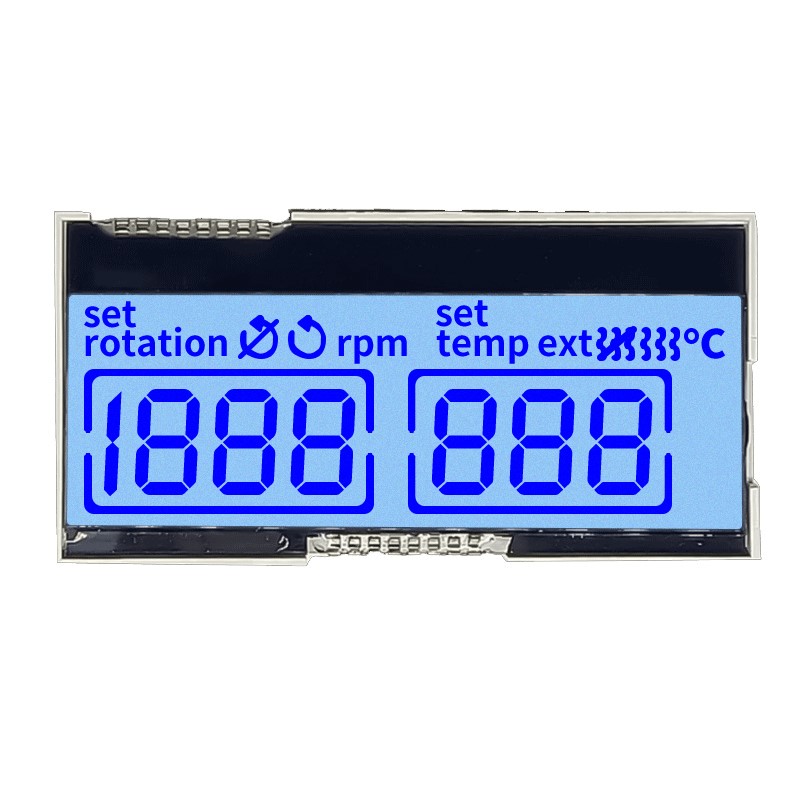

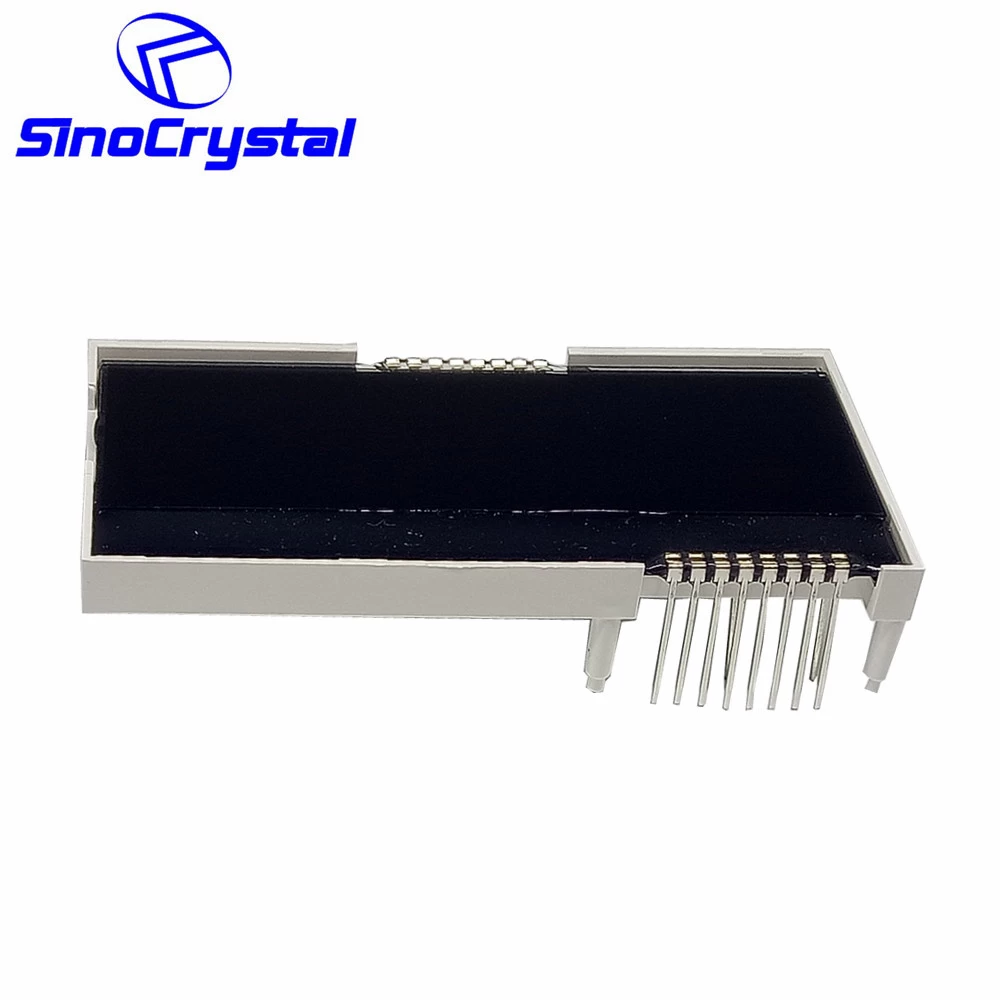

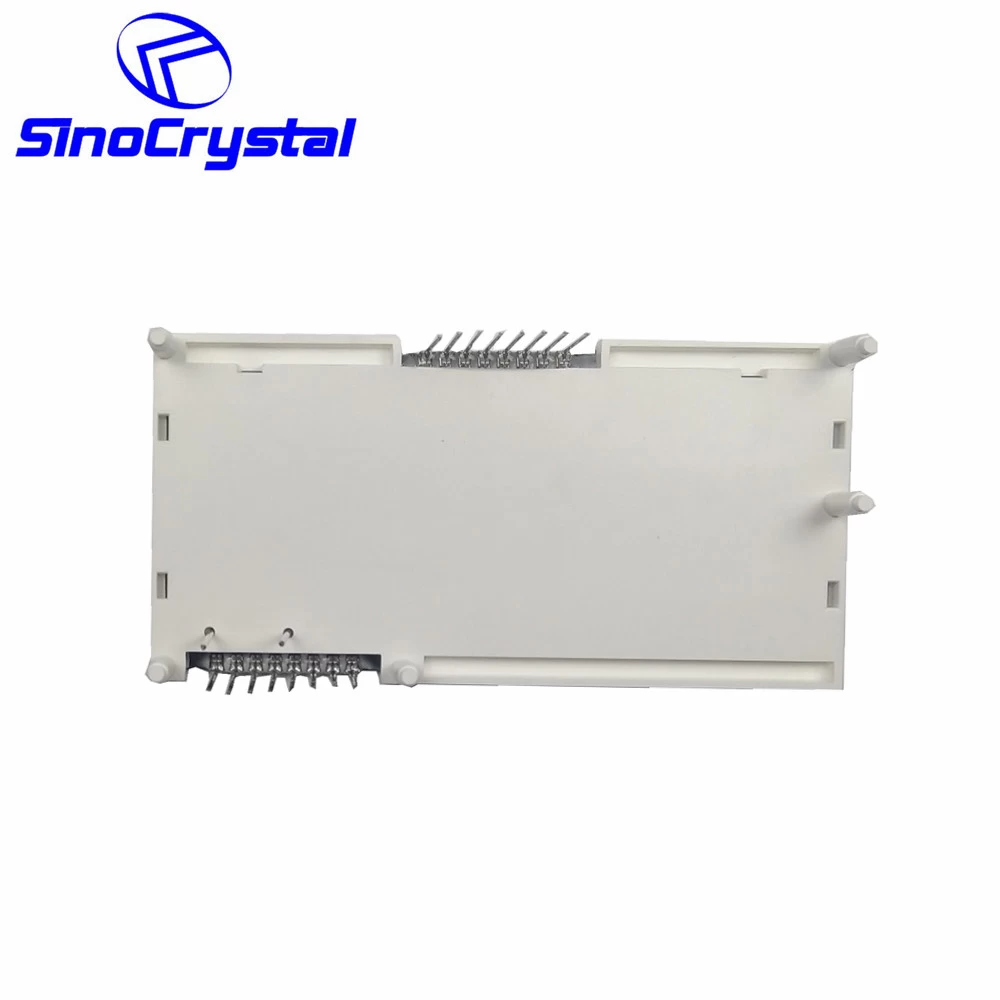

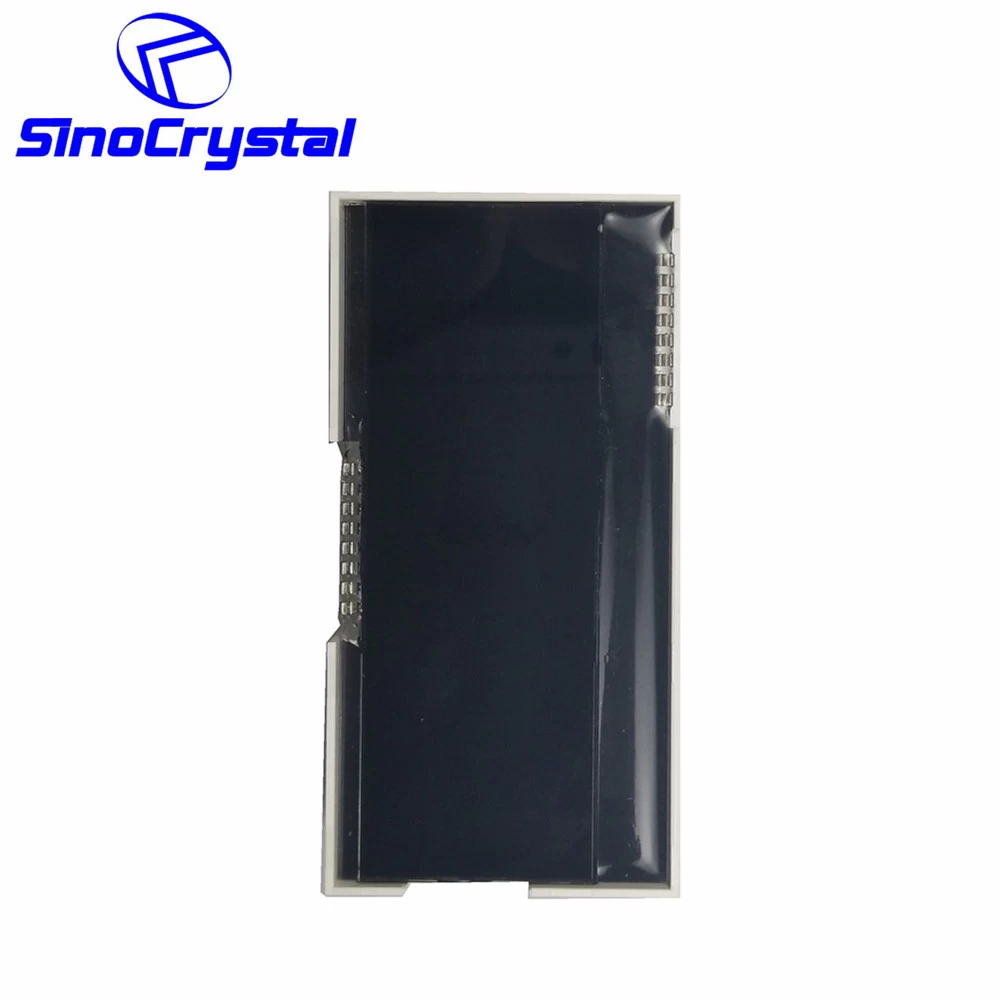

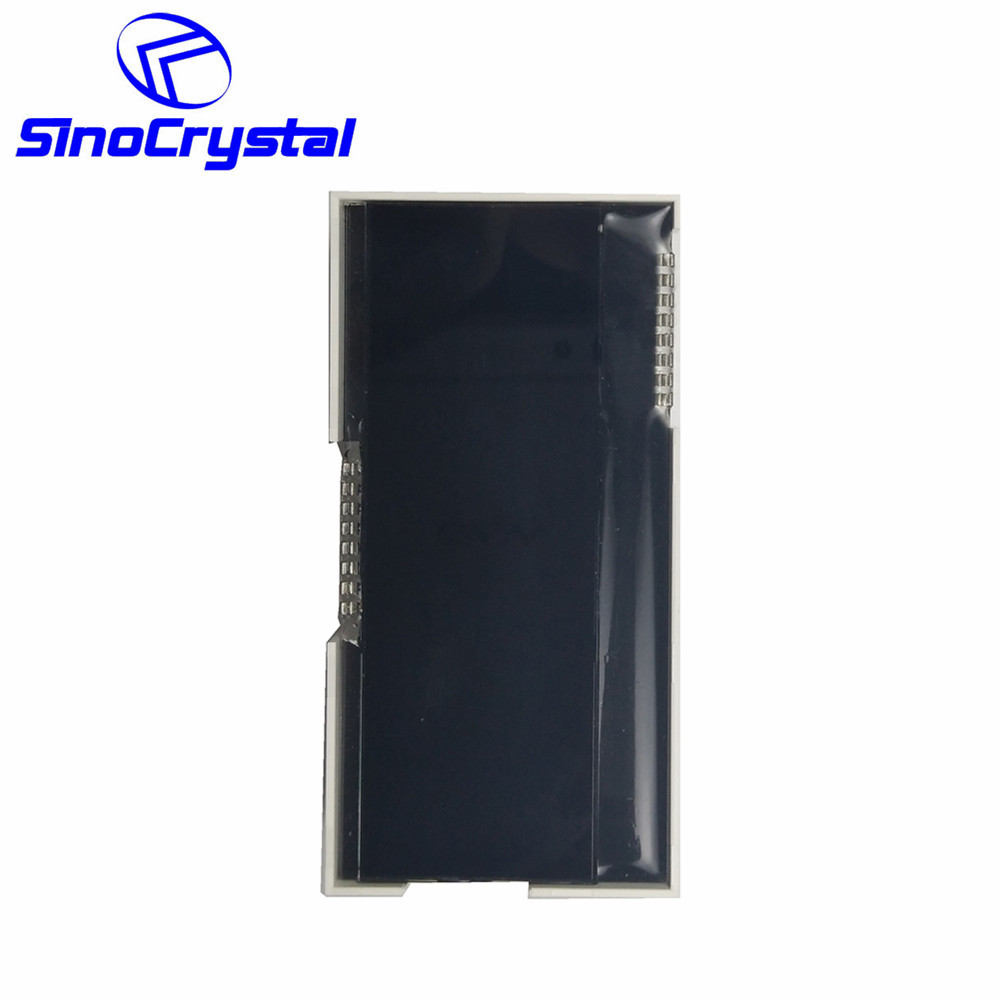

Graphic LCD VA COG dots lcd display module 6 O'clock Viewing Angle White LED Backlight

SCC0024-V01 is a Mono Graphic LCD Display, it built in with IST3042CA1 IC, 8 PIN, 6 o'clock View direction.


Display Type:                COG LCD Display

Outline Dimension:        70.00*35.00*13.90

View area:                     65.00*21.00

Draiver Method:            Static

Driver IC:                       IST3042CA1

View Direction:              6 o'clock

PIN:                                8

Backlight:                      White LED



  • PIN8
  • BacklightWhite LED
  • Driver ICIST3042CA1
  • View area65.00*21.00
  • Outline Dimension (mm)70.00*35.00*13.90
  • View Direction6
  • Display TypeTN-VA

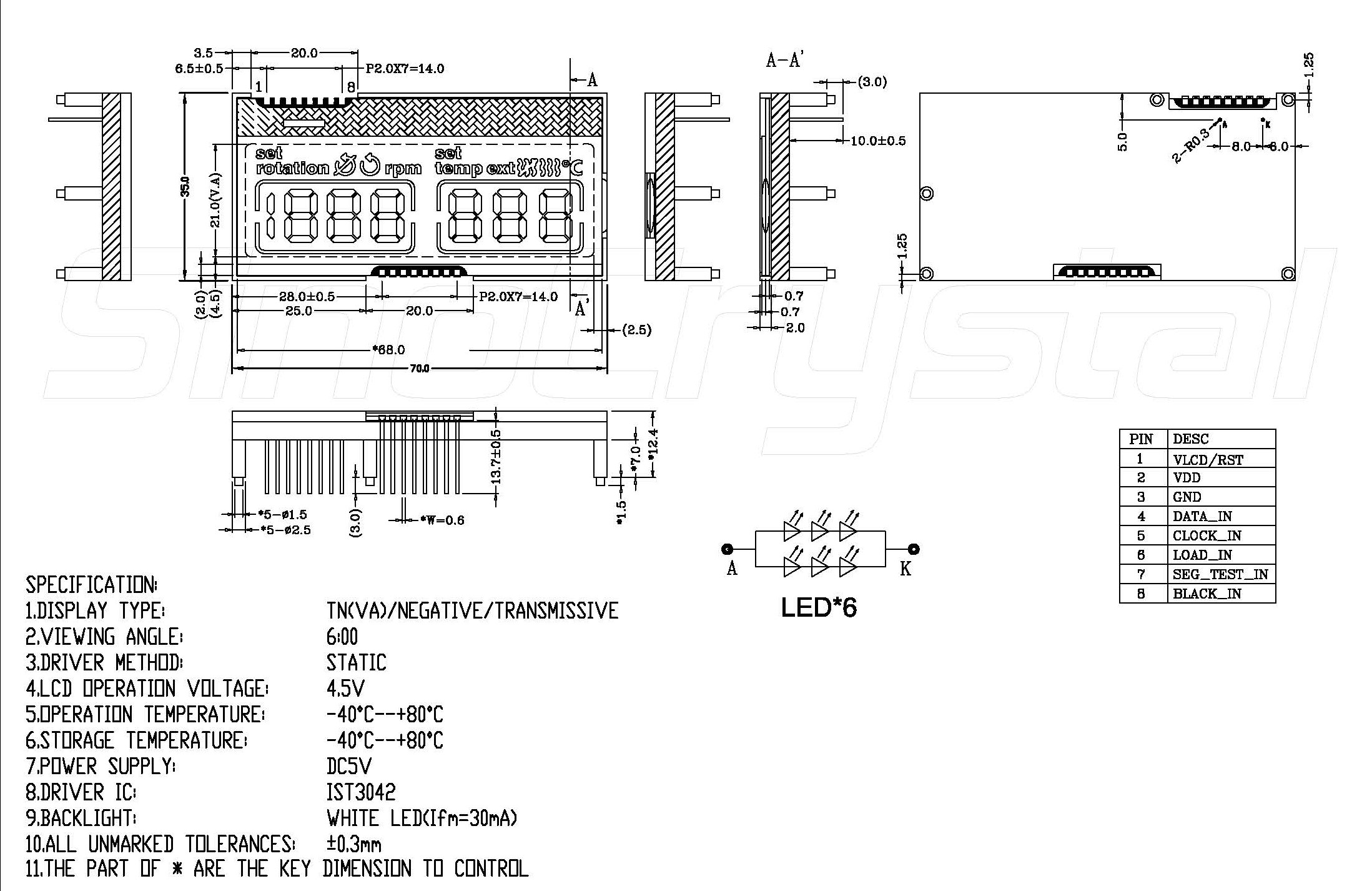

Drawing




General Specification


ITEM STANDARD VALUE UNIT
  NUMBER OF GRAPHIC SEGMENT Mm
  MODULE DIMENSION 70.0×35.0×13.9 Mm
  EFFECTIVE DISPLAY AREA 65.0×21.0 Mm
  DOT SIZE - Mm
  DOT PITCH - Mm
  LCD TYPE TN(VA)/NEGATIVE/TRANSMISSIVE
  DUTY STATIC
  VIEWING DIRECTION 6 o'clock
  BACK LIGHT TYPE SIDE LIT LED
  BACK LIGHT COLOR WHITE
  APPROX. WEIGHT TBD G





Interface Definition


NO SYMBOL LEVEL FUNCTION
1 VLCD/RST -- Power for LCD and Reset signal
2 VDD -- Power supply
3 GND -- Ground
4 DATA_IN H/L Data signal
5 CLOCK_IN H/L Shift clock signal
6 LOAD_IN H/L Load signal
7 SEG_TEST_IN H/L Segment test signal
8 BLACK_IN H/L Black signal
