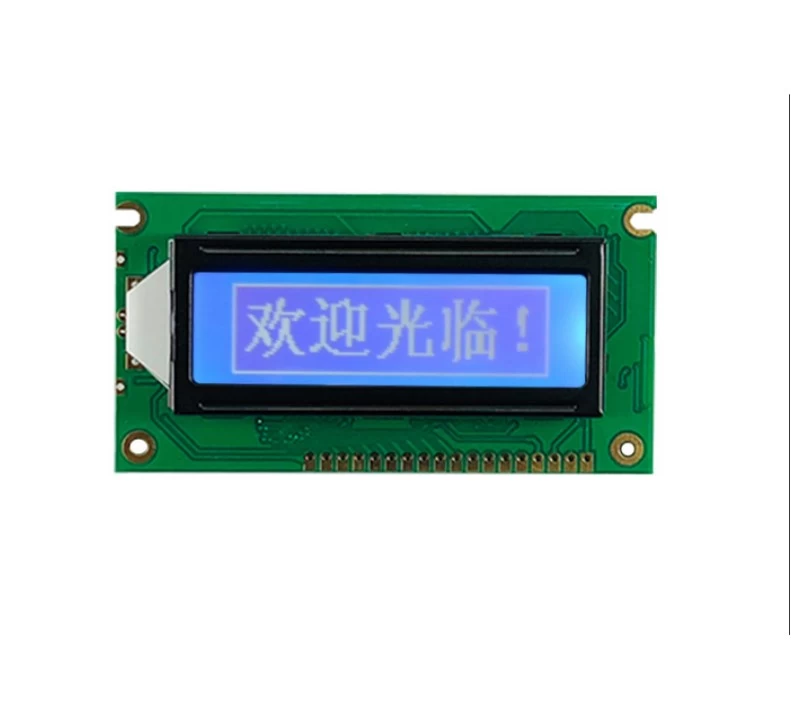

Graphic STN LCD Display with 122*32 resolution 8BIT bus MPU interface

LCD Type:                     STN Negative BLUE TRANSFLECTIVE

Resolution:                   122*32

Outline Dimension:       84*44*12.8

View area:                     60*18

Interface:                     8BIT bus MPU interface

Driver IC:                     SED1520 or eqv

View Direction:              6 o'clock

PIN:                                18

Backlight:                      White LED



  • Resolution122*32
  • Outline Dimension (mm)84*44*12.8
  • Viewing Area (mm)60*18
  • Interface8BIT bus MPU interface
  • Driver ICSED1520 or eqv
  • BacklightWhite LED
  • PIN18
Facebook Twitter Pinterest LinkedIn 分享

SC12232001-V01 is a Graphic LCD Display with 122*32 resolution, it built in with SED1520 or eqv IC, 18 PIN, 6 o'clock View direction.



General Specification


Item Standard Value Unit
 Display Type 122 x 32 DOTS Mm
 LCD Type STN(BLUE),NEGATIVE,TRANSMISSIVE Mm
 Driver Condition LCD Module : 1/32 Duty , 1/5 Bias Mm
 Viewing Direction 6 O'Clock Mm
 Backlight Type SIDE WHITE Mm
 Interface 8BIT bus MPU interface -
 Driver IC SED1520 or eqv -
 Outline Dimension 84(L) *44(W) * 12.8(T) mm
 Viewing Area 60(L) * 18( W) mm
 Dot Size (W*H) 0.36*0.42mm mm
 Dot Pitch (W*H) 0.40*0.46 mm mm



Interface Definition



Pin No. Symbol Function
1 VDD Power supply input for driver IC (+5V)
2 VSS Ground (0V)
3 VO LCD driver supply voltages,Contrast Adjust
4 RST Reset signal
5 E1 Enable signal IC1(U1)
6 E2 Enable signal IC2(U2)
7 RW Read write control 0:write 1:read
8 RS 0:DB0-DB7= Command 1: DB0-DB7= Data
9--16 DB0~DB7 data bus for 8 bit interface
17 LED+ BACKLIGHT+ (5V)
18 LED- BACKLIGHT- (0V)
