G010-D

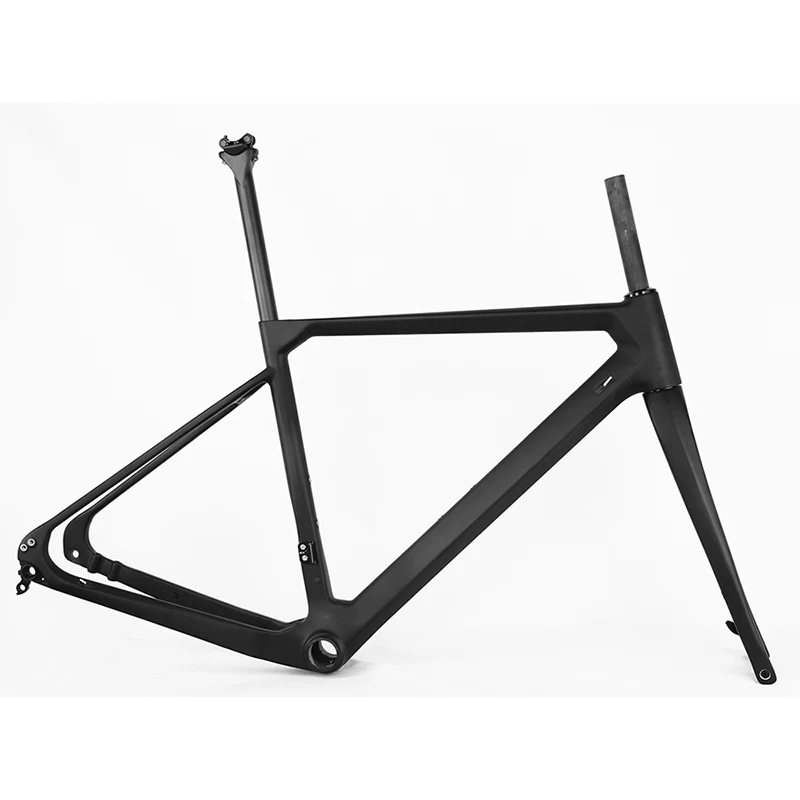

700C Full Carbon Disc Brake Gravel Road Frame
|
G010-D
|

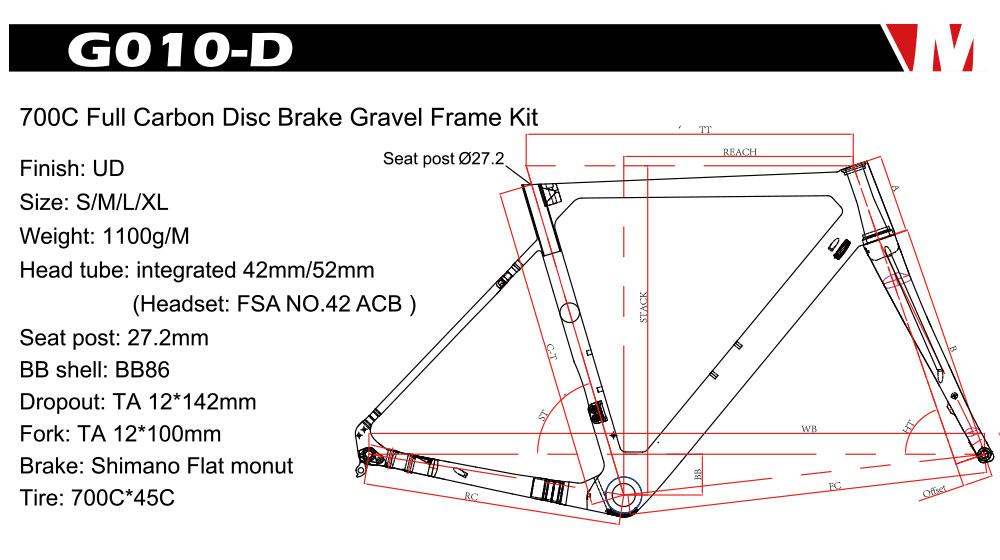

SIZE
|
C-T
|
A
|
B
|
Offset
|
TT
|
HT
|
ST
|
BB
|
RC
|
WB
|
FC
|
RD
|
FD
|
ROTOR
|
STACK
|
REACH
|
H/T INSERT
|
BB INSERT
|
|
S
|
460
|
110
|
395
|
50
|
525
|
70.5°
|
74.5°
|
70
|
430
|
1018.2
|
598.1
|
Inner
|
Inner
|
A140
|
530.3
|
377.9
|
FSA
NO:42
ACB
|
BB86
|
|
M
|
480
|
130
|
395
|
50
|
545
|
71°
|
73.5°
|
68
|
430
|
1025.5
|
604.7
|
549.1
|
382.4
|
|
L
|
500
|
150
|
395
|
50
|
565
|
72°
|
73°
|
68
|
430
|
1031
|
610.3
|
571.8
|
390.2
|
|
XL
|
520
|
180
|
395
|
50
|
575
|
72.5°
|
72.5°
|
68
|
430
|
1032
|
609.8
|
602.3
|
390.5
|

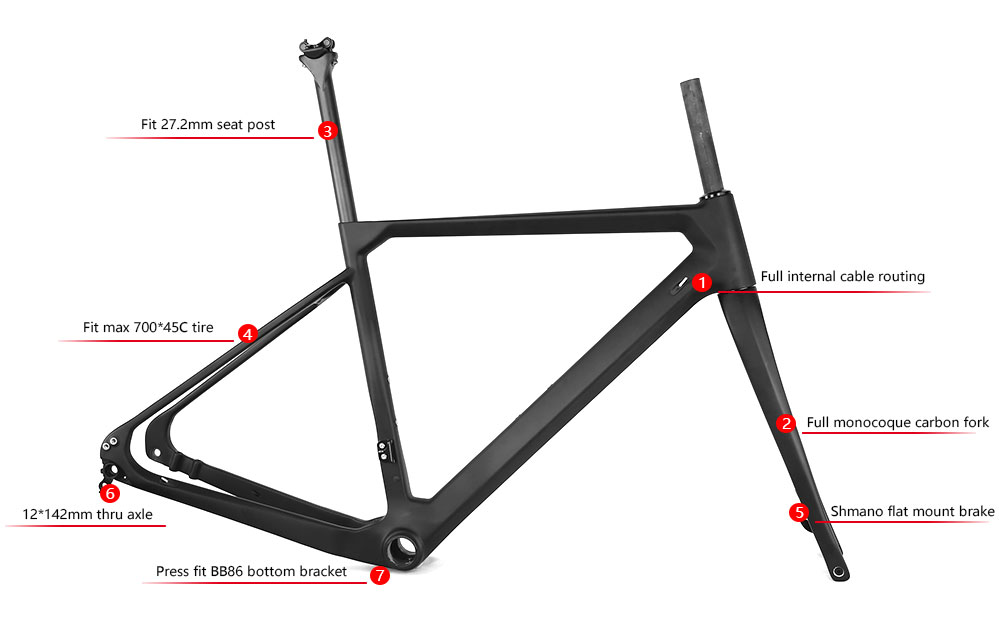

Disc Brake Gravel Carbon Frame
|
Frame
|
Addict best carbon gravel bike frame
|
|
Material
|
High modulus Toray T700 carbon fiber
|
|
Size
|
S, M, L, XL
|
|
Fork
|
Specify carbon fork
|
|
Headtube
|
Tapered 1 1/8''- 1 1/2'' head tube(upper 42mm lower 52mm)
|
|
Weight
|
1100g/M
|
|
Seatpost
|
27.2mm diameter round
|
|
Bottom bracket
|
BB86
|
|
Max tire clearance
|
700*45c
|
|
Brake mount type
|
Shimano flat mount disc brake
|
Dropout
|
Front 12*100mm TA Rear 12*142mm TA
|
|
Groupset
|
Machanical and Di2 compatible
|
|
Test Standard
|
ISO4210
|
|
Warranty
|
2 years
|
