Green/Oolong Tea Panning Machine Tea Leaf Panner Equipment 6CST-50

1. Excellent heat insulation, heat preservation and energy saving;
2. Using calcium silicate board, increasing the heat preservation effect and meeting the food hygiene requirements;
3. Increased insulation of the front plate of the drum;
4. Intelligent temperature control system, easy to operate and precise control;
5. Hand and self-integration control, double guarantee;
6. Large feed inlet, easy to feed, and faster discharge. The dryness of the products coming out before and after is more uniform, the taper size is longer, and the material is not dropped;
7. The inner cylinder adopts a steel plate with a thickness of 2.5mm to prevent the deformation of the cylinder at high temperature. The work can store energy, less heat loss, smaller temperature change and more energy saving;
8. Use a controlled water vapor discharge system to save energy.

This small tea panning machine DL-6CST-50 use gas as fuel, can use liquid gas and natural gas, this tea panning machine suitable for small tea factory and home use, suitable for processing high-quality fine tea.

It can also be used in tourist areas, for tourists DIY processing tea, low energy consumption and high safety, it's the good choice for you !

The machine is small and flexible, suitable for small and medium-sized tea processing plants (fine tea processing and production), using a rotating drum cylinder, tea leaves are more evenly fired, tea leaves are heated without dead ends, with pure handwork Unmatched uniformity and breathability, it is an ideal machine for the production and processing of fine tea. It is an alternative equipment for manual firewood wok.

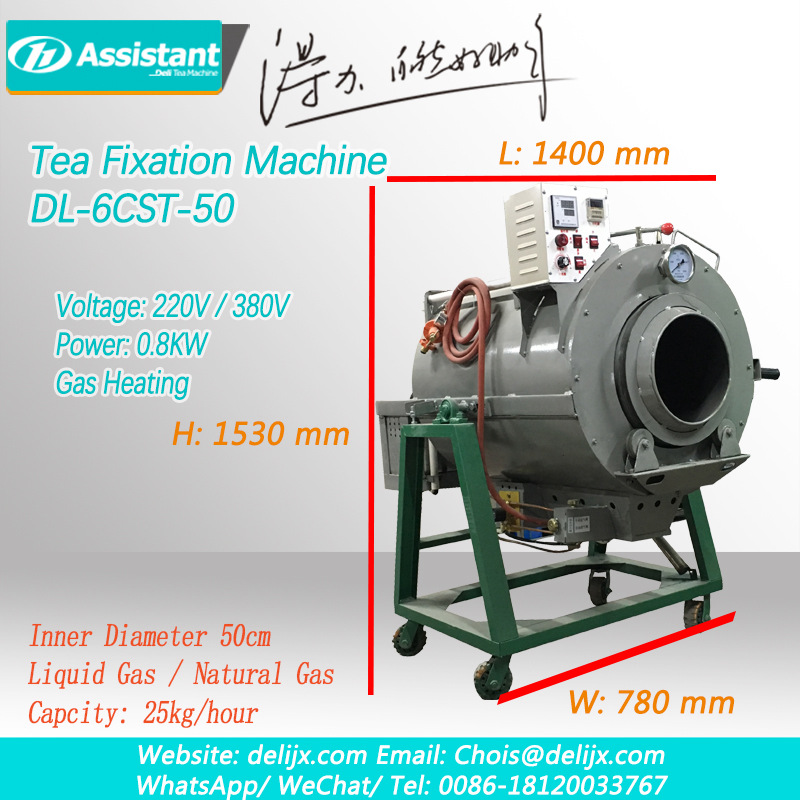

DL-6CST-50 tea leaf fixation machine specification:

The above data is based on fresh tea leaf water content of 75-80%.

DL-6CST-50 tea leaf panning machine decomposition diagram:

	①	Electric control panel	⑦	Heat dissipating switch
	②	Thermometer	⑧	Handle
	③	Outer barrel	⑨	Balance bolt
	④	Inner barrel	⑩	Shock absorber rod
	⑤	nylon wheel	⑪	Combustion zone
	⑥	Ignition switch	⑫	Support frame

Integrated multifunctional electric control box The first intelligent temperature control system in tea machinery industry

Copper core driving motor	Gas-fired igniter	Shock absorber cylinder

"T" type gas burner	Calcium silicate board insulation layer
