Through the external force of the tea roller machine, the tea leaf's juice overflows, the tea cells are damaged, fresh tea leaf is twisted and curled into a strip shape, the juice in the fresh tea leaves is squeezed out. When brewing, the taste is stronger, the color of the tea soup is brighter and the quality of the tea is better.
Tea rolling machine can use for most of tea such as black tea, green tea, and oolong tea, for green tea ( non-fermented ) is mainly used for shaping the strip type, for black tea ( fermented tea ) is mainly used to destroy the cells of fresh tea leaves, so that the juice in tea can flow out and facilitate subsequent fermentation.

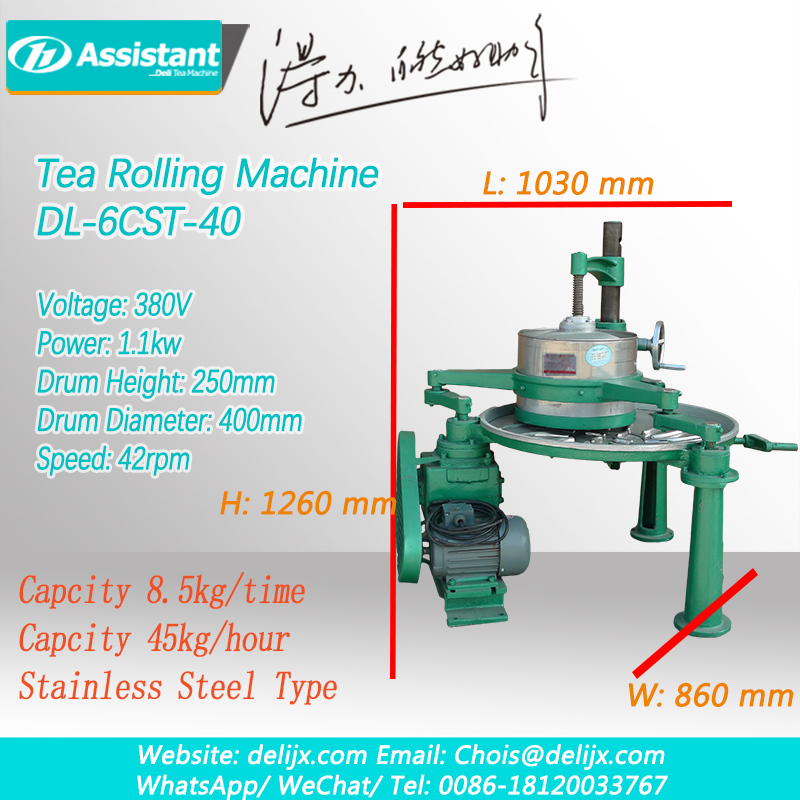

DL-6CRT-40 tea roller machine specification:
|
Model
|
DL-6CRT-40
|
|
Dimension
|
860*1030*1260 mm
|
|
Input voltage
|
220V / 50Hz
|
|
Tea disc diameter
|
795 mm
|
|
Barrel diameter
|
400 mm
|
|
Barrel height
|
250 mm
|
|
Matching motor
|
Power
|
1.1 kW
|
|
Speed
|
1400 RPM
|
|
Rated voltage
|
220 V
|
|
Barrel speed
|
42 RPM
|
|
Productivity
|
45 Kg/h
|
|
Maximum capacity per time
|
8.5 kg
|
The above data is based on fresh tea leaf water content of 75-80%.
DL-6CRT-40 tea leaves roller machine decomposition diagram:
|
①
|
Transverse arm
|
⑧
|
Support column
|
②
|
Barrel cover
|
⑨
|
Rolling disc
|
③
|
Stainless steel Drum
|
⑩
|
Handwheel
|
④
|
Crank
|
⑪
|
Support frame
|
⑤
|
Transmission case
|
⑫
|
Tea discharge handle
|
⑥
|
Transmission belt
|
⑬
|
Tea outlet
|
⑦
|
Drive motor
|
⑭
|
Support leg
|
|
|
1. Tea rolling barrel made of stainless steel, rolling plate and rolling strip made of aluminum, It will not rust and produce no harmful substances to human body,
2. we also can customized all stainless steel type and all copper type, if you need, please let us know.

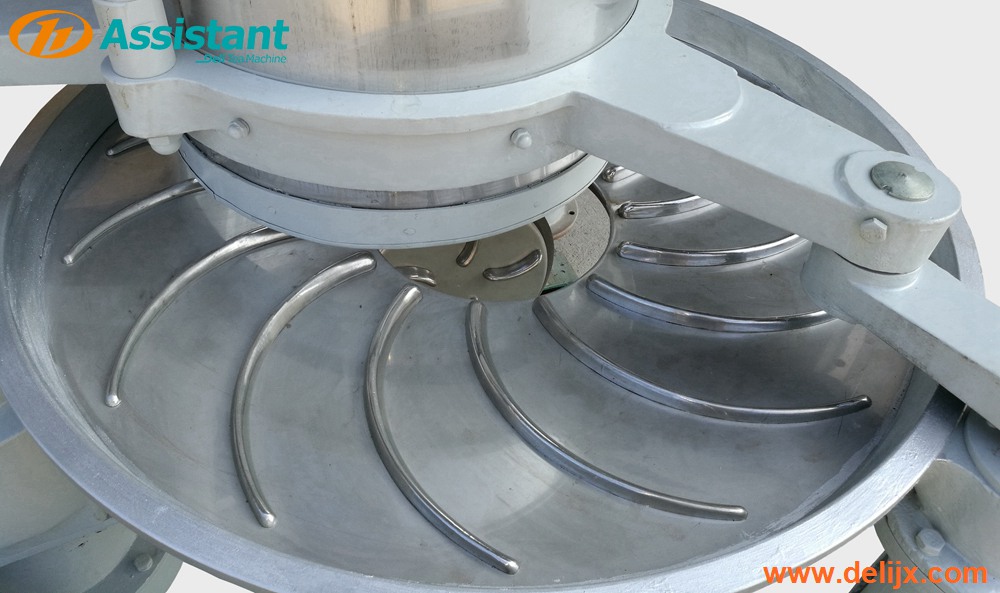

3. Professional design of kneading plate tilt angle and kneading strip radian, the speed of forming tea is 30% faster.
4. The side is higher than plate, prevent tea leaves ralling from the tea rolling machine.
|
|

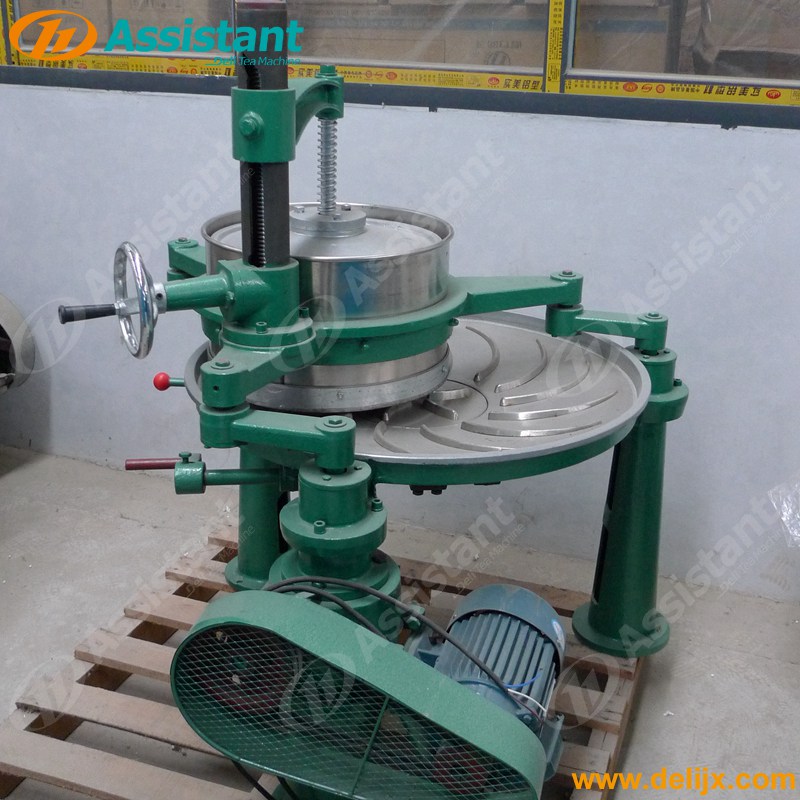

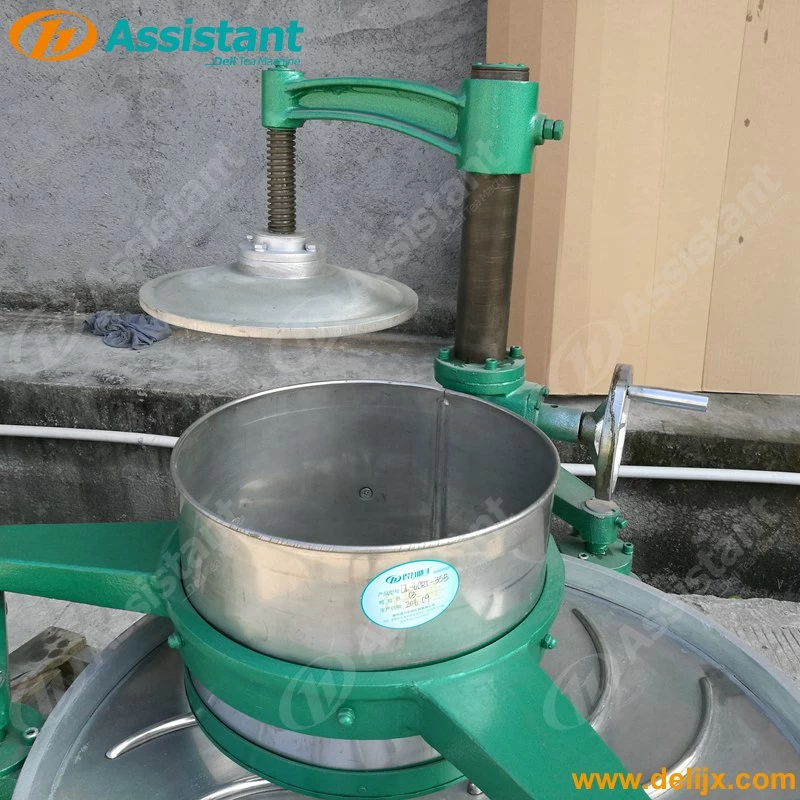

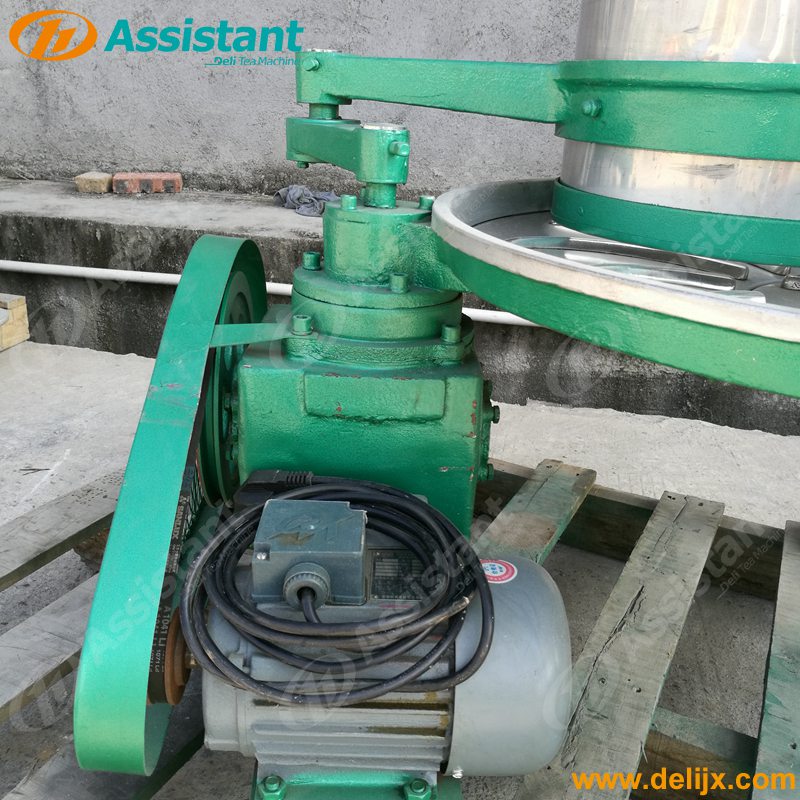

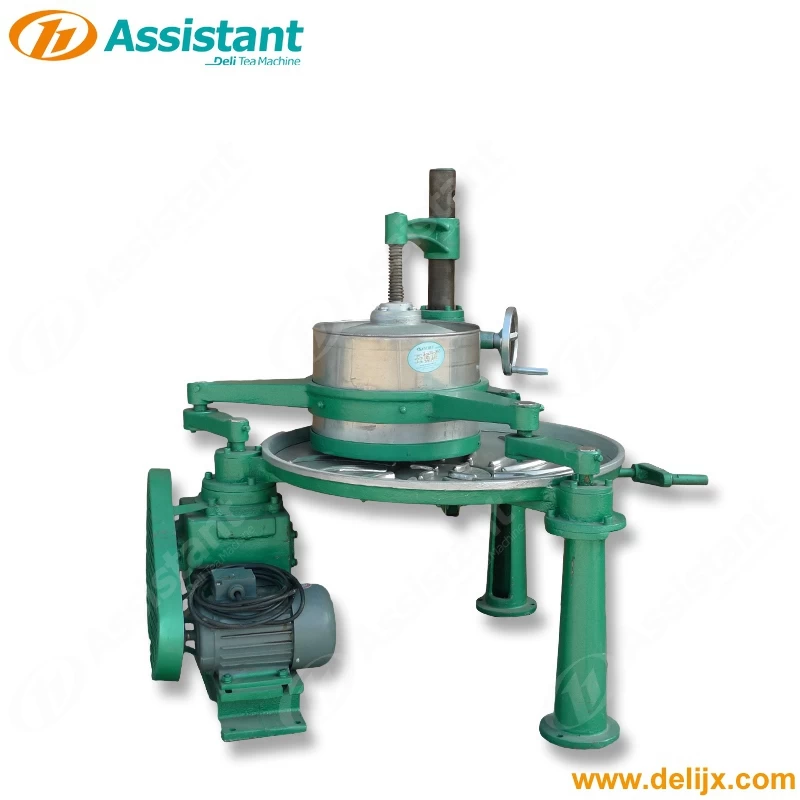

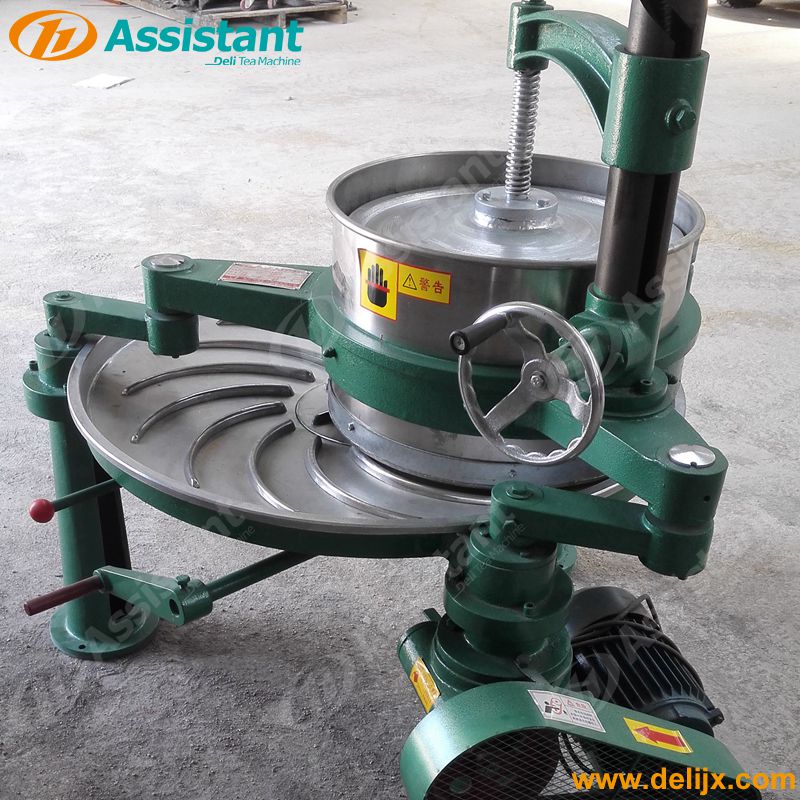

DL-6CRT-40 green tea black tea roller machine photos:
|
