This wood and coal heating tea leaf drum roasting drying machine is using at primary stage of tea processing, for drying water content, sorting and tighten stripe. The machine can also be used for stir day tealeaves, and other food like sunflower seed, pipe seeds.
This stir drum drying machine mainly used for green tea, make the finished tea leaf more tighten, quality more better.
Use high-grade heat-resistant cement, strong and durable;
Controllable water vapor emission system is adopted to save energy;
Intelligent temperature control system, easy to operate, accurate control;
The inner cylinder is made of 3.5mm thick steel plate, which is uniformly heated and prevents the tea from being scorched. It is the basic standard of high quality tea fixation;
Calcium silicate plate is used to increase heat preservation performance, environmental protection and energy saving, and professional furnace hot runner design, energy saving and high efficiency.

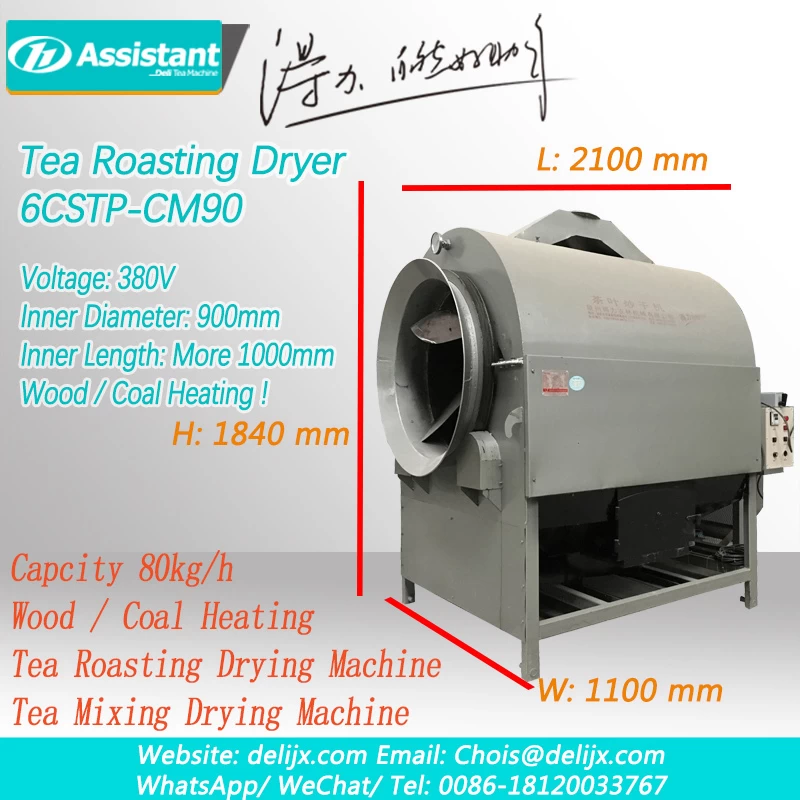

6CSTP-CM90 wood or coal heating green tea drum roasting dryer machine specification:
|
Model
|
DL-6CSTP-CM90
|
|
Dimension
|
2100×1100×1840mm
|
|
Voltage
|
220V / 380V
|
|
Inner drum diameter
|
900 mm
|
|
Inner drum length
|
1000 mm
|
|
Drive motor
|
Power
|
0.75 kw
|
|
Speed
|
1400 rpm
|
|
Voltage
|
220V / 380V
|
|
Exhaust motor
|
Power
|
0.18 kw
|
|
Speed
|
1400 rpm
|
|
Voltage
|
220V / 380V
|
|
Blower motor
|
Power
|
0.15 kw
|
|
Speed
|
2800 rpm
|
|
Voltage
|
220 V
|
|
Drum speed
|
5-37 rpm
|
|
Heating type
|
Wood / Coal
|
|
Efficiency
|
80 kg/h
|
This equipment can also use biomass pellet fuel. We can also provide pellet fuel burners. If you need, please contact us.
|

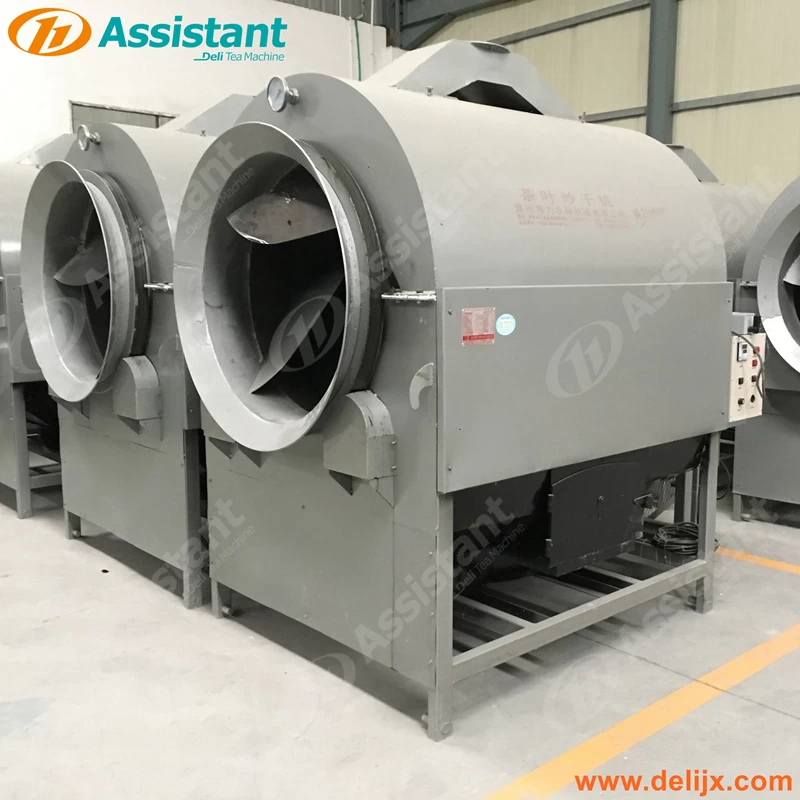

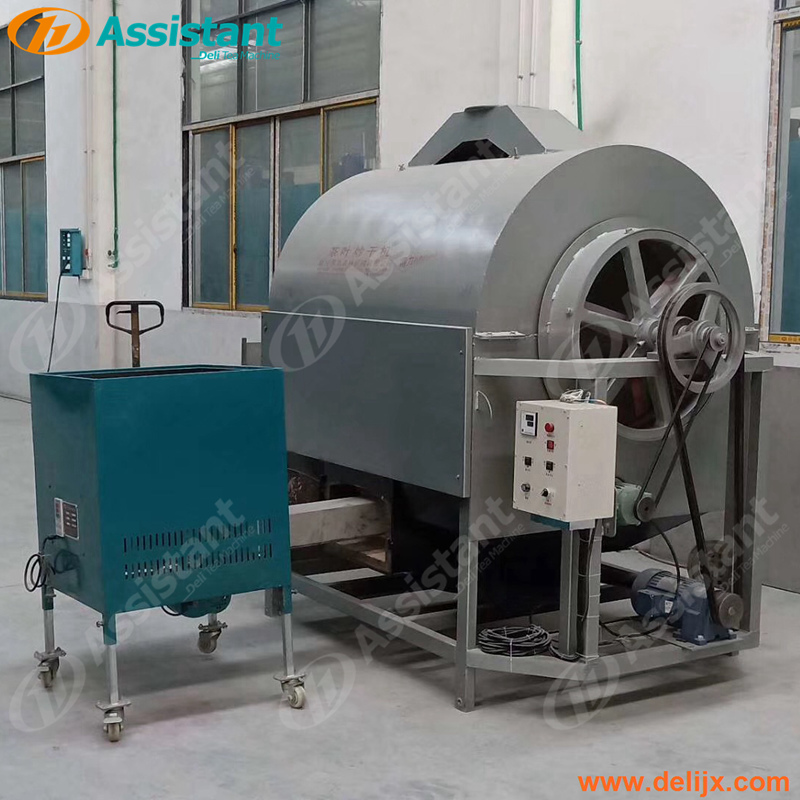

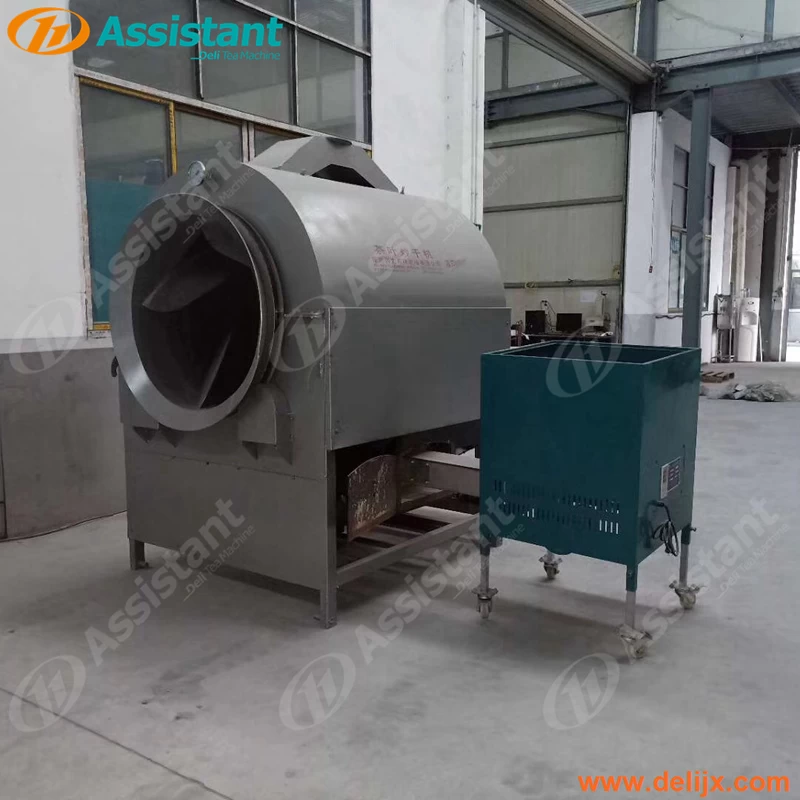

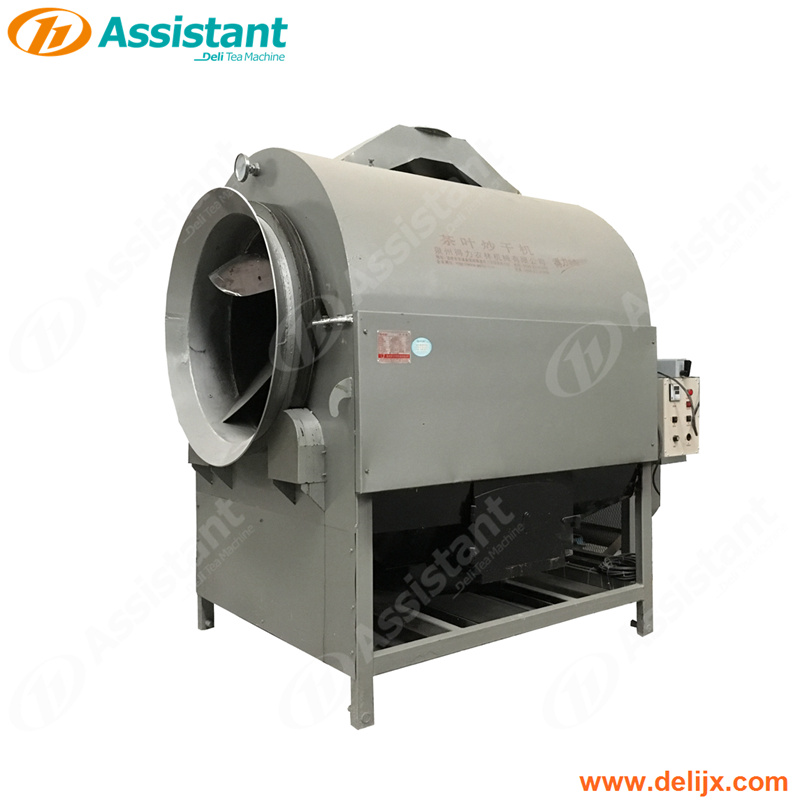

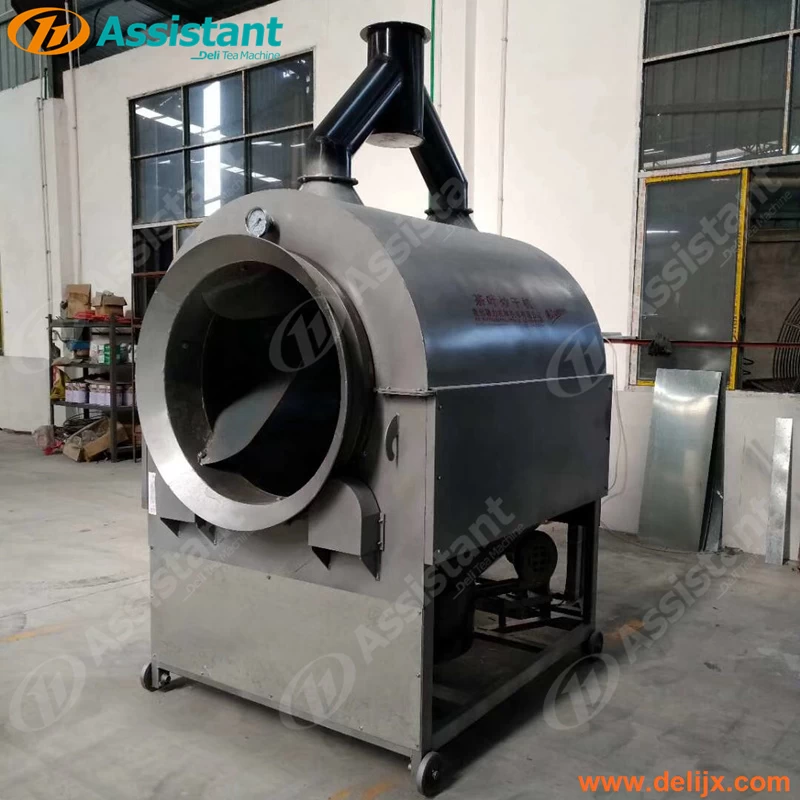

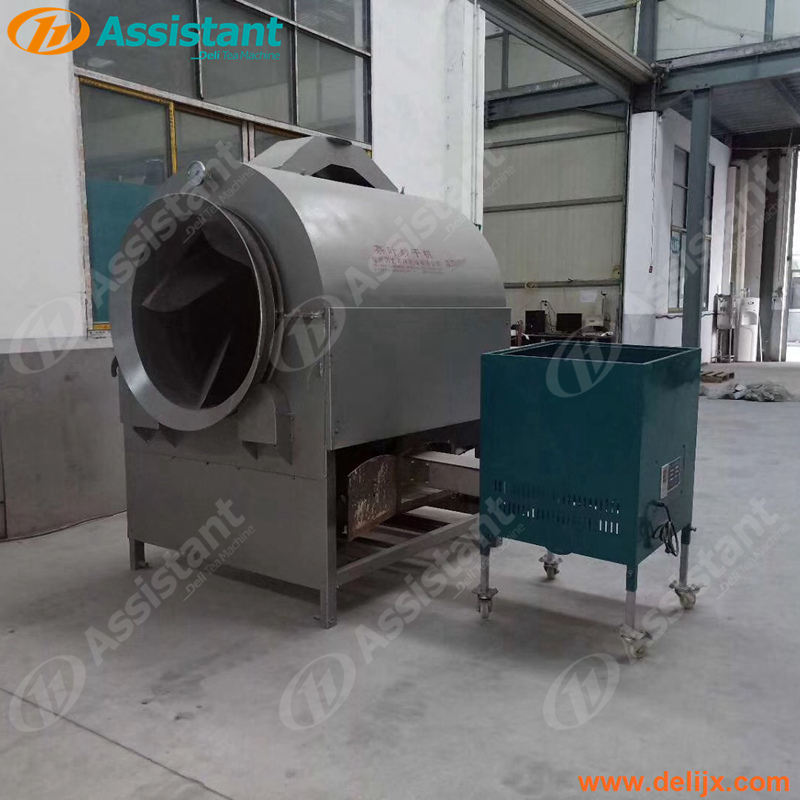

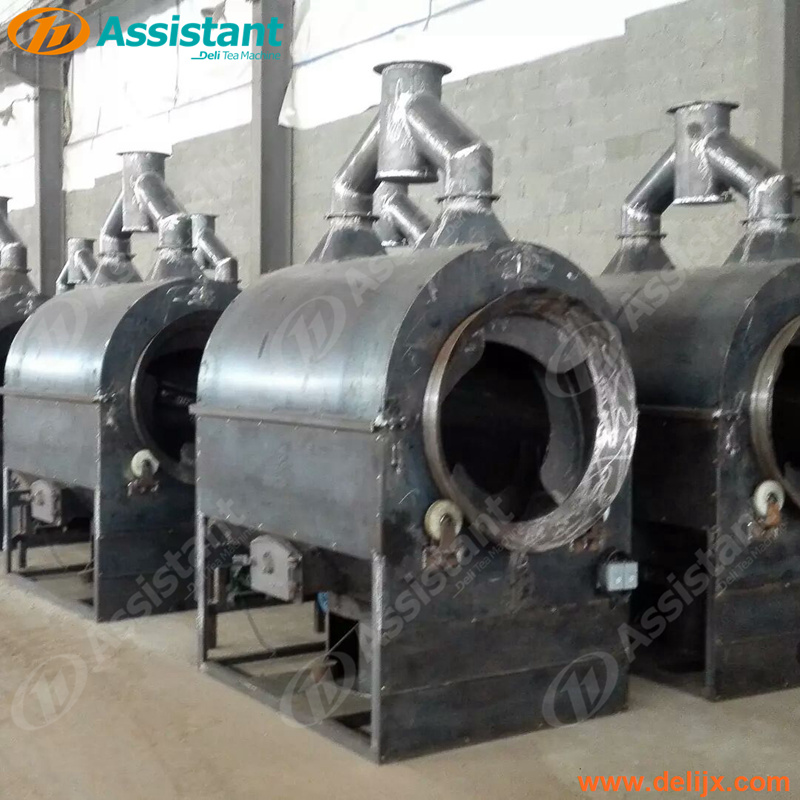

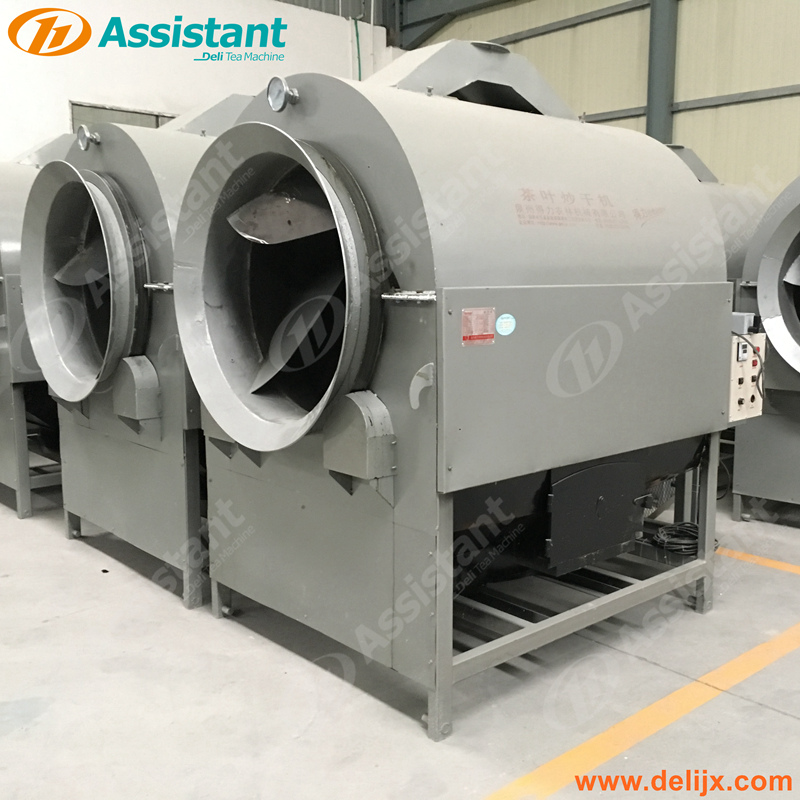

DL-6CSTP-CM90 wood heating tea leaf roasting drying machine photos:
|
