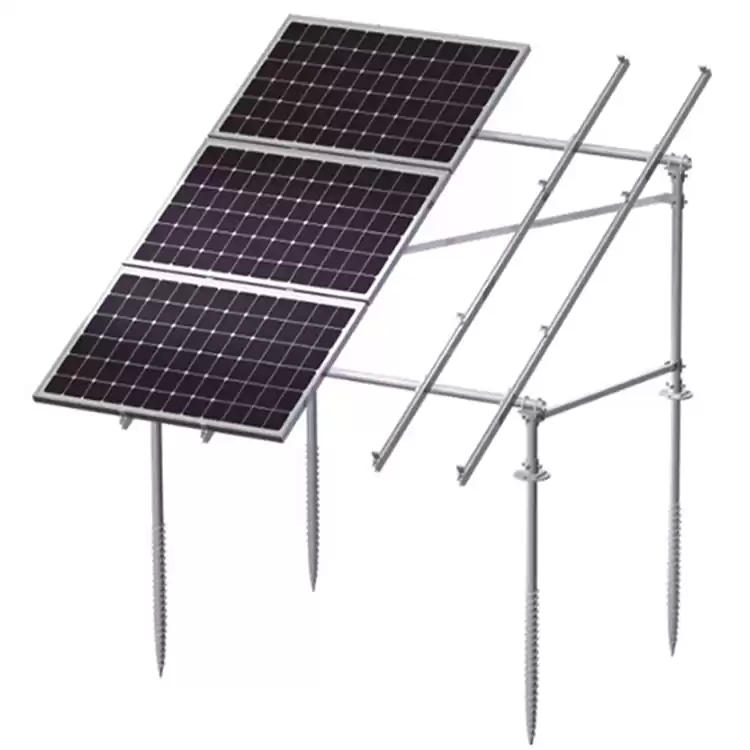

Ground Aluminum Solar Panel Mounting Structure System
Aluminum solar panel mounting structure is developed for the ground mounting structure system. It could be used together with ground screw or concrete base.Its main material is adopt AL6005 T5 with higher standard surface protection anodic oxidation for 10-15micron (µ),not 4%-6%micron (µ) ., which is anticorrosive for outdoor use. The whole structure is extremely anti-corrosion during its entire life span.

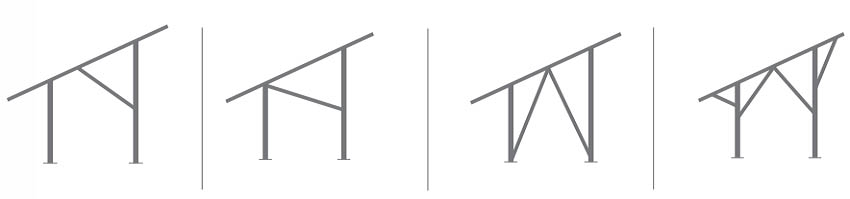

Structure
IV-Shaped N-Shaped W-Shaped Special Shape
Technical Parameters
System Name
|
Ground Mount System GM05
|
Panel Layout
|
Landscape or Portrait
|
Foundation
|
Concrete Foundation,Ground Screw
|
Material
|
Anodized AL6005-T5
|
Tilt Angle
|
0-60degrees
|
Fastener
|
SUS304 &Zinc-Nickel Alloy Electroplated Steel
|
Snow Load
|
1.6KN/㎡
|
Color
|
Customized or Silver
|
|
Wind Load
|
60m/s
|
Design Standard
|
AN/NZS1170,DIN1055,JIS C8955,etc.
|
Applicable Solar Module
|
Framed or Frameless
|
Warranty
|
10 Years
|
|
Ground Clearance
|
500-2000mm
|
Small Components
|
Anodized AL-6005-T5
|

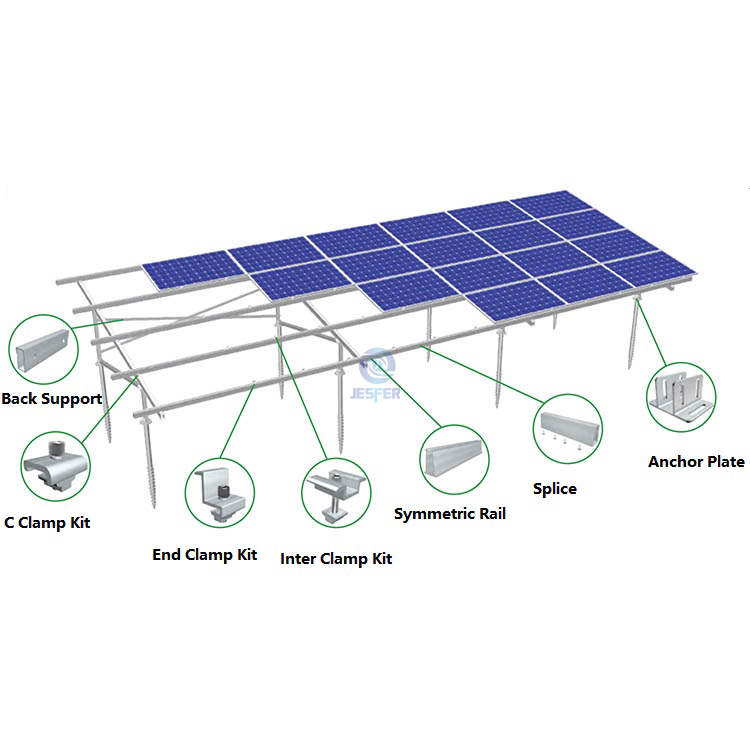

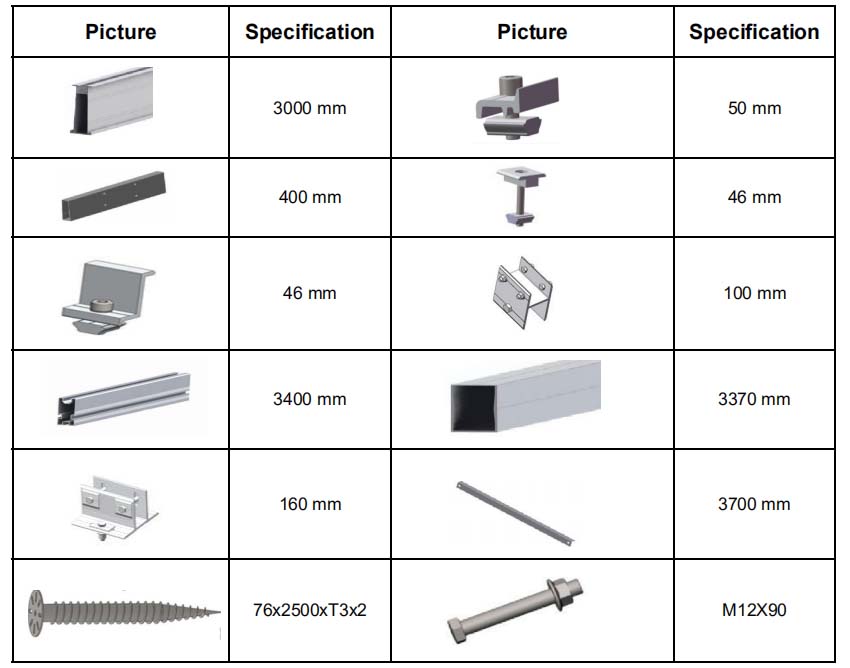

System Components

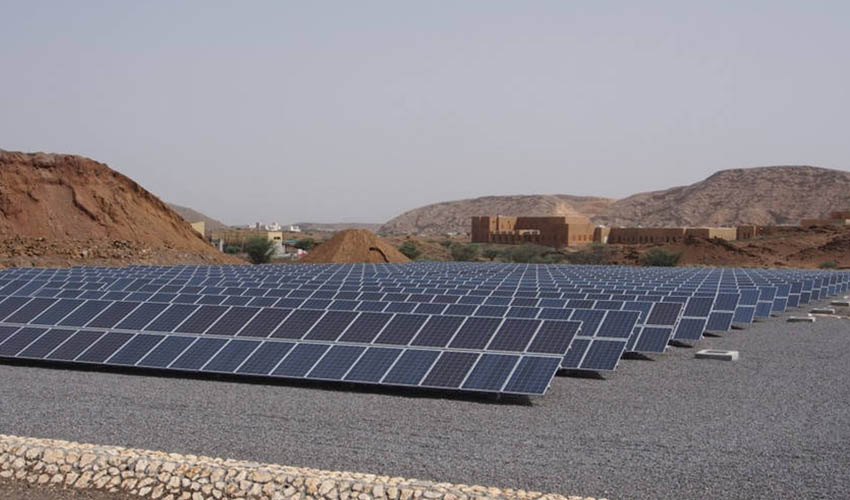

Project Case
Warranty
1.Quality Standards
The production shoud be conducted with the local "National Industrial Production Standards" and fully meets the local calculation requirements. We mainly use high-quality stainless steel 304 and 6005-T5 grade high-strength aluminum alloy materials.
2.Warranty Period
In order to make it easy for customers to use Jesfer products, Jesfer solar provides a 10-year quality guarantee for all mounting racks, during which the company shall be liable for defects in materials and workmanship.
3.Warranty Conditions and Contents
Jesfer Solar guarantees that at the time of goods delivery conditions, all components of the supplied products should be 100% new products and the raw materials are brand new materials, and resolutely resist scrap aluminum and iron. If it is reasonably proved that the product is defective from the date of delivery to the date of delivery, Jesfer Solar shall repair or replace the defective product. At the end of the warranty period, the product must be installed in accordance with the customer's design requirements and installed in accordance with Jesfer's written installation instructions, and then the construction party's insulation and construction quality inspections.
