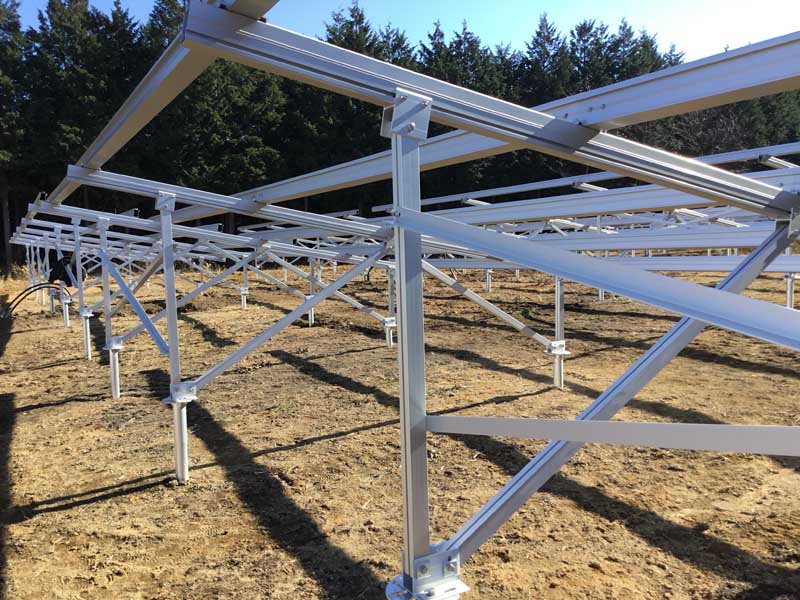

Ground Mount Solar Racking Solar Ground Screw Foundation Mounting System
The ground mounted solar racking system has a sturdy construction that can be easily installed on the ground or on the roof. The solar rack as well as the grounding screws are of high quality and help eliminate rust and other failures in harsh conditions. These products are easy to adjust even after installation. Their heat-resistant properties allow the panels to stay outdoors in direct sunlight to generate energy.
Technical Data
| Install Site |
Open field area |
| Max Wind Speed |
≤60m/s |
| Snow Load |
≤1.4KN/M2 |
| Tilt Angle |
0-45 degree |
| Applicable Module |
Framed or frameless |
| Module Orientation |
Landscape, portrait |
| Standards |
AS/NZS 1170, ASCE 7-10, JIS2017 |
| Material |
AL6005-T5, SUS304 |
| Anti-corrosive |
Anodized |
| Color |
Silver, Black |
| Warranty |
12 years |
Key Features
- Top quality with competitive price---one of the biggest aluminum solar mounting manufacturer with integrated production in Xiamen.
- Solar shelves, ground screws are fully anodized for up to 25 years of service life - 12-year warranty is provided.
- Excellent design ability---over 20 structure engineers, the chief engineer has 10 years' experience of structure engineering for aluminum solar mounting systems.
- Pre-assembled before shipment, easy to install, helping you save about 30% of the installation time.

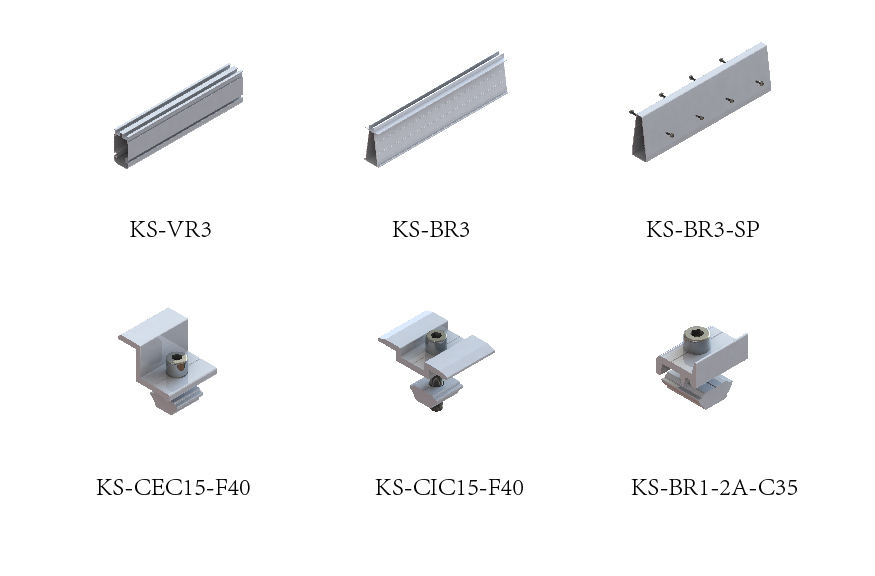

Components

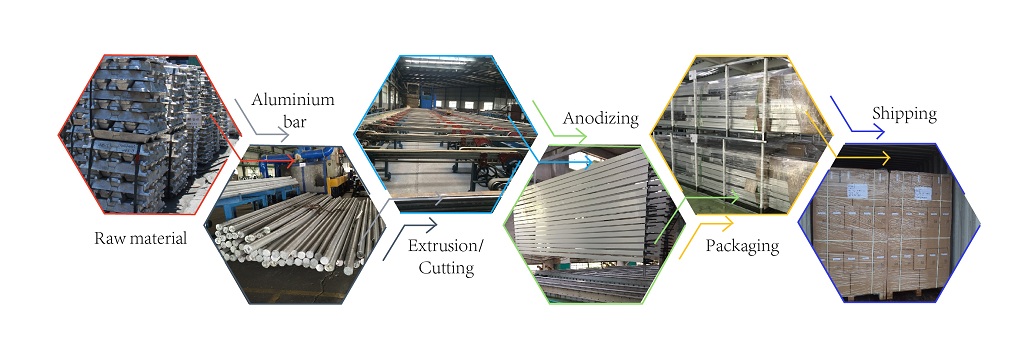

Production Process
Why choose Kingfeels ?
1. Top quality with competitive price---one of the biggest aluminum solar mounting manufacturer with integrated production in Xiamen.
2. Full anodize for all components---offering 12 year warranty and 25 year life time.
3. Excellent design ability---over 20 structure engineers, the chief engineer has 10 years' experience of structure engineering for aluminum solar mounting systems.
