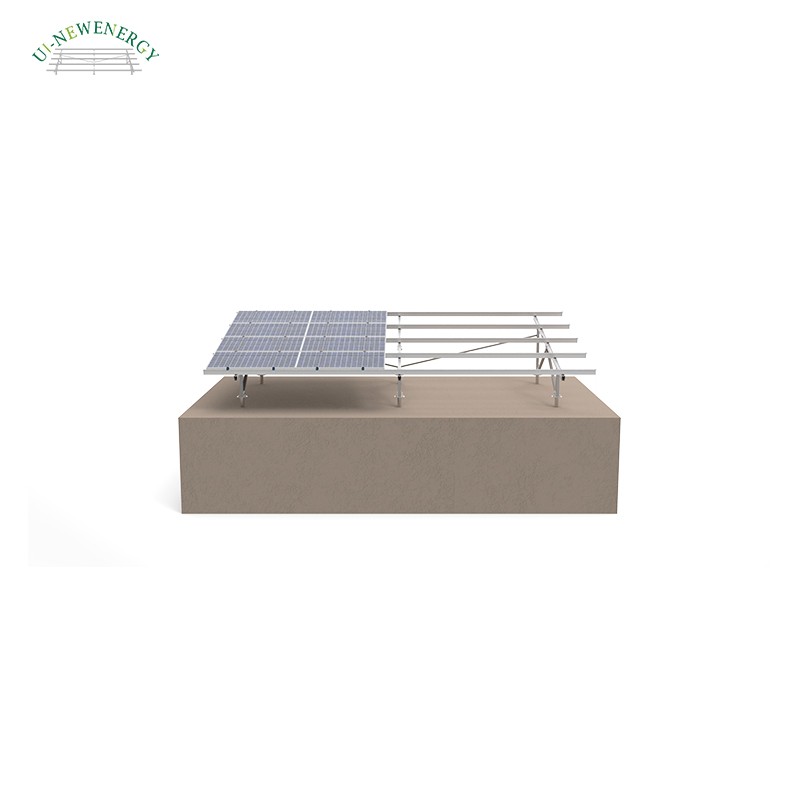

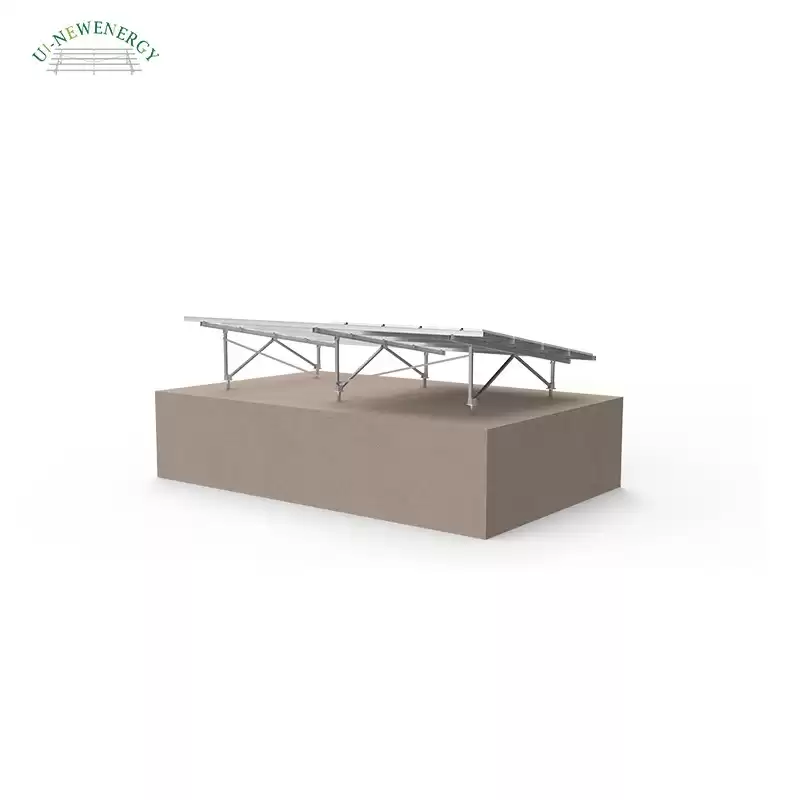

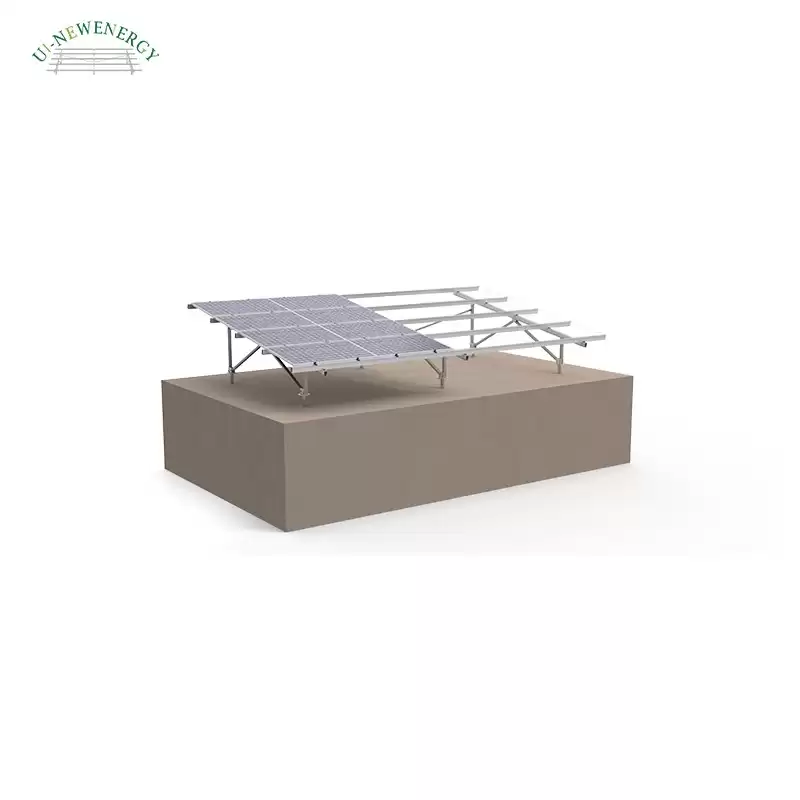

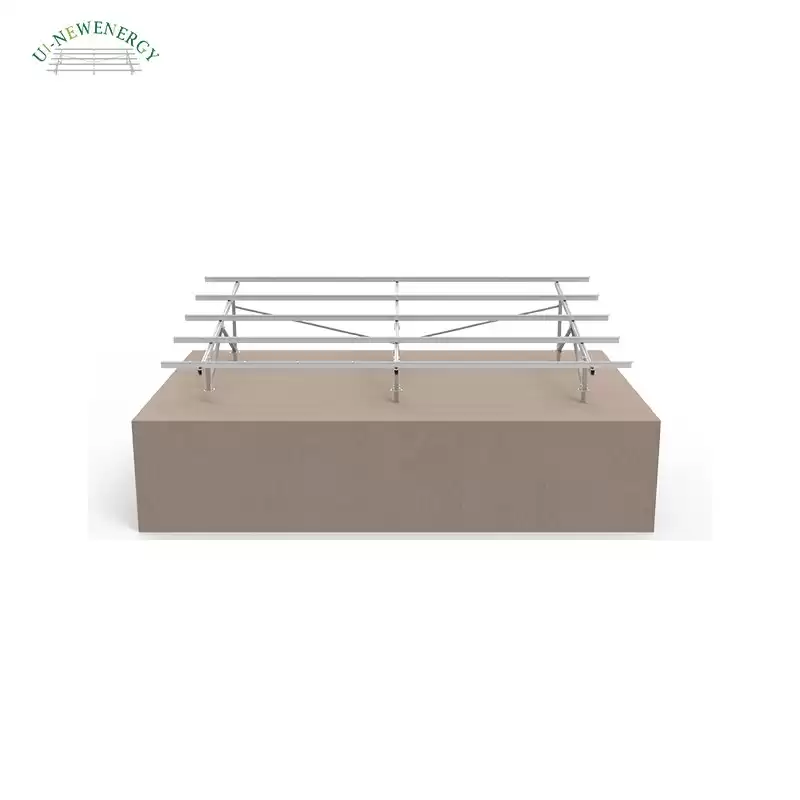

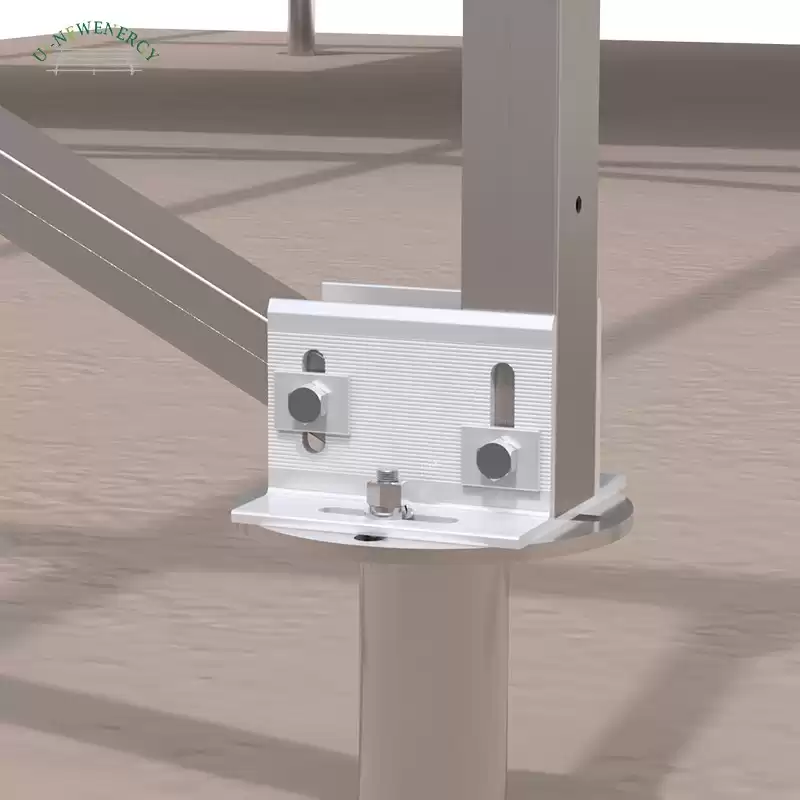

Ground Mount Solar Racking System SG2
SG2 Ground mount solar racking system is featured with light weight, strong structure, and recyclable materials, pre-assembled beam save your time and cost .
Ground Photovoltaic System Bracket Features:
A.Quick installation with large-scale ground photovoltaic system power station construction progress.
B.Flexible form of adjustment to meet the complex requirements of the construction site.

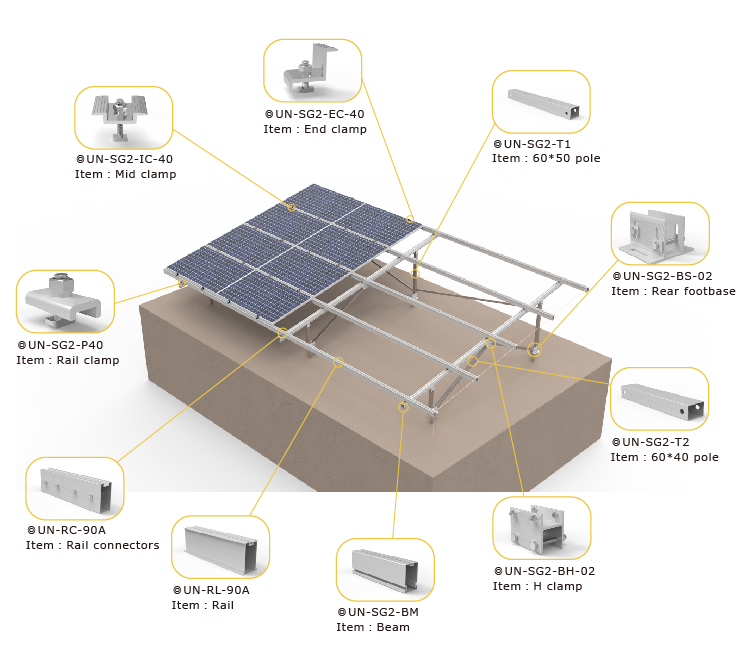

C.Refine the number of accessories to facilitate the identification of workers on site .
D.Rust-resistance and Anti-corrosion.
|
Product Parameter
|
|
Product Name
|
Solar Ground Mounting
System
|
|
Installation
Site
|
Open Field/ Ground /
Earth / Concrete Ground
|
|
Material
|
Aluminum 6005-T5
|
|
Surface
|
Anodized
|
|
Color
|
Silver or Customized
|
|
Module Angle
|
10-35
Degrees According to Your Requirement or Latitude
|
|
Wind Speed
|
60m/s
|
|
Snow Load
|
1.4kN/m2
|
|
Standard
|
AS/NZS 1170; JIS
C8955:2017
|
|
Warranty
|
10 Years
|
|
Service Life
|
25 Years
|
|

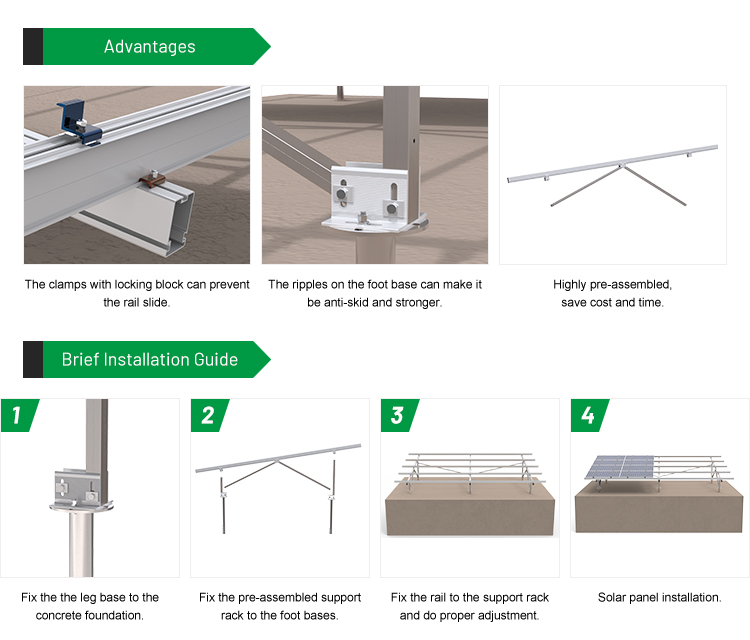

Advantages
|
Easy
Installation; Safety And Reliability; 10 -Year Warranty
|
F A Q
Q1:Are you a factory or trading company?
A1: We are a factory in China, specializing in solar mounting system project planning and aluminum profile customization and processing.
Our product are solar ground structures, solar carport, solar farm, ground screw and related components ect.
Q2: Where is your factory located? How can I visit there?
A2: Our factory is located in Xiamen city, Fujian province,China.
You can fly to Xiamen Gaoqi International Airport directly, all our clients, from home or abroad, are warmly welcome to visit us.
Q3: How does you factory do regarding quality control?
A3: "Quality is priority" we always attach great important to quality controlling from the beginning to the very end.
Q4: How can I get some samples？
A4:We are honored to offer samples according to your inquiry.
Q5:What necessary info. for us to design and quote？
1.What is your pv panels dimension?_____mm Length x_____mm Width x____mm Thickness
2.How many panel are you going to mount? _______Nos.
3.Do you have any special requirement on ground/flat roof clearance?
4.May I know the tilt angle you need?________degree
5.What is your planned pv assmebly block? ________Nos. in a row,___rows
6.How is weather there, such as wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load.
