Ground Mount Solar PV Module Brackets System Installations.
GROUND SOLAR PANEL BRACKET
GROUND SOLAR BRACKET SPECIFICATIONS
▶ Installation site Flat roof.
▶ Installation angle 5°,10°
▶Wind speed <45m/s.
▶Snow load <1.2KN/m2.
▶Build height <20m.
▶Material AI 6063-T5 & SUS304.
▶Surface treatment HDG.
▶Refer to standard GB50009,JIS C8955,DIN 1055
▶Warranty 15-year warranty , 25-year service life.

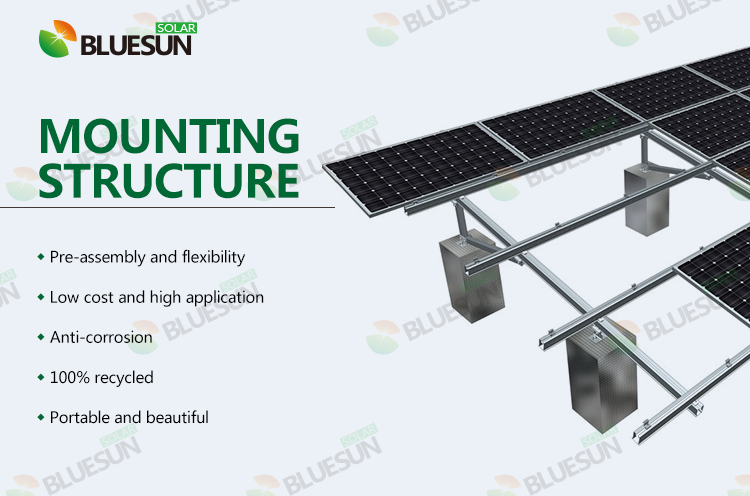

GROUND SOLAR RACKING SYSTEM HARDWARES
▶ Ground Solar Panel Brackets Mountings System with Q235B steel bracket as main body material,HDG surface treatment, service life is more than 25 years.
▶ Cement based implanted in the ground makes the connection is frim,embedded bolt will be set into cement based to convenient installation between Mounting Bracket Foot and cement based.
▶ Ground Solar Panel Racking System with features :convenient installation, low cost ,suitable for large-scale Photovoltaic Power Station Constructure.
▶ Concrete foundation Ground Solar Panel Support Systems suits for all kinds of soil. We optimized the wind and snow load resistance performance, and can bear larger span and larger pressure, realize the optimal design proposal.
GROUND SOLAR RACKING SYSTEM PACKING
TO HELP YOU GET THE RIGHT SYSTEM,PLEASE KINDLY OFFER THE FOLLOWING NECESSARY INFO:
1. Dimension of solar panels(length*width*thickness)?
2. Quantity of solar panels?
3. Where to install : rooftop (flat roof or pitched roof ) or ground ?
4. Tilt angle?
5. Any requirements about wind load and snow load?
6. Any minimum height requirement(distance from ground to panel)?
