Overview

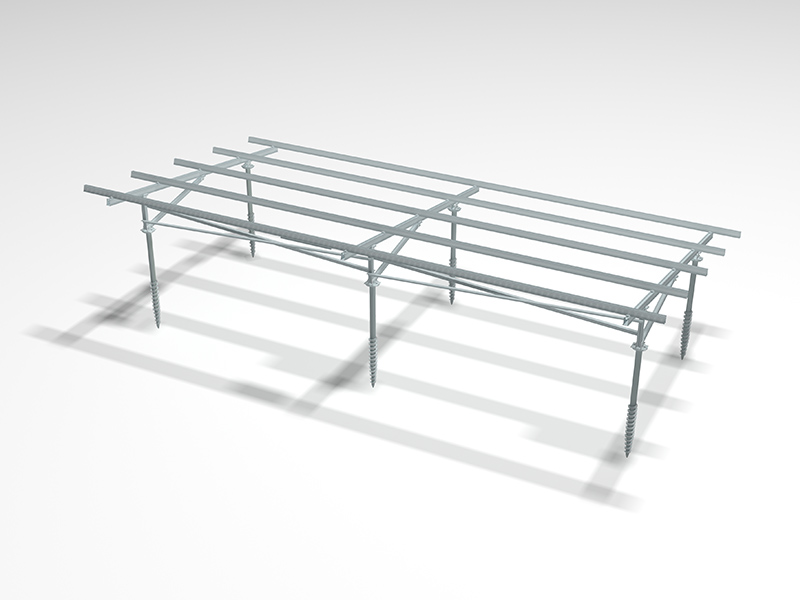

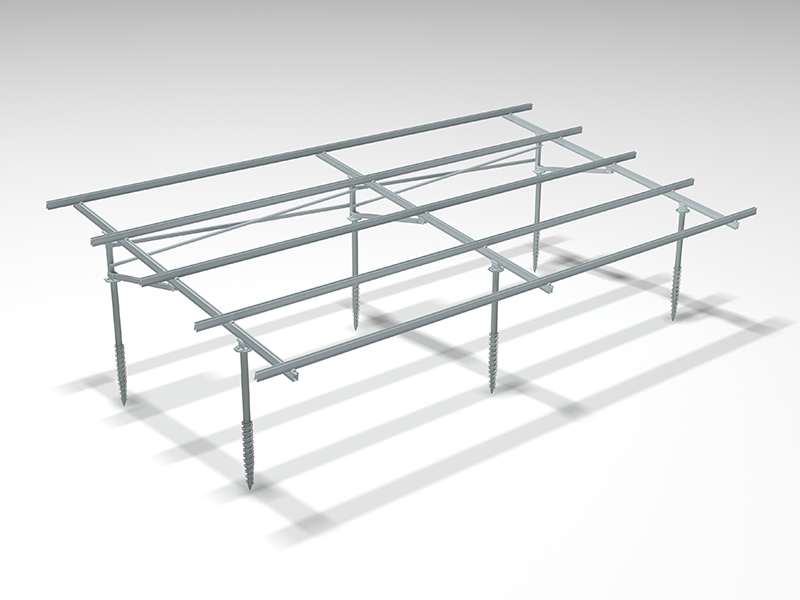

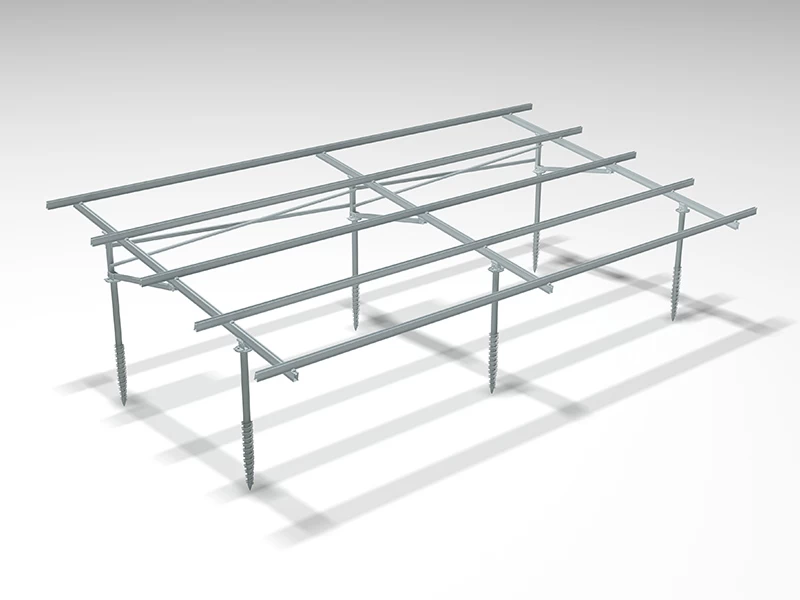

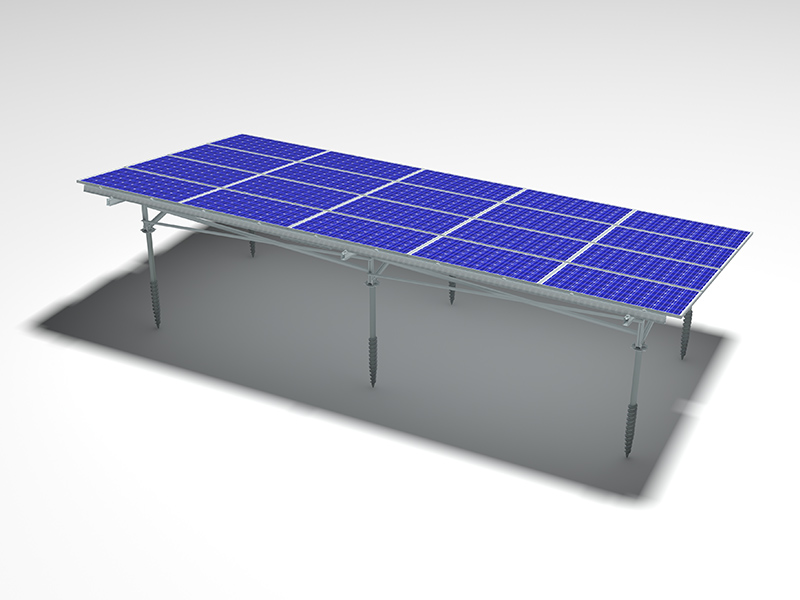

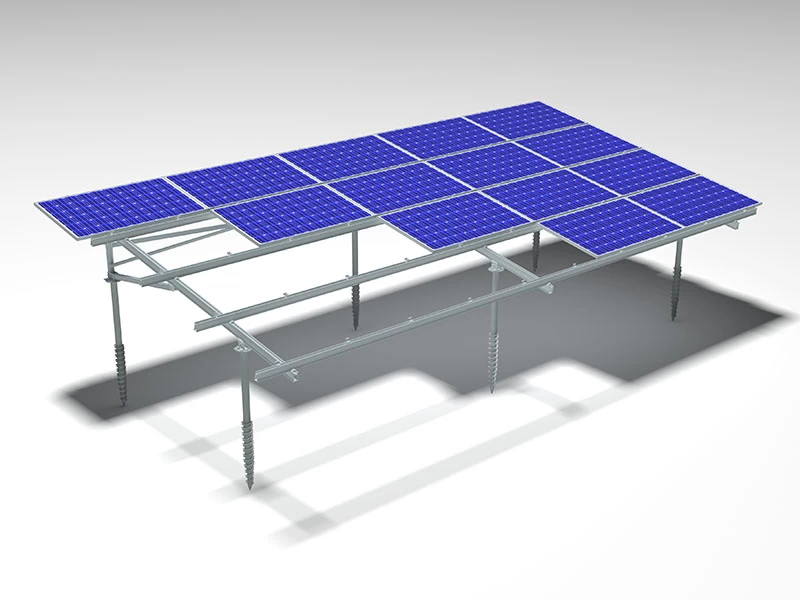

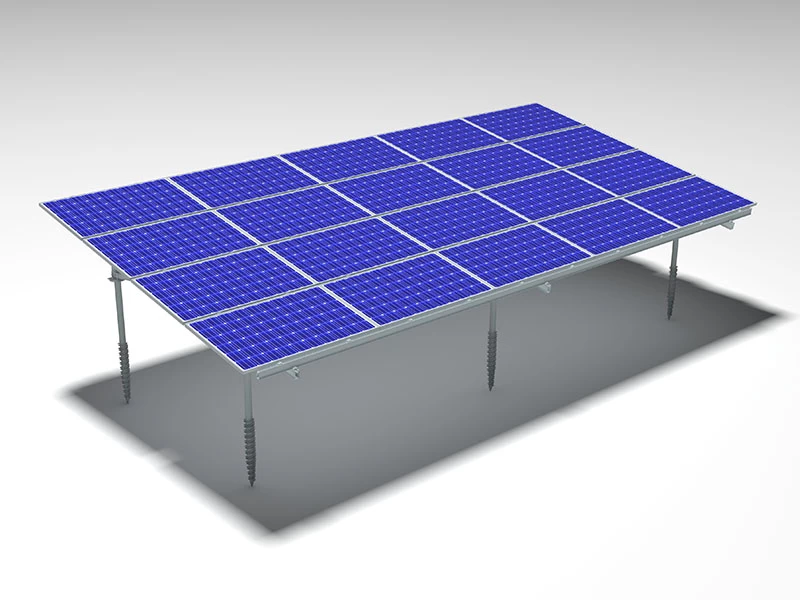

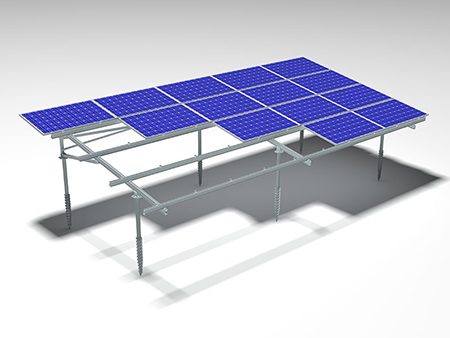

MRac Pro Ground Terrace PGT5 is optimized from GT5, suitable for
medium to large scale solar PV projects. Main beams and post are
optimized with better design and less material, with strong wind
load and snow load resistance. The system can achieve minor
adjustment onsite with special design of Anchor Plate to adapt to
different sites. Patented and certified system design ensure projects
safety and quick installation
|
Technical Parameter
|
|
Installation Site
|
Ground
|
|
Foundation
|
Concrete Base or Ground Screw
|
|
Tilt Angle
|
0-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/㎡
|
|
Ground Clearance
|
500-2000mm
|
|
Applicable Solar Module
|
Framed or Frameless
|
|
Panel Layout
|
Portrait or Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Fastener
|
SUS304 &Zinc-Nickel Alloy Electroplated Steel
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
Features
Symmetrical Design of Tilt-in-Nut and Rail Channel
No direction limitation for the nut and rail channel, improving the
installation efficiency.
No direction limitation for the nut and rail channel, improving
the installation efficiency.
Solution design case by case, most components pre-assembled
in factory, no onsite cut and drill request, saving the onsite
installation time and cost.
Flexibility and Adjustability
The structure can be adjusted with some tolerance with
east-west, west-south and south-north directions, assuring
flexible on-site installation to achieve best yield for solar
modules
No Front Post Design
Saving material cost without front post design, suitable for low
ground clearance projects.
Technology Certification
