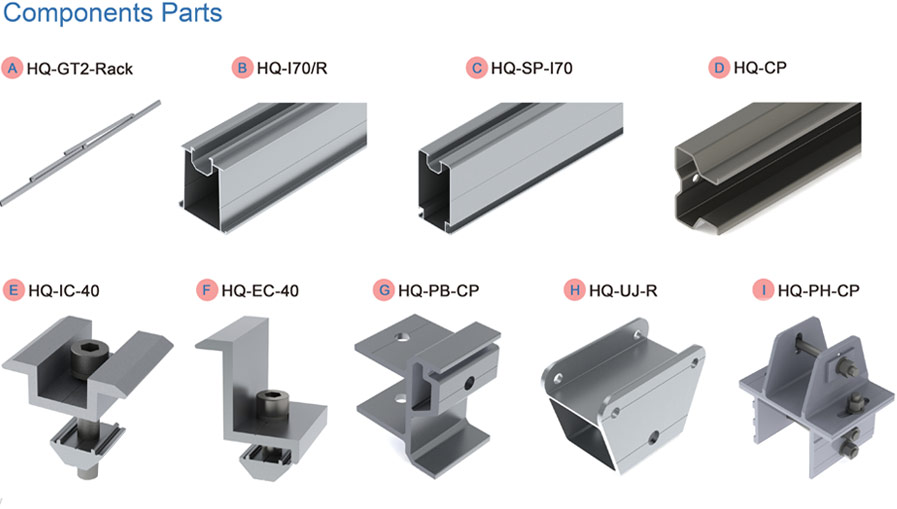

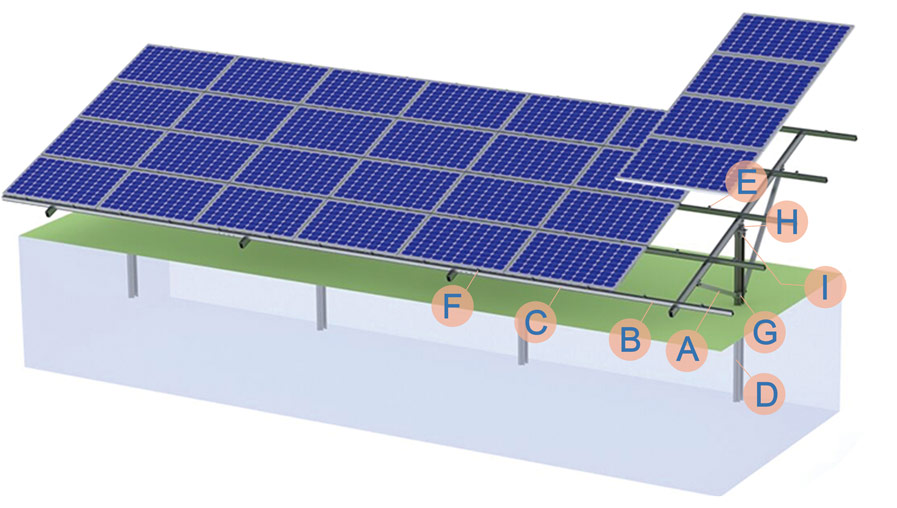

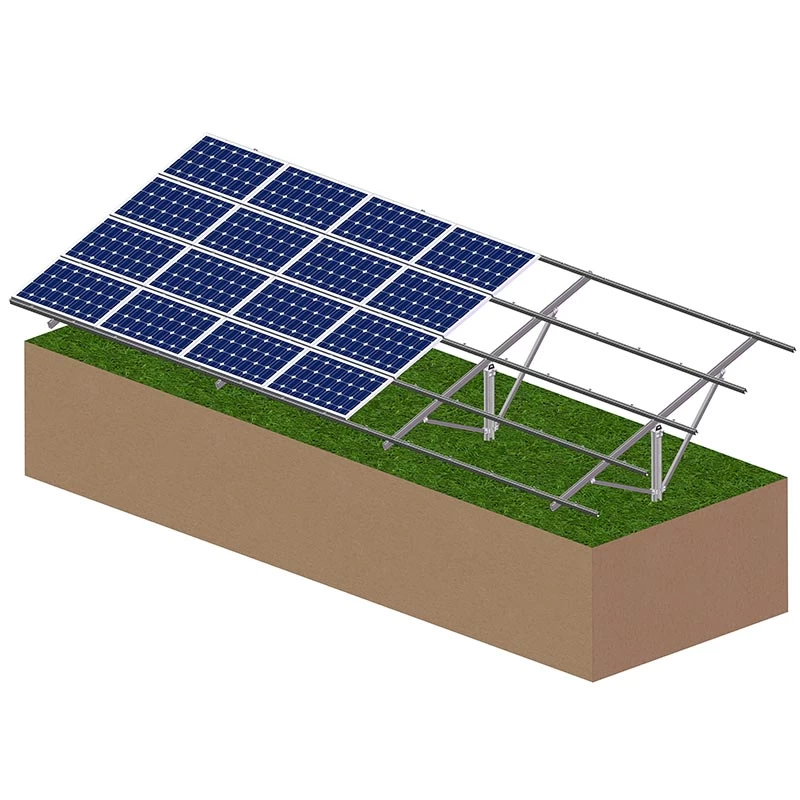

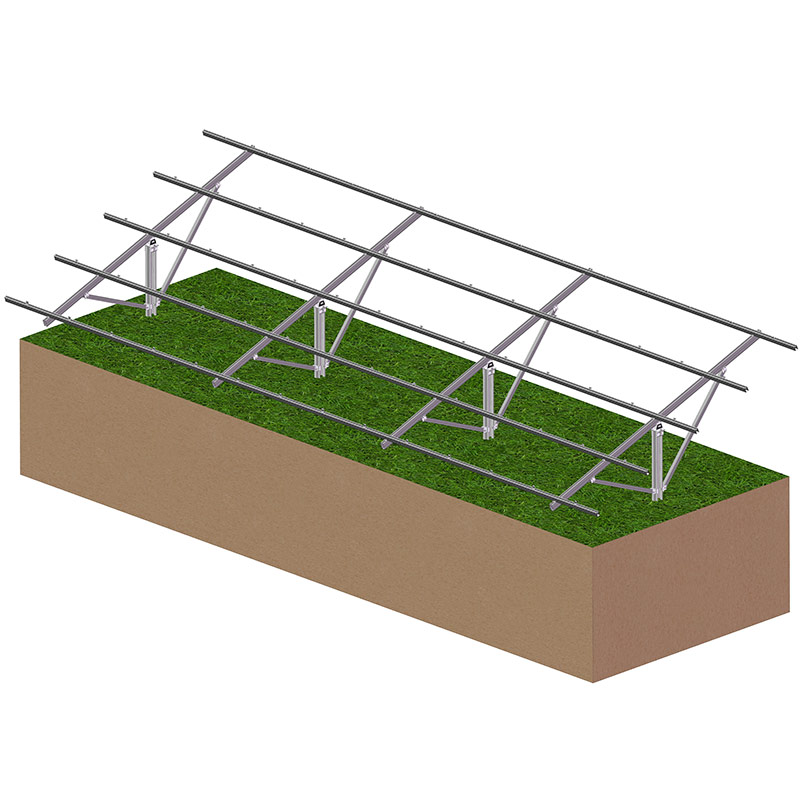

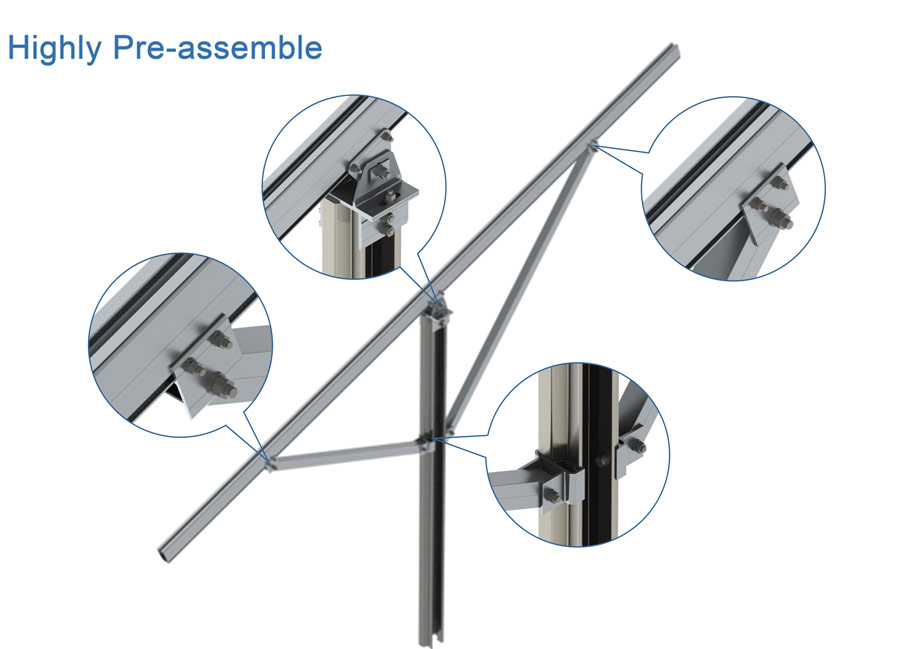

HQ Mount PV ground mounting system 2 (also called the “GT2”) is a ground system with pre-assembled screw pile foundation or cement base. Which is suitable for large-scale commercial installation and multi-purpose installation.As a mounting system for various photovoltaic modules GT2 ’s unique I-shape rail makes the installation simpler and better precision. GT2’s pre-assembled rack is designed to save time and manpower.
Installation site: open filed.
Tilt angle:0-60 Degree.
Max wind speed:0-80m/s.
Max snow load:0-150cm.
Application:All kinds of panel.
Installtion direction:Landscape /Vertical
Material:Alumiunm&hot dipped galvanized.
Design Criteria:AS/NZS1170,JIS C8955:2011/2017,DIN1055.
Our Advantages
1.Unique post profile, saving material cost.
2.Simple installation, saving labour lost.
3.Horizontal and vertical rotation available.

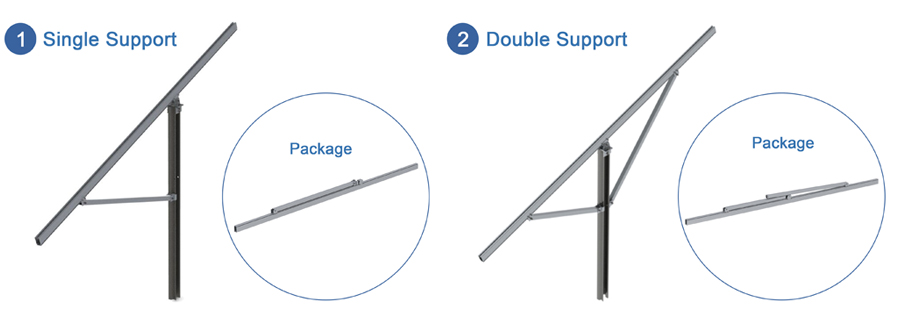

4.Tilt IN/OFF design, easy for installation.

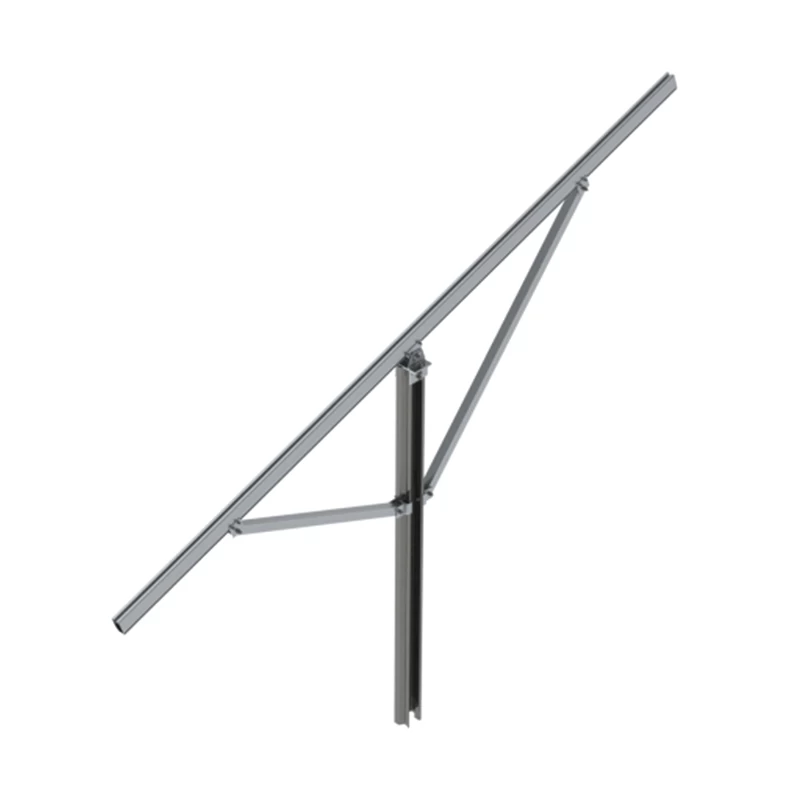

HQ-GM-GT2 with C Pole

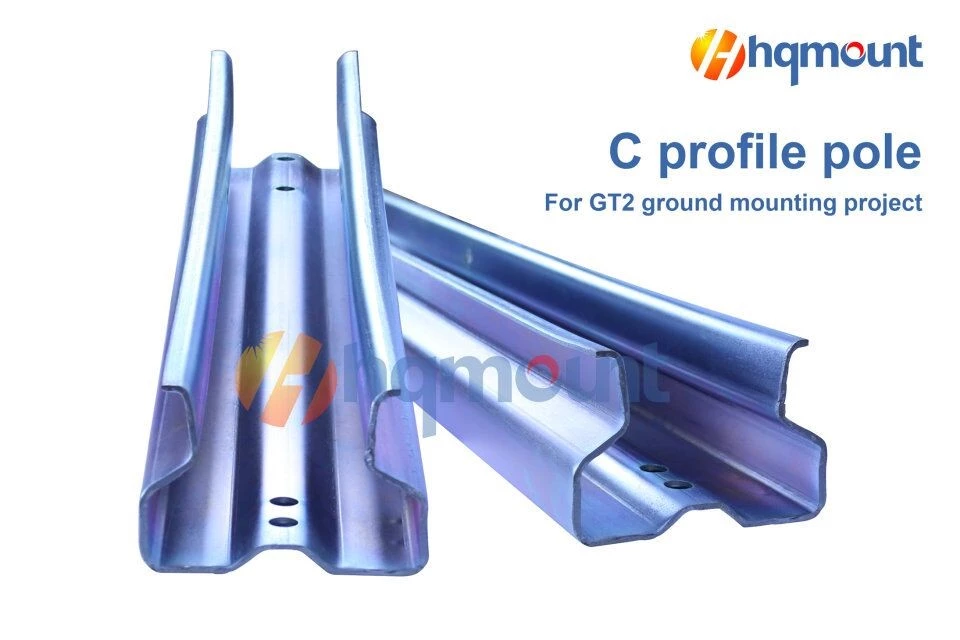

GT2 C pole system suitable for large ground solar plants with steel pile as a fixed base.
C pole is treated with hot galvanizing and has strong corrosion resistance.
C pole is driven 1-3 meter into the ground by piling machine and then assemble aluminum supports structures.

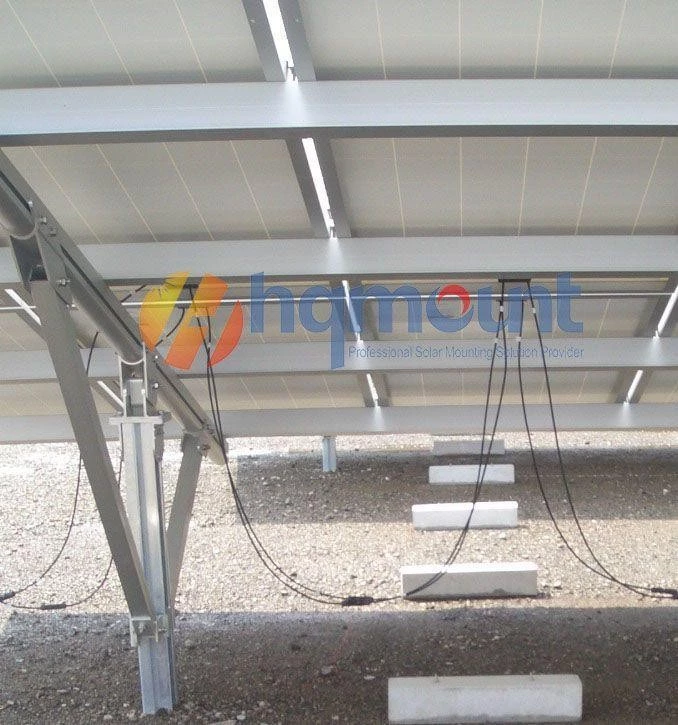

Project case
