Overview

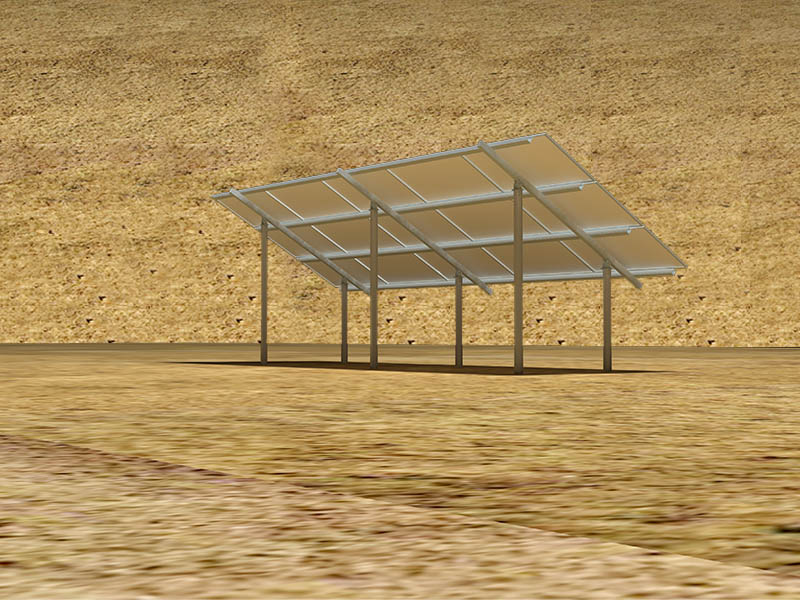

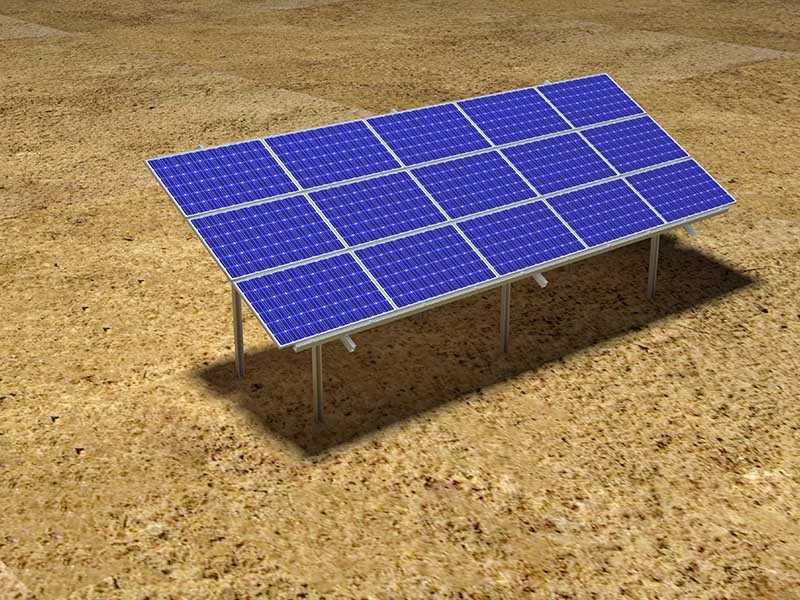

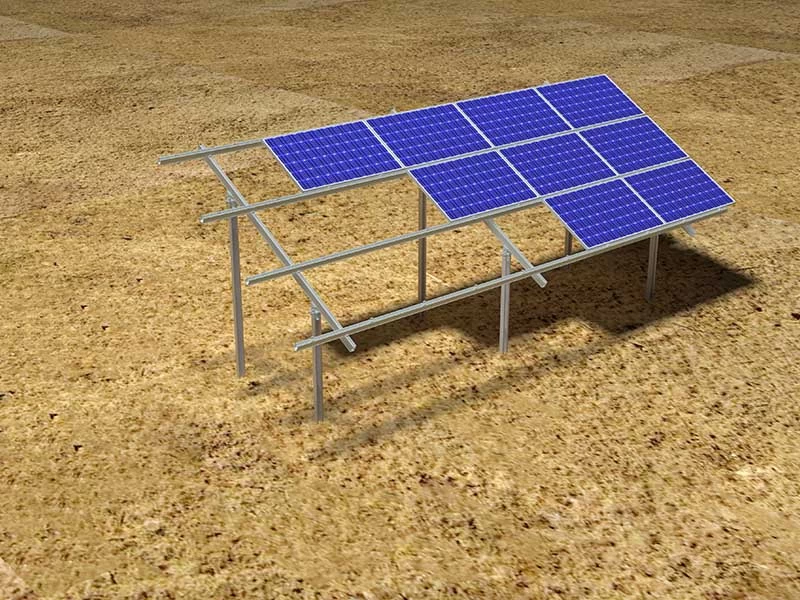

MRac Ground Terrace GT8 is a cost-effective solution applied for
the installation of large-scale and utility-scale solar PV power plant.
Main components are made of anodized aluminum with good
performance of structure strength, stability and anti-corrosion,
compatible with varied solar modules. Patented and certified
system design ensure projects safety and quick installation
|
Technical Parameter
|
|
Installation Site
|
Ground
|
|
Foundation
|
U Post
|
|
Tilt Angle
|
0-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/㎡
|
|
Ground Clearance
|
500-2000mm
|
|
Applicable Solar Module
|
Framed or Frameless
|
|
Panel Layout
|
Portrait or Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Q235B(Hot-Dip Galvanized)&Al6005-T5(Anodized)
|
|
Fastener
|
SUS304 & Zinc-Nickel Alloy Electroplated Steel
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
Features
Pre-assembled Components Save Onsite Installation Time
Solution design case by case, most components pre-assembled
in factory, no onsite cut and drill request, saving the onsite
installation time and cost.

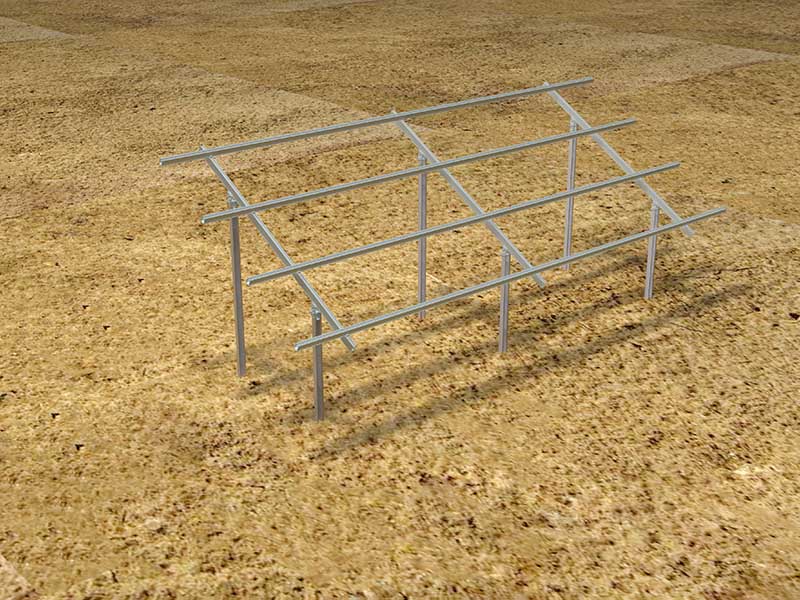

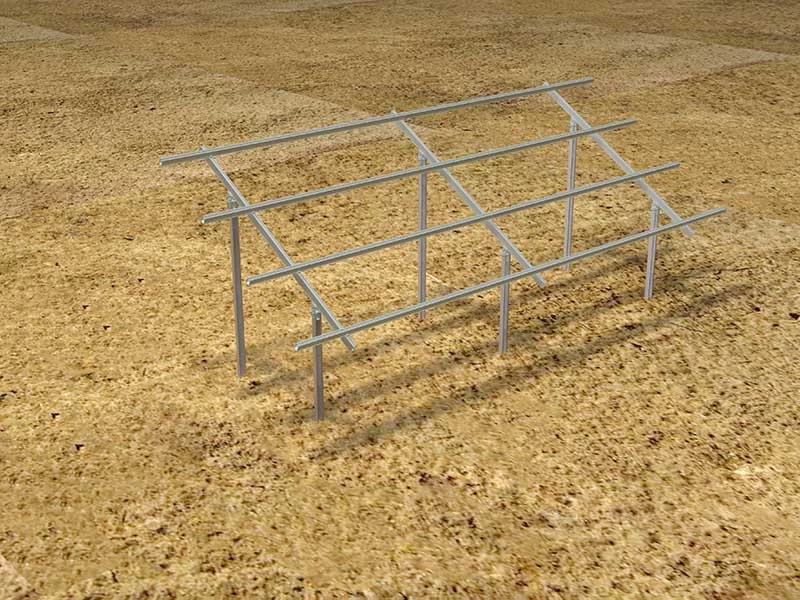

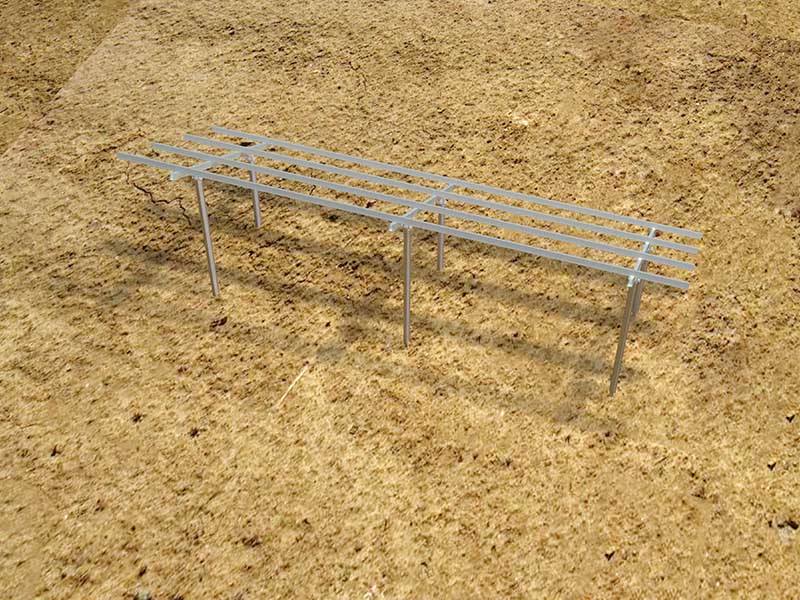

Dual-Pile Design
Dual-pile design, no embracing bar request, saving material
cost.
No Drill on Portrait Beam
It improves the strength of the system to fix the portrait beam
onto the post by special designed clamps, with force at the same
direction of the gravity
Compatible to Varied Solar Modules
With MRac module clamps, the system compatible with most
kinds of framed 60-cell, 72-cell, half-cut cells modules and
frameless modules.
The cost of photovoltaic system consists of components, inverters,
brackets, construction and construction costs, of which components
account for the highest proportion, accounting for 40.7% of the initial
cost of Ground Pv System. Factors such as technological progress and raw
material price reductions drive components to have a greater rate of
cost reduction and room for reduction.
