Ground Screw For Solar Ground Mounting System

SPC Solar have developed different series of screws to meet varied applications, the ground screws are installed with a number of specific aids and machines, perfectly perpendicular at the exact point after minutes.



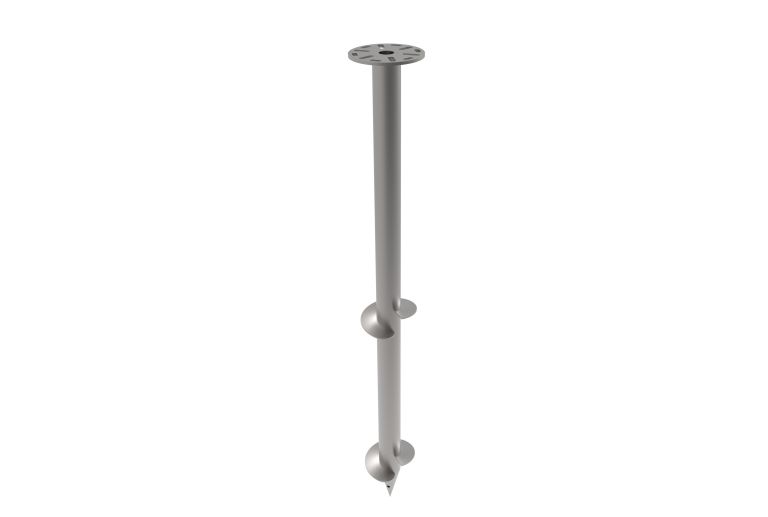

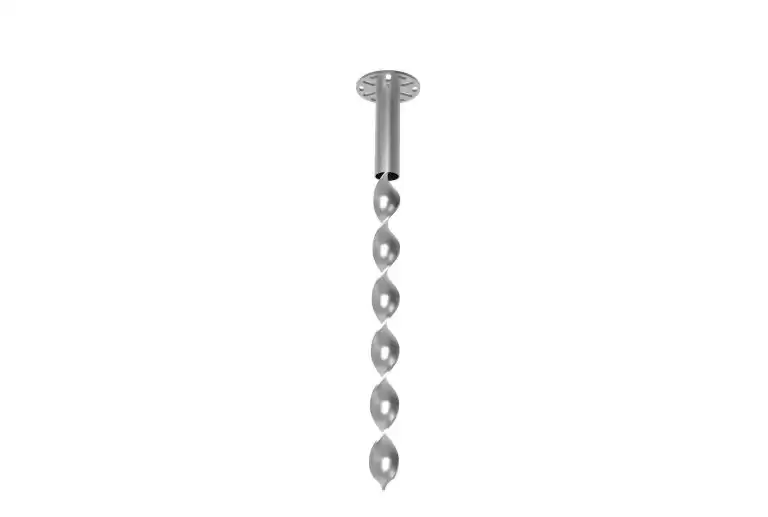

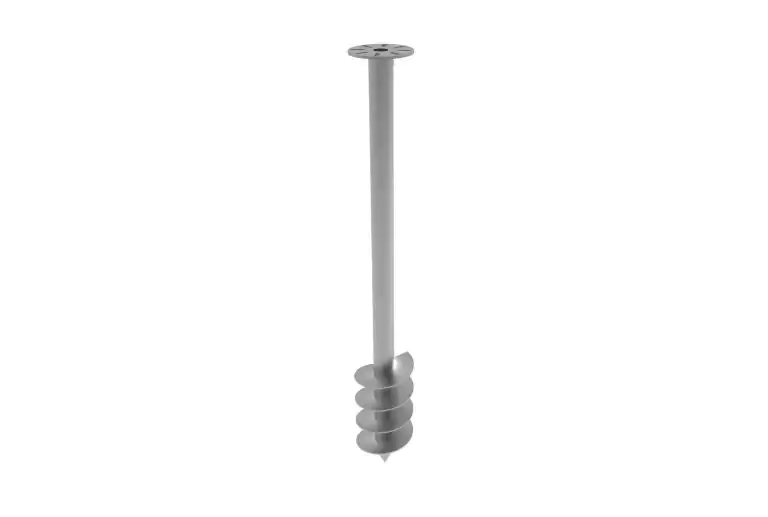

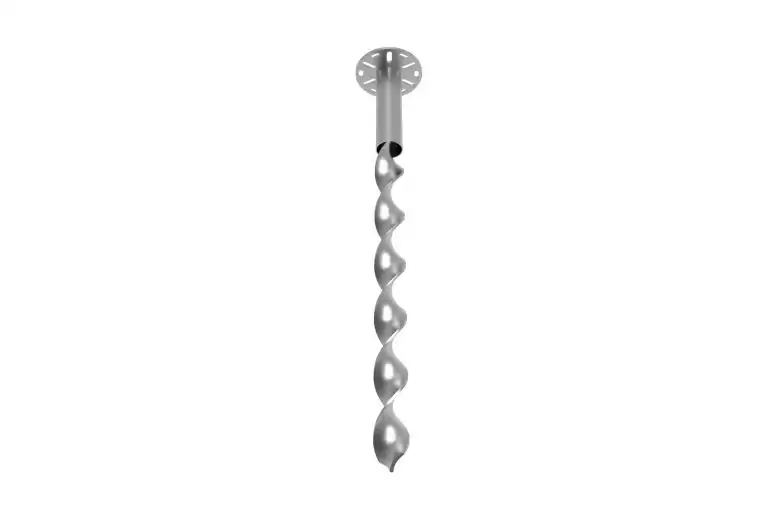

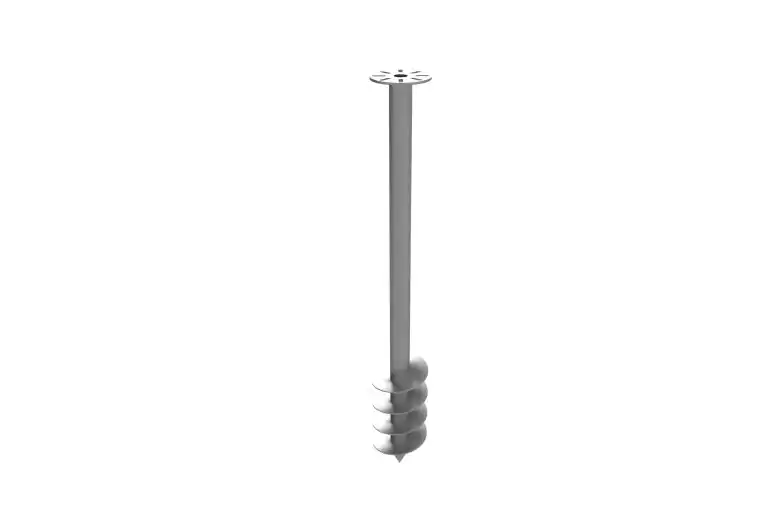

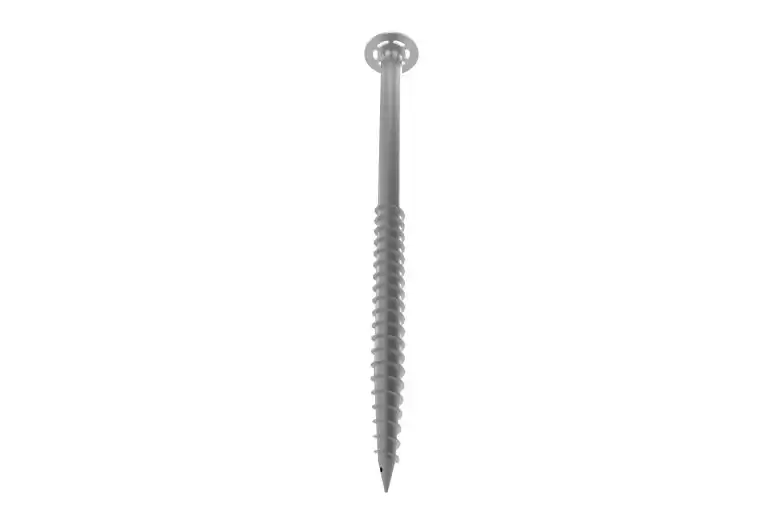

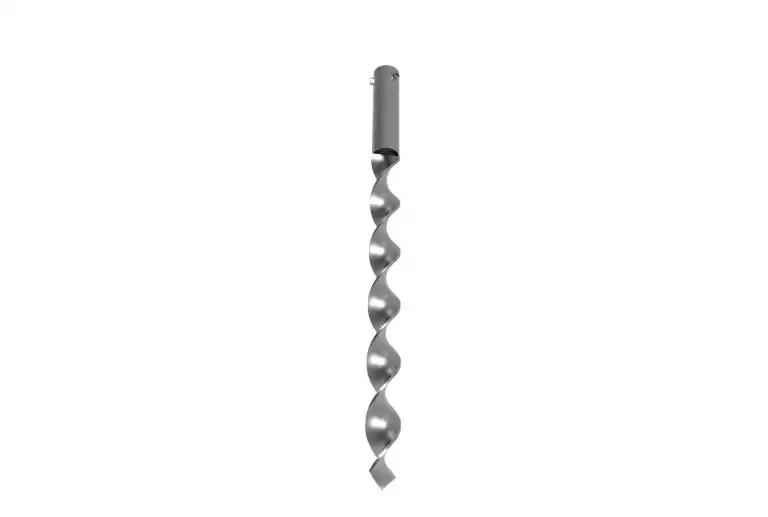

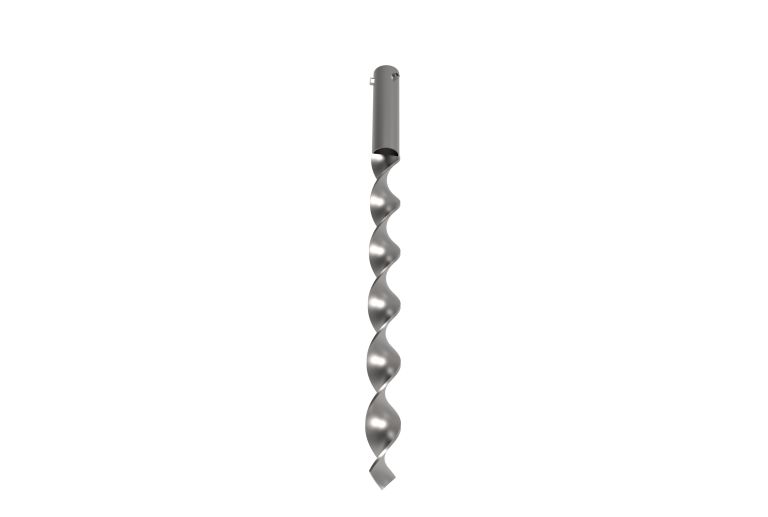

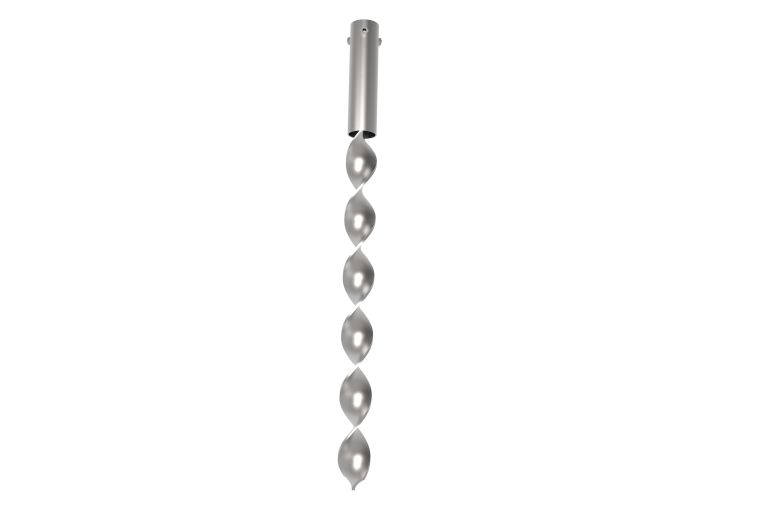

Product Description

Topbest Solar have developed different series of screws to meet varied applications, the ground screws are installed with a number of specific aids and machines, perfectly perpendicular at the exact point after minutes. This screw-in foundation system is not only suitable for natural ground, but also for dense and even tarred surfaces. Applications are countless, from securing garden umbrellas, windy dryers and fences to carports, flagpoles, as per practical requirements, the system is able to be planned and customized in the factory to avoid welding andcut on the spot.save your time and cost.

☆ Easy Installation

Avaiable with installation machines is easier and more quickly than other foundation solutions to save your time and money

☆ Steady and Safety

Many kinds of types can be selected comply with the static load analysis and testing result to make sure the foundation safe.

☆ Excellence Duration

For outdoor using, all the material selected with high class anti-corrosion protection



Technical Information


Install Site Most types of soil
Pipe Material Q235B
Pipe Diameter 50-140mm

Customizable


Pipe Length 500-3000mm

Customizable


Pipe Thickness 2-4mm
Anti-corrosive HDG Galvanized
Warranty 10 Years Warranty
Duration More Than 25 years




Pullout Resistance Force

Item No. Tube Dia
mm
Tube Thk
mm
M1
KN*m
M2
KN*m
Fc
KN
Ft
KN
Fh
KN
SPC- 68x1000 68 2 1.587 1.811 10.5 5.5 3.5
SPC- 76x1200 76 2 1.834 2.846 18.5 11.5 5.5
SPC- 76x1600 76 3.5 3.386 4.398 35 21.5 8.5
SPC- 76x2000 76 3.5 3.386 5.951 45 32.5 11.5
SPC- 90x1200 88.9 3.5 4.729 3.881 30 16.5 7.5
SPC- 90x2000 88.9 3.5 4.729 7.245 55 35 14
SPC- 114x1200 114.3 3.5 8.058 4.916 35 20.5 9.5







 M1 & M2          Fc                 Ft                 Fh


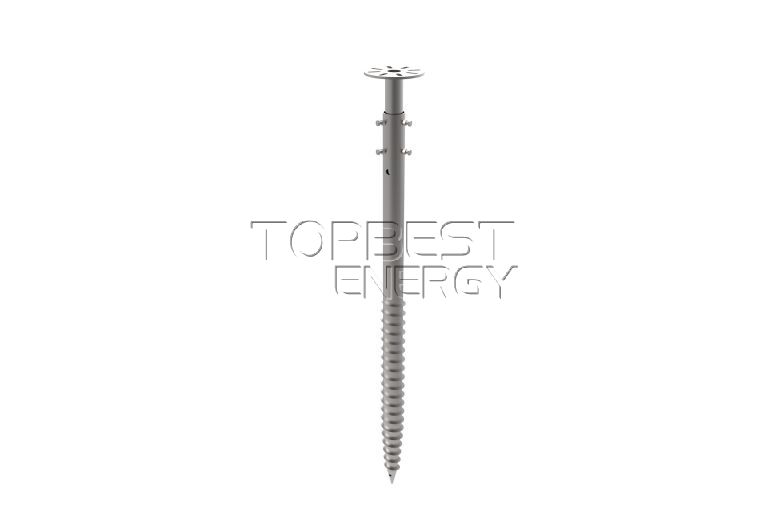

Solar Ground Screw

M1: Moment of The Steel Pipe

M2: Moment in The Soil

FcCompression Force

FtTension Force

Fh:  Horizontal Force
