Ground Screw Mounting Structure
Ground Screw Mounting Structure can work with concrete base or ground screw depending on different soil condition.
Technical Data
Material
|
AL 6005-T5/SUS304/Q235B
|
Surface Treatment
|
AverageAnodizing Coating Thickness≥12μmAverage
Hot-galvanized Coating Thickness≥ 65μm
|
|
Panel Type
|
Framed & Frameless
|
Wind Load
|
≤60m/s
|
SnowLoad
|
1.4KN/m2
|
Panel Orientation
|
Landscape/Portrait
|
Tilt Angle
|
0°~60°
|
Seismic Load
|
Lateral seismic factor: Kp=1; seismic coefficient: Z=1; Use coefficient: I=1
|
Standards
|
JIS C 8955 : 2017
AS/NZS 1170
DIN1055
ASCE/SEI 7-05
International Building Code: IBC 2009
|
Warranty
|
15years qualitywarranty, 25years life span warranty
|

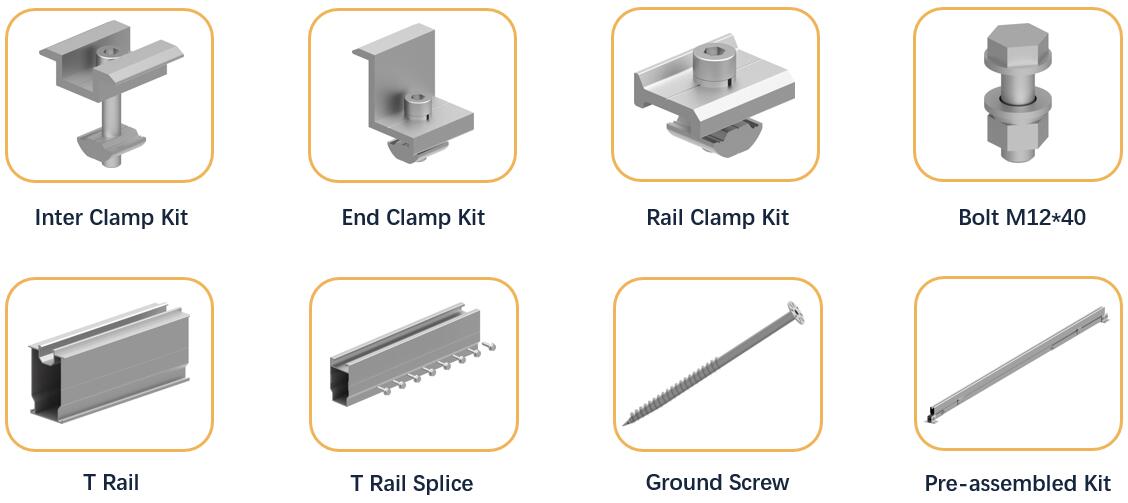

Component List

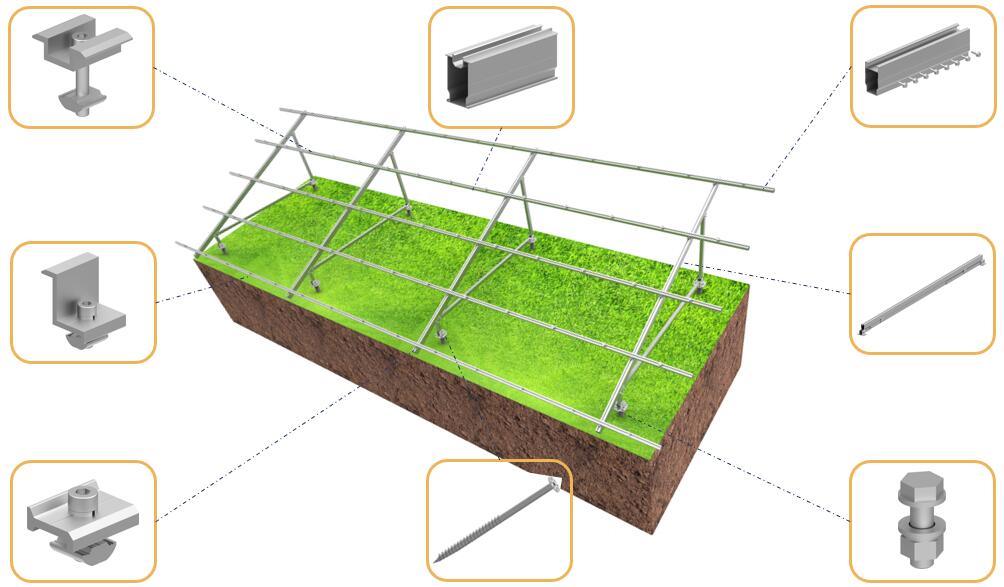

System Overview
Advantages

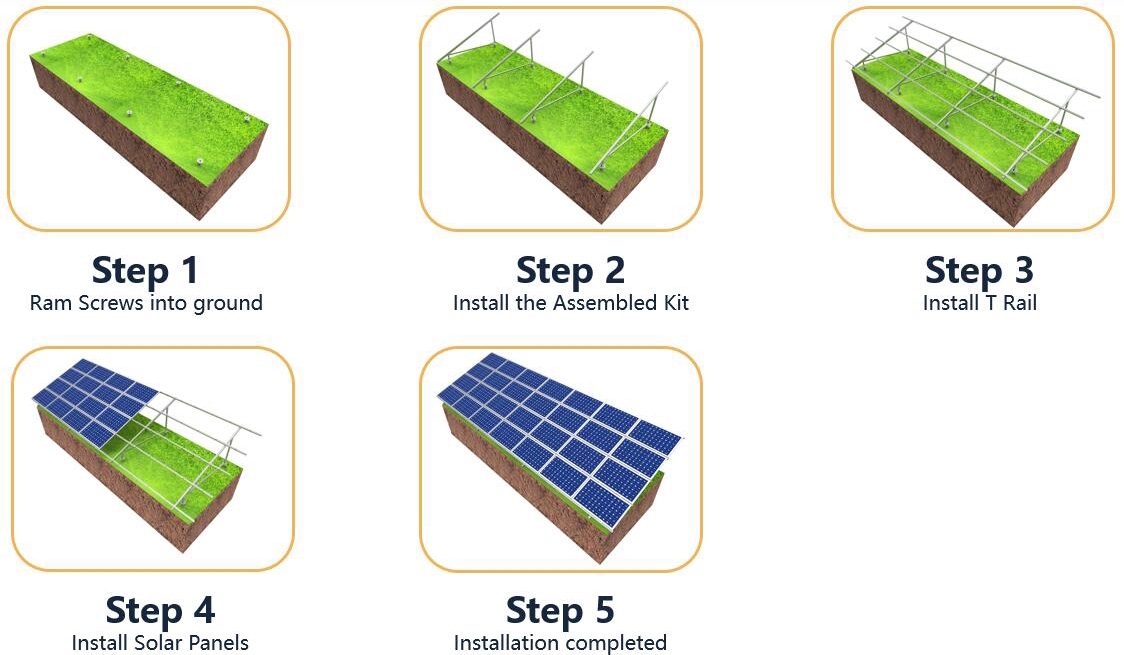

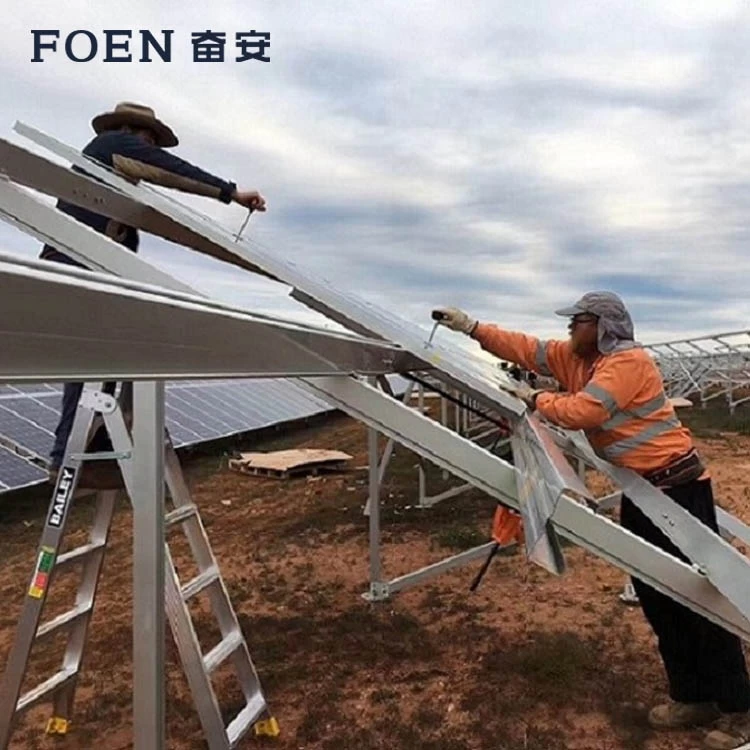

1.Quick Installation: Highly pre-assembled before shipment, save your onsite labor cost
2.Adjustable Structure: Can be adjusted in both landscape and portrait direction, making the system being compatible in certain rugged terrain
3.15 Years Warranty: 15 years' warranty, 25 years' life span
