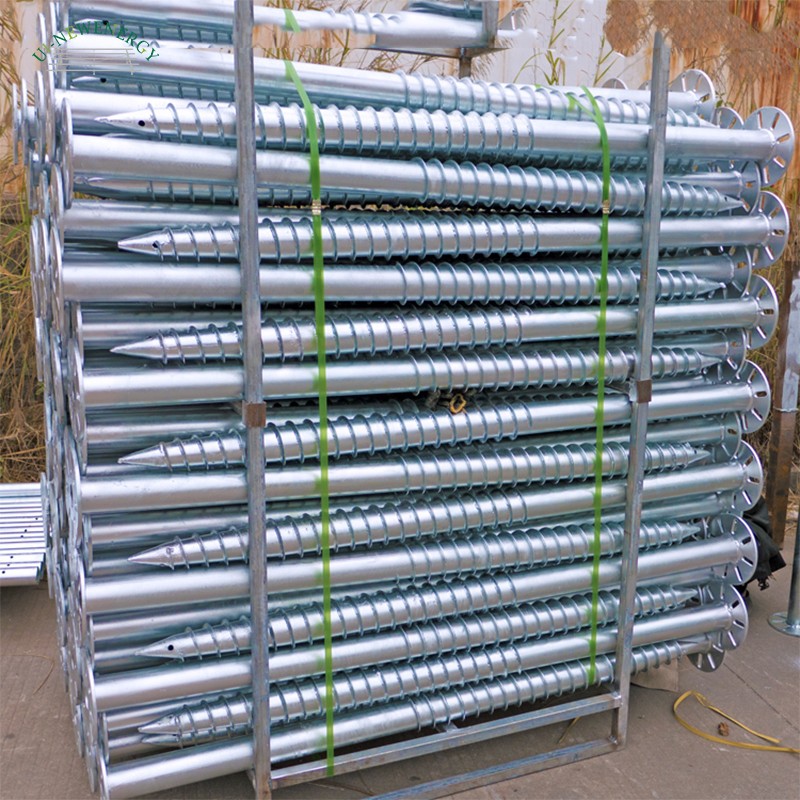

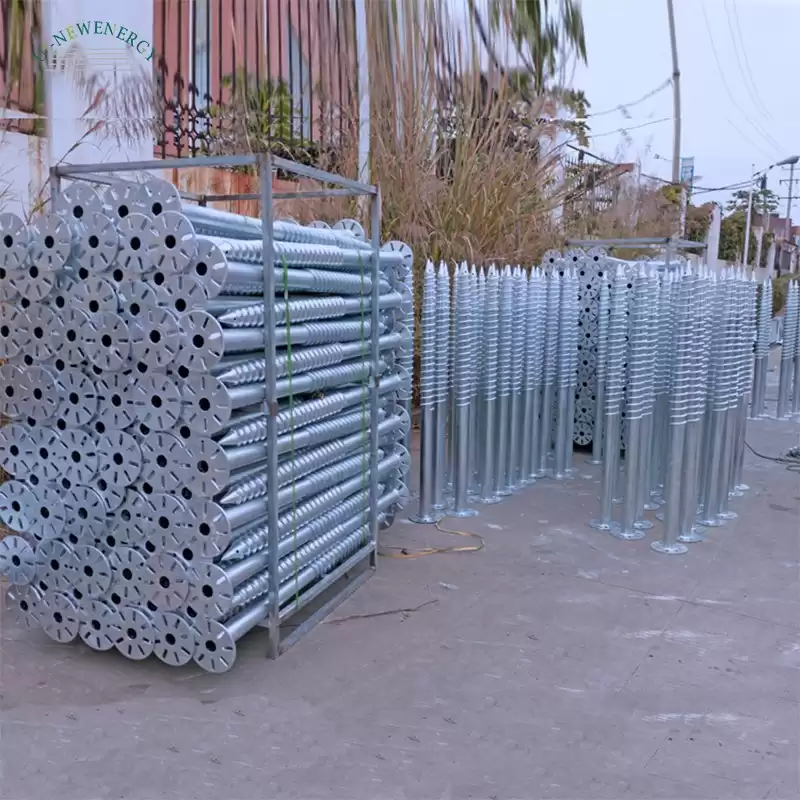

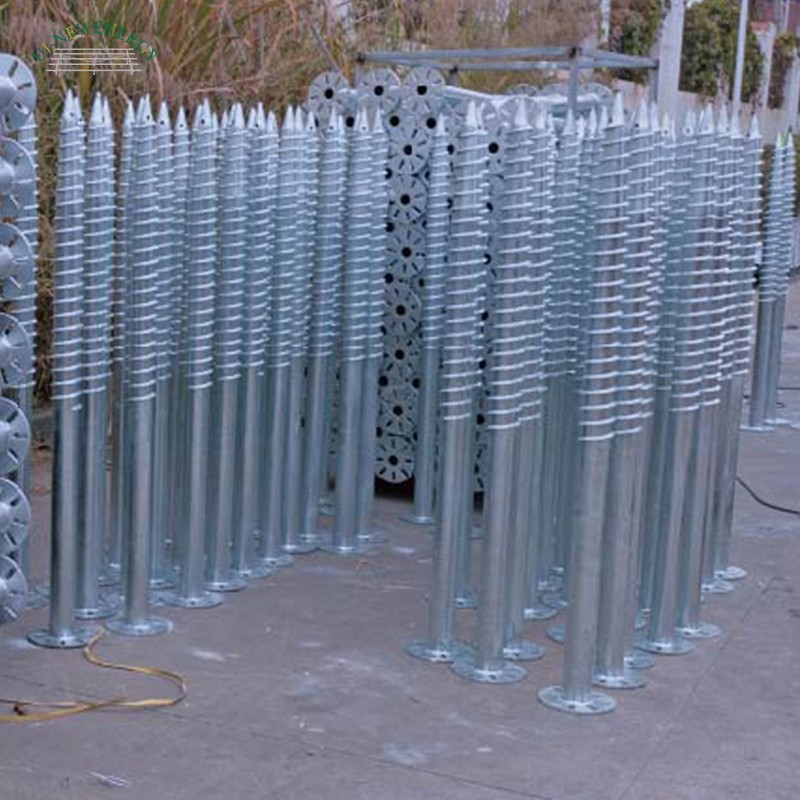

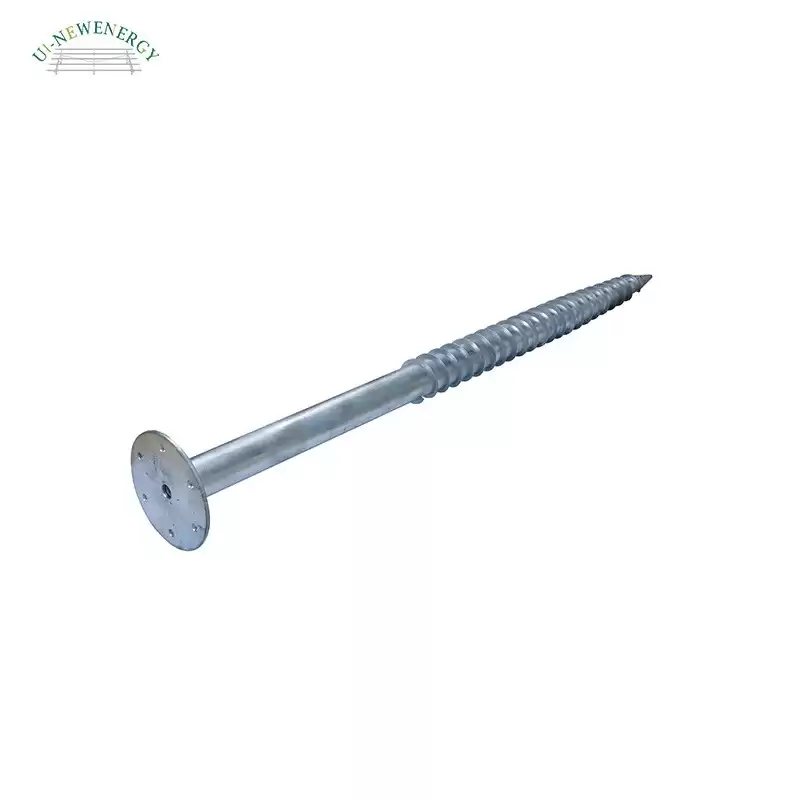

Ground Screw with Flange Top

Ground screw system is a modern foundation system, using the drilling machine to install which makes it as the most efficient and cost-saving footing solution.


  • Length1200mm/ 1600mm/ 1800mm/ Customized
  • SeriesFlange Top
  • Thickness2.75mm/ 3mm/ 3.5mm
  • SurfaceHot Dip Galvanization
  • MaterialQ235

Q235 Hot Dipped Galvanized Ground Screw UN-F76xL


Hot Dipped Galvanized Ground Screw can be widely applied to different soil conditions. Ground screw can be used for many kinds of application, like solar system; timer-fram construction; advertising and traffic systems; urban garden and landscape construction; flag poles and so on.

Ground Screw Features:

A. Compatibility with all type of structures

B. Foundation solution concrete free.

C. Surrounding areas remains unspoiled.

D. Easy remove simple and easy to relocate.

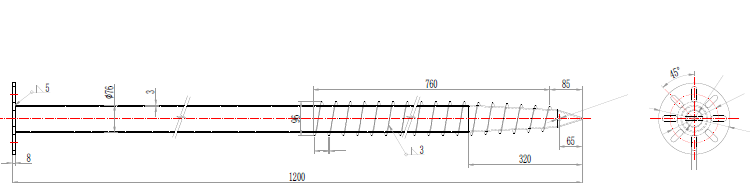

  UN-F76x1200 Drawing


Product Parameter
Installation Site Open Field/ Ground
Material Q235
Surface Hot Dip Galvanization
Thickness 2.75mm/3mm/3.5mm
Length 1200mm/1600mm/1800mm/customized
Temperature Range —50°to 60°
Series Flange Top, Tube Top, Adjustable
Application 1)Timber Construction; 2) Solar Power Systems; 3) City and Parks; 4) Fencing Systems; 5) Road and Traffic; 6) Sheds and Containers; 7)Flag Poles and Marks; 8)Garden and Leisure; 9)Boards and Banners; 10)Event Structures.
Standard AS/NZS 1170; JIS C 8955:2017
Warranty 10 Years
Service Life 25 Years
Packing In Pallet, Carton Box, Plywood Box, Container
Delivery Time 3 Days for Sample, Others Depend on The Quanlity

UN-F76xL
UN-N76
UN-F76xL-A
UN-F76xL-U
UN-F76xL-2
UN-F76xL-4






All Type Ground Screw
Item.NO. Material Surface Galvanized Surface D(mm) Thickness(mm) Flange(mm) Length(mm)
UN-F76xL Q235 Hot Galvanized >=80um

76mm

/Customized

2.5/2.75/3/3.5 180/200/220

1000/1200/

1400/1600/

1800/2000/

2200/2500/

2800/3000/

3200/3500/

Customized

UN-N76
UN-F76xL-A
UN-F76xL-U
UN-F76xL-2
UN-F76xL-4


  F A Q

Q1:Are you a factory or trading company?
A1: We are a factory in China, specializing in solar mounting system project planning and aluminum profile customization and processing.

Our product are solar ground structures, solar carport, solar farm, ground screw and related components ect.


Q2: Where is your factory located? How can I visit there?
A2: Our factory is located in Xiamen city, Fujian province,China.
You can fly to Xiamen Gaoqi International Airport directly, all our clients, from home or abroad, are warmly welcome to visit us.


Q3: How does you factory do regarding quality control?
A3: "Quality is priority" we always attach great important to quality controlling from the beginning to the very end.


Q4: How can I get some samples?

A4:We are honored to offer samples according to your inquiry.
