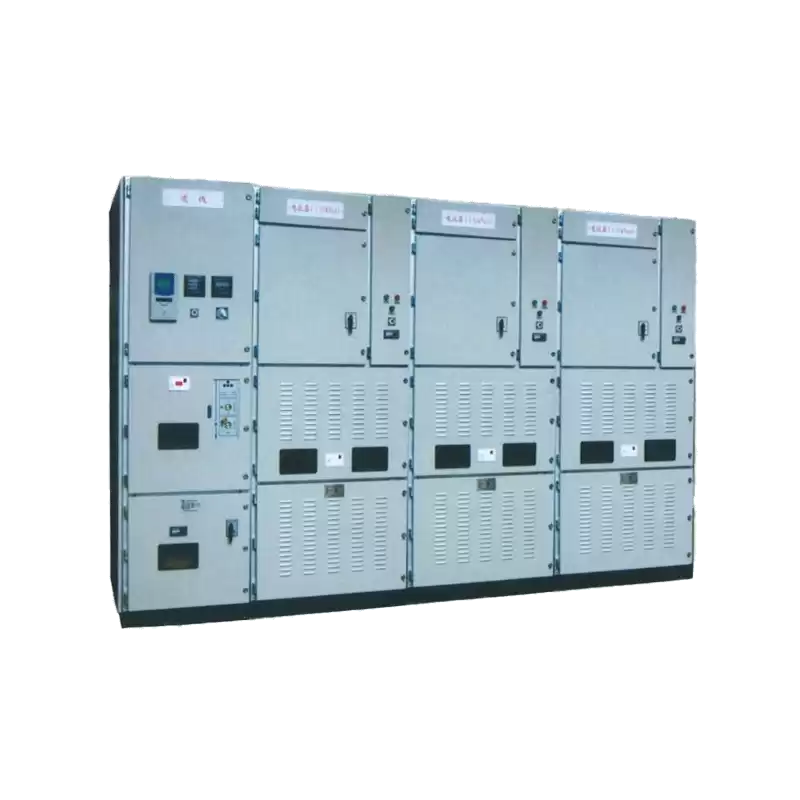

Grouped Switching Reactor Set GL-1

The GL-1 reactor set compensates capacitive reactive power, improving power factor and voltage quality in long cable lines and high-demand projects. It addresses voltage distortion, power factor degradation, and network loss, operating continuously in both indoor and outdoor substations for reliable power distribution.









  • GL-1 Grouped Switching Reactor Set Features
  • #
    Communication Interface
    Standard industrial RS/485 communication interface.
  • #
    Switching Mechanism
    Uses permanent magnet vacuum circuit breakers or long-life vacuum contactors to automatically select and switch reactors based on reactive power demand, ensuring smooth switching without oscillations.
  • #
    Manual/Automatic Control
    In automatic mode, reactors are switched on when the power factor is below 0.9 and switched off when it exceeds 0.95. No action is taken between 0.9 and 0.95.
  • #
    Optimized Reactor Grouping
    Reactor grouping allows for efficient reactive power control with fewer reactor units. For instance, three reactors can provide multiple reactive power values, reducing cost and space.



















  • Specifications



Rated Voltage 12kV
Rated Insulation Levels Rated Power Frequency Withstand Voltage 42kV/1min (35kV/1min for reactors)
Rated Lightning Impulse Withstand Voltage 75kV
Rated Frequency 50Hz
Rated Capacity Two Options Available: 36/72/144kV and 25/50/100kV
Temperature Rise 65K
Rated Short-Time Withstand Current 6kA(VSC contactor rated value)
Rated Peak Withstand Current 15kA(VSC contactor rated value)
Rated Short-Circuit Duration 1s(VSC contactor rated value)
Auxiliary and Control Circuit Rated Supply Voltage ~220V, 50Hz
Enclosure Ingress Protection Rating IP2X
Temperature Requirements Surrounding air temperature should not exceed 40°C, and the average temperature measured over 24 hours should not exceed 35°C. Minimum surrounding air temperature: -15°C.
Altitude Not exceeding 1000m

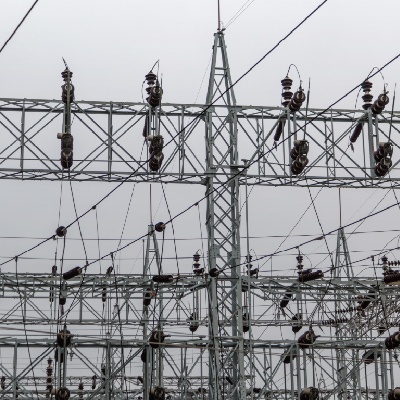

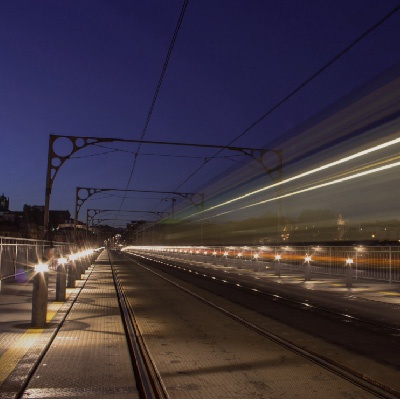

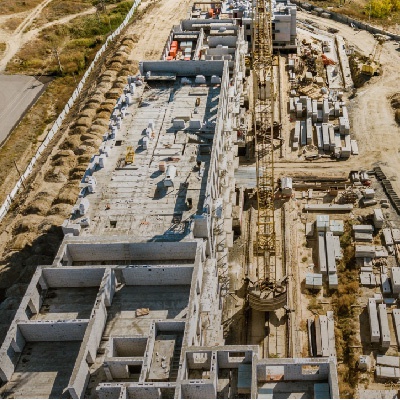

  • Application Scenarios
