Growatt 17kw~25kw On Grid Solar Inverter

3 phase grid-tied inverter for commercial rooftop or ground mounted application. integrated wire box for comprehensive protections.


  • Maximum Efficiency98.4%
  • Max Output Current19A~23.8A
  • Max AC apparent Power13.2KVA~16.5KVA
  • AC Nominal Power12000W~15000W
  • Number of MPPT Trackers2
  • Max Recommended PV Power14400W~18000W

Growatt 17kw~25kw On Grid Solar Inverter

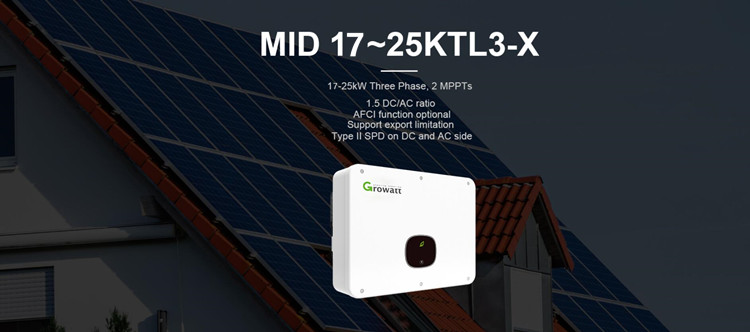

The new Growatt MID 175-25KTL3-X range of 3-phase inverters is lighter and more compact than previous models. It is suitable for residential and small commercial installations.



On Grid Inverter Mid 17~25Ktl3-X Specification


Model

MID 17KTL3-X

MID 20KTL3-X

MID 22KTL3-X

MID 25KTL3-X

Input DC

Max. DC power

25500W

26000W

33000W

32500W

Max. DC voltage

1100V

Start voltage

250V

Nominal voltage

580V

MPPT voltage range/

160V-1100V

Number of MPP trackers

2

Number of strings per MPP tracker

2

2

2

2+3

Output AC

Rated AC power

17000W

20000W

22000W

25000W

Max. AC power

18800VA

22000VA

24400VA

27700VA

Max. output current

27.4A

31.9A

35.5A

40.2A

Rated ouput voltage/range(AC)

220V-380V;230V-400V(340V-440V)

AC grid frequency/range

50Hz,60Hz/±5Hz

Adjustable power factor

0.8leading...0.8lagging

THDi

<3%

AC connection

3W+N+PE

Efficiency

Max. efficiency

98.75%

EU efficiency

98.60%

MPPT efficiency

99.90%

Protection:DC reverse polarity,switch,AC short circuit protection,etc

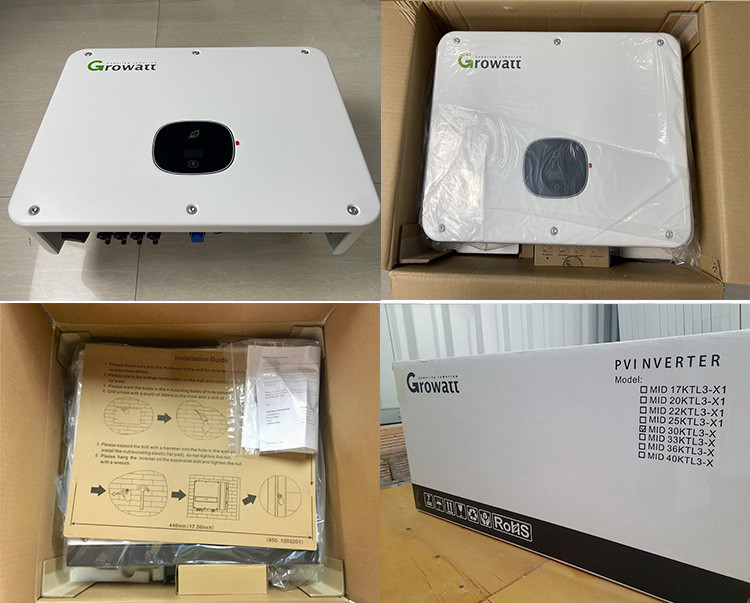

Packaging

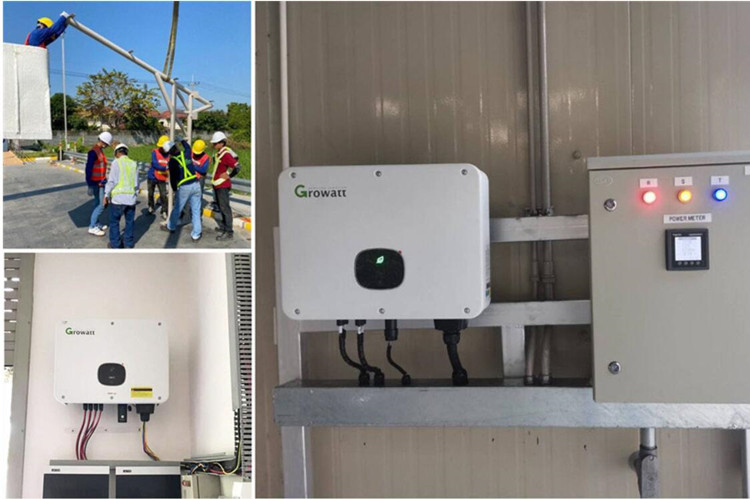

 Application Case
