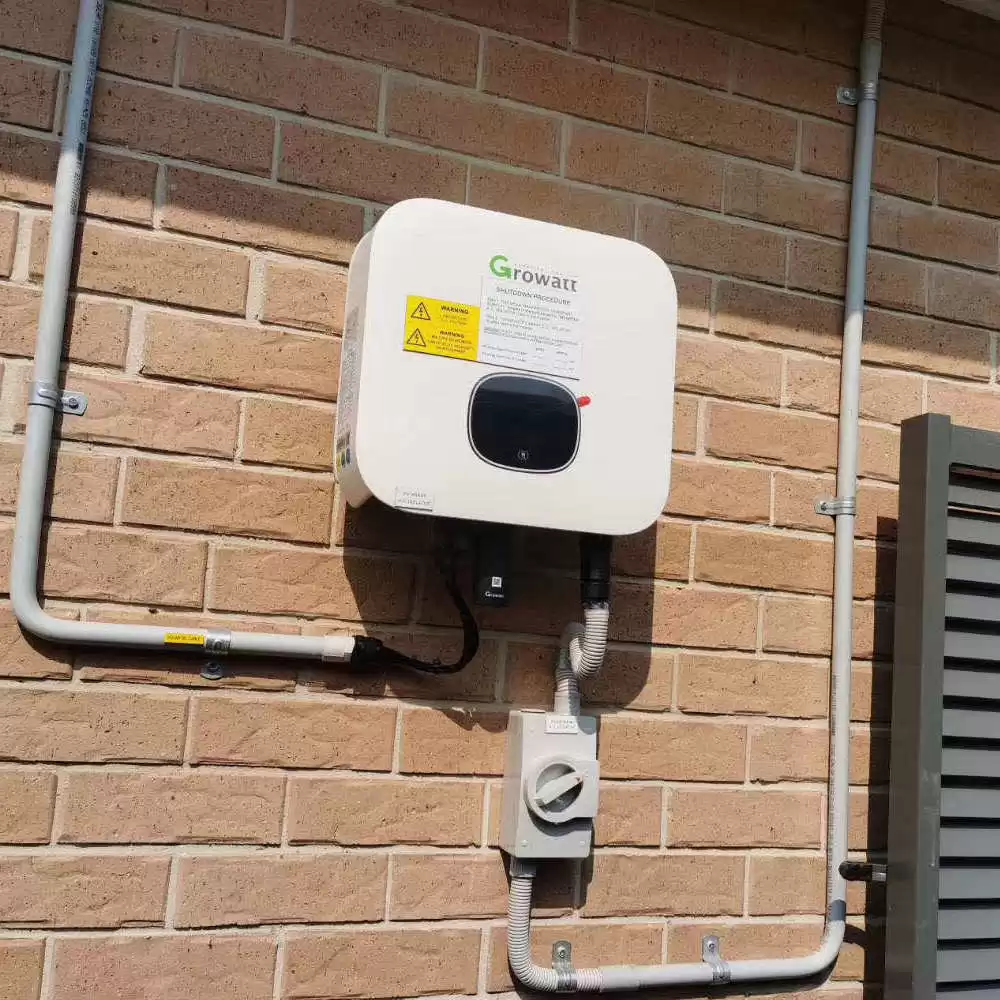

Growatt 2.5kw~6kw Grid-Tie Solar Inverter for Residential Application

Single phase grid-tied inverter up to 6000W for residential application, suitable for bigger roofs. dual MPPT, more flexible for PV string design compact and cost effective.



  • Max Output Current5A~10A
  • Max AC apparent Power30000VA~6000VA
  • AC Nominal Power30000W~6000W
  • Number of MPPT Trackers3
  • Max Recommended PV Power78000W

Growatt 2.5kw~6kw Grid-Tie Solar Inverter for Residential Application


Growatt MIN 2500-6000TL-X is the most up-to-date smart inverter solution for rooftop solar systems. It's of compact design and an outstanding efficiency of up to 98.4%. It's ELEGANT YET POWERFUL!

  • Maximum efficiency of 98.4%
  • Optional DC switch
  • Max. DC voltage up to 550V
  • Flexible Interface




Datasheet

2.5MTL-S

3.0MTL-S

3.6MTL-S

4.2MTL-S

5MTL-S

5.5MTL-S

 Input Data (DC)

 Max. recommended PV power (for module STC)

3350W

4000W

4800W

5600W

3250W

3900W

 Max. DC voltage

500V

500V

550V

550V

550V

550V

 Start voltage

100V

100V

100V

100V

100V

100V

 MPP work voltage range/nominal voltage

80-500V

80-500V

80-550V

80-550V

80-550V

80-550V

 Nominal voltage

360V

360V

360V

360V

360V

360V

 Max.input current

10A/10A

10A/10A

10A/10A

15A/15A

15A/15A

15A/15A

 Max. input current per string

10A/10A

10A/10A

10A/10A

15A/15A

15A/15A

15A/15A

 No. of independent MPPT/stringd strings per MPPT

2/1

 Output data(AC)

 Rated AC output power

2500W

3000W

3600W

4200W

4600W

5000W

 Max. AC apparent power

2500VA

3000VA

3600VA

4200VA

4600VA

5000VA

 Max. output current

11.3A

13.6A

16.3A

19A

20.9A

22.7A

 AC nominal voltage; range

220V/230V/240V; 180Vac-280Vac

 AC grid frequency/range

50Hz, 60Hz/± 5Hz

 Power factor@ Nominal power

>0.99

 Adjustable power factor

0.8 leading-0.95 lagging

 THDi@ Full load

<3%

 AC grid connection

Single phase

 Efficiency

 Max. efficiency

97.6%

97.6%

97.9%

97.9%

97.9%

97.9%

 Euro weighted efficiency

97.0%

97.0%

97.4%

97.4%

97.4%

97.4%

 MPPT efficiency

99.5%

99.5%

99.5%

99.5%

99.5%

99.5%

 Protection Devices

 DC reverse-polarity protection

Yes

 DC switch rating for each MPPT

Yes

 Output over current protection

Yes

 Output overvoltage Protection-Varistor

Yes

 Ground fault monitoring

Yes

 Grid monitoring

Yes

 Integrated all-pole sensitive leakage current monitoring unit

Yes

 General Data

 Dimensions(W/H/D) in mm

355/419/138mm

 Weight

14kg

14.5kg

 Operating temperature range

25 ℃ to 60 ℃

 Noise emission (typical)

≤ 25 dB(A)

 Altitude

2000m without derating

 Self-consumption night

<0.5 W

 Topology

Transformerless

 Cooling cooling

Natural

 Degree of protection

IP65

 Relative humidity

100%

 Features

 DC connection

H4/MC4(opt)

 AC connection

Connector

 Display

LCD

 Interfaces: RS232/RJ45/RF/WiFi/LAN/GPRS

yes/yes/opt/opt/opt/opt

 Warranty:5 years/10 years

yes/opt
