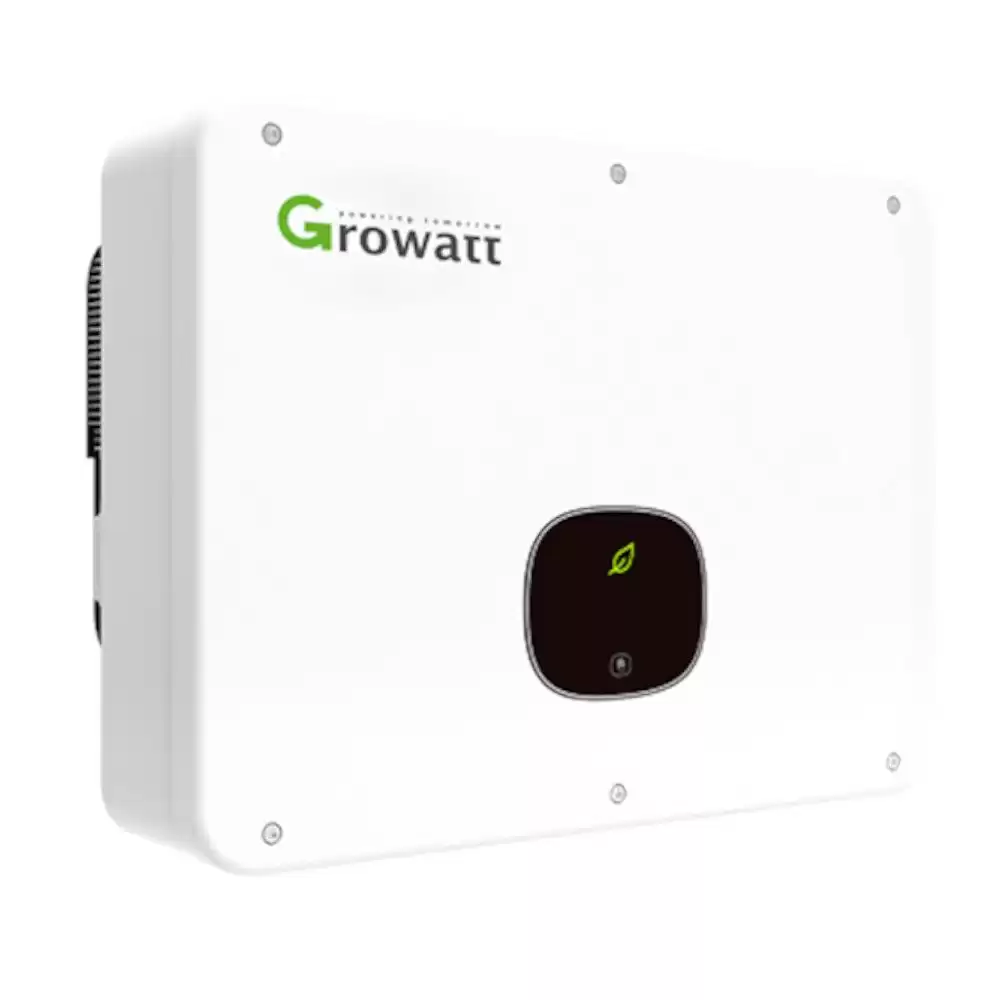

Growatt 30kw~40kw On Grid Solar Inverter

3 phase grid-tied inverter for commercial rooftop or ground mounted application. integrated wire box for comprehensive protections.


  • Maximum Efficiency98.8%
  • Max Output Current50.5A~23.8A
  • Max AC apparent Power13.2KVA~60KVA
  • AC Nominal Power25000W~40000W
  • Number of MPPT Trackers2
  • Max Recommended PV Power37500W~60000W

Growatt 30kw~40kw On Grid Solar Inverter


  • 40% compact and lighter
  • The maximum efficiency is up to 98.8%
  • AFCI function optional
  • Self-consumption monitoring
  • Touch key and OLED display
  • Type II SPD on DC and AC side



On Grid Inverter MID 30~40KTL3-X Specification

Model

MID 25KTL3-X1 | MID 30KTL3-X | MID 33KTL3-X | MID 36KTL3-X | MID 40KTL3-X

Max. recommended PV power

37500W | 45000W | 49500W | 54000W | 60000W

Max. DC voltage

1100V

Start voltage

250V

Normal Voltage

600V

No. of MPP trackers

3 | 3 | 3 | 4 | 4

AC nominal powe

25000W | 30000W | 33000W | 36000W | 40000W

Nominal AC voltage

220V/380V, 230V/400V (340-440V) | 50/60 Hz (45-55Hz/55-65 Hz)

Max. output current

40A | 50.5A | 55.5A | 60.0A | 66.6A

Max.efficiency

98.80%

AC/DC surge protection

Type II / Type II

Weight

29.5kg | 29.5kg | 29.5kg | 30.5kg | 30.5kg

Dimensions

580/435/230mm

Interfaces: RS485 / USB / WiFi/ GPRS / RF/ LAN

Yes/Yes/Optional/Optional/Optional/Optional




Product Tags growatt 30 kw inverter          growatt 33 kw inverter          growatt 36 kw inverter          growatt 40 kw inverter          3-phase solar inverter          On grid solar inverter
