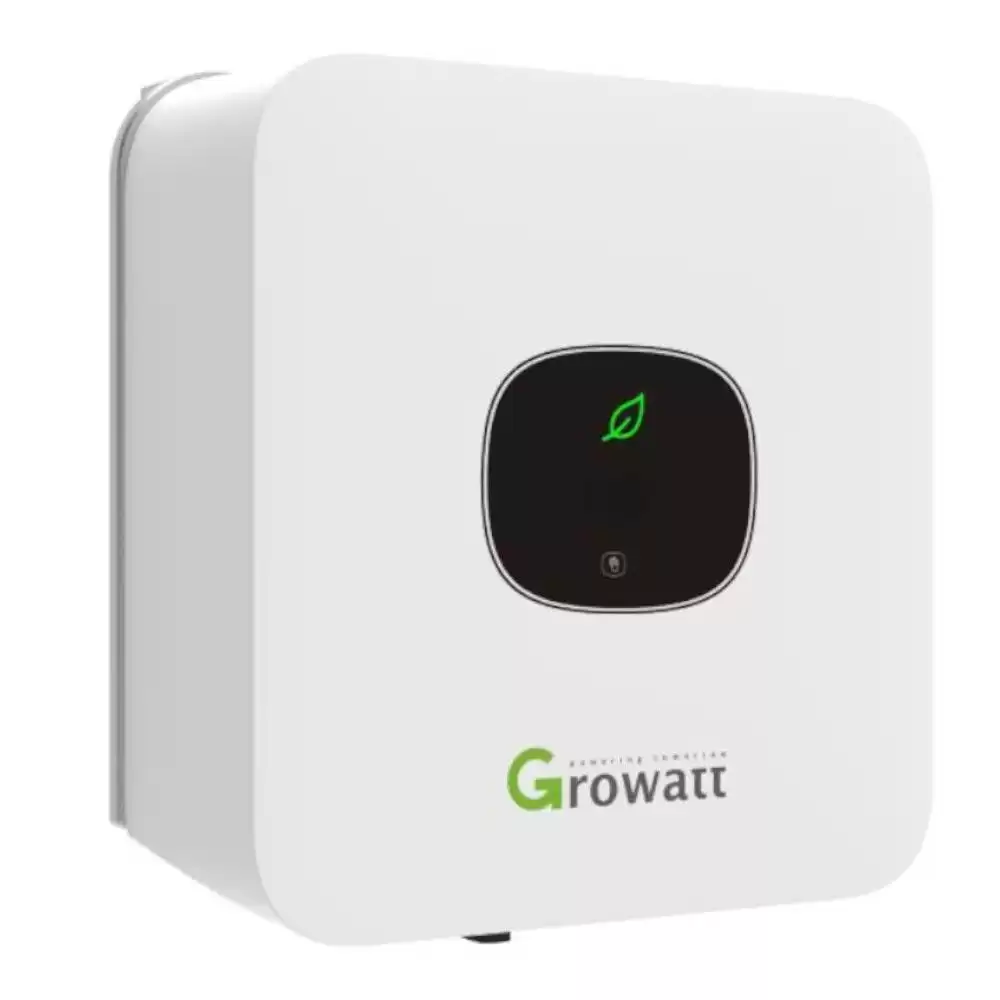

Growatt 750w~3kw Grid-Tie Solar Inverter
Single phase grid-tied inverter from 750W to 3000W for residential application, small capacity supporting small roof utilization. single MPPT design, compact and cost effective.
-
Maximum efficiency of 97.6%
-
Optional DC switch
-
Max. DC voltage up to 550V
-
Flexible Interface
|
Datasheet
|
750-S
|
1000-S
|
1500-S
|
2000-S
|
2500-S
|
3000-S
|
|
Input Data (DC)
|
|
|
Max. recommended PV power (for
module STC)
|
970W
|
1300W
|
1950W
|
2600W
|
3250W
|
3900W
|
|
Max. DC voltage
|
450V
|
450V
|
450V
|
450V
|
550V
|
550V
|
|
Start voltage
|
50V
|
80V
|
80V
|
80V
|
80V
|
80V
|
|
MPP work voltage range/nominal
voltage
|
50-450V
|
70-450V
|
70-450V
|
70-450V
|
70-450V
|
70-550V
|
|
Nominal voltage
|
120V
|
180V
|
250V
|
360V
|
360V
|
360V
|
|
Max.input current
|
10A
|
10A
|
10A
|
11A
|
12A
|
13A
|
|
Max. input current per string
|
10A
|
10A
|
10A
|
11A
|
12A
|
13A
|
|
No. of independent MPPT/stringd
strings per MPPT
|
1/1
|
|
Output data(AC)
|
|
|
Rated AC output power
|
750W
|
1000W
|
1600W
|
2000W
|
2500W
|
3000W
|
|
Max. AC power
|
750W
|
1000W
|
1650W
|
2000W
|
2500W
|
3000W
|
|
Max. output current
|
3.3A
|
4.7A
|
7.8A
|
9.5A
|
11.9A
|
14.3A
|
|
AC nominal voltage
|
220V/230V/240V
|
|
AC grid frequency/range
|
50Hz, 60Hz/± 5Hz
|
|
Power factor@ Nominal power
|
>0.99
|
|
Adjustable power factor
|
0.8 leading-0.8 lagging
|
|
THDi@ Full load
|
<3%
|
|
AC grid connection
|
Single phase
|
|
Efficiency
|
|
|
Max. efficiency
|
97.2%
|
97.4%
|
97.4%
|
97.4%
|
97.6%
|
97.6%
|
|
Euro weighted efficiency
|
96.0%
|
96.5%
|
97.0%
|
97.0%
|
97.3%
|
97.3%
|
|
MPPT efficiency
|
99.5%
|
99.5%
|
99.5%
|
99.5%
|
99.5%
|
99.5%
|
|
Protection Devices
|
|
|
DC reverse-polarity protection
|
Yes
|
|
DC switch
|
Yes
|
|
Output over current protection
|
Yes
|
|
Output AC overvoltage
Protection-Varistor
|
Yes
|
|
Ground fault monitoring
|
Yes
|
|
Grid monitoring
|
Yes
|
|
Integrated all-pole sensitive
leakage current monitoring unit
|
Yes
|
|
General Data
|
|
|
Dimensions(W/H/D) in mm
|
271/199/141
|
|
Weight
|
6.4kg
|
9.1kg
|
|
Operating temperature range
|
－25 ℃ to 60
℃
|
|
Noise emission (typical)
|
≤ 25 dB(A)
|
|
Altitude
|
4000m without derating
|
|
Self-consumption night
|
<0.5 W
|
|
Topology
|
Transformerless
|
|
Cooling
|
Natural convertion
|
|
Degree of protection
|
IP65
|
|
Relative humidity
|
100%
|
|
Features
|
|
|
DC connection
|
H4/MC4(opt)
|
|
AC connection
|
Connector
|
|
Display
|
LCD
|
|
Interfaces: RS232/RF/WiFi/LAN/GPRS
|
yes/opt/opt/opt/opt
|
|
Warranty:5 years/10 years
|
yes/opt
|
