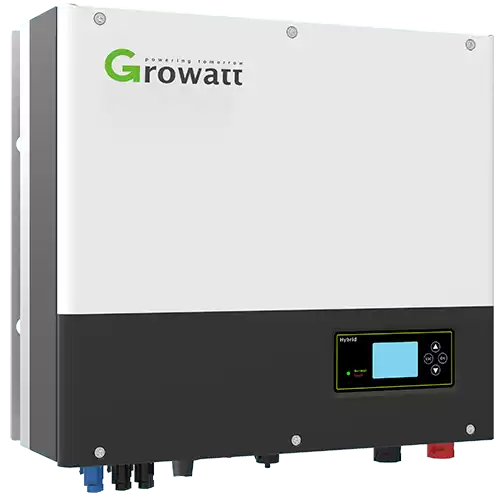

Growatt single phase hybrid inverter 5kw inverter Growatt SPH5000

Introduction

The Growatt SPH5000 hybrid inverter has a maximum output power of 4999 watts.

The hybrid inverter can be operated with or without a battery. As a result, the inverter is not dependent on the power grid and is therefore not affected by grid faults.

You also have more flexibility with your PV system. You can use the solar power you generate yourself or simply feed it into the grid.


  • PaymenT/T.L/C.Paypal.Western Union
  • Lead Time10-15Days
  • CertificateTUV.ETL.SO.CE
  • Output VoltageEU Standard
  • TypeHybrid

Growatt SPH5000

VPP interface ready for energy trading
Multiple workmodes configurable
Smart load management via dry contact
Remote smart O&M
IP65 & Natural cooling

Model Growatt SPH5000
DC input data
Max. recommended PV power
8000W
Start voltage
150V
Max. PV voltage
550
PV voltage range
120-550V
MPPT voltage range/nominal voltage
150V-550V /360V
Max. input current of tracker A/B
12/12A
Number of MPP trackers / strings per MPP tracker
2/1
AC Output
Rated AC output power
4999W
Max. AC apparent power
5000VA
Max. output current
22A
Nominal AC output voltage
230V
THDI
<3%
AC output power(Backup)
Max. output power
3000W
Rated AC output voltage
230VAC
Rated AC output frequency
50/60Hz
Battery
Battery Voltage Range
42~59V
Battery Type
Lithium /Lead-acid
Max charging and discharging power
3000W
Packing

hybrid inverter

Projects

hybrid inverter


Product Tags solar inverter hybrid          growatt inverter 5kw          growatt sph5000
