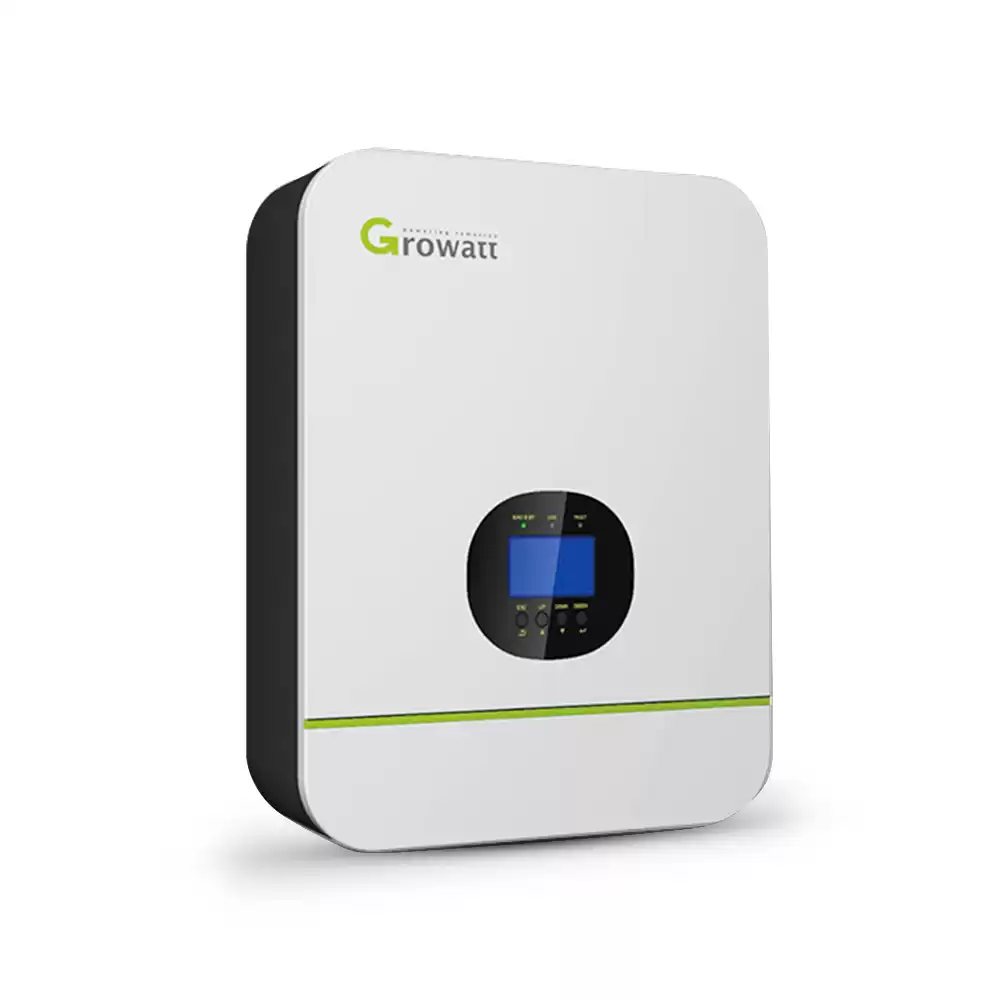

Growatt Single Phase Pure Sine Wave Off Grid Inverter MPPT

Growatt SPF 2000-5000TL HVM series off grid solar inverter is integrated with a MPPT solar charge controller. Transformerless design provides reliable power conversion in compact size.


  • Maximum Solar Charge Current 80A
  • Maximum PV Array Open Circuit Voltage 145VDC
  • MPPT Voltage Range60VDC ~ 115VDC
  • Maximum PV Array Power 4500W
  • Rated Power5000VA/5000W

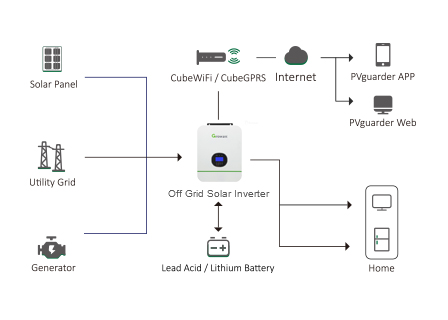

Wiring diagram



The Growatt SPF 2000-5000TL HVM series inverter is a specially designed inverter for isolated installations that integrates an MPPT solar charge controller. Maximum output power of 5000W. It can run on 48V lithium or lead acid batteries.Besides,it's worry-free to start up motor-type loads such as motors,water pumps,and compressors as well as the common home device.

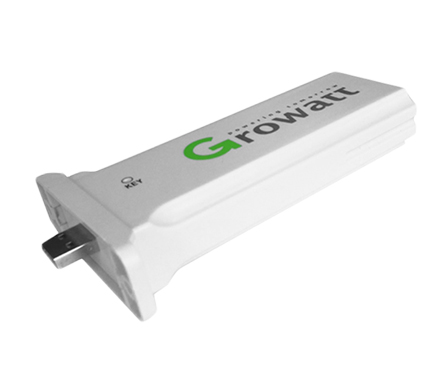

A separate dongle allows to connect the inverter with for example a mobile phone or desktop computer. This lets you connect and check the status of the entire PV system. The dongle has a Wi-Fi and GPRS version.

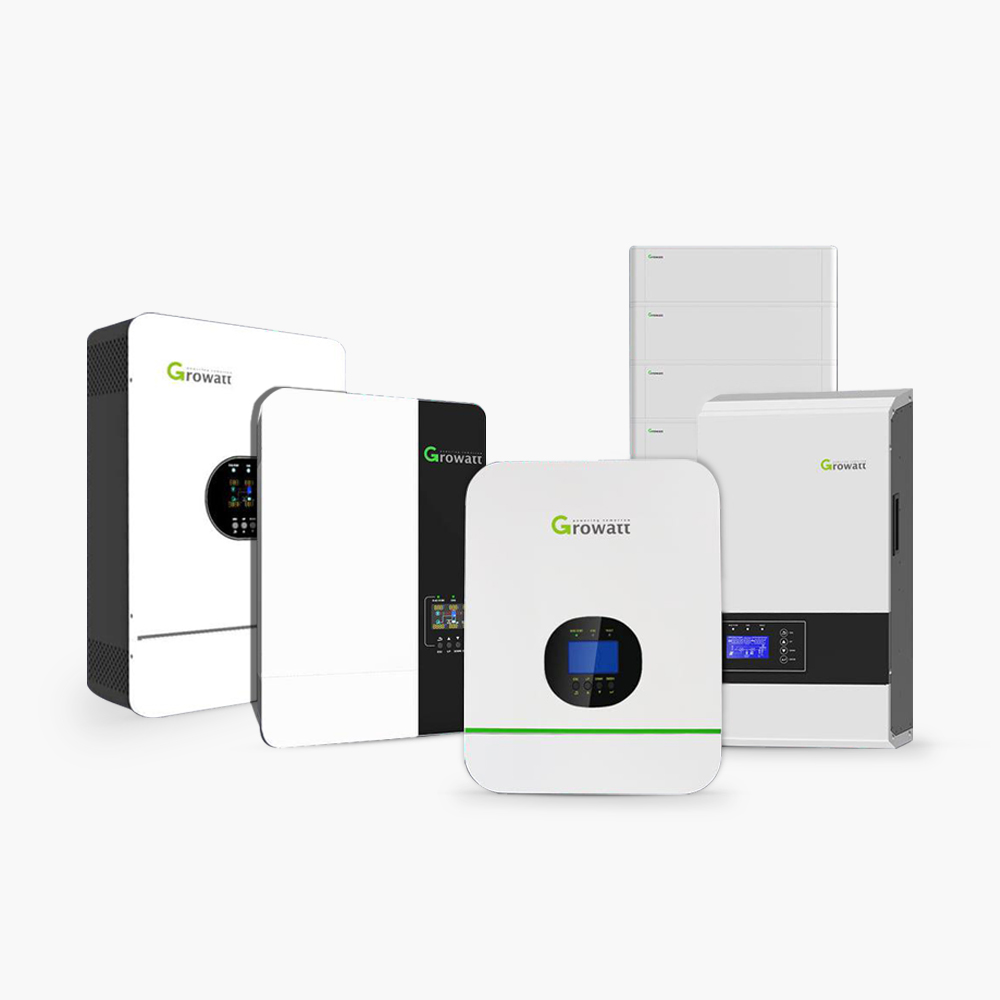

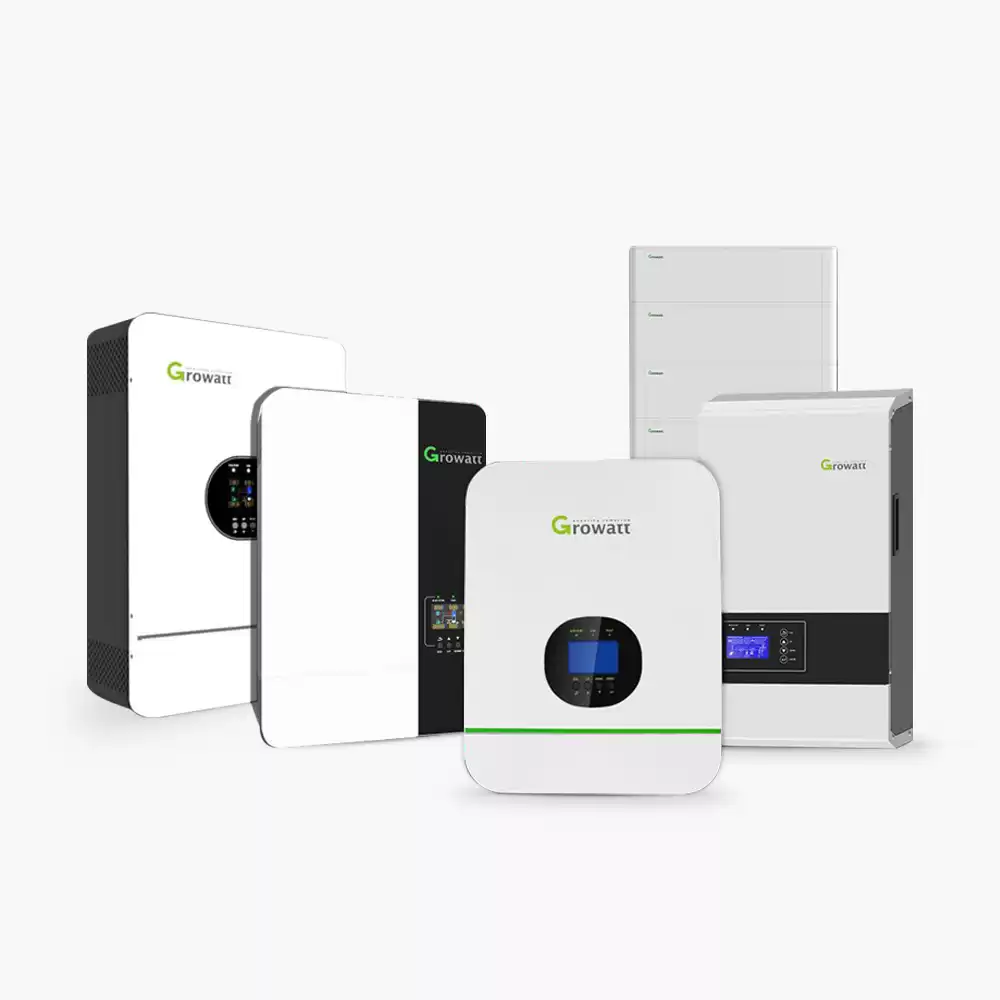

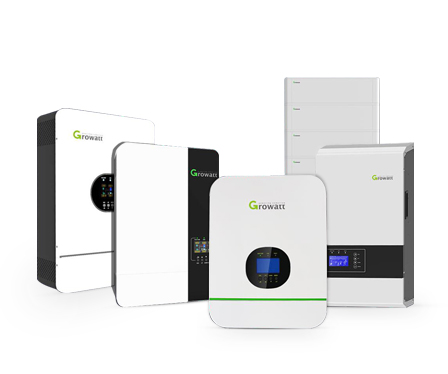

Growatt Inverter Models



Growatt is a new energy enterprise dedicated to the R&D and manufacturing of PV inverters including on-grid, off-grid and storageinverters, and user side smart energy management solutions as well. Growatt always sticks to the R&D investment and technology innovation, and provides customers with premium products and services through its core inverter technology, rigorous quality control and continuous improvement of customer service.






Growatt SPF 2000-5000TL HVM Series Main Features


  • Integrated MPPT charge controller
  • Battery charging priority can be set
  • Load supply priority can be set
  • Optional WIFI/GPRS remote monitoring
  • Parallel operation up to 6 units only available for 4-5KVA



Product Tags Growatt SPF 5000          growatt off grid inverter          Growatt SPF 5000TL          SPF 5000TL HVM          Growatt Off Grid Solar Inverter 48V
