GSM Cutter for Fabric GT-C75
Product Introduction
| Application:
GSM Cutter 100cm2 combine with the electronic balance. Suitable for 100 cm2 x 5mm depth of cut, provided with the cutting mat and the spare blades.
We are GSM Cutter Manufacturer in China. We are one of the leading GSM Cutter manufacturer of high-quality GSM Cutter, these GSM Cutter are used to determine grams per square meter of any Fabric, Paper and Board.

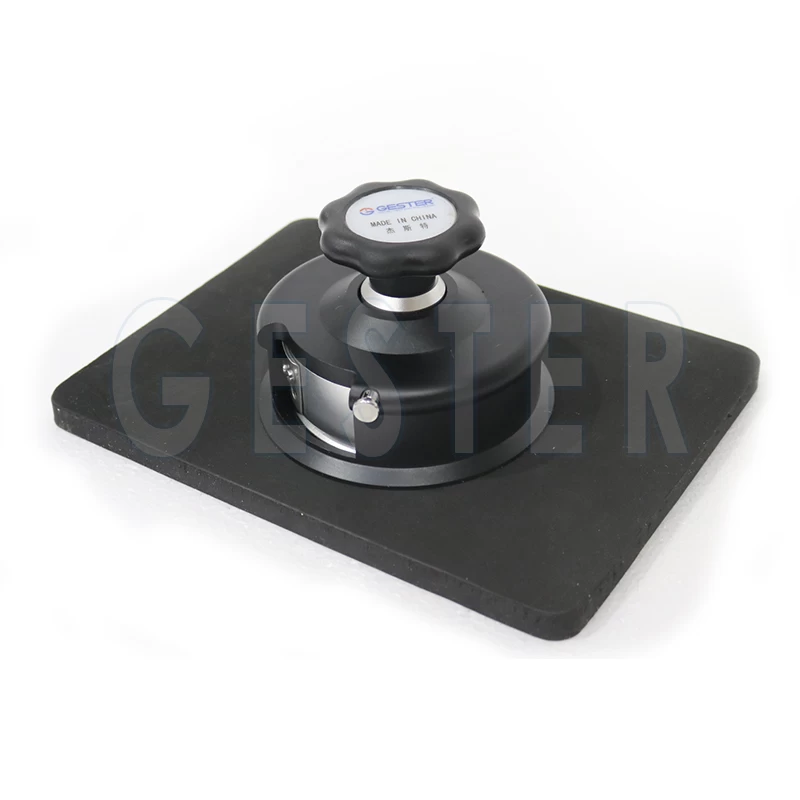

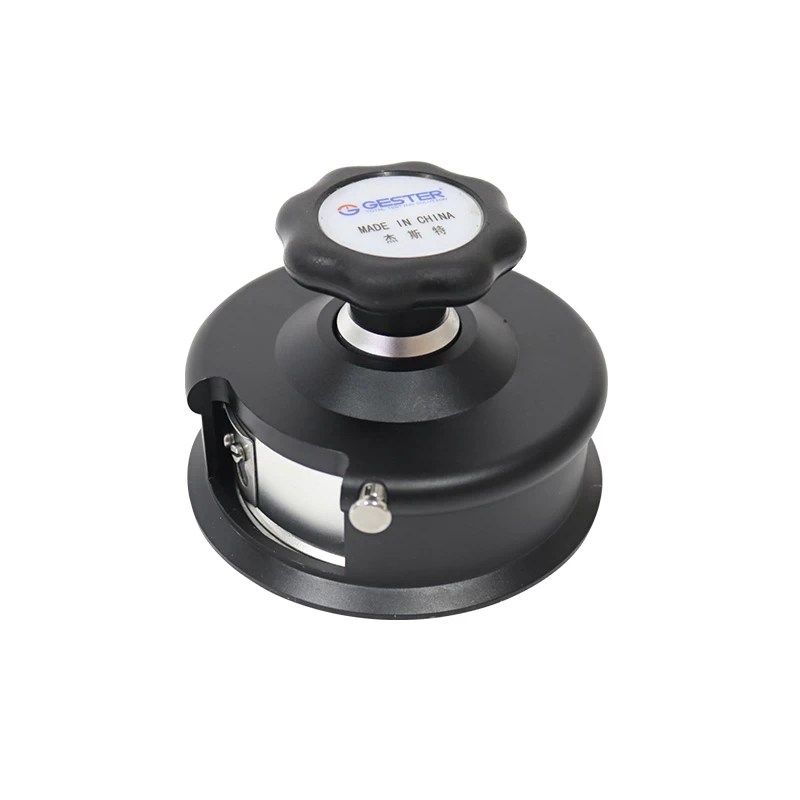

Fabric GSM Cutter GT-C75 main body is completely made of aluminum casting for light weight, safe and reliable. This Fabric GSM Cutter is equipped with a set of four Schroder spare blades can be used. And a specially designed standard grey-cutting pads provided to support the cutting operation. The Fabric GSM Cutter is meticulously finished with metallic paint. Fabric GSM Cutter is recommended for yield testing i.e. weight per unit area. It cuts rapidly and accurately circular specimen of 100 cm square area which gives the GSM directly. This Fabric GSM Cutter is used as Textile Testing Instruments.
|

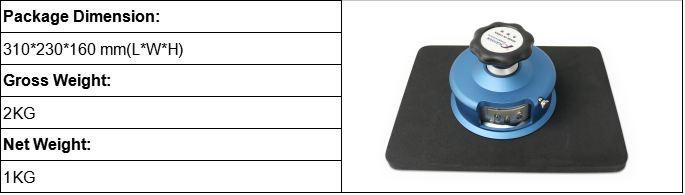

Dimensions
Key Specifications
Model
|
GT-C75
|
Control mode
|
Manual
|
Cutting area
|
100cm2
|
Cutting diameter
|
Φ112.8mm
|
Cutting thickness
|
5mm
|
Dimension
|
Φ150×115
|
Weight
|
1kg
|
Standards accessories
|
4pcs
|
Schroder spare blades
(Made in Germany)
|
1pc
|
Cutting mat
|
Application Industry
All kinds of Fabric, Paper etc below materials can be tested by the GSM Cutter GT-C75.
