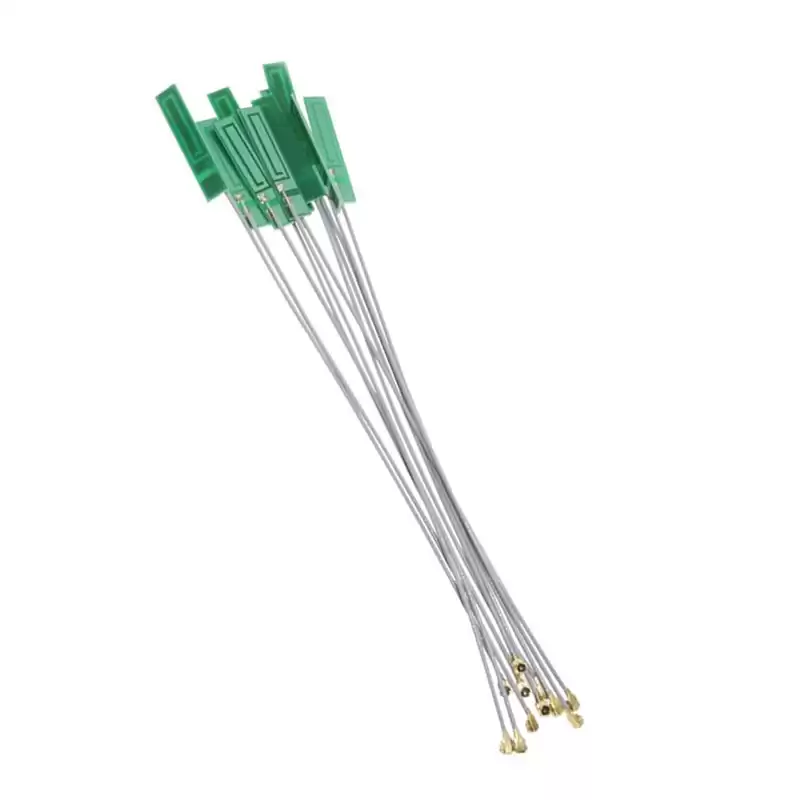

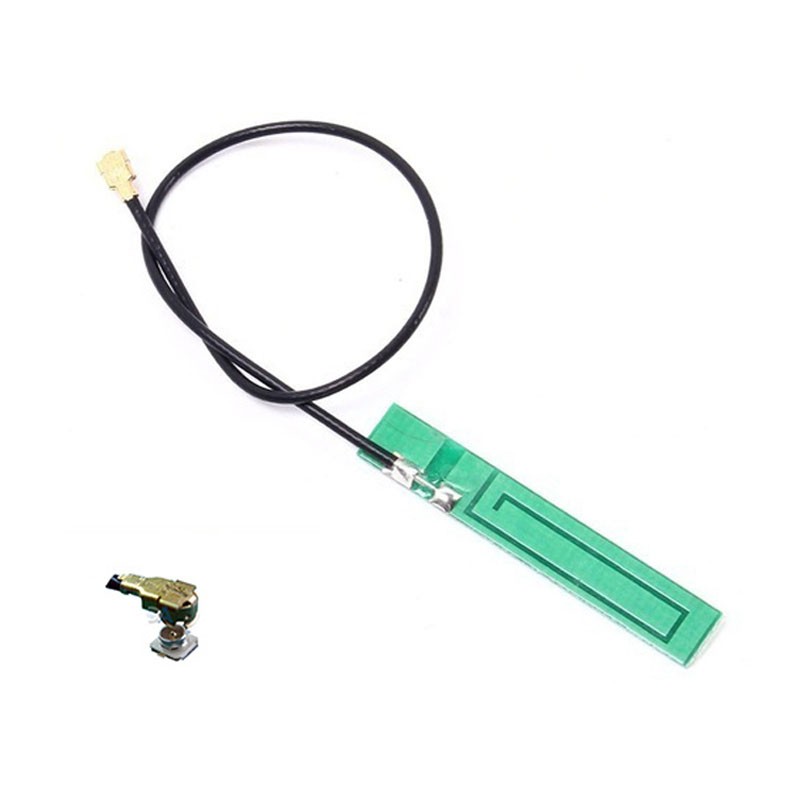

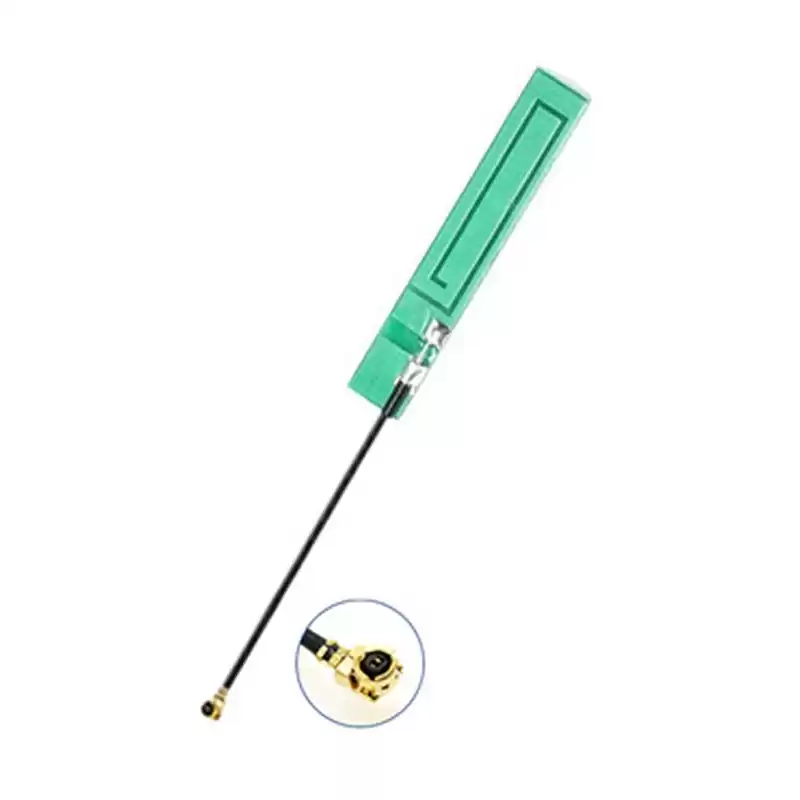

GSM GPRS PCB Antenna 824-896MHz 880-960MHz 1710-1880MHz 1850-1990MHz 2.15dBi Internal WiFi Omni Built-in WiFi Antenna with IPEX MHF UFL Connector
Features：
- Radiation Pattern of Antenna;
- Polarization of Antenna;
- Intensity of Radiation;
- Effective Aperture;
- Gain & Directivity;
- Bandwidth;
- Power Gain & Radiation Efficiency;
- Effective Length;
- Input Impedance.
GSM GPRS PCB Antenna 824-896MHz 880-960MHz 1710-1880MHz 1850-1990MHz 2.15dBi Internal WiFi Omni Built-in WiFi Antenna with IPEX MHF UFL Connector
The Antenna, also called Aerial, component of radio, television, and radar systems that directs incoming and outgoing radio waves. Antennas are usually metal and have a wide variety of configurations, from the mastlike devices employed for radio and television broadcasting to the large parabolic reflectors used to receive satellite signals and the radio waves generated by distant astronomical objects.
Specifications
| ELECTRICAL DATA | |
| Frequency Range(MHz) | 900/1800MHz |
| VSWR | ≤1.5 |
| Gain(dBi) | 2.5-3dBi |
| Input Impedance(Ω) | 50 |
| Cable Type | / |
| Connector Type | IPEX/MHF/UFL |
| Mounting | / |
| Housing | / |
| Storage Temperature | -45℃ to +75℃ |
 Operating Temperature |
-45℃ to +75℃ |
Applications
- Antenna Gain
- Aperture
- Directivity and bandwidth
- Polarization
- Effective length
- Polar diagram
