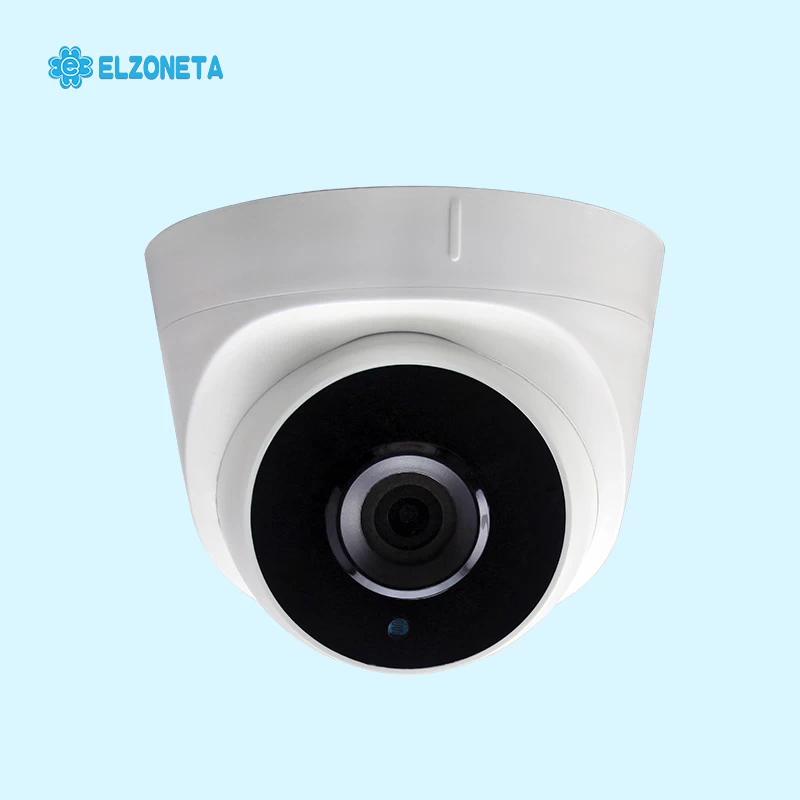

EC-B14S5-BL 2.0MP Black Light IP Dome Camera
Features:
1.)IP Blacklight Dome Camera
2.)Night vision is color video
3.)Lens: 3.6mm F.10 super low lux HD lens
4.)IR leds: no
5.)Material: Plastic
6.)H.264/H.265 video encoding
7.)Support ONVIF protocol
8.)Plug and play tech(P2P)
9.)Offer CMS and Mobile APP
Specification:
|
Camera
|
|
Model No.
|
EC-B14S5-BL
|
|
Image Sensor
|
2.0mp 1/2.7”SONY IMX307 super low Lux Sensor
2.0MP Cmos Sensor
|
|
Effective Pixels (HxV)
|
1920(H)*1080(V)
2592(H)*1520(V)
2048(H)*1536(V)
1920(H)*1080(V)
|
|
Signal System
|
PAL / NTSC
|
|
Mini Illumination
|
0.001Lux F1.0
|
|
Lens
|
3.6mm F1.0 super low lux HD lens/6.0mm F1.0 super low lux HD lens is optional
|
|
Lens Mount
|
M12
|
|
Day & Night
|
ICR (IR cut filter with auto switch)
|
|
DNR
|
3D DNR
|
|
WDR
|
D-WDR
|
|
Angle Adjustment
|
Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
|
|
AES
|
PAL=1/50 ~1/100,000sec；NTSC=1/60 ~1/100,000sec
|
|
S/N Ratio
|
> 48dB（Auto Gain Off）
|
|
Network
|
|
LAN
|
RJ45 10M/100M adaptive ethernet
|
|
POE function
|
Optional
|
|
Dual stream
|
Support
|
|
Access protocol
|
ONVIF/CGI/GB28181
|
|
Mobile APP
|
IOS/Android
|
|
Support protocol
|
TCP/IP;UDP;HTTP;IGMP;ICMP;DHCP;RTP/RTSP;DNS;DDNS;FTP;NTP;PPPOE;UPNP;SMTP
|
|
Mobile App
|
IOS/Android
|
|
ROL Codec
|
Support
|
|
Corridor Type
|
Support
|
|
General
|
|
Operating Condition
|
-20 °C - 45 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing)
|
|
Power Supply
|
12 VDC±15%
|
|
IP Rate
|
IP64
|
|
Weight
|
0.2 kg
|
|
Dimension
|
110(L)*110(W)*86(H)
|
