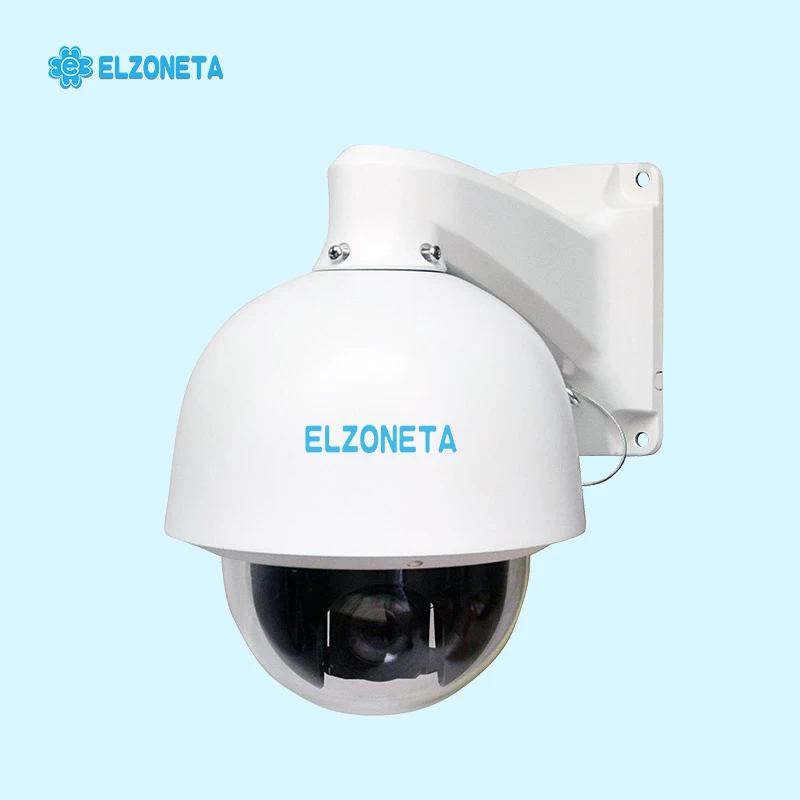

EC-HS09S-CXG Starlight PTZ IP Camera
What is Starlight Camera?
A starlight camera is a camera that can display a clear color image without any auxiliary light source in a star illuminance environment, while the common camera can only display black and white images. The features of starlight camera is : it doesn't need for infrared light or white light, but still can achieve a clear color vision without smearing.
Starlight camera series includes starlight dome camera, starlight bullet camera,
Starlight PTZ Speed Dome Camera and so on.
Features:
1. Support P2P function
2. 6" half metal body construction, IP66 rate protection
3. ONVIF2.4 ; Compatible with HIKVISION, DAHUA, XM, Video park NVR .etc
4. Compatible with CMS,UC2, Milestone, NUUO and AXXON platform.etc
5. Intelligent IR illumination & power consumption is variable, dependant the zoom factor
6. Optional function: Alarm,Audio,SD Card slot
7. 36X 2MP / 20X 2MP / 20X 5MP optional
Specifications:
|
Camera
|
|
Sensor
|
1/3" CMOS 2MP Sony323
|
1/3" CMOS 5MP AR0521
|
1/3" CMOS 2MP Panasonic34220
|
1/2" CMOS 2MP Sony185
|
|
Output pixel
|
1920*1080@30fps 1920*1080@25fps
|
2592x1944@15fps
2592x1520@22fps
|
1920*1080p/30fps
1920*1080p/25-60fps
|
1920*1080@30fps
1920*1080@25fps
|
|
Lens
|
20X f=4.7mm~94mm
|
36X f=4.6~165.6mm
|
20X f=4.7mm ~ 94mm
|
|
BLC
|
Support
|
|
AGC
|
Auto/Manual
|
|
WB
|
Indoor/Outdoor/Auto/Manual
|
|
DNR
|
2DNR,3DNR
|
|
WDR
|
DWDR
|
WDR≥79dB
|
WDR≥100dB
|
|
S/N Ratio
|
≥50dB
|
|
Dome
|
|
Communications Protocol
|
TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P
|
|
Software Control
|
IE, CMS, Management Platform, P2P
|
|
Mobile View(optional)
|
Android , iPhone
|
|
Rotation range
|
Pan:0~360°,Tilt:0~93º
|
|
Rotation speed
|
Pan:0~480°/s, Tilt:0~240°/s
|
|
Auto Flip
|
Horizontal 180º,Vertical 93º
|
|
Preset Points
|
220pcs presets（dwell time 01-60s interval available）
|
|
A-B scan
|
User programmabel(scan speed 1-64 levels setting available)
|
|
Guard Tours
|
8 groups( Max.16 points, dwell time user selectable)
|
|
Pattern Scan
|
4 pcs(Max 15 minutes.max.512 commands)
|
|
Pattern Scan Record
|
6 tasks
|
|
PWR On Action
|
Memory/Pattern 1/Tour 1/360° scan/A-B scan/Park 1/None
|
|
Park Mode
|
Pattern 1/Tour 1/360° scan/A-B scan/Park 1/None
|
|
Park Time
|
1-60mins setting available
|
|
video compression
|
H.264/H.265M-JPEG
|
|
audio compression
|
G711, PCM
|
|
Operating temperature
|
-40℃~+60℃
|
|
Operation menu
|
Mutiple languages:English,Italian,Spanish etc.
|
|
Power
|
DC12V 4A / (AC24V 3A optional )
|
|
Consumption
|
≤25W
|
|
Lightning Protection
|
Transient voltage 6000V
|
|
Related validation
|
IP66,CE,FCC,RoHs
|
