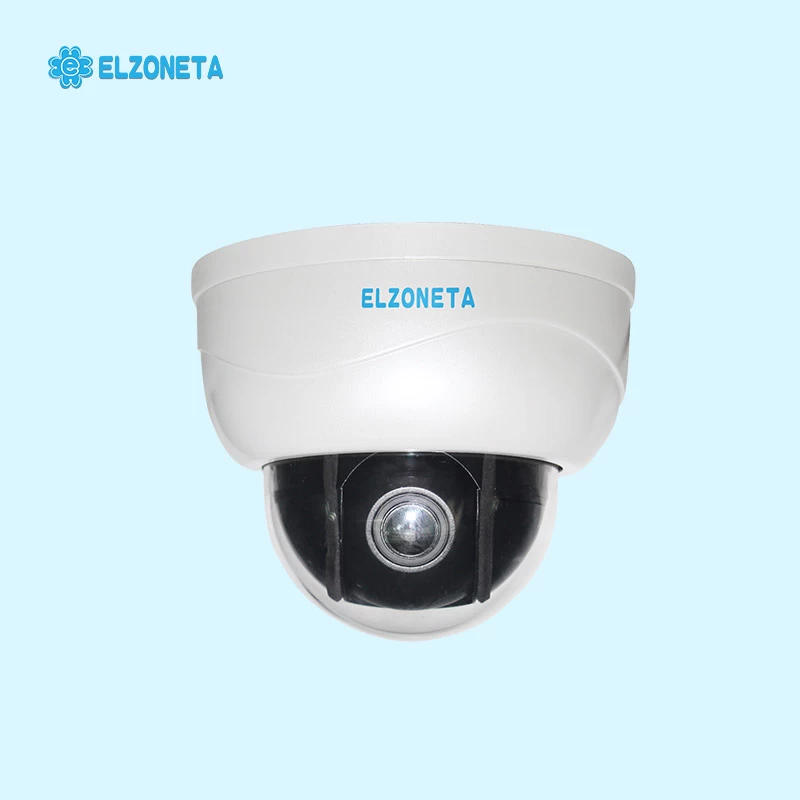

EC-B07 4X Optical Zoom Dome Camera
Features:
1.2.5" compact size
2. Support audio ( optional)
3.ONVIF2.4;Support P2P function
4.Support H.264 (H.265)compression
5.Pan/Tilt/Zoom, A-B scan, tour available
Specifications:
|
Specification
|
|
Camera
|
|
Sensor
|
1/3" CMOS 2MP Sony323
|
1/3" CMOS 5MP AR0521
|
|
Output pixel
|
1920x1080/30fps
1920x1080/25fps
|
2592x1944@15fps
2592x1520@22fps
|
|
Lens
|
4X f=2.7~13.5MM
|
4X f=2.7~13.5MM
|
|
BLC
|
Support
|
|
AGC
|
Auto/manual
|
|
WB
|
Auto/manual/indoor/outdoor
|
|
S/N Ratio
|
>50dB
|
|
Dome
|
|
Communications Protocol
|
TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P
|
|
Software Control
|
IE, CMS, Management Platform
|
|
Video compression
|
H.264/H.265/M-JPEG
|
|
Audio compression
|
G711，PCM
|
|
Mobile View(optional)
|
Android iPhone
|
|
Rotation Range
|
Pan: 0°~355º , Tilt: 0°~93 º
|
|
Rotation Speed
|
Pan: 0~25°/s , Tilt: 0~20°/s
|
|
Auto Flip
|
Support
|
|
Preset Points
|
220pcs presets（dwell time 01-60s interval available）
|
|
Guard Tours
|
3 groups ( each group 16 preset、dwell time and speed selectable)
|
|
AB scan range
|
Support, 0-355º
|
|
AB scan speed
|
1-9 grades
|
|
Operating temperature
|
-15℃~+60℃
|
|
Operation menu
|
English
|
|
Auto Control IR LED
|
PWM
|
|
Consumption
|
≤10W
|
|
Lightning Protection
|
Transient voltage 6000V
|
|
Related validation
|
IP66,CE,FCC,RoHs
|
|
IR parameters
|
|
IR distance
|
up to 15 meters
|
|
LEDs
|
2 PCS Array 35Mil IR LED
|
