Main Parameter
1、Overall size：33.5m ×11.5m×4.5m（for reference only）
2、Machine size：26.6m×2.3m ×3.7m（based on the product provided by client）
3、Design speed：800 pcs per minute
4、Production speed：500-650 pcs per minute
5、Rejection rate:≤2%（excluding scrap caused by hot melt，materials splicing or joint）
6、Power source：380V，50/60HZ（3phase.4lines+ground wire）
7、Machine capacity：320KW approximately Air pressure：0.6-0.8 Mpa
8、Machine weight：76.5 Tons approximately
Configuration
1、Product structure:Upper&lower tissue(or airlaid)，Cotton core（mix with SAP，Top sheet hydrophilic nonwoven，ADL nonwoven，Leak cuff hydrophobic nonwoven，Back sheet，Waist nonwoven，Printed cartoon tissue，Waist elastic，Easy tape.
2、Product size：4 sizes（M，L，XL，XXL），to be customized.
3、Program system:Servo driven，intelligent HMI touch screen man-machine interface.
4、Tension system；Tension control with buffer system，automatic web guiding system，to ensure materials stable working at ZERO speed splice.
5、Driven system:Servo drive，digital size change，ensure run synchronously at full process.
6、Safety system:Safety guard for operating side，emergency stop switch，security identifier，safety pull wire at driven side.
7、Packaging system:Auto stacker（dual push dual exit）and auto bagger to be defined by customer need
8、Stacking range：16-36 pcs/pack adjustable.
9、Web guiding system:Germany BST/USA FIFE.Customized function available

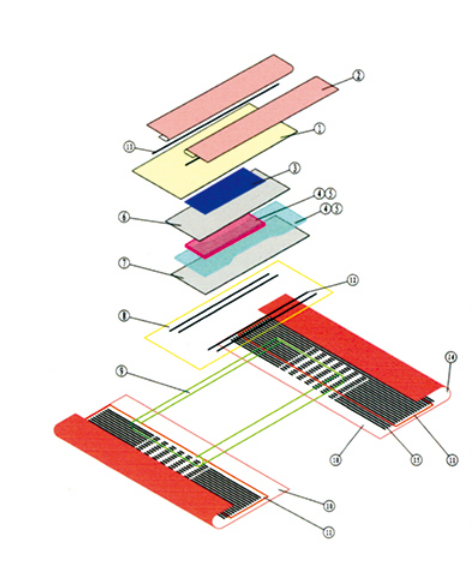

Product structure
|
1. Top sheet non woven
|
2.Hydrophobic non woven
|
|
3.ADL
|
4.Cotton core(absorbent paper)
|
|
5.SAP
|
6.Upper tissue
|
|
7.Lower tissue
|
8.PE film
|
|
9.Back sheet
|
10.Waist inner non woven
|
|
11.Waist outer non woven
|
12.Leg elastic
|
|
13.Leak elastic
|
14.Waistband non woven
|
|
15.Waist elastic
|
|
