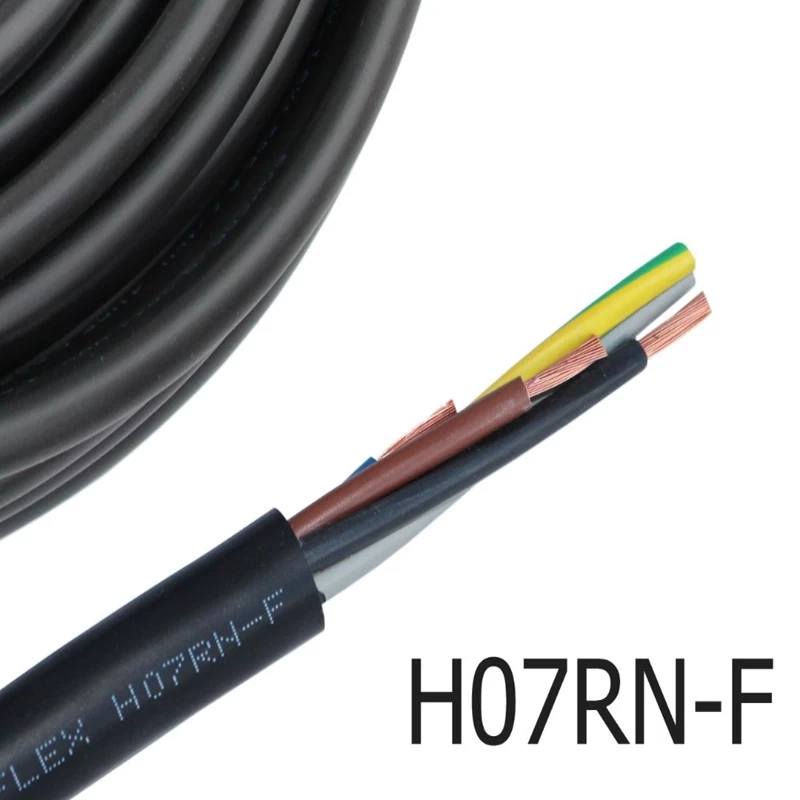

H05RN-F H07RN-F Rubber Cables

H05RN-F H07RN-F Rubber Cables, plain annealed copper conductor, rubber insulation, rubber sheath, meet to JB/T 8735, GB/T 5013, BS EN 50525-2-21, 300/500V, 450/750V.



H05RN-F H07RN-F Rubber Cables


MAIN KEYWORDS

H05RN-F cables, H07RN-F cable, JB/T 8735 rubber cable, GB/T 5013 rubber cable, YC rubber cable,

YCW rubber cable, YQ rubber cable, YQW rubber cable, YZ rubber cable, YZW rubber cable.


PRODUCTS CHARACTERISTICS

Rubber insulated wire and cable has experienced more than 100 years of development history, it is the oldest variety of all wire and cable products, rubber insulated wire and cable is mostly used for mobile and harsh working conditions. With the development of rubber industry, various kinds of synthetic rubber are constantly developed, such as silicone rubber, neoprene rubber, ethylene-propylene rubber, etc., which greatly improves the performance of rubber insulated wire and cable. In addition to the inherent advantages of natural rubber, it also increases oil resistance, cold resistance, heat resistance and other excellent properties.

H – The cable conforms to harmonized standards.
07 – Identifies the cables voltage rating as 450/750V.
R – Refers to the rubber insulation.
N – Relates to its PCP sheath.

F – Highlights the fact that the cable has flexible copper conductors within.


PRODUCTS APPLICATION

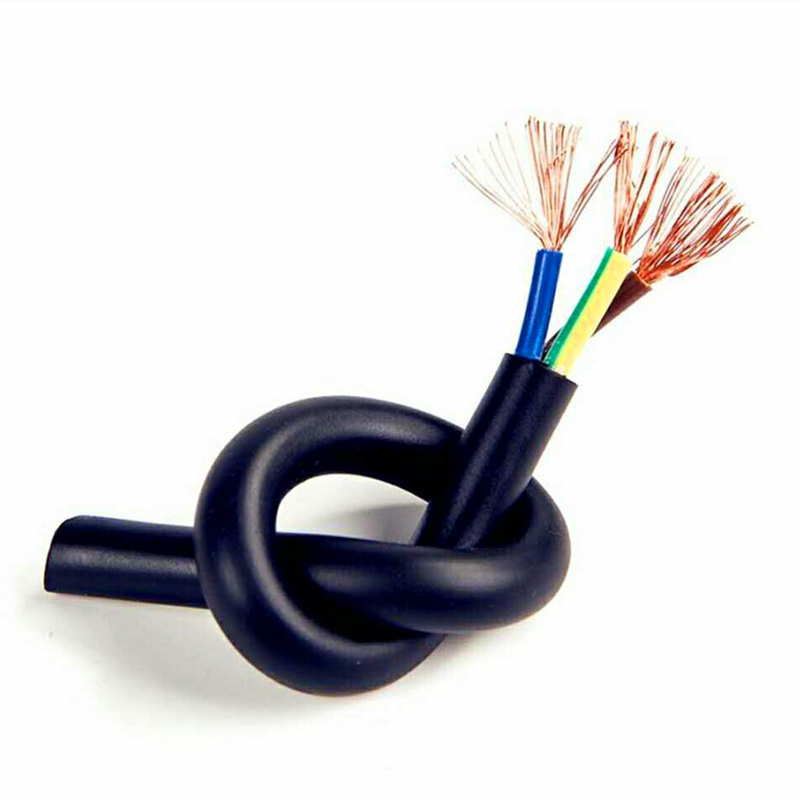

Hante@ brand rubber cable is designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Rubber cable also is used in drainage and water treatment, cold environments and severe industrial environments.

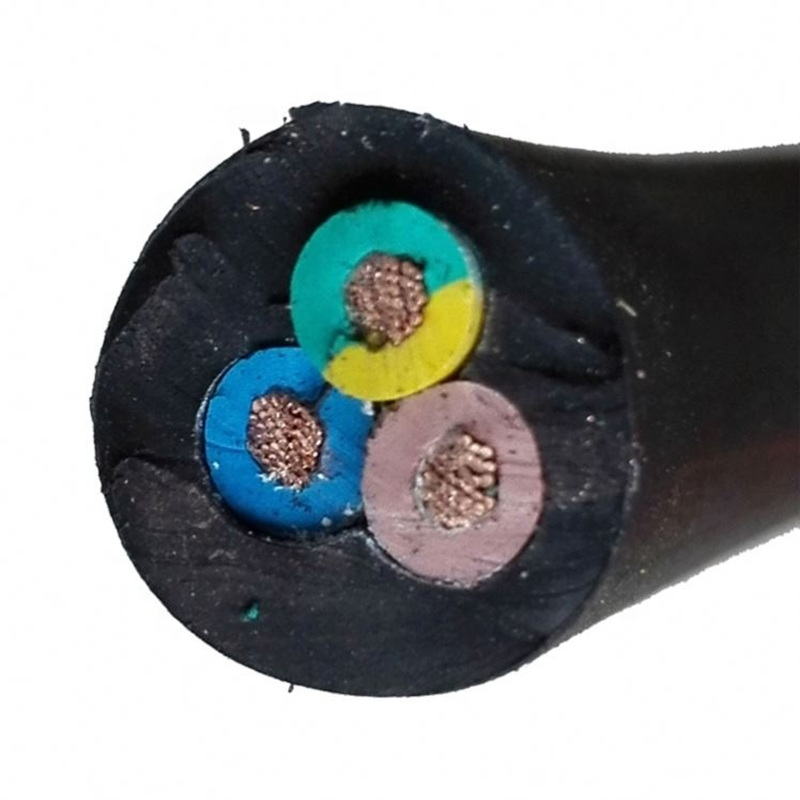

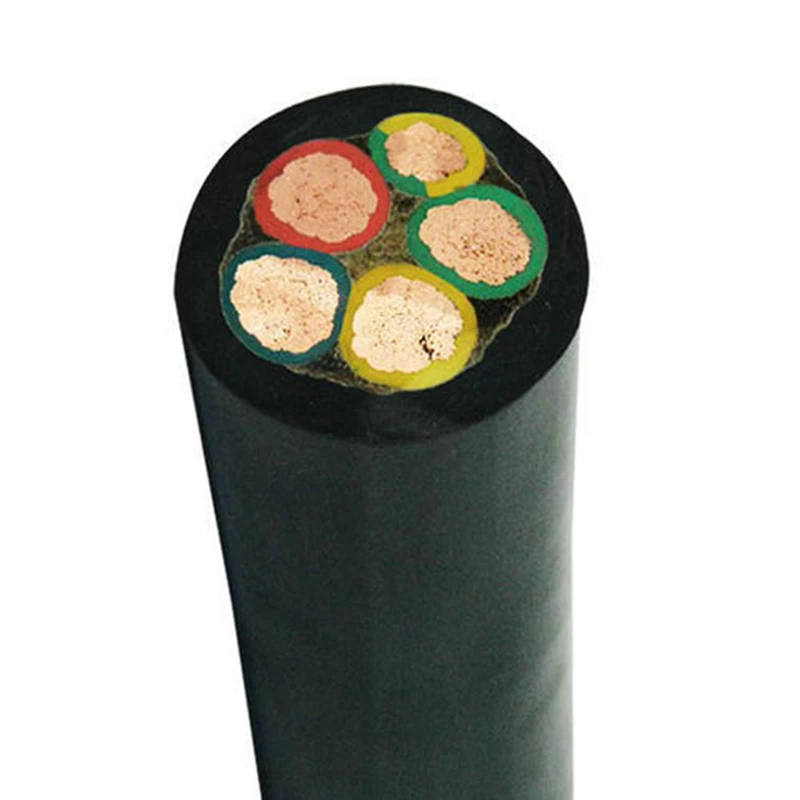

PRODUCTS STRUCTURE

---Conductor Material

    Plain annealed copper wire, strand, class 5.

---Insulated Material

    EPR (Ethylene Propylene Rubber)

---Insulated Color

    1 core: black

    2 cores: blue, brown

    3 cores: green/yellow, blue, brown.

    4 cores: green/yellow, brown, black, grey.

    5 cores: green/yellow, blue, brown, black, grey.

    6 cores and above: black with white numbers green/yellow.

---Sheath Material

    PCP (polychloroprene)

---Sheath Color

    Black, or according to the customer requirement.

---Voltage Rate

    300/500V, 450/750V

---Temperature Rating

    Fixed: -30~+70°C     Fixed protected installations: +85°C       Flexed: -15~+60°C

---Minimum Bending Radius

    6 x Overall Diameter

---Production Standard

    JB/T 8734-2016, GB/T 5013-2008, BS EN 50525-2-21, IEC 60245, BS 7919, VDE 0282.

---Production Delivery

    Within 5-7 working days as soon as we received the 30% deposit before the shipment.

---Packing Type

   100 meters per roll, plastic reel, plywood drum, wooden pallet, wooden drum or others.


REMARK

---The information contained within this datasheet is for guidance only and is subject to change without notice or liability.

---All the information is provided in good faith and is believed to be correct at the time of publication; when selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

---Hante Cable: it is your Production Base, Overseas Warehouse, Purchase Consultant in wire and cable industry.



MAIN ADVANTAGE


HOT-SELLING PRODUCTS


RAW MATERIAL


PRODUCTION PROCESS

INSPECTION PROCESS

FREQUENTLY ASKED QUESTIONS

1. Are you the manufacturer or trading company?

Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.

2. How can I get a sample to test your quality?
Hante Cable can provide the free sample to you, but you will pay the express charges.
3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.
4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
