Single

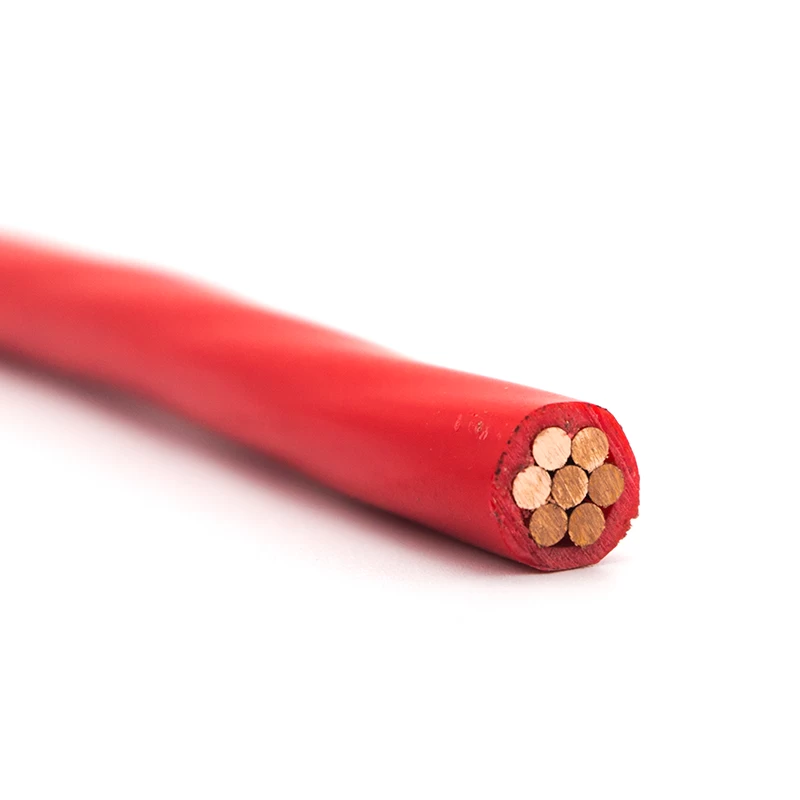

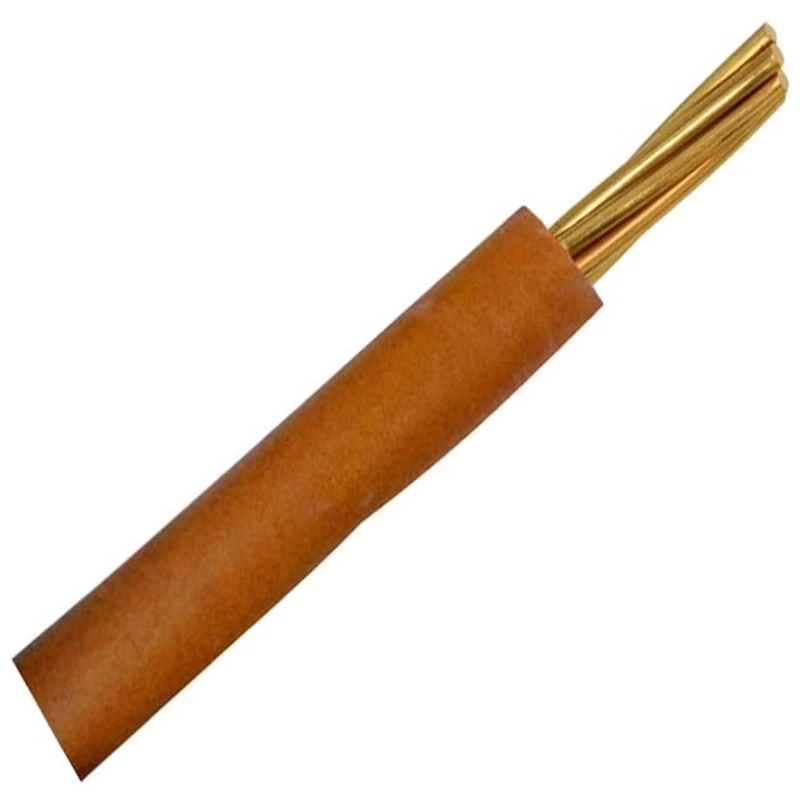

Core Strand Conductor PVC Insulated Non-Sheathed BV Electrical Wires
PRODUCT KEYWORDS
BV
strand, THW, NYA, H05V-R, H07V-R, 6491X, 60227 IEC 01 BV.
APPLICATION AND CHARACTERISTICS
The BV strand cable can be used to connect indoor switch
sockets, lighting, household appliances, small power tools and instruments. The cable has some characteristic:
Safe and stable electrical performance, easy wiring soft performance,
energy-saving green environmental performance.
PRODUCT STRUCTURE
---Conductor Material:
Pure
annealed copper or aluminum wire, strand, class 2, meet to IEC 60228, GB/T
3956, BS 6360.
---Insulation Material:
PVC (Polyvinyl
chloride)

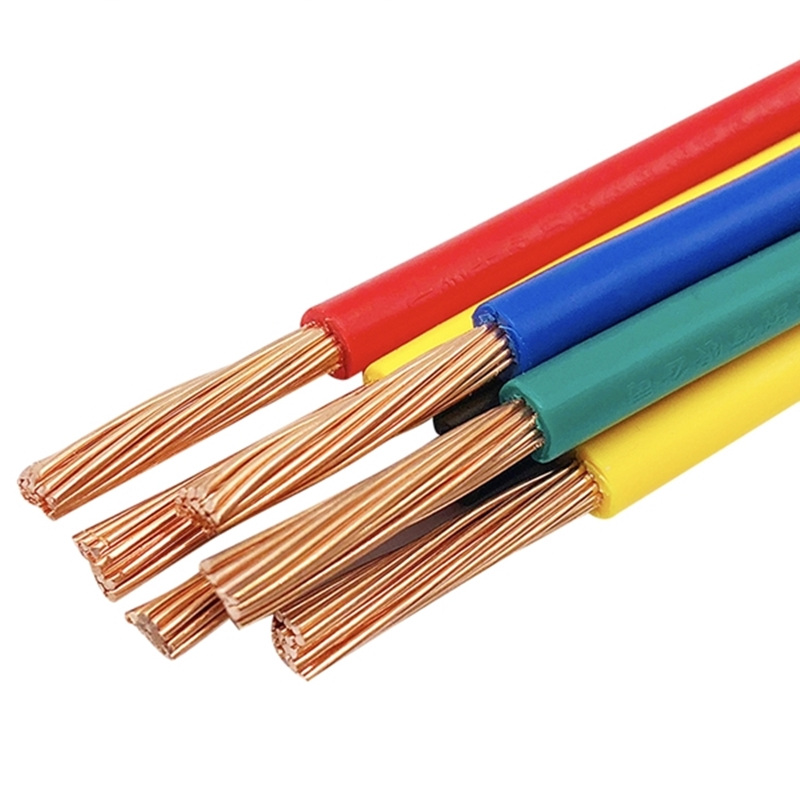

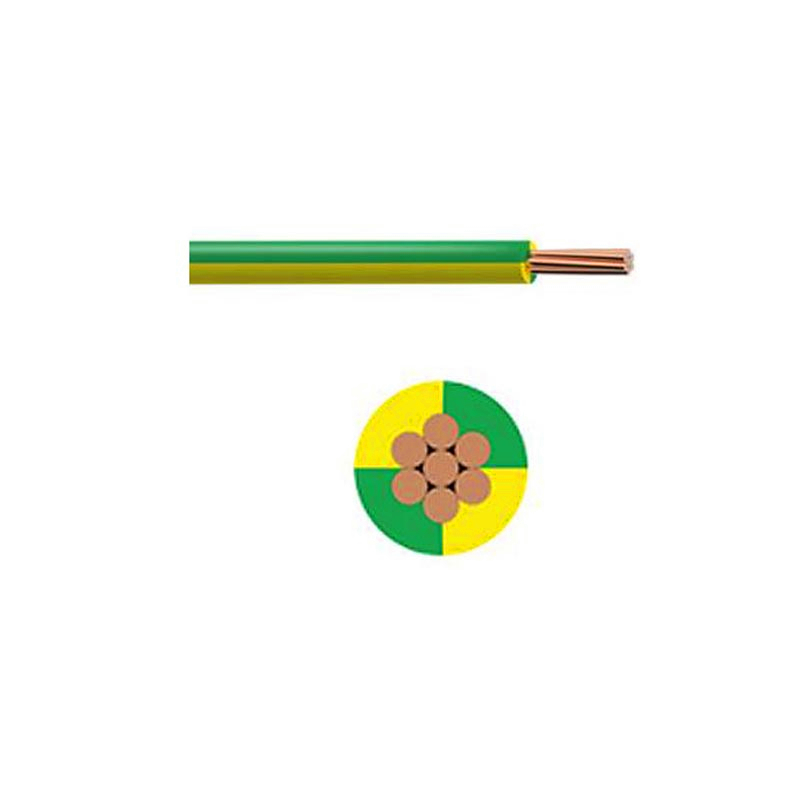

---Insulation Color:
Red, yellow,
blue, green, black, brown, yellow/green, and other colors.
---Sheath Material:
Non-Sheath
---Core Number:
Single core,
1C.
---Voltage Rate (U0/U):
0.75～1.0
mm2: 300/500V; 1.5～400 mm2:
450/750V.
---Working Temperature:
-15℃～+70℃.
---Minimum Bending Radius:
Up to
10 mm²: 3 x O.D. 10 mm² to 25 mm²: 4 x O.D.； above 25 mm²: 6 x O.D.
---Products Standard:
GB/T
5023, JB/T 8734, IEC 60227, BS 6004, VDE 0281, UL 83, TIS 11 Part 3-2553.
---Products Packing:
100
meters each roll, reel, coil, plastic reel, wooden pallet, wooden drum, or
others.
---Products MOQ:
0.5～1.0
mm2: ≥10000 meters, 1.5～70 mm2:
≥5000 meters, 95～400
mm2: ≥500 meters.
---Products Delivery:
Within
5-7 working days as soon as we received the deposit.
REMARK
---The above information is for reference only, please refer to the exact technical parameters according to the actual product.
---The product can have flame retardant and
fire-resistant properties, the working temperature can be 90 degree, but the
production process, materials and production standard maybe has a few of
different.
---For the BV strand cable, according to
the practice, the common specification is 1.0～95 mm2.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Hante Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Hante Cable:
Good Material, Reasonable Weight, Enough Length, well-known brand wins your
trust.
MAIN ADVANTAGE
HOT-SELLING PRODUCTS
RAW MATERIALS
INSPECTION PROCESS
FAQ
1. Are you the manufacturer or trading company?
Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.
2. How can I get a sample to test your quality?
Hante Cable can provide the free sample to you, but you will pay the express charges.
3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.
4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
