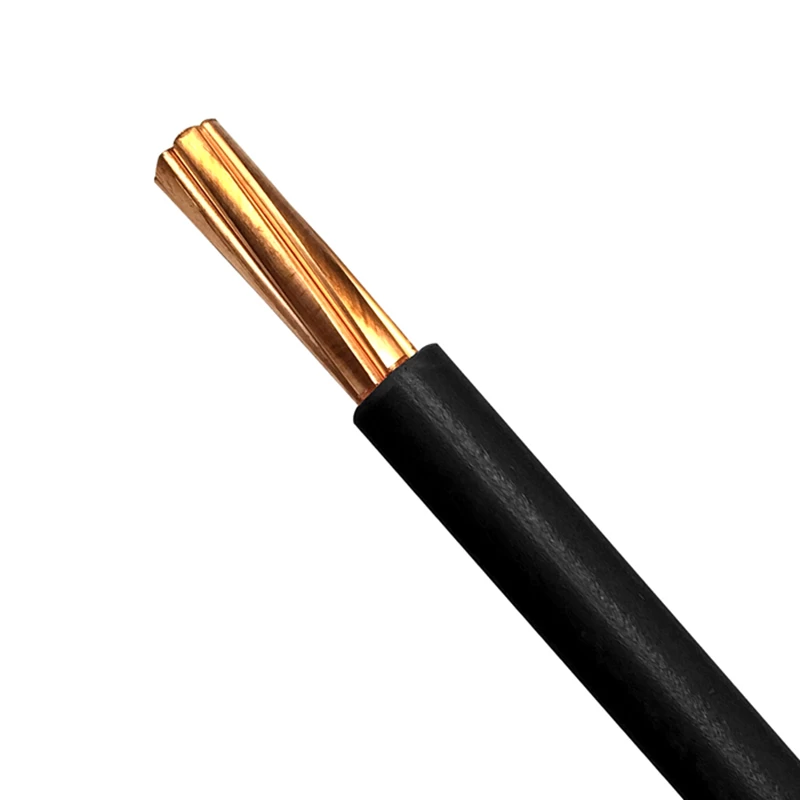

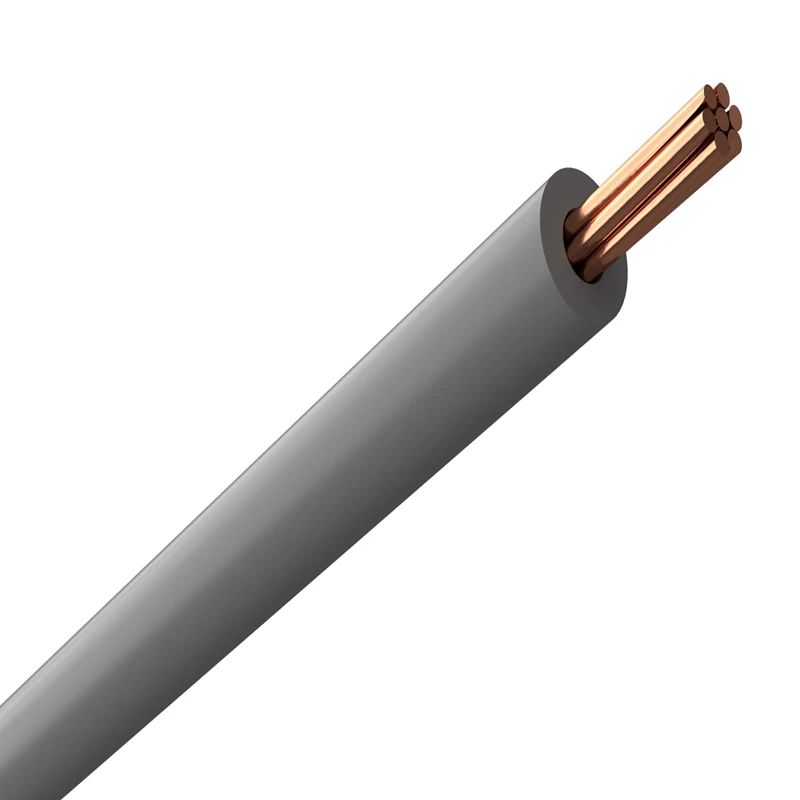

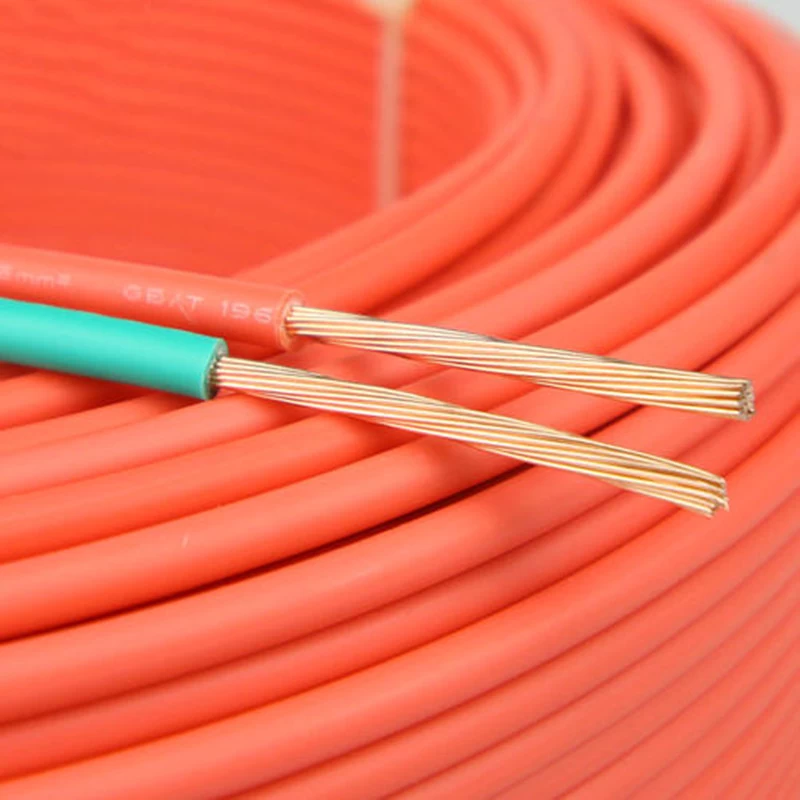

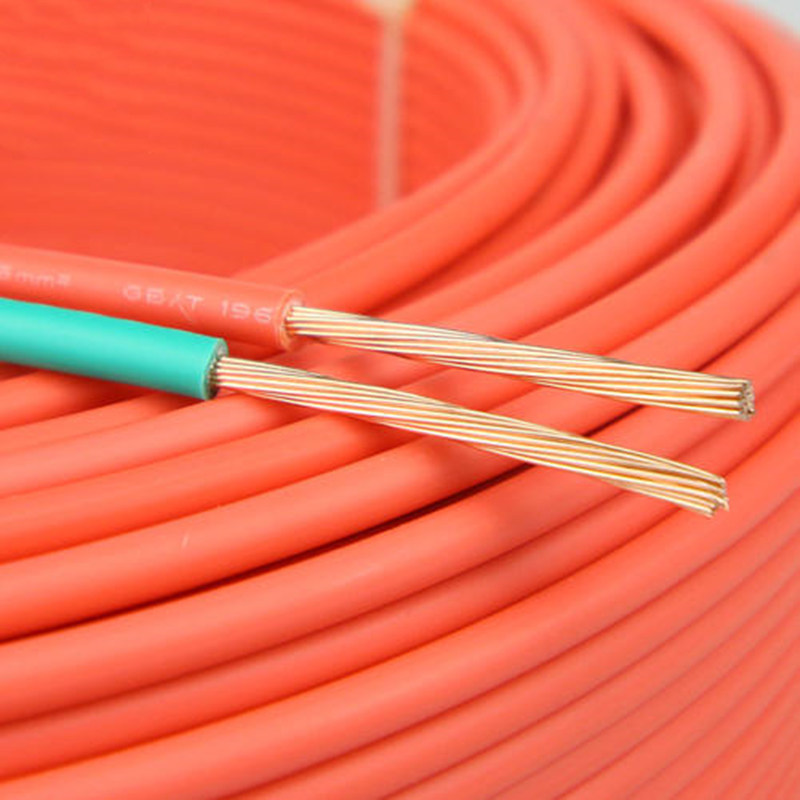

H05Z-R H07Z-R Single Core Stranded Copper LSZH Insulated WDZ-BYJ Electrical Wires

H05Z-R H07Z-R Single Core LSZH Insulated WDZ-BYJ Electrical Wires

PRODUCTS KEYWORDS

H05Z-R, H07Z-R, WDZ-BYJ, WDZ-BYJR, 6491B, LSZH electrical wire, low smoking zero halogen building wire,

stranded copper LSZH wire, environmental protection electrical wires.

APPLICATION SELLING-POINT

H05Z-R H07Z-R 6491B WDZ-BYJ single core stranded copper LSZH insulated non-sheath electrical Wires.

Most suited for use in conduit and for fixed protection installation. They can be used in lighting installations, switch and control gear and also in appliances. The low smoke zero halogen outer sheath is ideal in applications where fire, smoke, emissions and toxic fumes would create a potential threat.

LSZH stands for Low Smoke Zero Halogen and describes a cable jacket material that is non-halogen and flame retardant.This type of jacket material has excellent fire safety characteristics of low smoke, low toxicity and low corrosion.This type of cable jacket material is used in applications such as Central Offices, Mass Transit Rail Systems, Nuclear Plants and Oil Refineries or in any other application where the protection of people and equipment from toxic and corrosive gasses is critical.

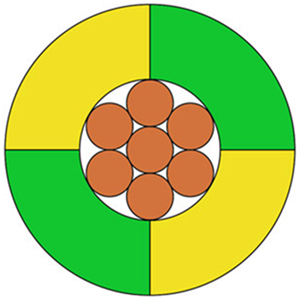

PRODUCTS STRUCTURE

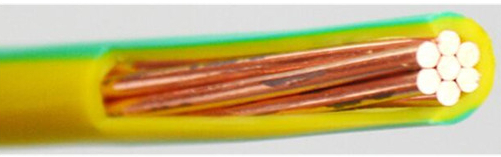

---Conductor Material

   Pure annealed copper, strand, class 2.

---Insulation Material

   LSZH (low smoking zero halogen)

---Insulation Color

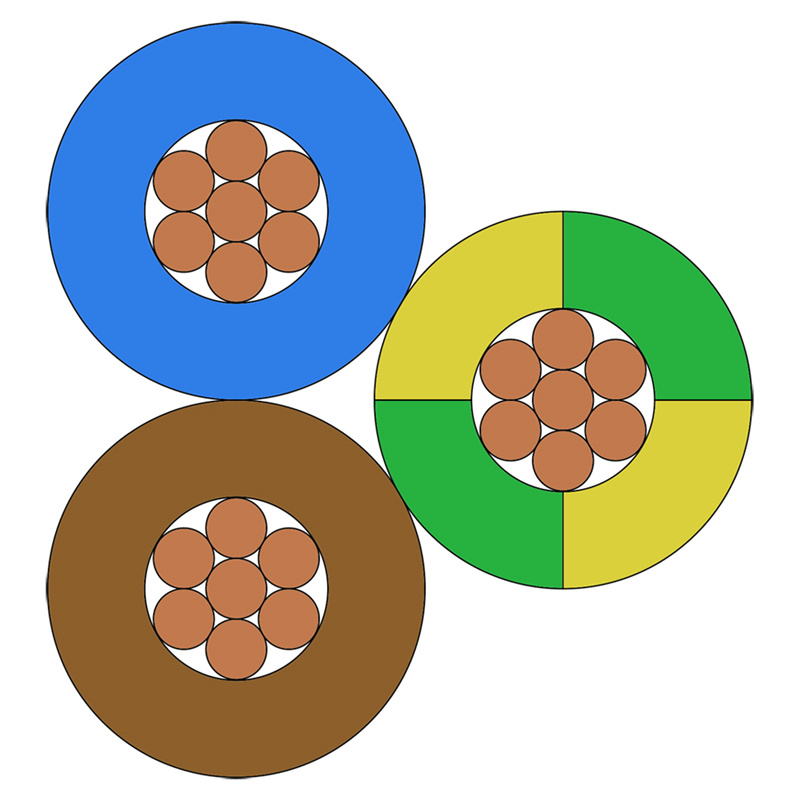

   Red, yellow, blue, green, black, brown, yellow/green, and other colors.

---Sheath Material

   Non-Sheath

---Core Number

    Single core, 1C.

---Voltage Rate (U₀/U)

    0.5-1.0 mm²: 300/500V; 1.5-240 mm²: 450/750V.

---Working Temperature

   -15℃～+90℃.

---Minimum Bending Radius

   6 x Overall Diameter.

---Production Standard

   JB/T 10491, GB/T 19666, IEC 60227, BS EN 50525-3-41, VDE 0282

---Product Packing

   100 meters each roll, reel, plastic reel, wooden pallet, wooden drum, or others.

---Product MOQ

   0.5-1.0 mm²: ≥10000 meters, 1.5-240 mm²: ≥5000 meters.

---Production Delivery

   Within 3-5 working days as soon as we received the deposit.

REMARK

---The above information is for reference only, please refer to the exact technical parameters according to the actual product.

---The product can have flame retardant and fire-resistant properties, the working temperature can be 105-150 degree, the production process, materials and production standard maybe has a few of different.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

MAIN ADVANTAGE

HOT-SELLING PRODUCTS

RAW MATERIAL

PRODUCTION PROCESS

INSPECTION PROCESS

FREQUENTLY ASKED QUESTIONS

1. Are you the manufacturer or trading company?

Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.

2. How can I get a sample to test your quality?
Hante Cable can provide the free sample to you, but you will pay the express charges.

3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.

4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
