H05Z-U H07Z-U Single Core LSZH Insulated WDZ-BYJ Electrical Wires
PRODUCTS KEYWORDS
H05Z-U, H07Z-U, WDZ-BYJ, 6491B, LSZH electrical wire, low smoking zero halogen building wire,
solid copper LSZH wire, environmental protection electrical wires.
APPLICATION SELLING-POINT

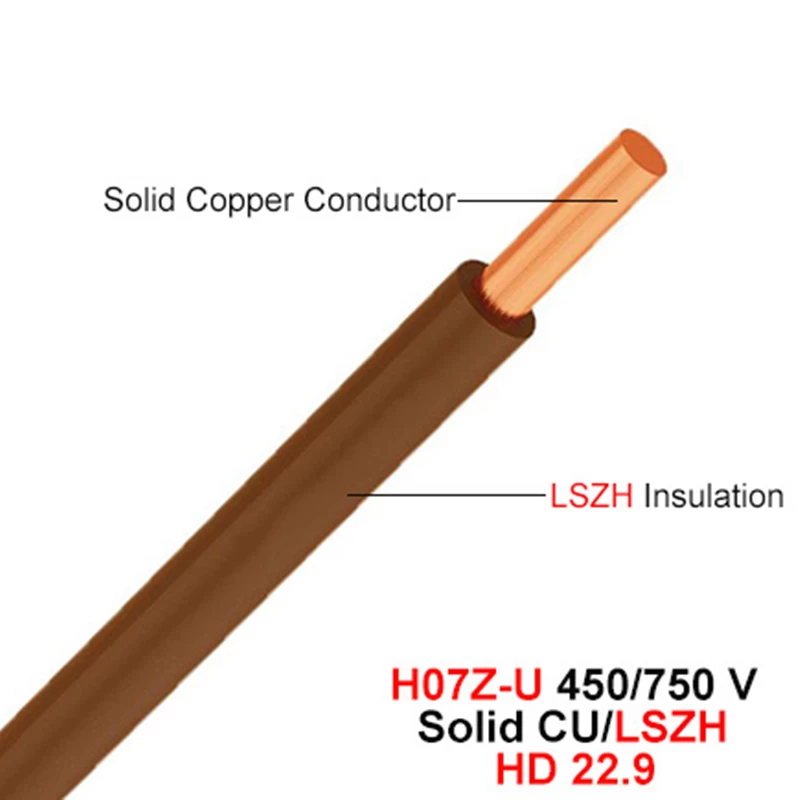

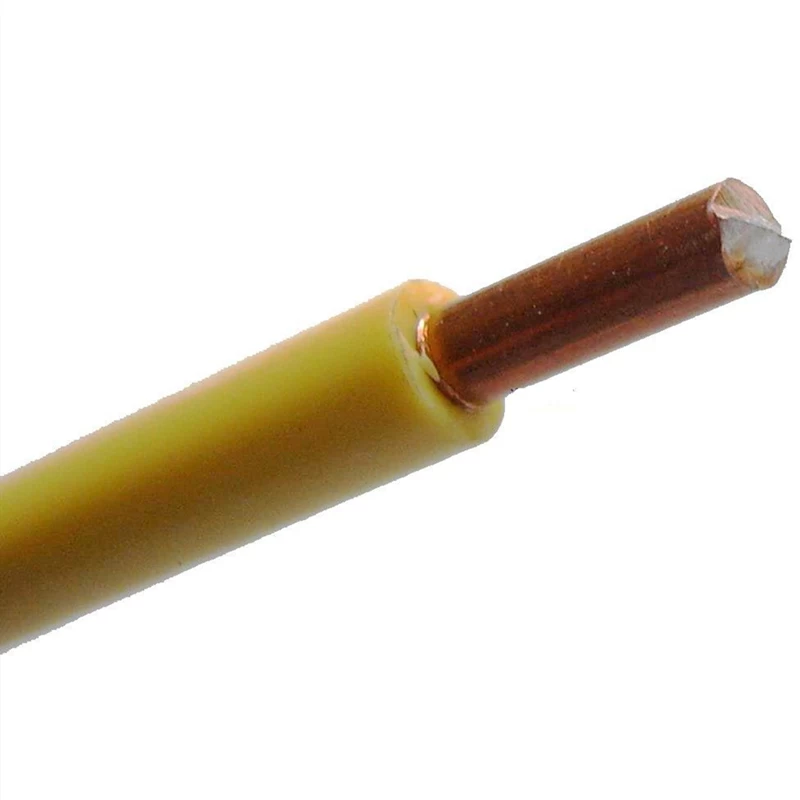

H05Z-U H07Z-U 6491B WDZ-BYJ single core solid copper LSZH insulated non-sheath electrical Wires.
Suitable for use in conduit and for fixed, protected installation. For installations where fire, smoke emission and toxic fume create a potential risk to life and equipment.
LSZH stands for Low Smoke Zero Halogen and describes a cable jacket material that is non-halogen and flame retardant.This type of jacket material has excellent fire safety characteristics of low smoke, low toxicity and low corrosion.This type of cable jacket material is used in applications such as Central Offices, Mass Transit Rail Systems, Nuclear Plants and Oil Refineries or in any other application where the protection of people and equipment from toxic and corrosive gasses is critical.

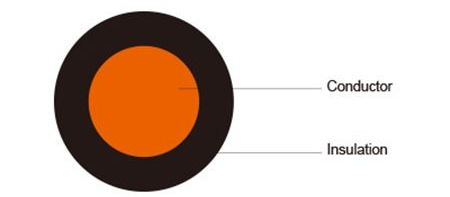

PRODUCTS STRUCTURE
---Conductor Material
Pure
annealed copper, solid, class 1.
---Insulation Material
LSZH (low smoking zero halogen)

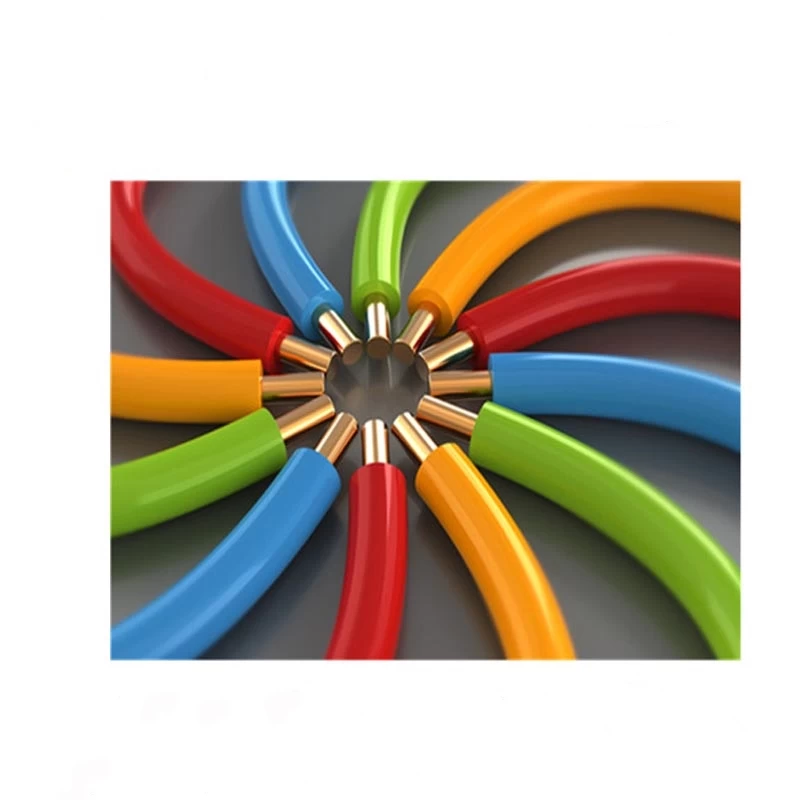

---Insulation Color

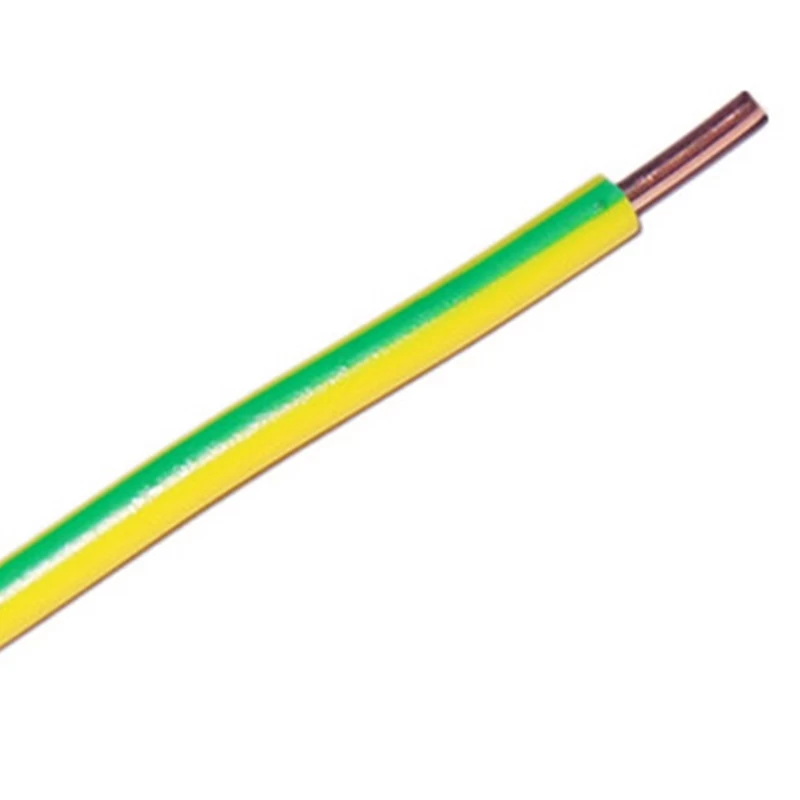

Red, yellow,
blue, green, black, brown, yellow/green, and other colors.
---Sheath Material
Non-Sheath
---Core Number
Single core,
1C.
---Voltage Rate (U0/U)
0.5-1.0 mm2:
300/500V; 1.5-6 mm2: 450/750V.
---Working Temperature
-15℃~+90℃.
---Minimum Bending Radius
6 x Overall Diameter.
---Production Standard
JB/T 10491, GB/T
19666, IEC 60227, BS EN 50525-3-41, VDE 0282
---Product Packing
100
meters each roll, reel, plastic reel, wooden pallet, wooden drum, or others.
---Product MOQ
0.5-1.0 mm2:
≥10000 meters, 1.5-6 mm2: ≥5000 meters.
---Production Delivery
Within
3-5 working days as soon as we received the deposit.
PRODUCTS SPECIFICATION
Cross
Section
Area
(mm2)
|
Conductor
Material
|
Conductor
Structure
(pcs/mm)
|
Insulated
Material
|
Insulated
Thickness
(mm)
|
Insulated
Colour
|
Refer
Max.
Out
Diameter
(mm)
|
Refer
Net
Weight
(kg/km)
|
Voltage
Rate
(U0/U)
|
MOQ
(m)
|
1 x 0.50
|
Copper wire,
solid.
|
1/0.80
|
LSZH
|
0.6
|
red,
or others
|
2.6
|
7
|
300/500V
|
10000
|
1 x 0.75
|
Copper wire,
solid.
|
1/0.96
|
LSZH
|
0.6
|
red,
or others
|
2.7
|
9
|
300/500V
|
10000
|
1 x 1.0
|
Copper wire,
solid.
|
1/1.13
|
LSZH
|
0.7
|
red,
or others
|
2.9
|
13
|
300/500V
|
10000
|
1 x 1.5
|
Copper wire,
solid.
|
1/1.38
|
LSZH
|
0.7
|
red,
or others
|
3.3
|
18
|
450/750V
|
5000
|
1 x 2.5
|
Copper wire,
solid.
|
1/1.78
|
LSZH
|
0.8
|
red,
or others
|
3.9
|
28
|
450/750V
|
5000
|
1 x 4
|
Copper wire,
solid.
|
1/2.24
|
LSZH
|
0.8
|
red,
or others
|
4.4
|
43
|
450/750V
|
5000
|
1 x 6
|
Copper wire,
solid.
|
1/2.72
|
LSZH
|
0.8
|
red,
or others
|
4.9
|
62
|
450/750V
|
5000
|
REMARK
---The above information is for reference only, please refer to the exact technical parameters according to the actual product.
---The product can have flame retardant and
fire-resistant properties, the working temperature can be 105 degree, the
production process, materials and production standard maybe has a few of different.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter
to us in advance, and the authorization letter must be true and valid.
---Hante Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Hante Cable:
Good Material, Reasonable Weight, Enough Length, well-known brand wins your
trust.
MAIN ADVANTAGE
HOT-SELLING PRODUCTS
RAW MATERIAL
PRODUCTION PROCESS
INSPECTION PROCESS
FREQUENTLY ASKED QUESTIONS
1. Are you the manufacturer or trading company?
Wuhan Xitiandi
Electrical Technology Co., Ltd (Hante Cable), is the professional in wire
and cables manufacturer. We can control your order from the first begining
to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan
airport or high-speed Railways Station.
2. How can I get
a sample to test your quality?
Hante Cable can
provide the free sample to you, but you will pay the express charges.
3. What’s your
Minimum Order Quantity?
For electrical
wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of
cources, the MOQ can be negotiated. But in order to save the shipment
space and cost for you, Hante cable suggests that the MOQ of electrical wires
should be more than 3000 meters, and the MOQ of power cable should be more than
500 meters.
4. Can I get a
discount?
It depends on your
quantity, we can make a discount and afford the freight. Pls
kindly contact us.
5. Does your
company accept OEM production?
Yes, could print
your company name, we even custom the quality card to promote your company.
