H2520 12v DC Holding Electrical Magnet Round Solenoid Lifting Electric Magnet

Landa H2520 mini round electric magnet can customized different specs for different application.



H2520 is Landa standard dc electric magnet. In diameter 25mm mini electric magnet area, Landa have other options for you request, eg Landa H2510, H2530 etc.

Product description

Specifications
Brand Landa Product Name H2520 circular electromagnet
Model H2520 Rated Voltage DC 12v 24v
Power 2.8-5w Force 60-70N
Waterproof Class IP65 Duty Cycle 50-100%
Cable Length 200mm Material Metal, Electronic Parts
Action Form Holding type Weight(N.W.) 0.06kg
Install Style Screw Thread Size & Deepth(mm) M5,10
Hi-Pot Test AC 600V 50/60Hz 2s Insulation Class B
Packaging Details
Body Size D25*H20 (mm) Carton Box Size(Standard) 350*310*180(mm), accepted custom

Product Feature

circular holding electromagnet

1.Holding type, round shape, mini size, IP65 waterproof, DC solenoid electromagnet.

2.The electromagnet need to be energised to develop suction force, widely used for holding of ferromagnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.

3.Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.

4.Also offer custom shape and energise to release circular electromagnet

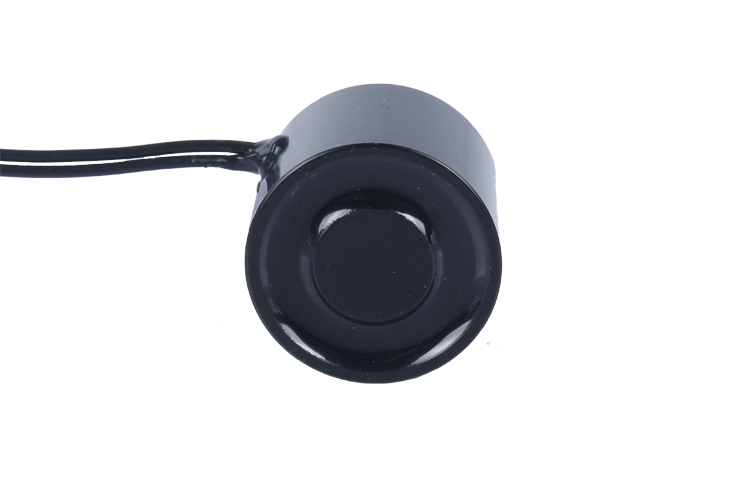

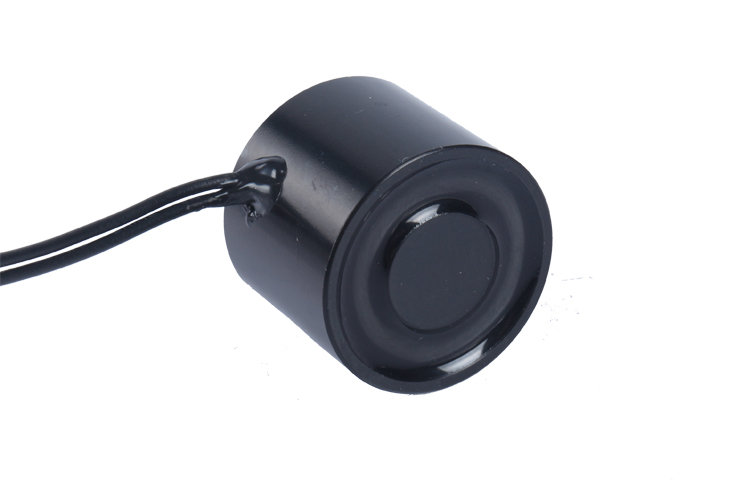

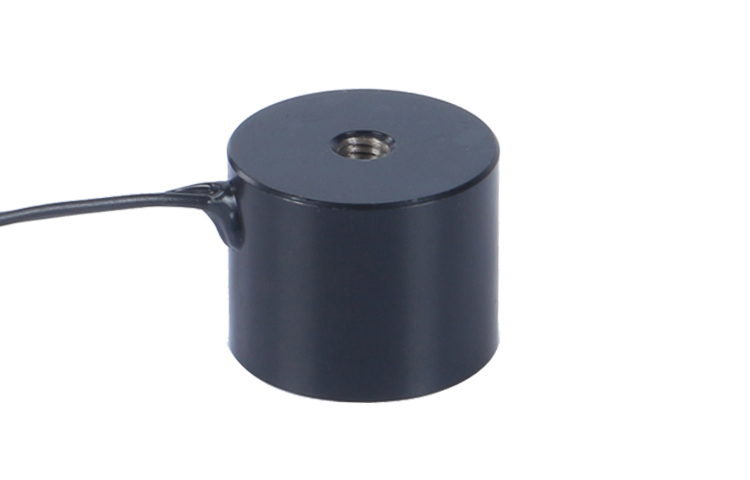

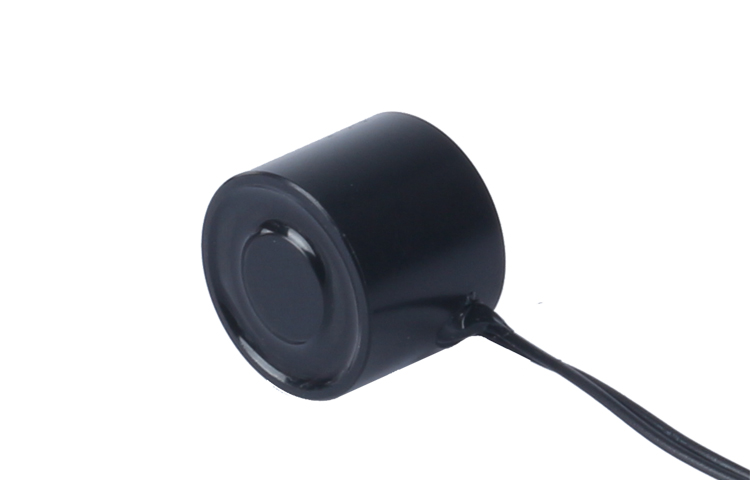

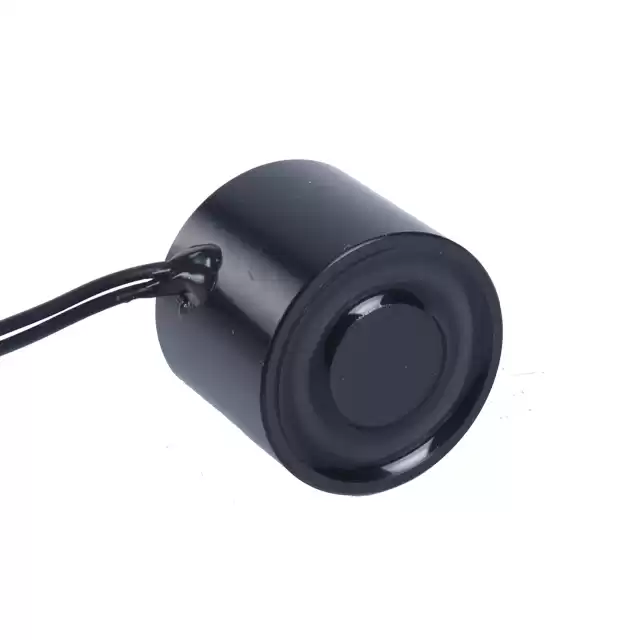

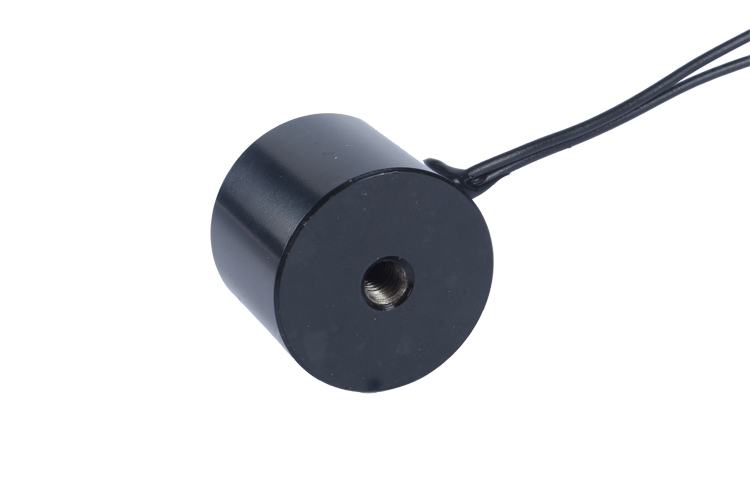

Detailed Images

12v dc electric magnet

Holding Electrical Magnet

Holding Magnets

Round Solenoid

Lifting Electric Magnet
