H3/36B 12 ton Potain Tower Crane manufacturers

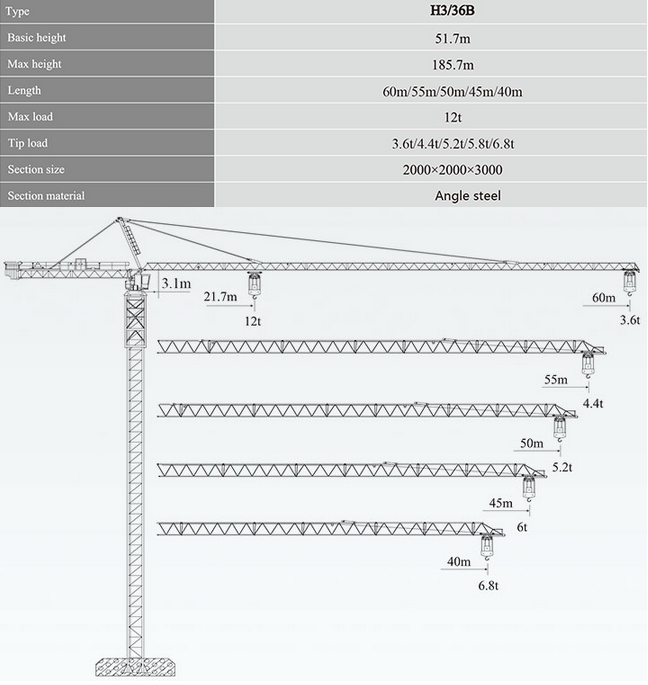

Main Characteristics
- Free standing height: 51.7m
- Jib: 60m
- Load at tip: 3.6t
- Maximum Load: 12t
- Mast type: L68B1 (2.0*2.0*3.0m)
Mechanisms:
- Hoisting: 70RCS30
- Slewing: 145SVT
- Trolley: 4TVF
- Power supply: 380v 50Hz/440v 60Hz
- Driven motors,electric system and controlling system (Schinder): Origin from China (Joint venture, China with EU/G8)
- Cable to protect electric system: IP23~IP54
The most advanced technology is imported to the design of XCMG tower cranes. The main materials are selected with high quality and strong torsional strength; the jibs are designed with various sections to reduce the self weight and wind pressure; In order to improve the operation of cranes, the main electric are import from SCHNEIDER and LG of Korea. Latest falling protection technology is used to ensure the security and stability during climbing; all concerned matters such as raw material selecting, structure designing, working mechanism, control system, efficiency, safety and reliability can reach the world level.
Nine advantages of H3/36B tower crane:
1, It uses the the rolled steel from national large iron and steel company wholly.
2, all of the rolled steel,welding material and key materials are tested before transporting to the workshop.
3, our company has a strong and professional team in charge of new product research and update.
4, our products are made according to the drawing strictly, using 16Mn, 40Cr and 45# steel.
5, the front point of the crane arm is equipped with anti-warping device additionally.
6, the structure of tower adopts intensive form , excellent rigidity, without deformation.
7, the slewing tower body and standard section are processed by the double milling surface. Good level of junction surface.
Excellent stability, little wear of the slewing bearing. Long using life.
8, the safety equipment adopts the products from the first-rate manufacturer.
9, we adopt the submerged arc welding and carbon dioxide arc welding wholly. We use Imported welding manipulator
in the important parts, with advanced technology and high strength of connection.
Features Of H3/36B Potain cranes:
1) tower crane h3/36b has competitive price and excellent quality, suitable for all kinds of construction project and can work under all kinds of work condition.
2) This kind of crane adopts standard section hydraulic lifting and connecting, and can decide the crane height according to the actual height of the building, and at the same time the lifting capacity will not be affected; The max. attached height can reach 180m.
3) It has high working speed, good speed-adjusting performance, steady operation and high efficiency. Three-speed motor and mono-speed ratio decelerator are applied in the lifting struction, which enables heavy load low speed and light load high speed.
The range-change structure drives the dolly to change range on the horizontal arm, with good positioning performance.
Our Service
----timely delivery, intime shipping notice
----1 year warrantyof products quality and full set of spare parts
----traininginstallation, guidance of operation and maintenance
----engineershave rich experience, can solve all your problems
As a professional exporter,our target is to serve worldwide clients with high-quality products, great-reliability, devoted responsibility,professional services and honorable credibility to meet customers’ requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
If you want to know more about our products, pls contact us by email or phone. Also welcome consult us any question at your convenience, any inquiry or kind suggestions from you will be very appreciated.
