Industrial ATX Motherboard / Intel Motherboard Intel@ PCH H310 Chip 2 LAN 6 COM 10 USB 7 Slot 5 PCI
Product Introduction

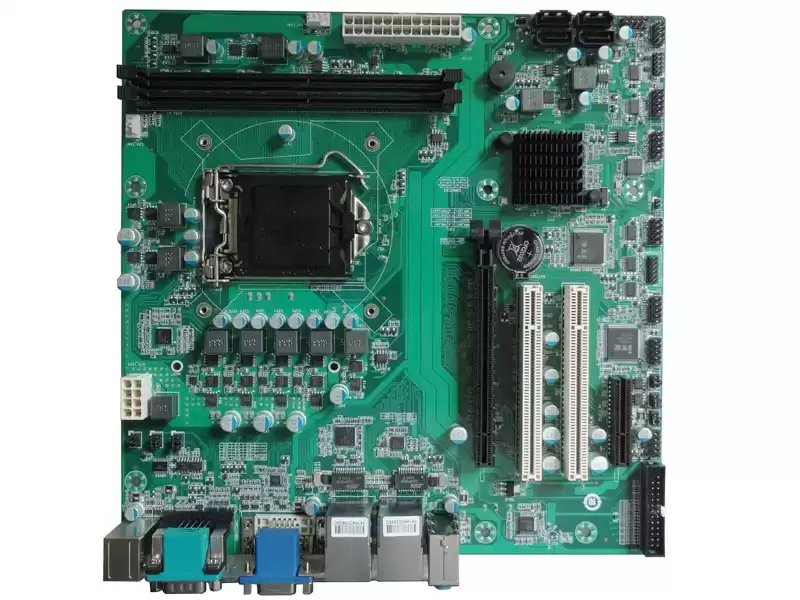

Micro ATX industrial motherboard - MATX-H310AH26A, this product has excellent performance and rich I/O interface to meet the embedded applications in multiple fields, such as self-service terminal equipment, industrial automation, security monitoring, etc.
The high performance Micro ATX motherboards support a wide range of computing capacities, rich I/Os and expansion slots. The ATX motherboards are ideal platforms for applications in digital video recorder, POS system, intelligent transportation system, multi-media center and more.
Specification
| CPU/GPU |
Supports LGA1151 architecture 6th/7th/8th/9th generation Intel® Core™ processors i7 / i5 / i3, Pentium® / Celeron® CPU |
| System on Chi |
Intel@ PCH H310 |
| Memory |
2 DDR4 DIMM slots，up to 32GB SDRAM |
| Storage |
4×SATA |
| Sound Card |
Realtek HD Audio |
| Ethernet |
2 Intel Gigabite network |
| Graphics Board |
CPU integrated graphics card |
| Display Interface |
VGA, DVI, HDMI |
| USB2.0 |
6 |
| USB3.0 |
4 |
| GPIO |
8 bits |
| COM |
6COM RS232（COM1 / COM2 support RS422 / 485） |
| Backplan I / O |

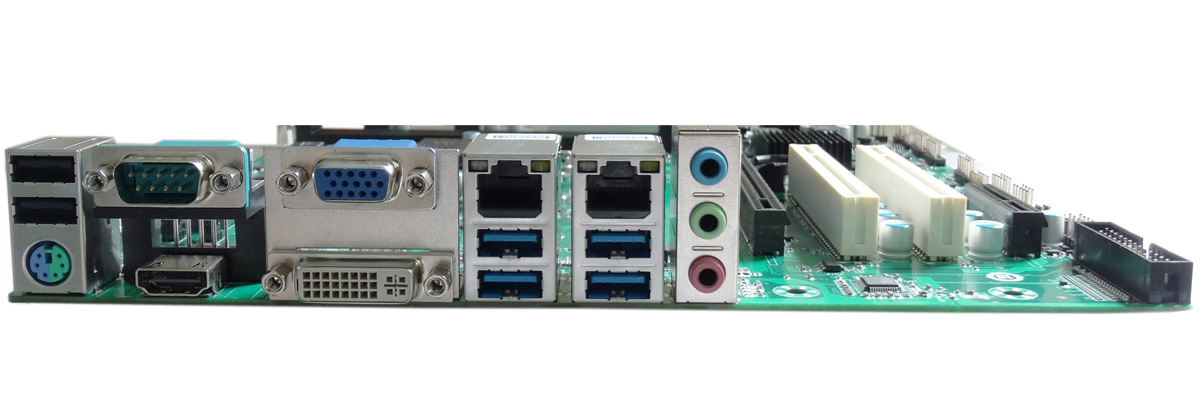

PS2+2USB2.0, COM+HDMI, DVI+VGA, 2 RJ45 LAN+4USB3.0, 3 Audio jack |
| Board I / O |
4USB2.0 , 5COM , front audio , CLR_CMOS , CPU fan power , System fan power , GPIO, Front panel , 24P+4P ATX， LPT |
| Expansion |
1PCIEx16; 1PCIEx4; 2PCI |
| System |
Support Windows（WIN 10 ...），Linux |
Product Features
■ Support for LGA 1151 architecture 6th/7th/8th/9th generation Intel® Core processors
■ 2 x Intel Gigabit LAN
■ VGA，DVI，HDMI interface
■ 6COM RS232，COM1 / COM2 support RS422 / 485
■ 6USB2.0, 4USB3.0
■ 8 bits GPIO
■ 1PCIEx16;1PCIEx4; 2PCI expansion
■256 bits watchdog
| Mechanical & Environmental |
| Power Supply |
ATX |
Heat dissipation |
Fan |
Siae(L×W) |
244mm×244mm |
| Working Temperature |
-15~55℃ |
Storage Temperature |
-40~75℃ |
Environmental humidity |
0~90% air humidity,no condensation |
| Packing List |
MATX-H310AH26A motherboard×1，SATA data canle×1，Interface board×1，COM cable x2 |
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
