MATX-H87AH26D
Micro ATX Industrial motherboard，Intel@PCH H87 or H81 Chip，2LAN 6COM 13USB，4Slot（2PCI）Expansion, Supports LGA1150 architecture 4th generation Intel® Core™ processors i7 / i5 / i3, Pentium® / Celeron® CPU

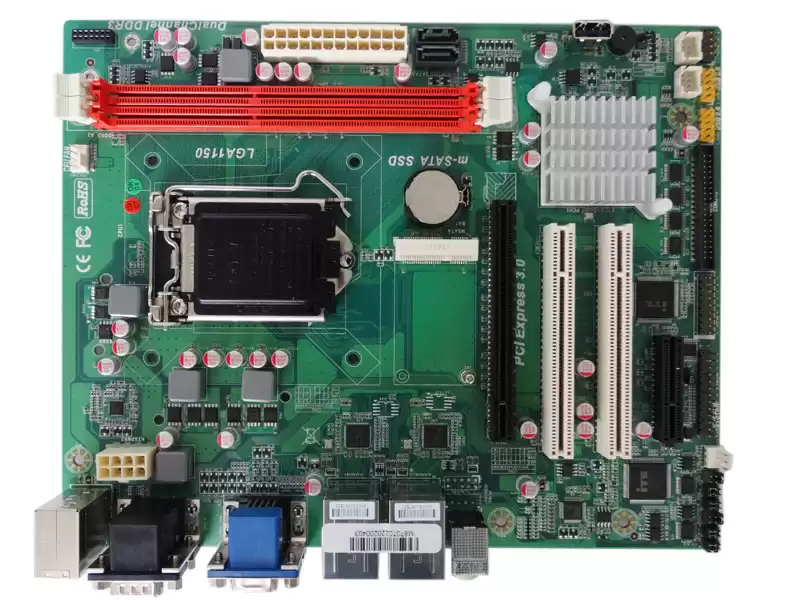

Product Introduction
Industrial MATX motherboards are designed to provide consistent, reliable performance in harsh and rugged environments. 2 PCI expansion slots and 13USB 6COM for a wide range of external devices
| System |
| CPU/GPU |
Supports LGA1150 architecture 4th generation Intel® Core™ processors i7 / i5 / i3, Pentium® / Celeron® CPU |
| System on Chip |
Intel@ PCH H87 or H81 |
| Memory |
2DDR3 DIMM slots, supporting up to 16GB SDRAM |
| Storage |
2×SATA (H87 is 2 SATA 3.0, H81 is 1 each SATA 3.0 and SATA 2.0), 1 × mSATA |
| Sound card |
Realtek HD Audio |
| Ethernet |
2×Intel i211 Gigabit LAN |
| Graphics Board |
CPU integrated graphics |
| Display |
VGA,DVI,HDMI |
| USB |
9USB2.0 ;4USB3.0(only 2 for H81 chips) |
| GPIO |
16-bit GPIO (8 inputs, 8 outputs) |
| COM |
6COM RS232(2COM Support RS422 / 485），Optional LPC daughter board extension 4COM |
| Backplane I / O |

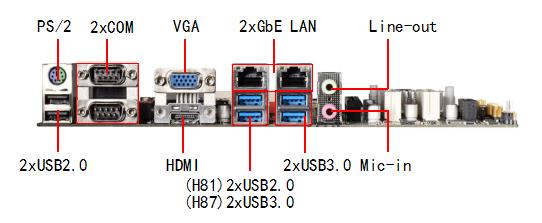

PS2+2USB2.0, 2COM, VGA+HDMI, 2 RJ45 LAN+4USB, Line-out/in+Mic-in |
| Board I / O |
6USB2.0 , 1 Vertical USB, 4COM , front audio , CLR_CMOS , CPU fan power , System fan power , GPIO, Front panel , 24P+4P ATX, Print（LPT), LPC |
| Expand |
1PCIEx16; PCIEx4(H81 for x1 signal); 2PCI |
| System |
Support Windows（WINXP，WIN 7，WIN 10 ...），Linux |
Product Features
■ Support for LGA 1150 architecture 4th generation Intel® Core processors
■ 2 x Intel Gigabit LAN ports
■ VGA, DVI, HDMI ports
■ 6COM RS232, 2COM support RS422 / 485
■ 9USB2.0, 4USB3.0 (only 2 for H81 chips)
■ 16-bit GPIO support (optional)
■ 1PCIEx16; 1PCIEx4 (H81 is x1 signal); 2PCI
■ 256 level watchdog
■ Support for MSATA
| Mechanical & Environmental |
| Power supply |
ATX |
Heat dissipation |
Fan |
Size(L×W) |
306mm×245mm |
| Working temperature |
-15~55℃ |
Storage temperature |
-40~75℃ |
Environmental humidity |
0~90% air humidity,no condensation |
| Packing list |
MATX-H87AH26D motherboard |
×1 |
SATA data wire |
×1 |
| COM line |
×2 |
|
|

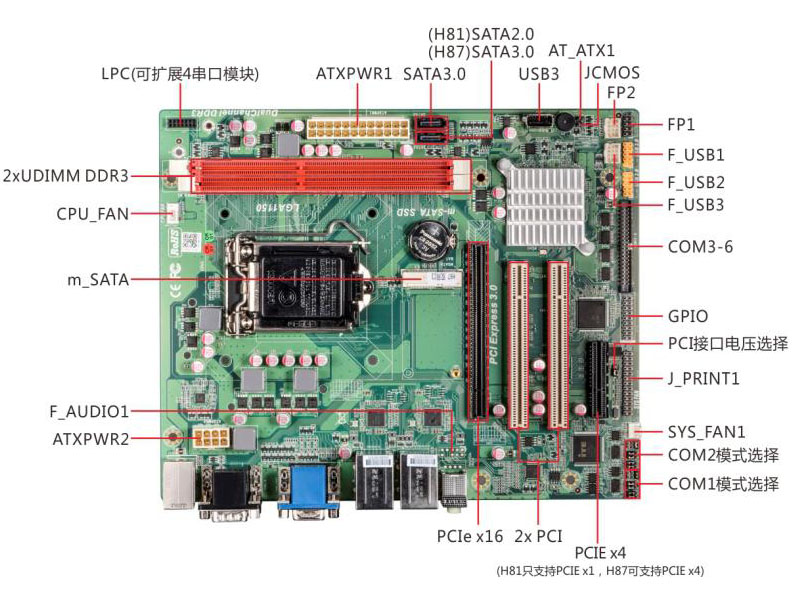

Product Installation Dimension Diagram
