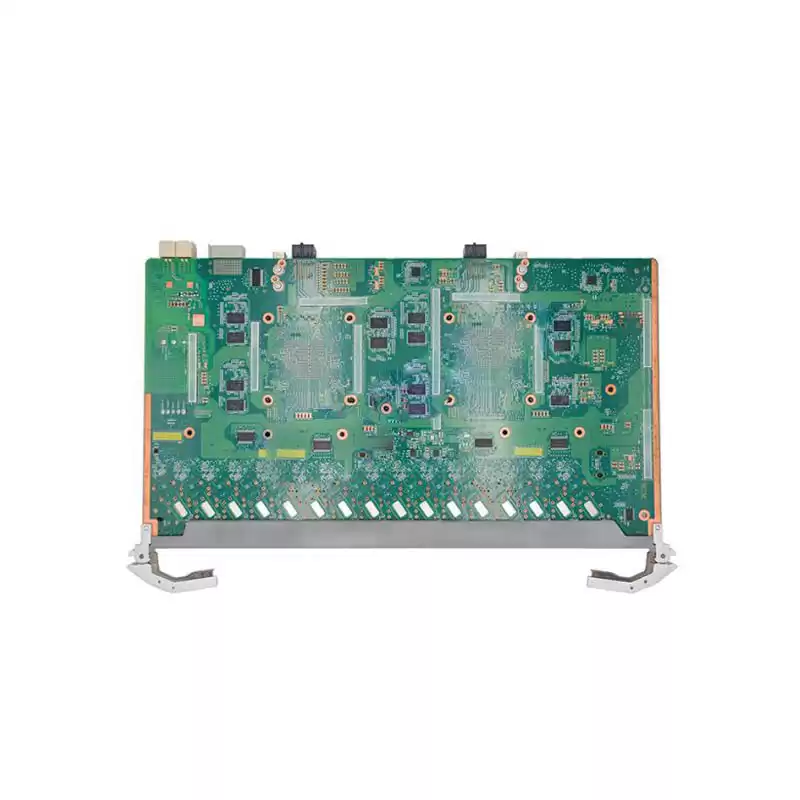

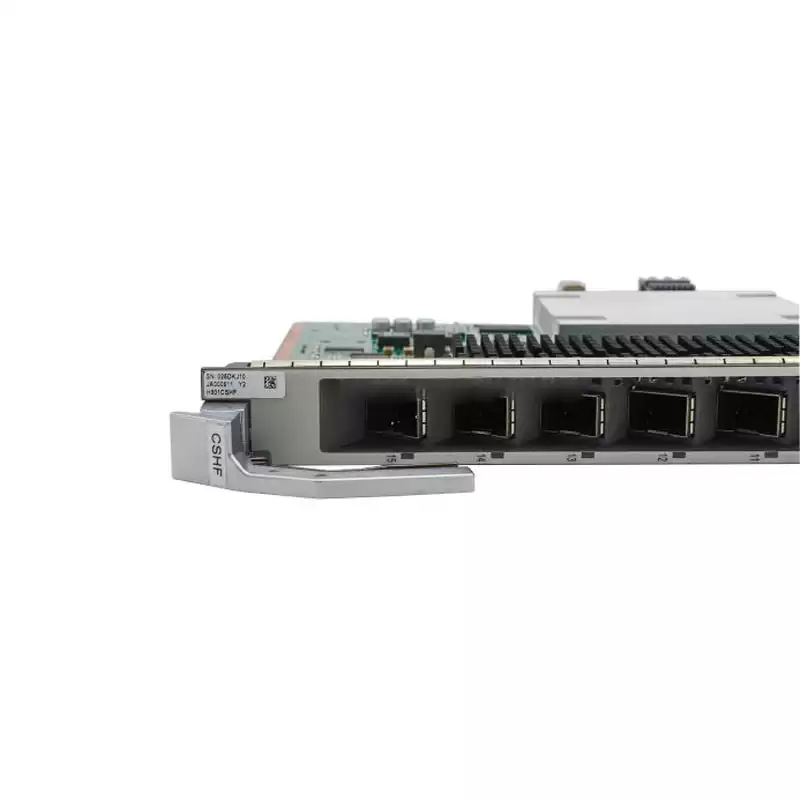

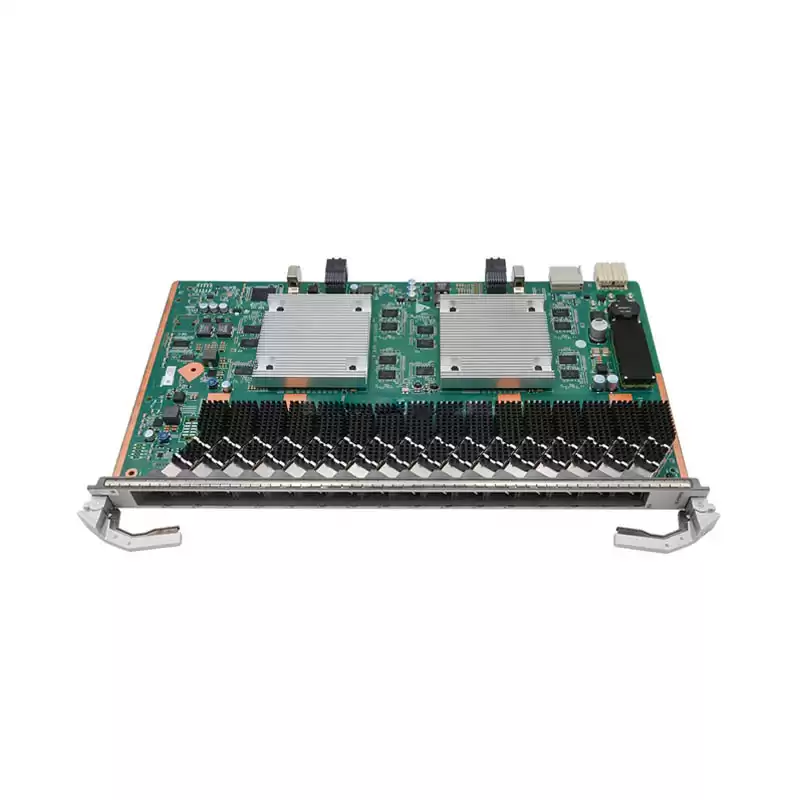

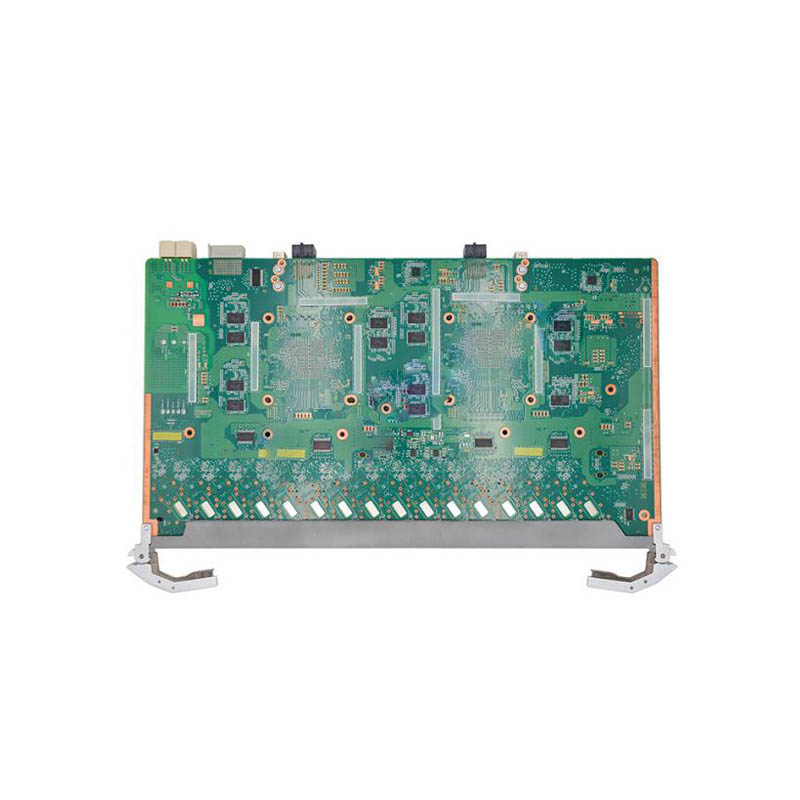

H901CSHF XGSPON GPON C+ 03025DKJ Huawei MA5800 series 16-port XGS-PON and GPON combo OLT Interface Board with XGSPON
Product Description
|
Specification
|
|
Service ports
|
|
GPON Port
|
16 XGS-PON & GPON ports
|
|
XGS-PON&GPON Combo PON Class C+ Module
|
|
Type
|
One-fiber bi-directional optical module
|
|
Operating Wavelength
|
GPON channel:
Tx: 1490 nm
Rx: 1310 nm
XG-PON & XGS-PONchannel:
Tx: 1577 nm
Rx: 1270 nm
|
|
Encapsulation Type
|
SFP+
|
|
Port Rate
|
GPON channel:
Tx: 2.488 Gbit/s
Rx: 1.244 Gbit/s
XGS-PON channel:
Tx: 9.953 Gbit/s
Rx: 9.953/2.488Gbit/s
|
|
Minimum Output Optical Power
|
GPON channel: 3 dBm
XGS-PON channel: 5 dBm
|
|
Maximum Output Optical Power
|
GPON channel: 7 dBm
XGS-PON channel: 8 dBm
|
|
Maximum Receiver Sensitivity
|
GPON channel: -32 dBm
XG-PON channel: -30.5 dBm
XGS-PON channel: -29 dBm
|
|
Optical Connector Type
|
SC
|
|
Optical Fiber Type
|
Single-mode
|
|
Overload Optical Power
|
GPON channel: -12 dBm
XG-PON channel: -10 dBm
XGS-PON channel: -8 dBm
|
|
Extinction Ratio
|
8.2 dB
|
Function
|
|
Forwarding capability
|
200 Gbit/s
|
|
Rate mode
|
Symmetric rate
|
|
T-CONTs per PON port
|
GPON: 1024
XG(S)-PON: 2048
|
|
Service flows per PON board
|
16352
|
|
Maximum frame size
|
2052 bytes
9216 bytes (jumbo frame enabled)
|
|
Maximum number of MAC addresses
|
131072
|
|
Maximum distance difference between
two ONUs under the same PON port
|
40 km
|
|
Device Specifications
|
|
Dimensions (W x D x H)
|
23.30 mm * 257.90 mm * 399.20 mm
|
|
Power Consumption and Maximum Frame Size
|
|
Power Consumption
|
Static: 48 W
Maximum: 98 W
|
|
Operating temperature
|
-40°C to +65°C
|
Huawei 16-port Symmetric 10G GPON and GPON combo OLT Interface Board with XGSPON & GPON C+ Optical Module
Support XGS-PON, XG-PON and GPON
Max split radio: 1:256
GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s
XGS-PON channel: Tx: 9.953Gbit/s, Rx: 9.953/2.488Gbit/s
Interface Type: SC
Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system
Software version requirements: V100R018C00SPH313 / V100R018C10SPH108 / V100R019C00 and later versions
H901CSHF is a 16-port XGS-PON and GPON Combo OLT interface board. It works together with the optical network unit (ONU) to provide XGS-PON XG-PON and GPON access services.
