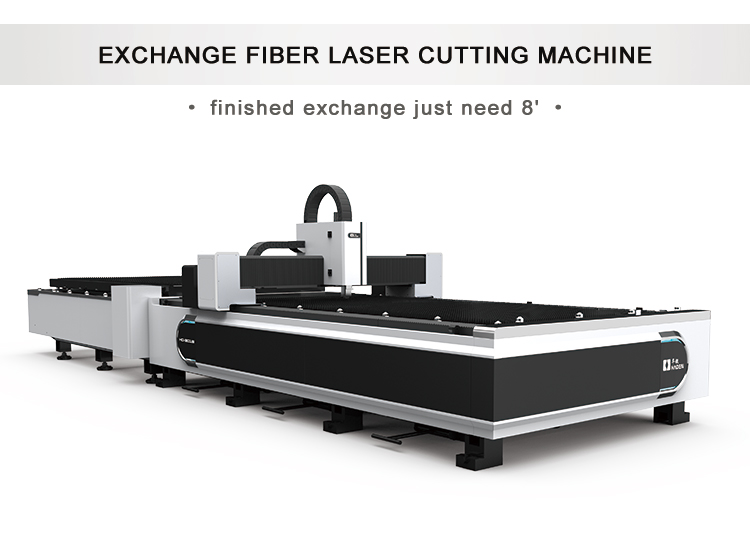

4020 3300W Exchange Table Fiber Laser Cutting Machine
|
Working Area
|
4000x2000mm
|
|
Casting Machine Body Weight
|
5.5T
|
|
Welding Machine Body Weight
|
3.5T
|
Loading Speed
|
140m/min
|
Max. Acceleration
|
2.0G
|
|
Positioning Accuracy
|
±0.05mm/m
|
|
Repeat Positioning Accuracy
|
±0.03mm/m
|
X Axis Stroke
|
2005mm
|
Y Axis Stroke
|
4005mm
|
|
Z Axis Stroke
|
200mm
|
1. 3300w fiber laser cutting machine use nodular cast iron machine body, after the overall natural elimination of internal stress, a precision machining process was completed with a large scale 5 axis machining center. With high rigidity, precision and good stability.
2. Whole cast aluminum beams used in 4020 fiber laser cutting machine, which ensure the high intensity and reduce the weight of the machine, reduced the Y axis of inertia in running at a high speed, which guarantees the machine in motion have a very high acceleration.
3. Automatic focus adjustment, no manual.
4. It adopts an up and down exchange platform. The concerver is responsible for controlling, the exchanging motor. The machine is able to finish the platform exchanging with 8s.
1. Stability and reliability of light path system and control system.
2. Imported original fiber lasers, high and stable function, lifespan is over 100000 hours.
3. Higher cutting quality and efficiency, cutting speed is up to 80m/min appearance and beautiful cutting edge.
4. German high performance reducer, gear and rack. Japanese guide ahd ball screw.
5. Stiffeners are arranged inside the tuber to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformantion of the bed.
4020 3300w fiber laser cutting machine as one classic model, widely used in life, such ad processing of stainless steel kitchware, storage cabinet and other cabinets, is closely related to people's daily life.

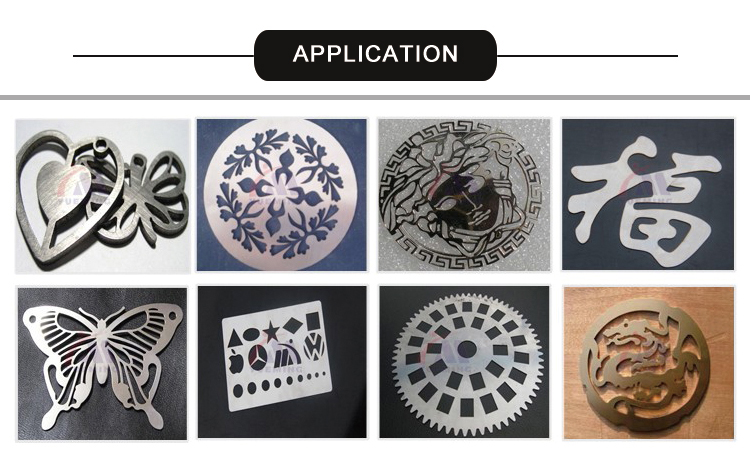

Used for cutting a variety of metal plates, mainly used in stainless steel, carbon steel , galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rate metal and other metal materials.
1.) Lifelong service.
2.) 24-hour full after sales service.
3.) All finished machine we delivered are 100% strictly tested by our QC department and engineering department.
4.) 2 years warranty, 2 years from the date of installation and commissioning included in the basic price of the machine.When installation and commissioning, you just need to offer diet and accommodation.
5.) In 2 years warranty, when the machine out of work, we will help you to solve the problem by photo or Wi-Fi remote assistance in problem solving. If can’t solve the problem, our technical personnel will arrive you factory, but the ticket room and board will be in your charge.
After 2 years, we only charge $50/day to give our technical and you offer the tickets, diet and accommodation.
6.) OEM Service customized and OEM orders are welcome due to our abundant.
