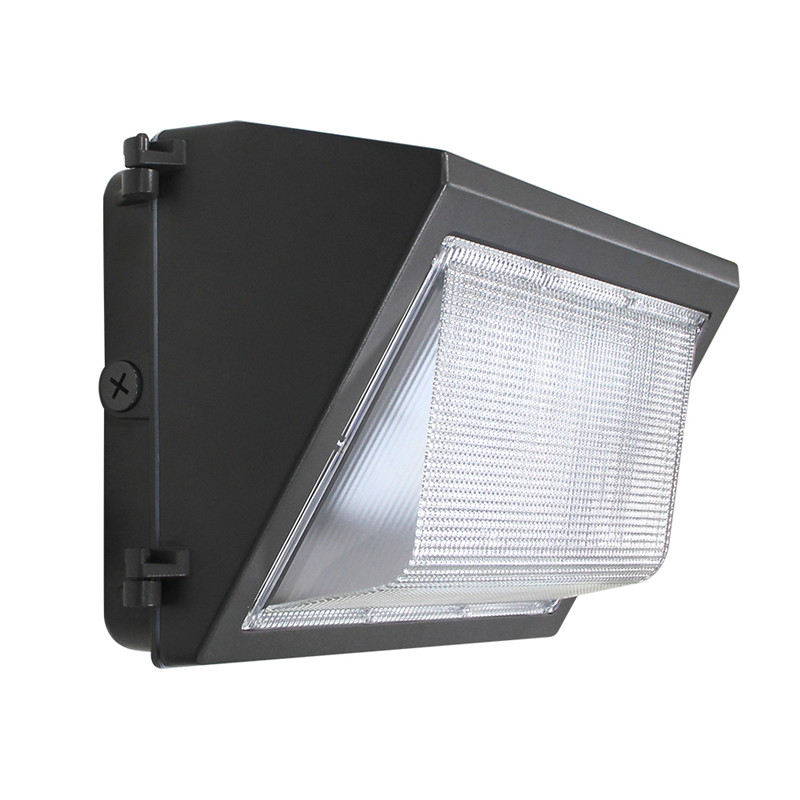

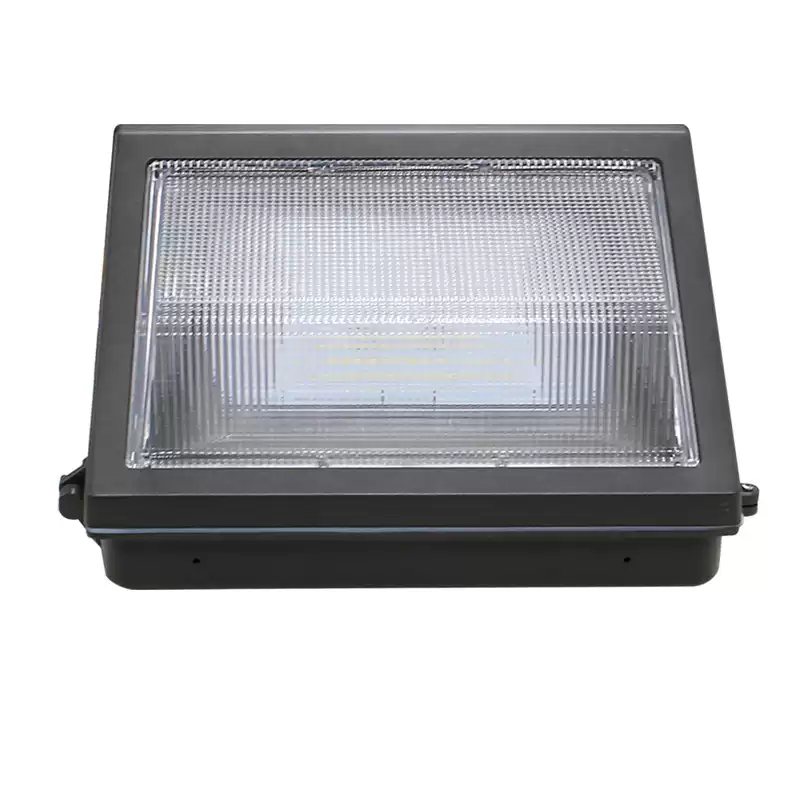

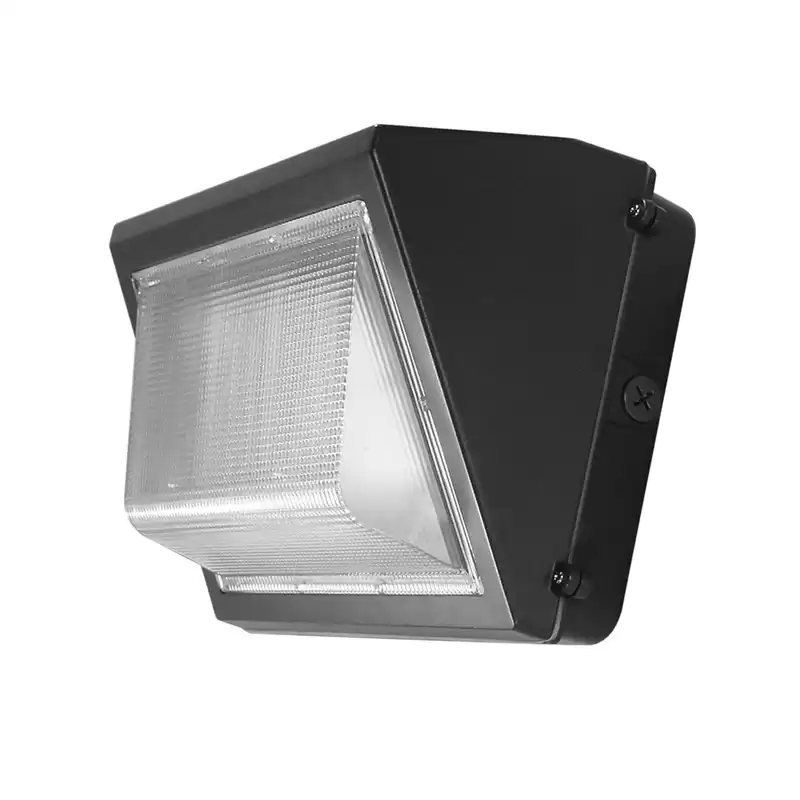

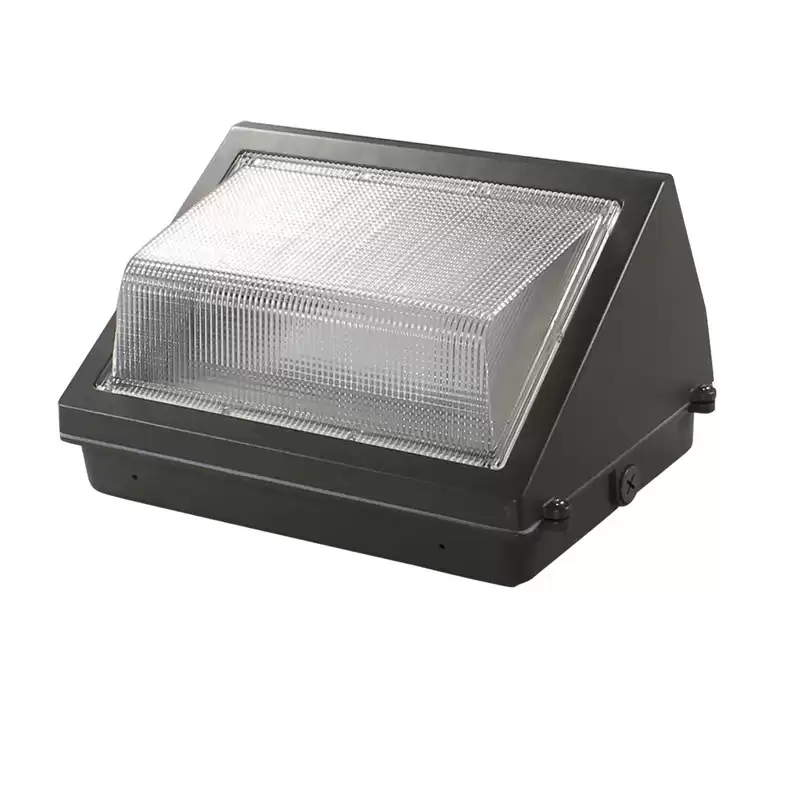

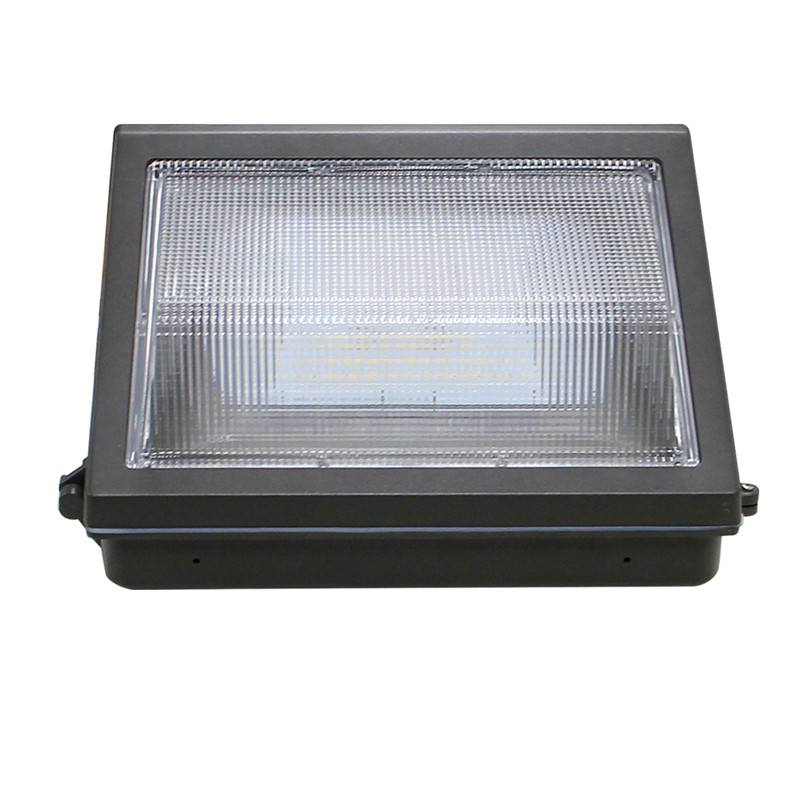

Half Cut Off LED Wall Pack
Wall Pack LED Light Fixtures are equipped with 42W/60W/80W/100W/120W optional power. Compared with traditional metal halide lamps, our wall lamps have more energy-saving advantages, not only with high performance, but also saving energy up to 84%. The sturdy compression rating and strong waterproof performance give it excellent durability and long-term reliability.
The waterproof wall pack light is stocked in the United States. The lamp has been tested and improved for a long time, and the lumen maintenance rate of 60,000 hours is more than 91%, which also saves a lot of maintenance costs. The LED PCB is mounted on a one-piece die-cast aluminum heat sink. The heat dissipation area is large, the head heat dissipation is fast, and the service life is long. Compared with other traditional lamps, its performance is prominent. It has a very good performance in terminal lighting, streets, tunnels, and building entrances.
Features of Outdoor LED wall pack light 48W
-DLC Listed（42W，60W，80W，100W，120W）
-ETL，cETL Listed
-High Lumens 120lm/w
-IP65 Wet Location
-Wall Mounted
-Photocell Removable
-5 Years warranty
Specifiction of LED wall pack 120w equivalent
|
Model No.:
|
WP-60B-XX
|
WP-60B-HV-XX
|
|
Power Consumption:
|
60W
|
60W
|
|
Input Voltage:
|
100-277Vac
|
220-480Vac
|
|
LED Type
|
120pcs SMD3030
|
|
|
Lumens Output:
|
120lm/W
|
|
|
CRI
|
70+
|
|
|
Color Temperature:
|
3000K, 4000K, 5000K, 5700K
|
|
|
Beam Angle:
|
120°
|
|
|
Power Factor:
|
>0.95
|
|
|
IP Rating
|
IP65 / Wet location
|
|
|
Working Temp.:
|
-20°C ~ 50°C
|
|
|
Storage Temp.:
|
-40°C ~ 70°C
|
|
|
Finish:
|
Browm
|
|
|
Housing:
|
Die-casting Aluminum
|
|
|
Diffuser:
|
Plastic
|
|
|
Installation:
|
Surface mounted
|
|
|
Fixture Weight:
|
3.5kg(7.7lb)
|
|
|
Lifespan(L70):
|
>80,000 Hours
|
|
Packing of Outdoor LED wall pack retrofit kit
|
Item
|
Q'ty/CTN
|
G. W.
|
CTN Size
|
|
WP-60B-XX
|
1
|
4.2kg(9.3lb)
|
40x30x24cm(0.29cbm)
|
|
Item
|
20’GP
|
40’GP
|
40’HQ
|
|
WP-60B-XX
|
966
|
2000
|
2345
|

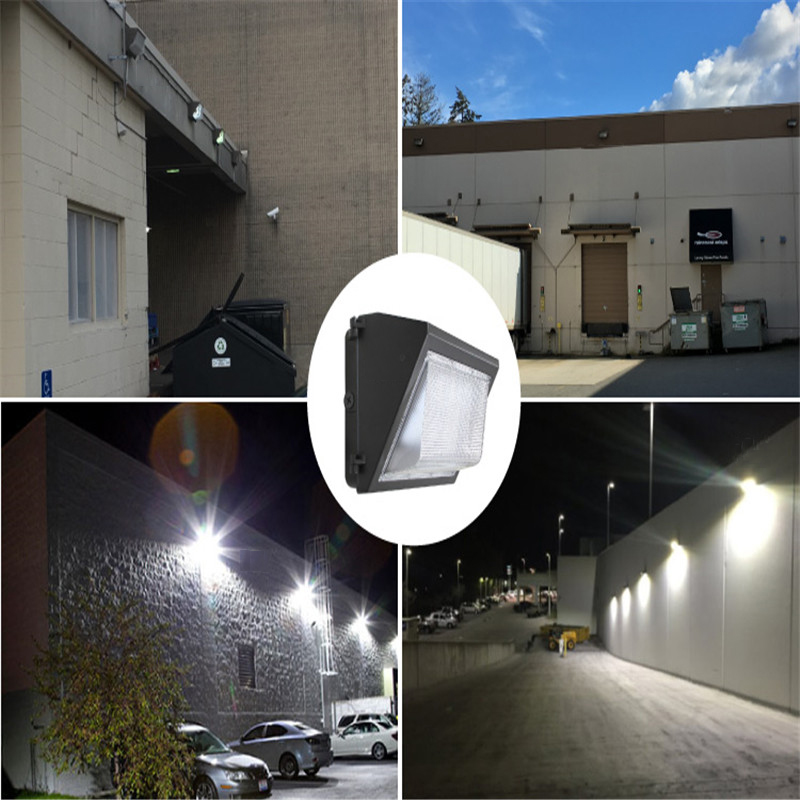

Application of LED wall pack light with photocell
- pathway illumination
-building entrances
-vehicle ramps
-schools
-tunnels
-stairways and loading docks
FAQ：
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting distribution warehouses in California，Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
